Byte Button Unit with 8x Buttons (STM32G031)

SKU:U192

Regular price $7.50

10+ In Stock

Shipping calculated at checkout.

Description

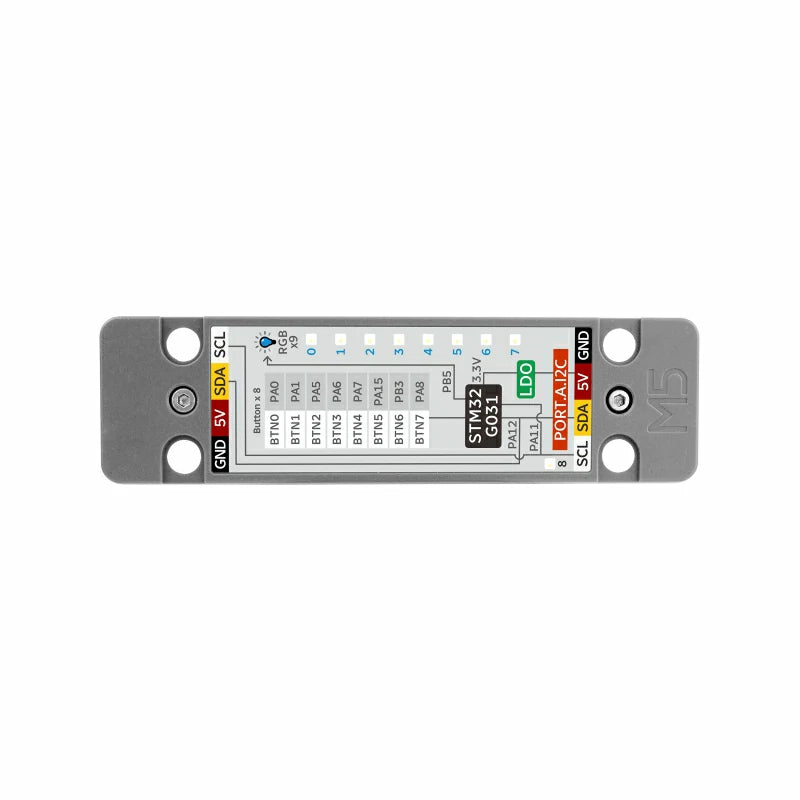

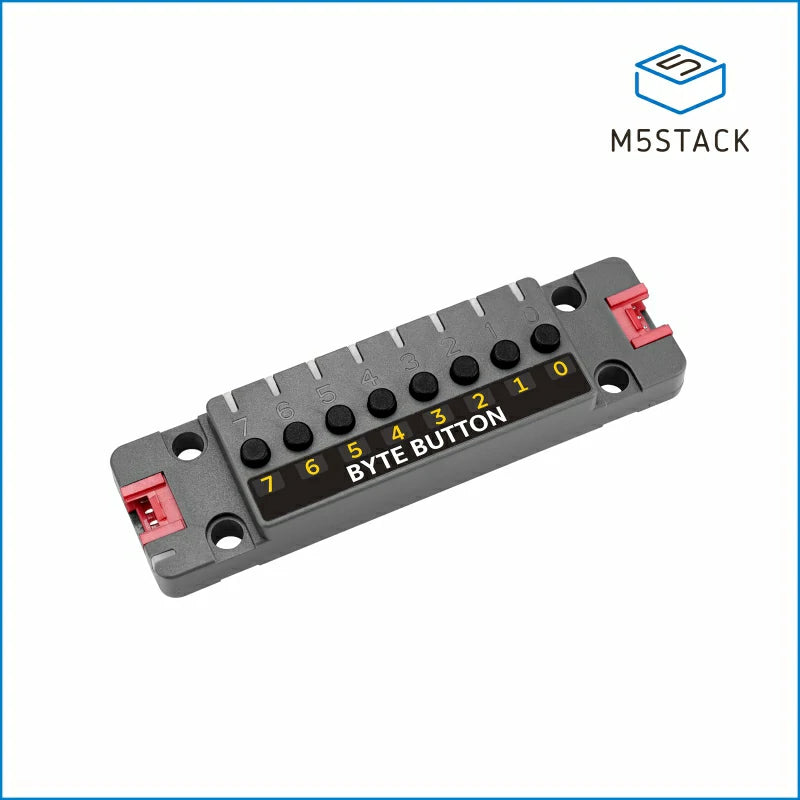

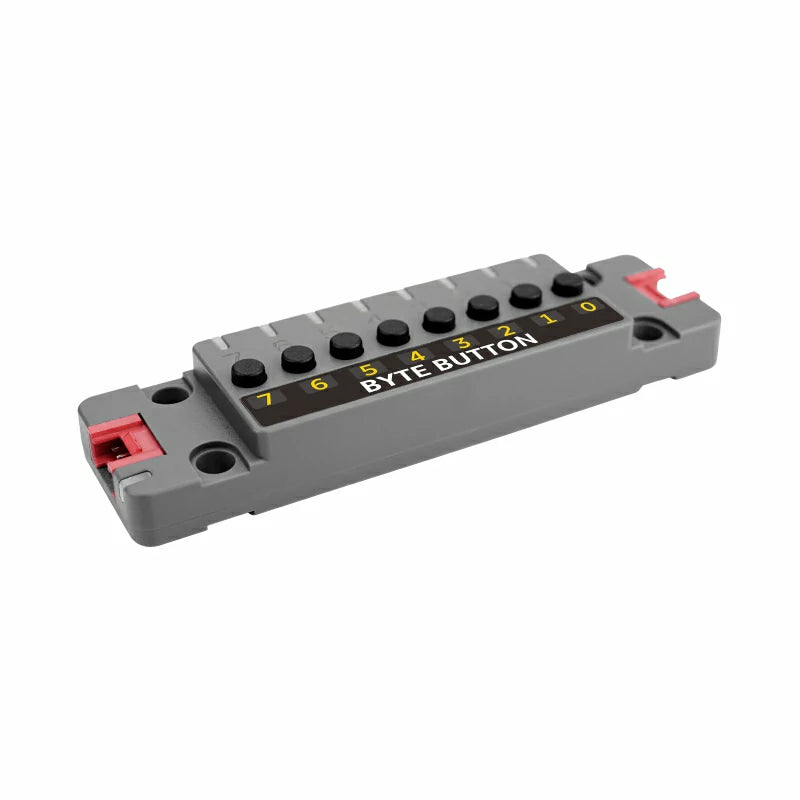

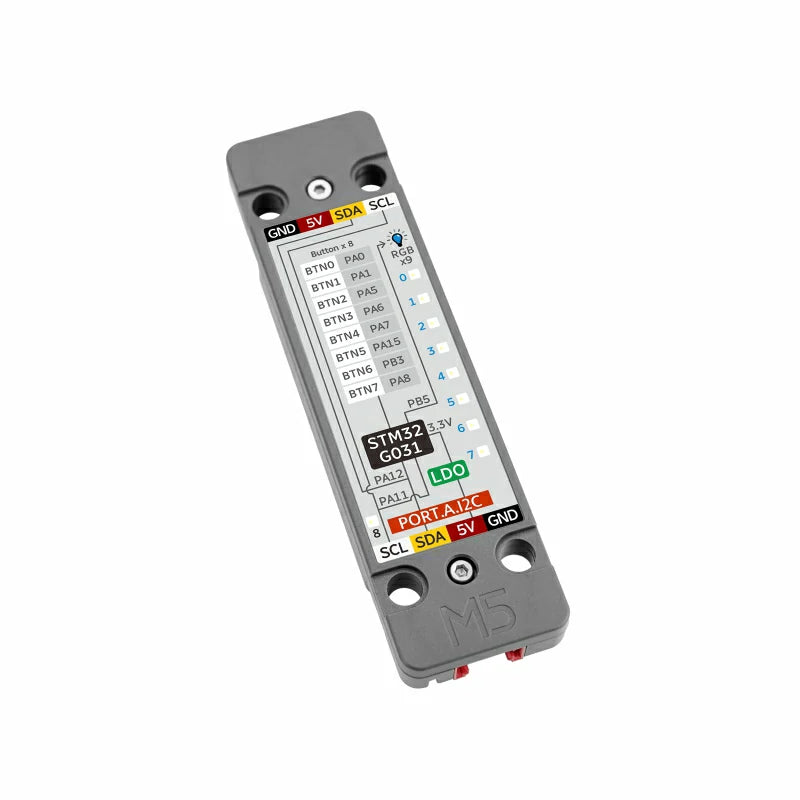

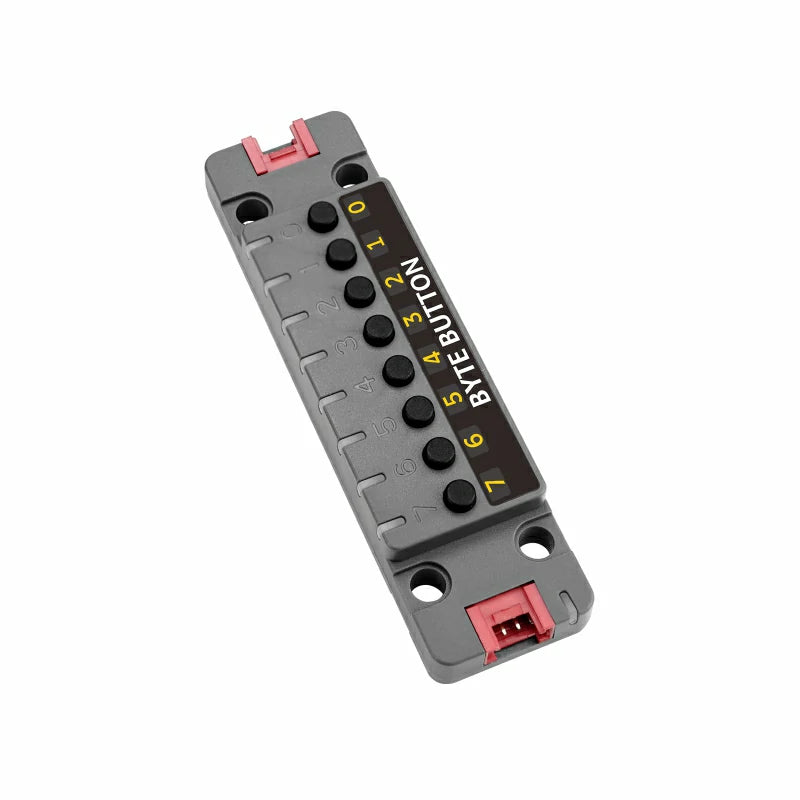

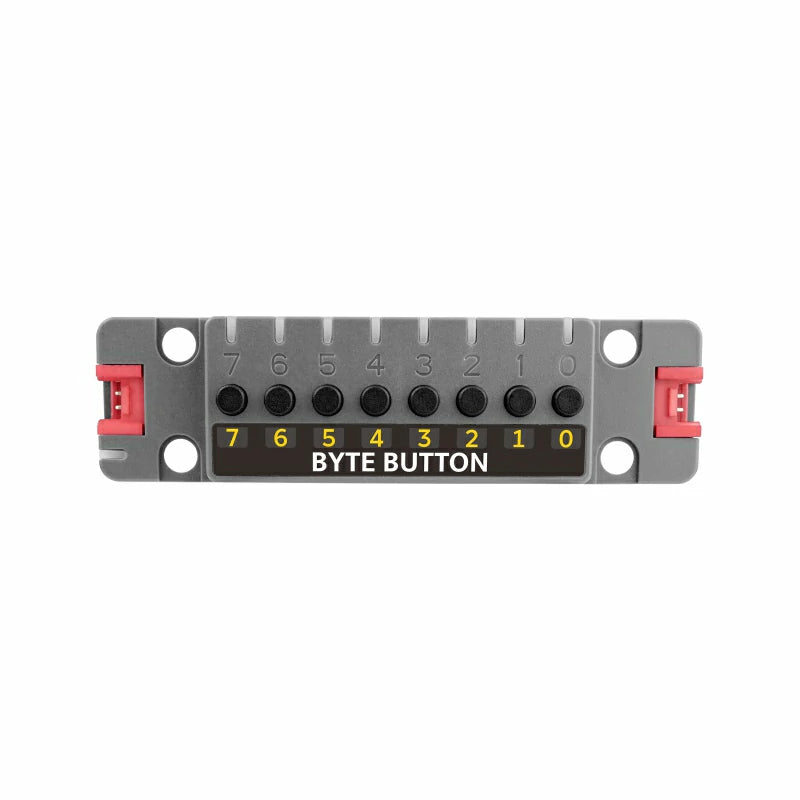

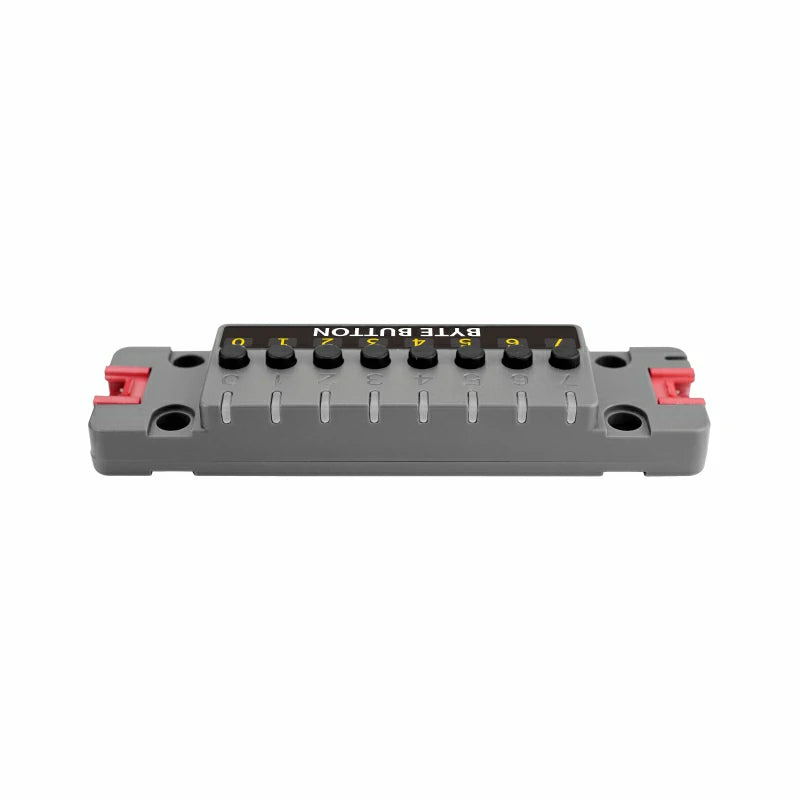

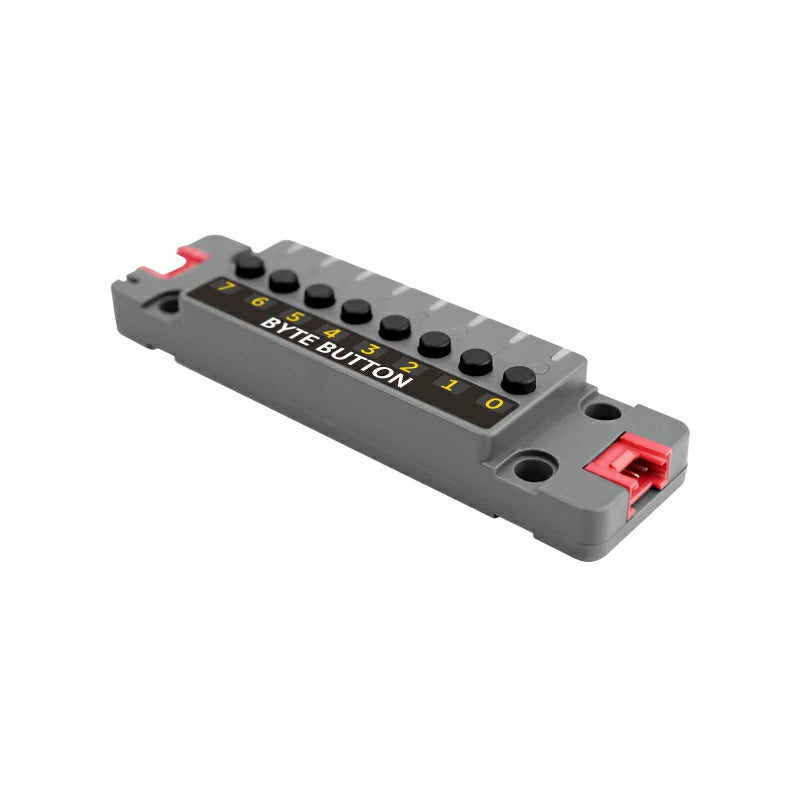

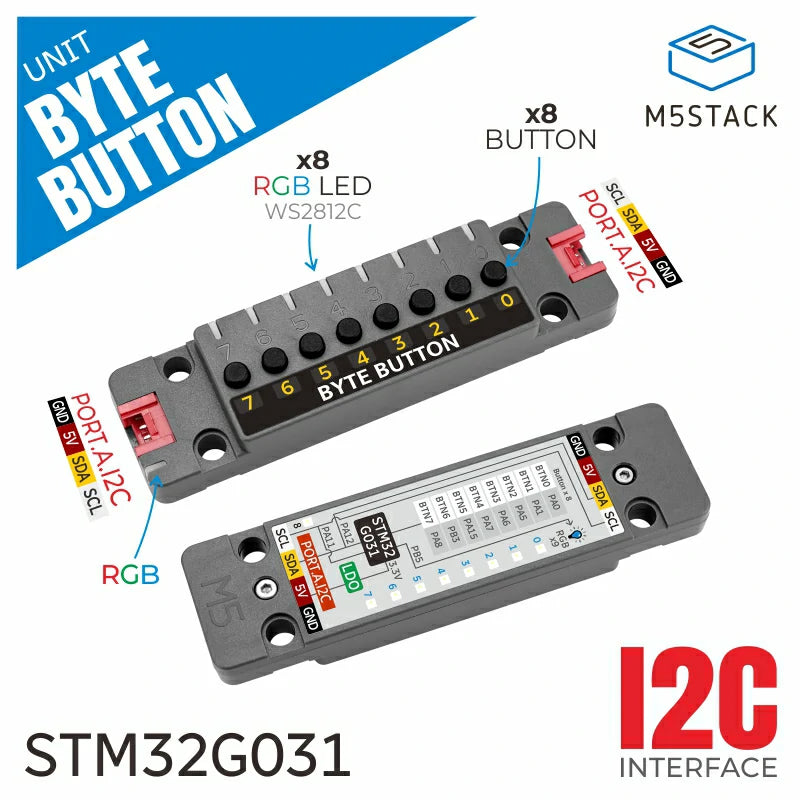

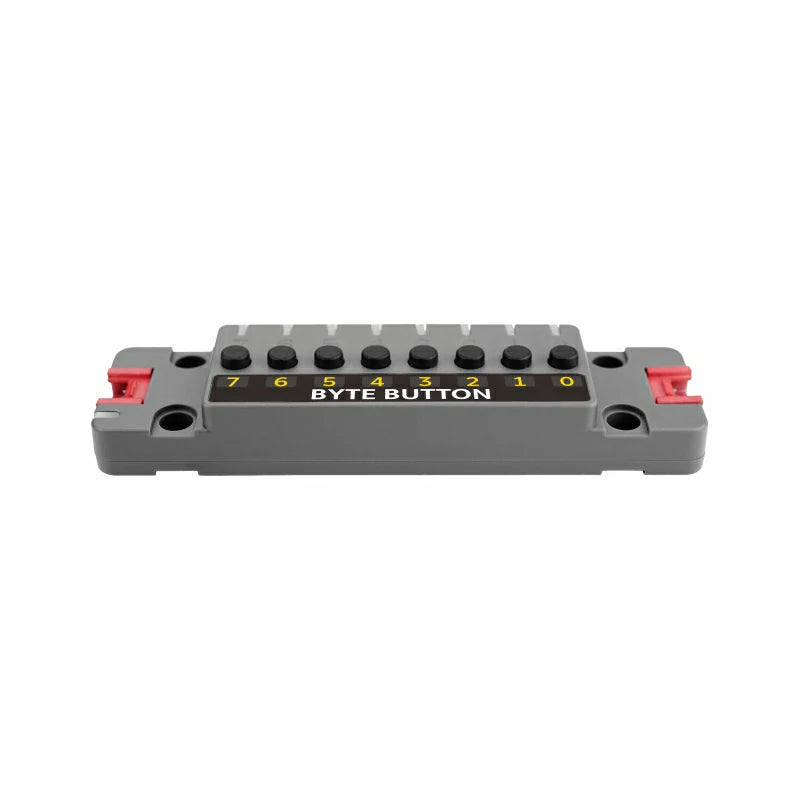

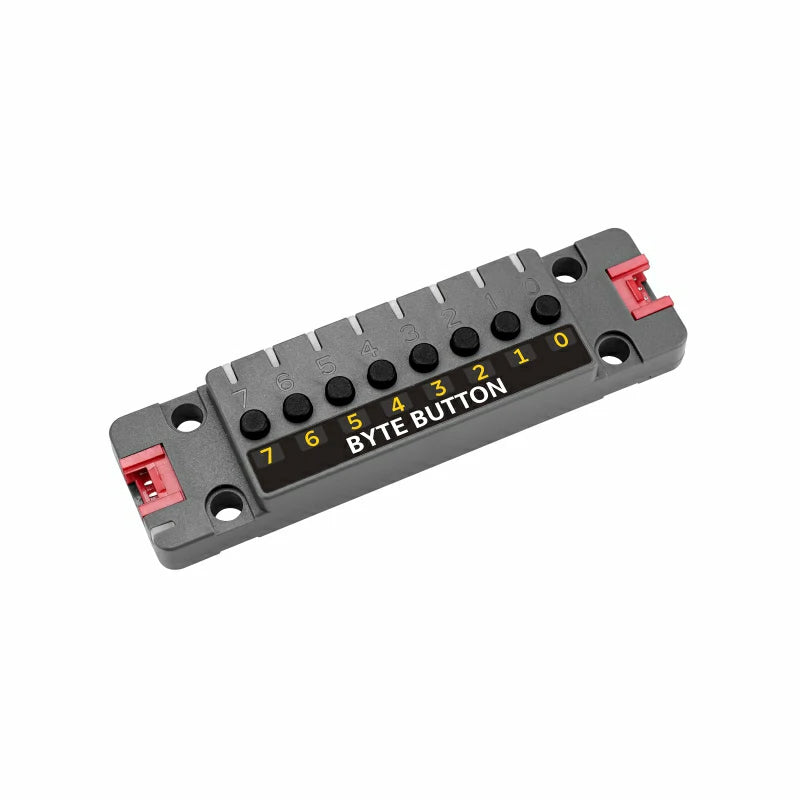

Unit ByteButton is an 8-button touch switch input unit equipped with 8 button inputs and 9 WS2812C RGB LEDs. It uses the STM32 microcontroller and supports I2C communication. The board includes two Port A interfaces and supports cascading multiple Unit ByteButton modules, making it suitable for complex systems. It can achieve button input detection and dynamic lighting feedback, ideal for smart home control, gaming devices, educational platforms, industrial status displays, and interactive exhibitions.

Features

  • 8 independent button inputs
  • 9 WS2812C RGB LEDs
  • STM32 microcontroller
  • I2C communication interface

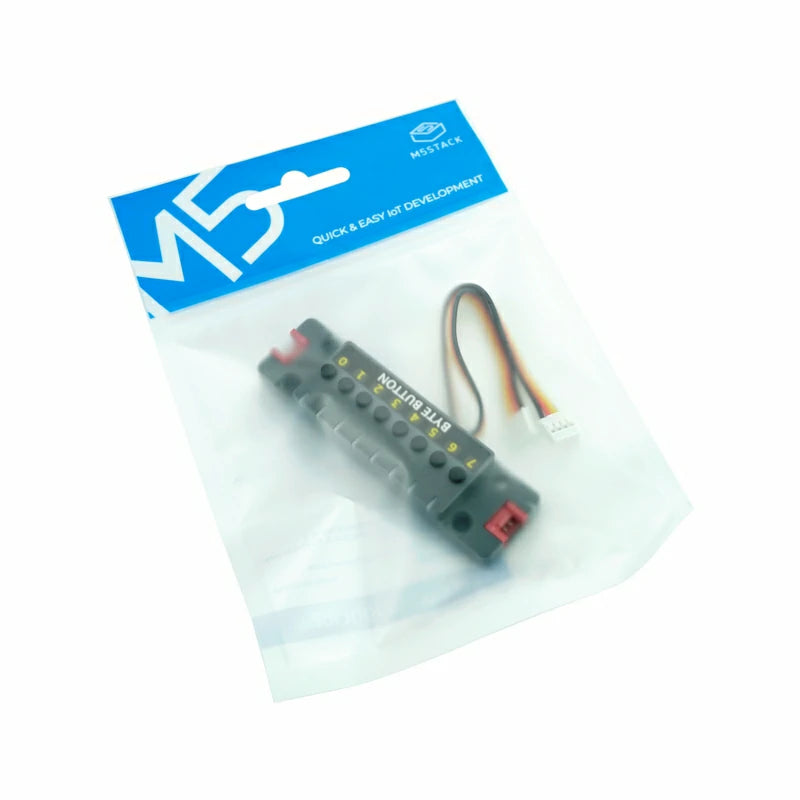

Included

  • 1x Unit ByteButton
  • 1x HY2.0-4P cable (20cm)

Applications

  • Smart home control panels
  • Gaming or entertainment device controllers
  • Educational and laboratory development platforms
  • Status control and feedback devices
  • Portable device debugging tools
  • Interactive exhibitions or scene controllers
  • User interface for small instruments

Specifications

Specification Parameter

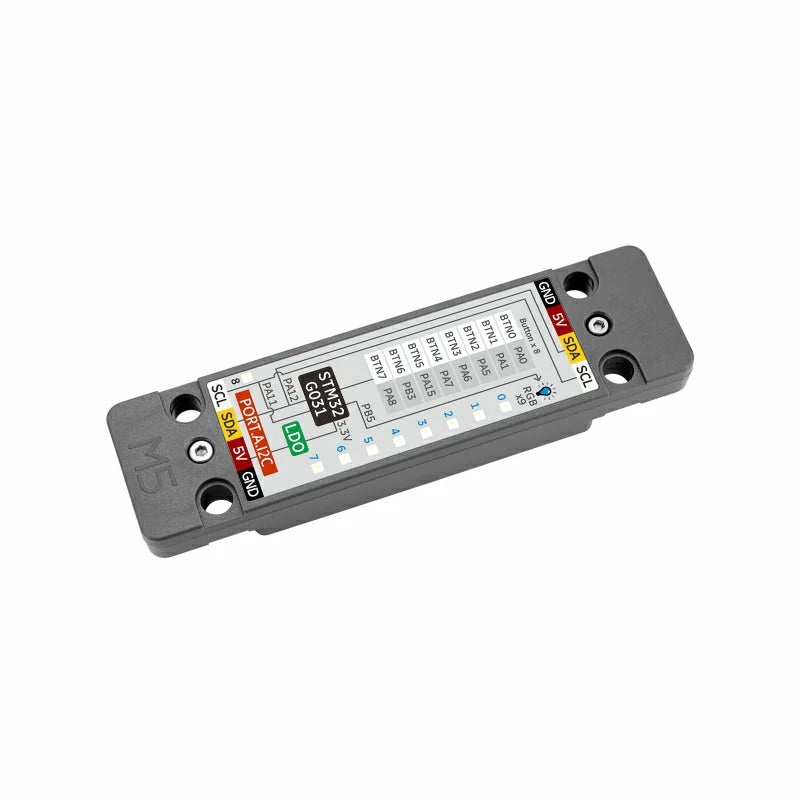

MCU STM32G031G8U6, 32-bit ARM Cortex-M0+ core, 64 MHz
Button Count 8 independent button inputs
Button Type Capacitive touch buttons
RGB LEDs WS2812C-2020 (9 LEDs)
Communication I2C @ 0x47

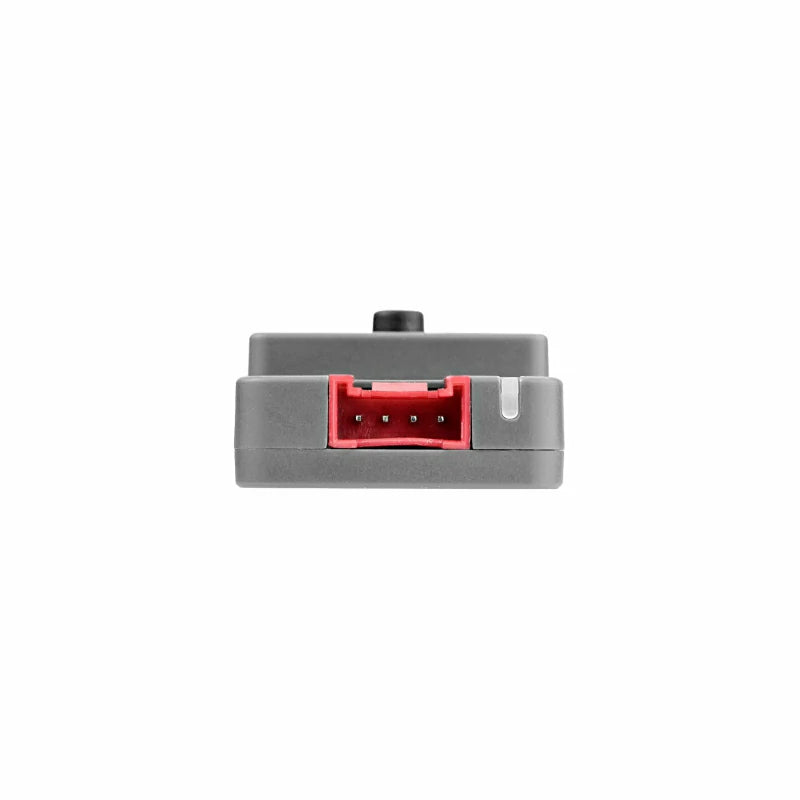

Grove Interface 2 (I2C bus expansion)
Standby Power DC 5V@8.94mA
Operating Temp 0-40°C

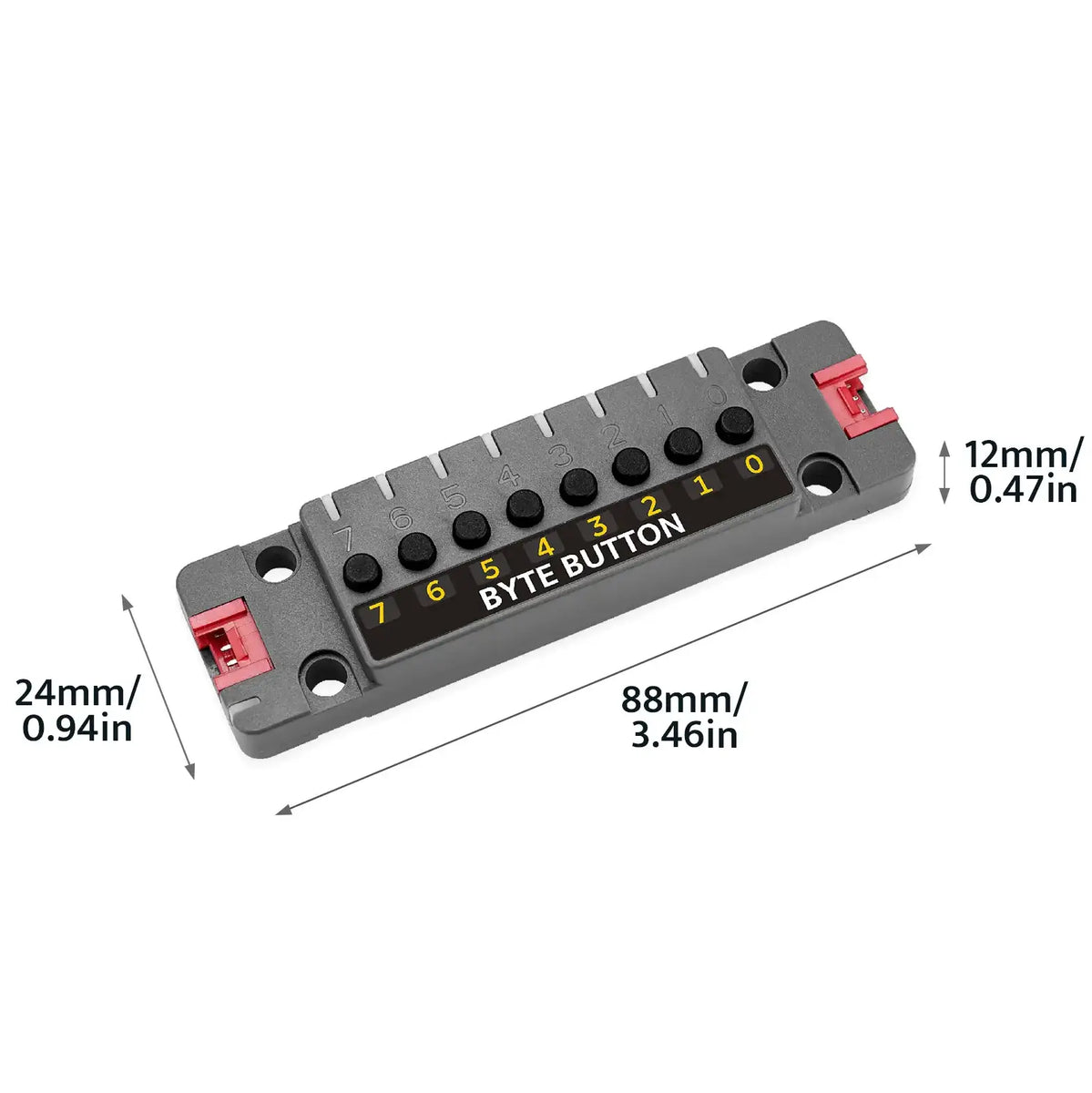

Product Size 88*24*12mm
Package Size 169*119*13mm
Product Weight 15.1g
Package Weight 21.5g
