BUS Module M5STACK M-BUS Connection

Description

Module Bus is a bus expansion module in the M5Stack stackable module series. This module allows you to add some of your own circuit designs via a universal board and interact with the M5Core through the M5-Bus. Like other M5 stackable modules, the Module Bus can be connected to modules on other layers via the M5-Bus. It also supports extending the M5-Bus to the other side of the module for pin breakout. The module accessories include a 2 * 15 90-degree pin header. When using the pin breakout, you need to cut the grating on the side of the Module Bus to facilitate the connection of the pins with the external.

Features

• Universal board - 200 board holes
• IC pitch: 2.54mm

Includes

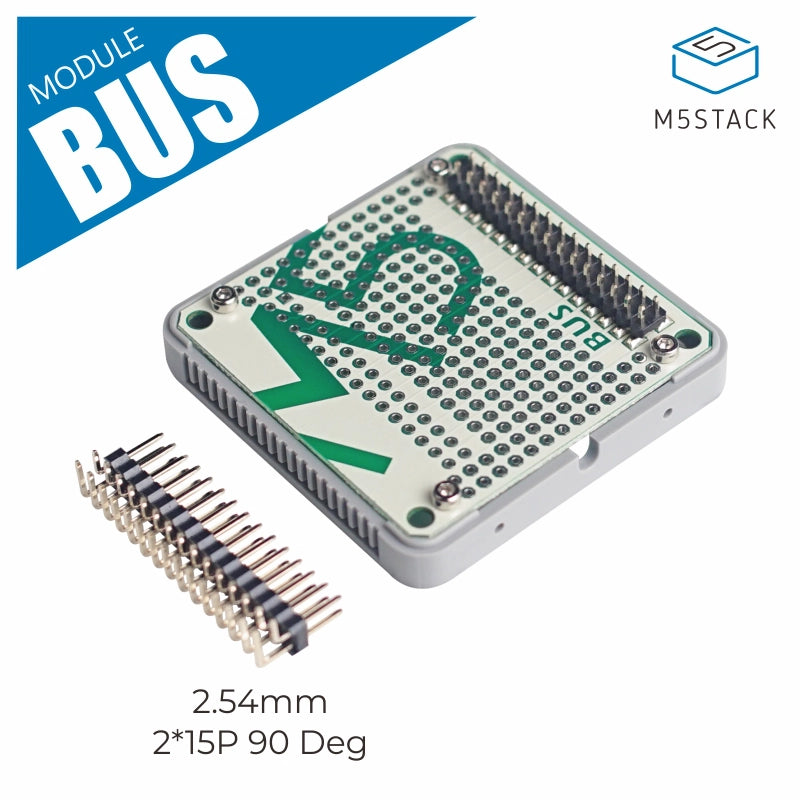

• 1 x Module Bus
• 1 x 2*15P 90° pin header

Specifications
