Description

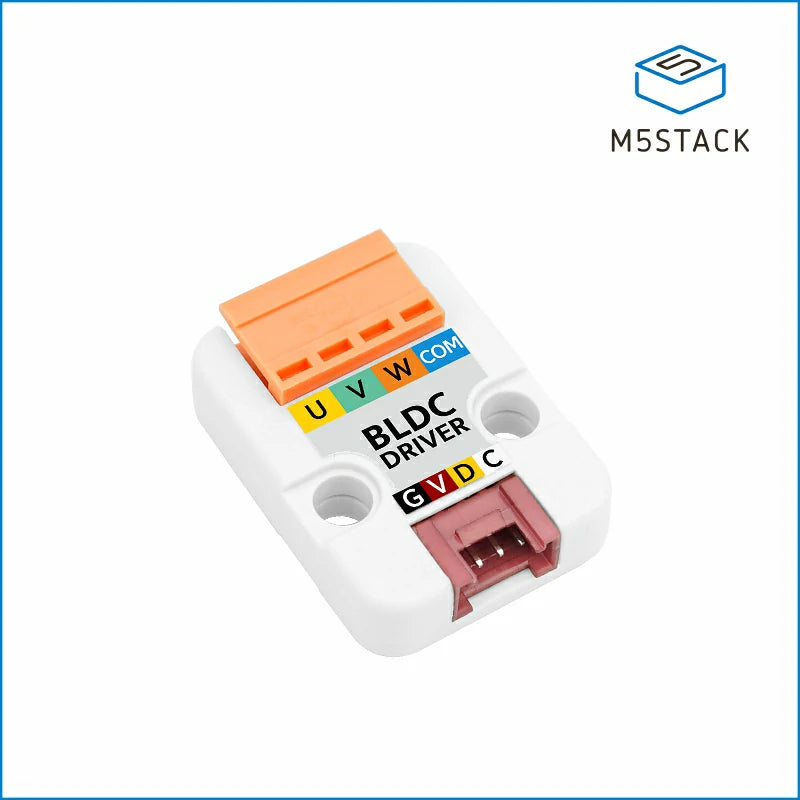

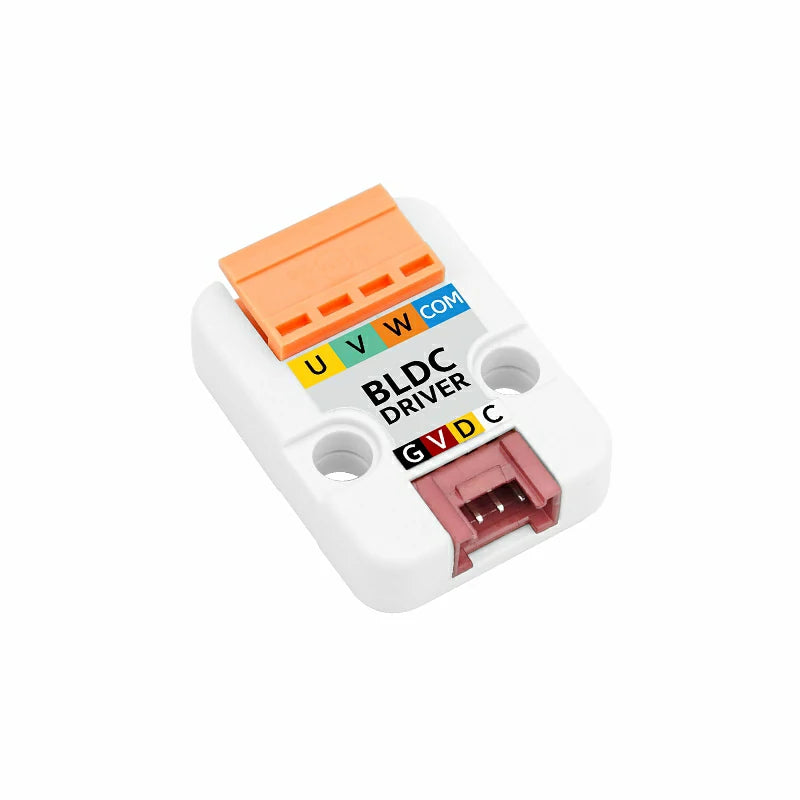

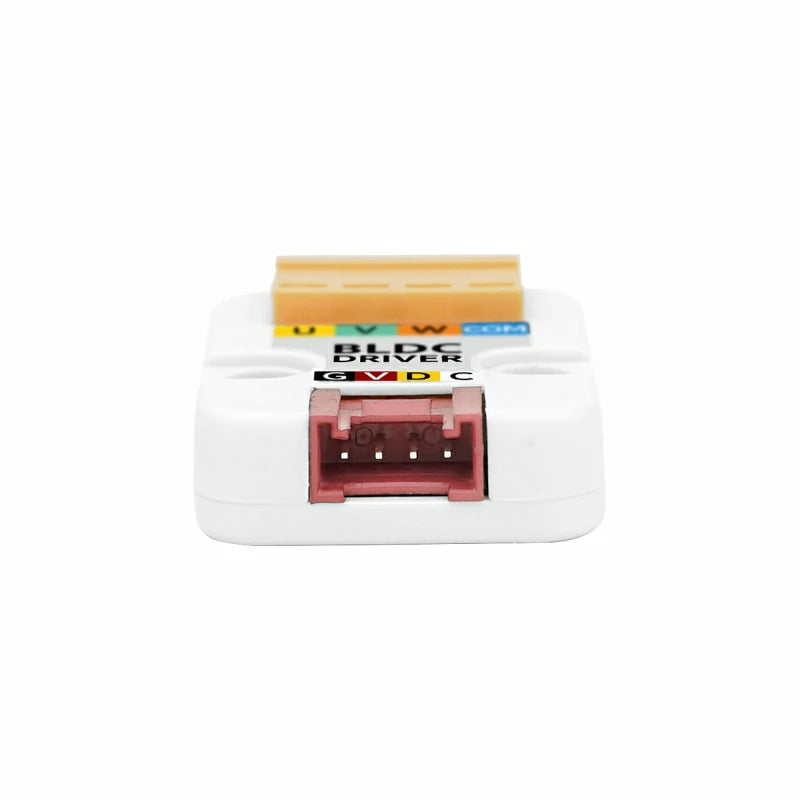

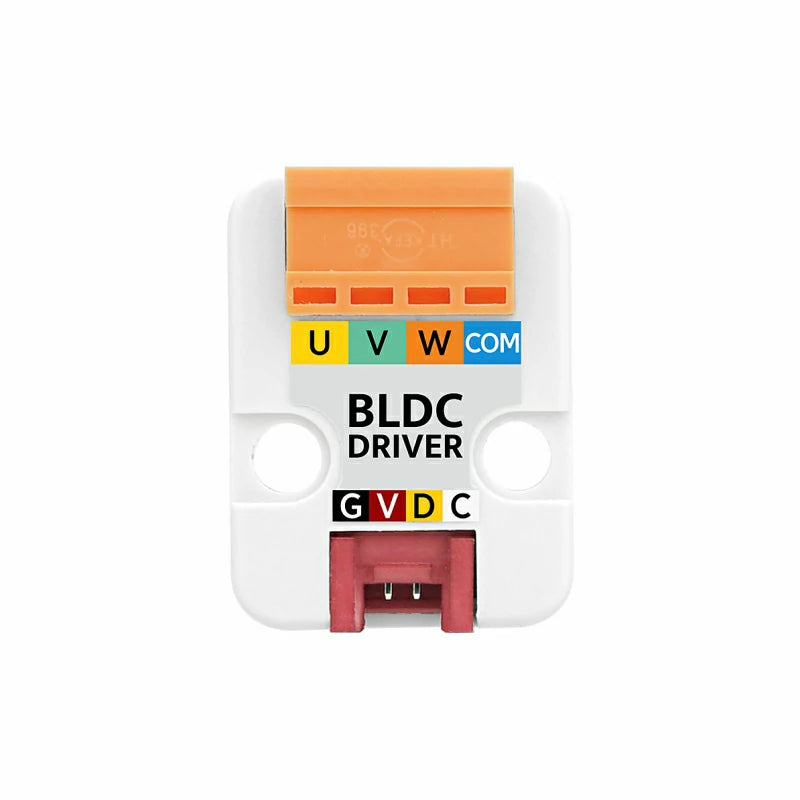

The Unit-BLDC Driver is a driving unit specifically designed for Brushless DC Motors (BLDC), utilizing an STM32 as the primary control chip. It enables precise control over the DRV11873PWPR motor drive chip through I2C communication, facilitating PWM speed control adjustment, monitoring, and direction switching functionalities. This drive chip features a simplified control interface and integrated stall protection, ensuring efficient and low-noise operation of three-phase small brushless DC motors. The onboard STM32 upgrade interface facilitates firmware updates and functional expansions, making it suitable for applications in industrial automation, smart robotics, precision instruments, and other fields.

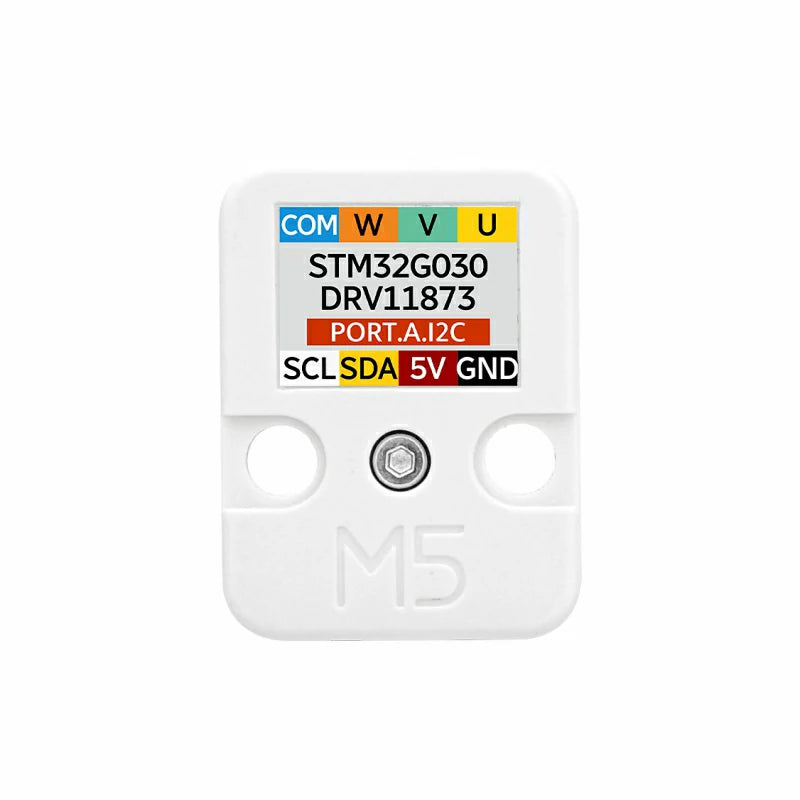

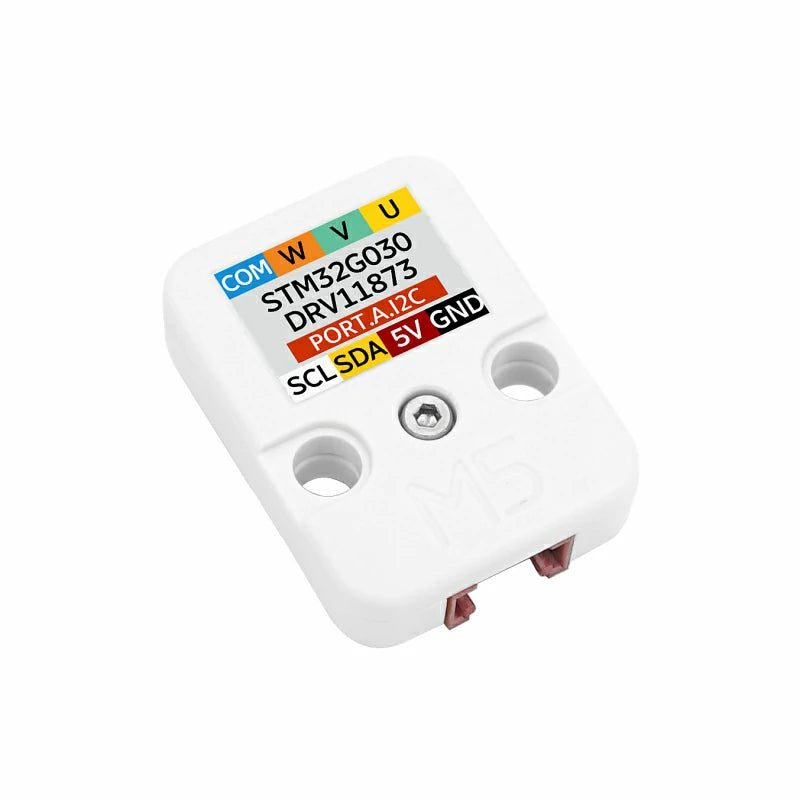

Features
- STM32 Main Control
- I2C Communication (0x65)
- DRV11873 Drive control
- BLDC（brushless DC motor）
- PWM speed configuration, control, direction switching and other functions
- Blocking rotation protection
- Firmware upgradable

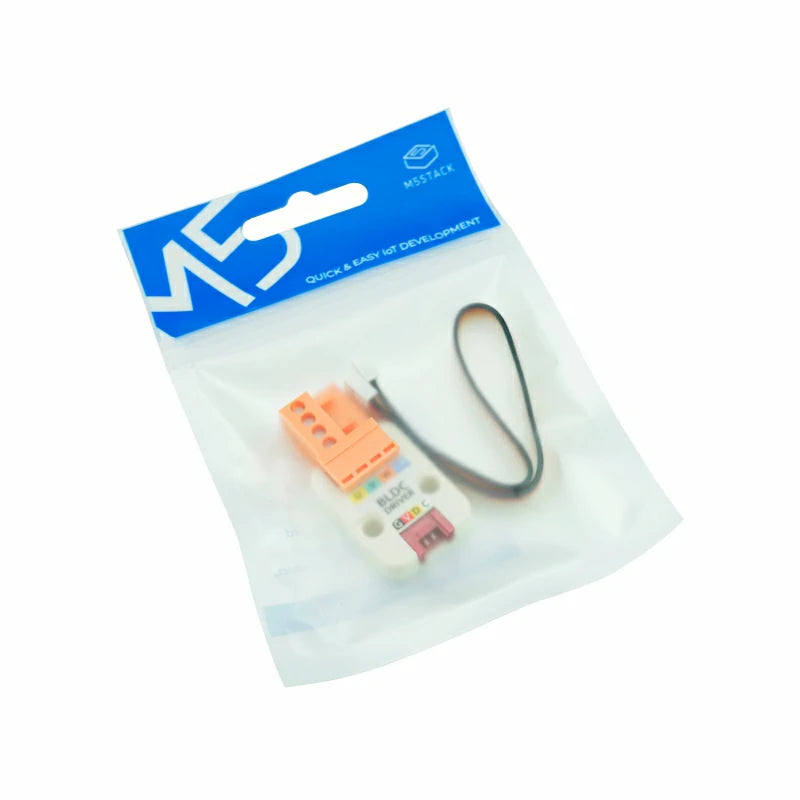

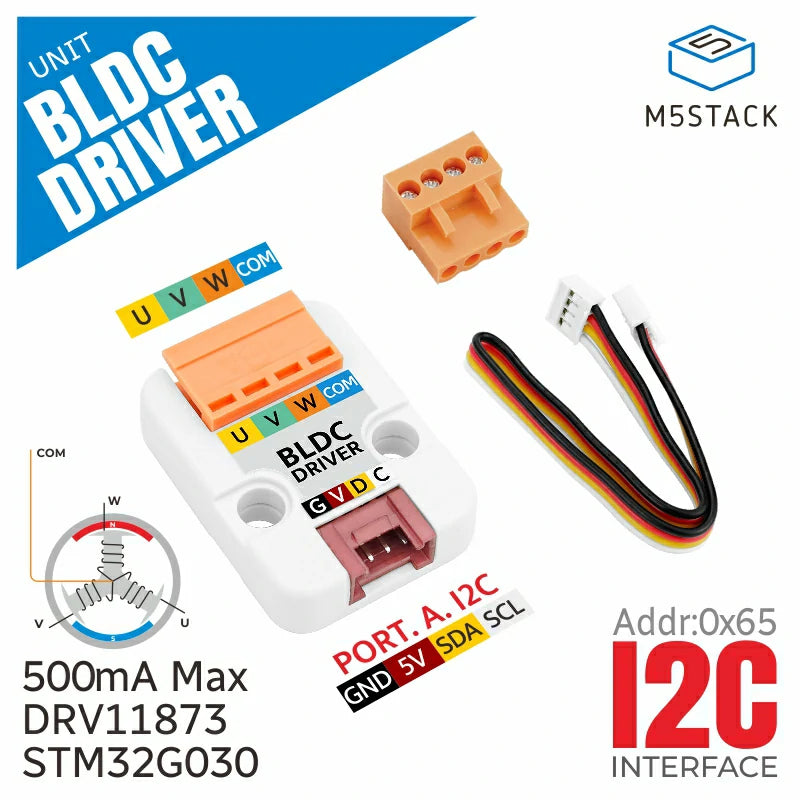

Includes
- 1x Unit-BLDC Driver
- 1x HY2.0-4P Cable
- 1x VH3.96-4P
Applications
- Automation in industry
- Intelligent robot
- Precise instrument
Specification
| Resources | Parameters |
|---|---|
| Motor driver chip | DRV11873PWPR |
| Type of motor | Three-phase sensorless, brushless direct current (BLDC) motor |
| Motor drive voltage | 5V(Powered by Grove port) |
| I2C communication address | 0x65 |
| Output load capacity | DC5V/508mA |
| Power dissipation | Standby current :DC5V/ 10.62mA Working current :DC5V/13.20mA |
| Operating temperature | 0-40°C |
| Product Size | 32*24*11.3mm |
| Package Size | 136* 92* 13.7mm |
| Product Weight | 4.3g |
| Package Weight | 12.5g |
