Description

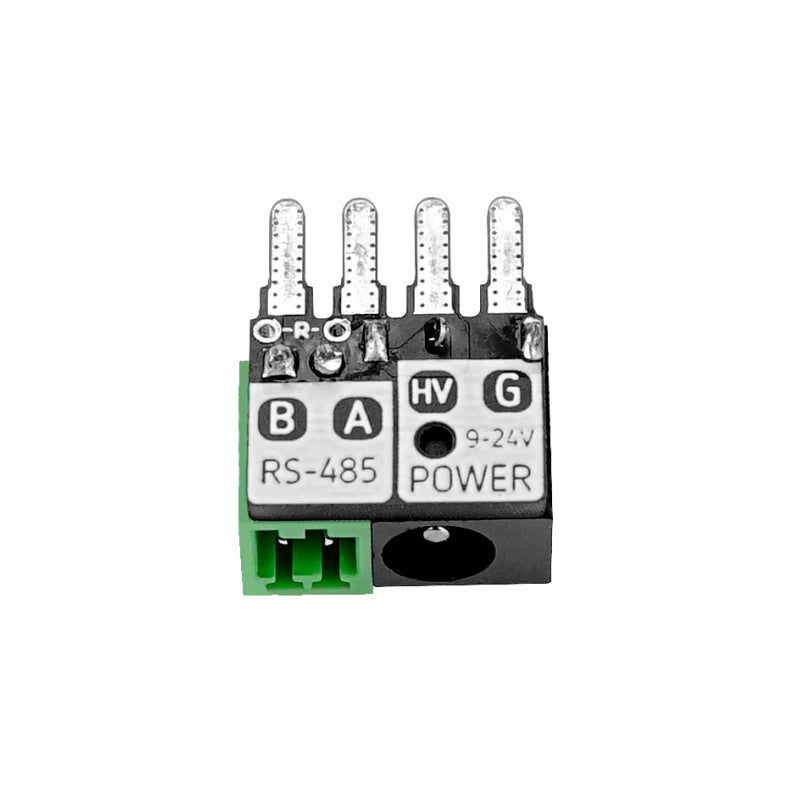

BAVG2Socket is a transfer line terminal suitable for RS485 line construction. The conversion head integrates the 2.54-2P terminal and the DC power input interface into a 3.96-4P specification terminal. It is convenient to access the equipment using 3.96-4P interface in the M5 hardware system. The equipped DC power interface can facilitate users to use commonly used DC adapters as power input.
Product Features
- DC power interface
- RS485 transfer terminal

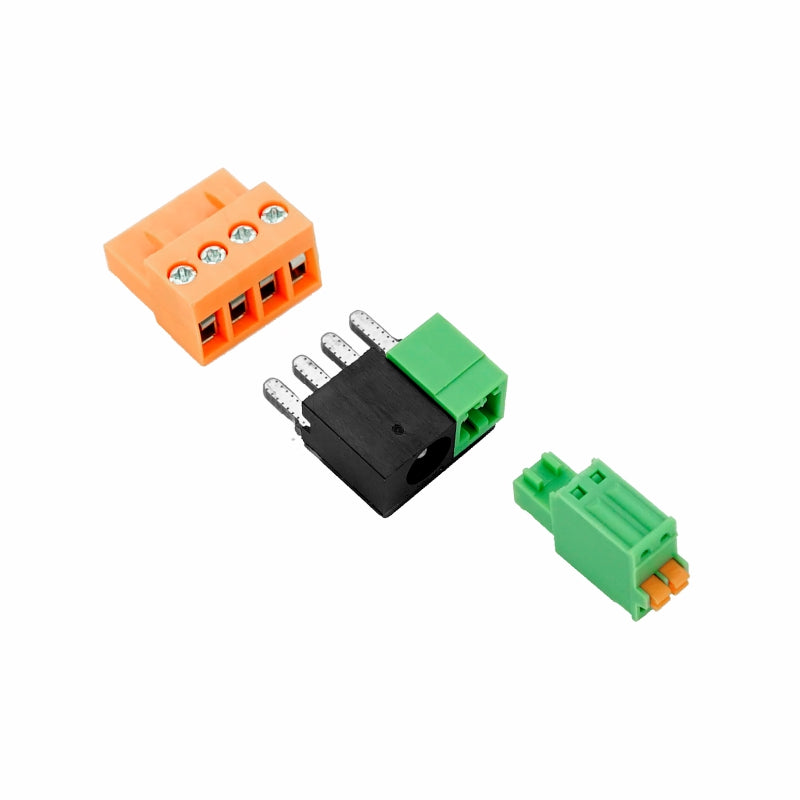

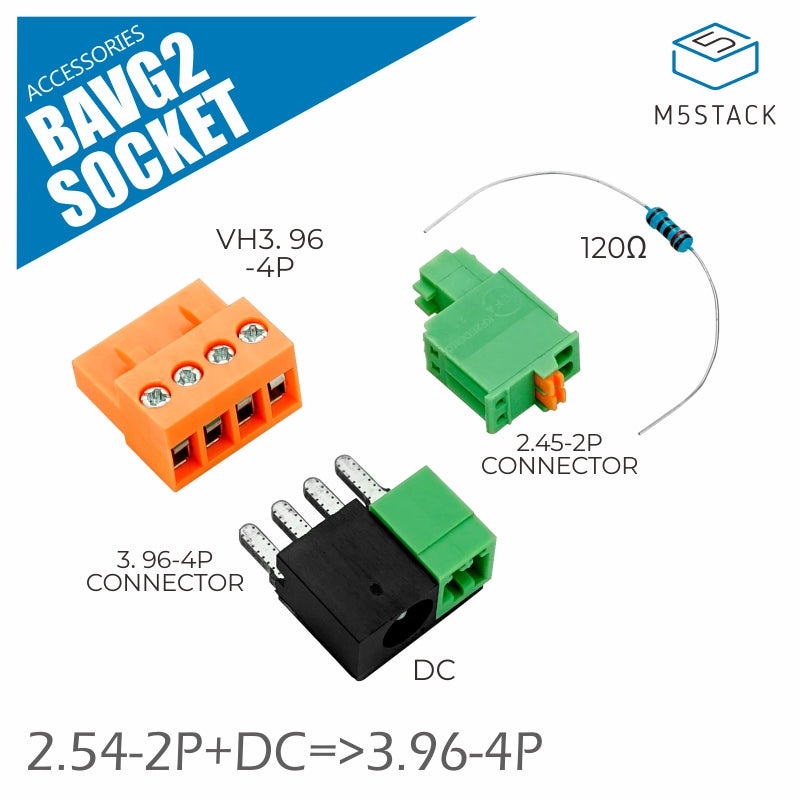

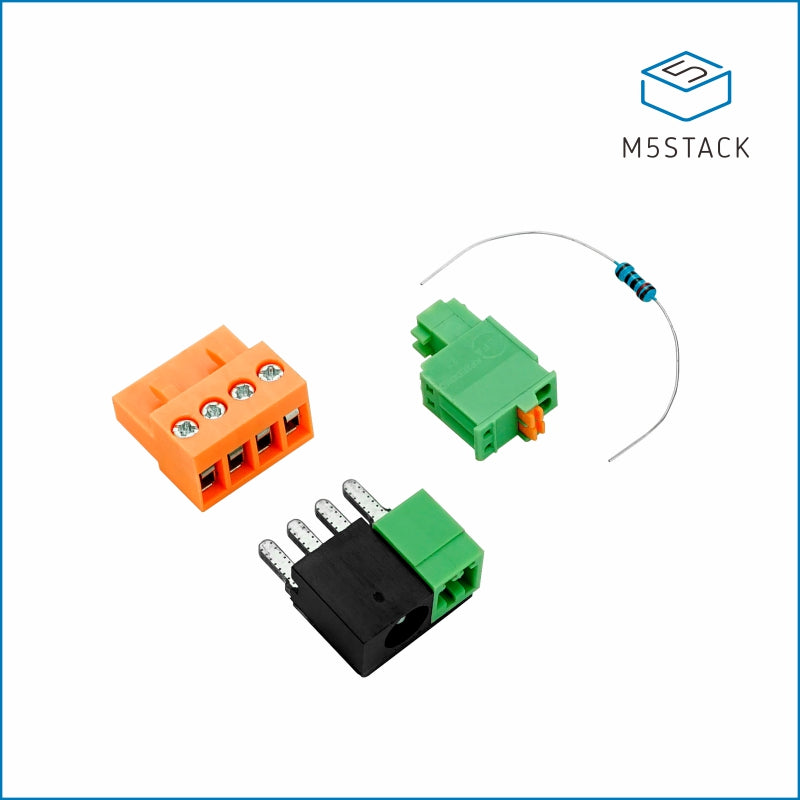

Includes
- 1x 120Ω plug-in resistor
- 1x 2.54-2P connection terminal
- 1x 3.96-4P connection terminal
Specification
| Resources |
Parameter |
| DC input |
Voltage: 9-24V, Model: DC-IN-TH_DC-0440-2.5A-2.0 |
| Net weight |
6.7g |
| Gross weight |
10.7g |
| Terminal specifications |
2.54-2P+DC-0440 to 3.96-4P |
| Product Size |
17*30*10mm |
| Package Size |
35*36*18mm |
