Battery Module for ESP32 Core Development Kit

SKU:M002

Regular price $7.95
Shipping calculated at checkout.

10+ In Stock

Description

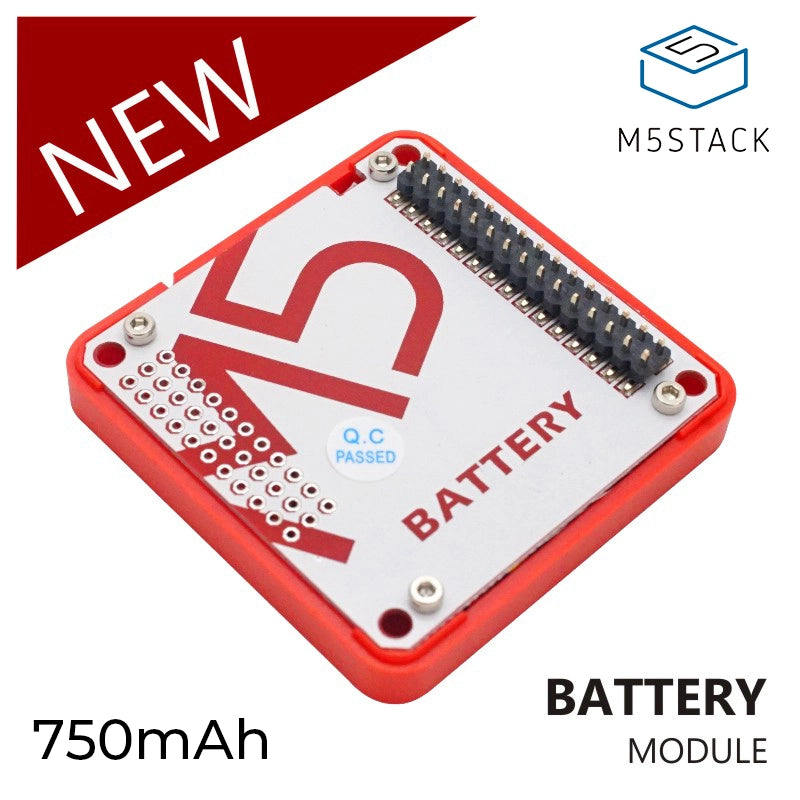

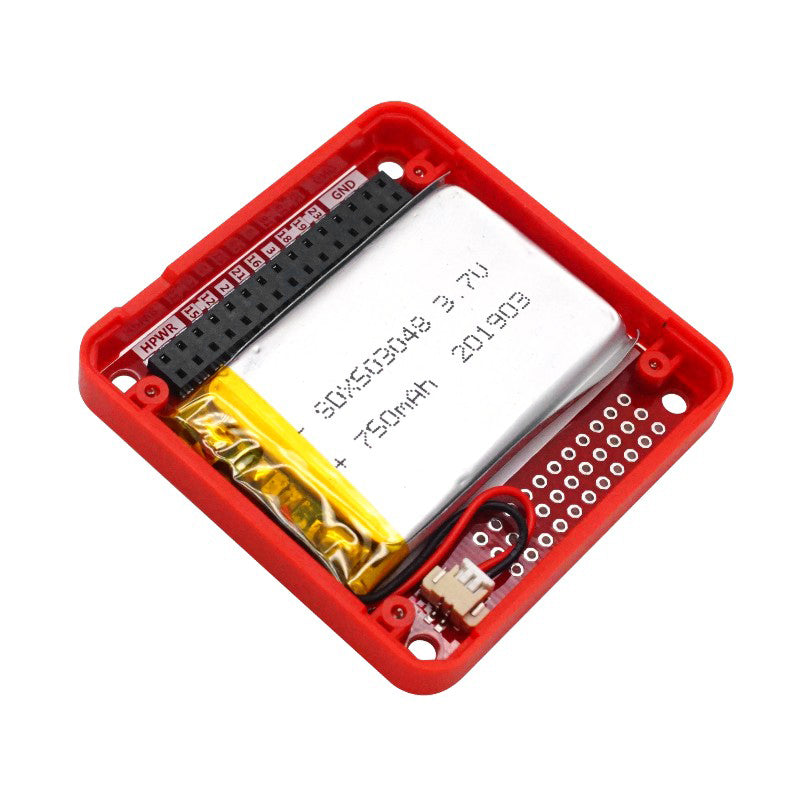

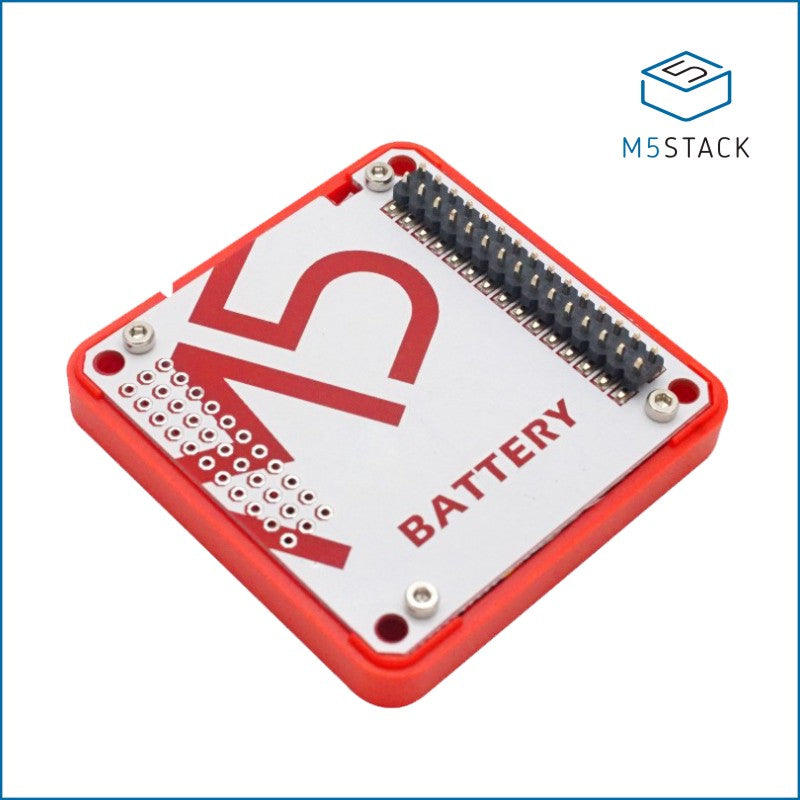

BATTERY: The Battery extension module is a 750mAh battery ADD-ON.

Would you like to make a demo or prototype that requires longer battery life? Perhaps using the battery in M5GO base and Basic base is not enough not for you.

Here comes the BATTERY which is a handy M5modules to upgrade your Lipo battery life. Since the Lipo batteries can work in parallel, you can stack multiple batteries to maximize your power endurance.

CAUTION: The safety of Lipo battery is affected by many conditions. Overcharge, over-discharge, over-temperature, short circuit, crush and nail penetration may all result in a catastrophic failure, including the pouch rupturing, the electrolyte leaking, and fire. Although every battery we offer have accompany by a protection circuit board, using Lipo battery in you product still needs to be treated with caution

Once the BATTERY is stacked underneath the M5 controller, the battery positive pole is connected to VBAT pin at IP5306

Product Features

  • 750mAh High-Capacity Battery

Include

  • 1x M5Stack BATTERY Module

Specification

Resources Parameter
Net weight 24g
Gross weight 36g
Product Size 54*54*14mm
Package Size 60*57*17mm
