Description

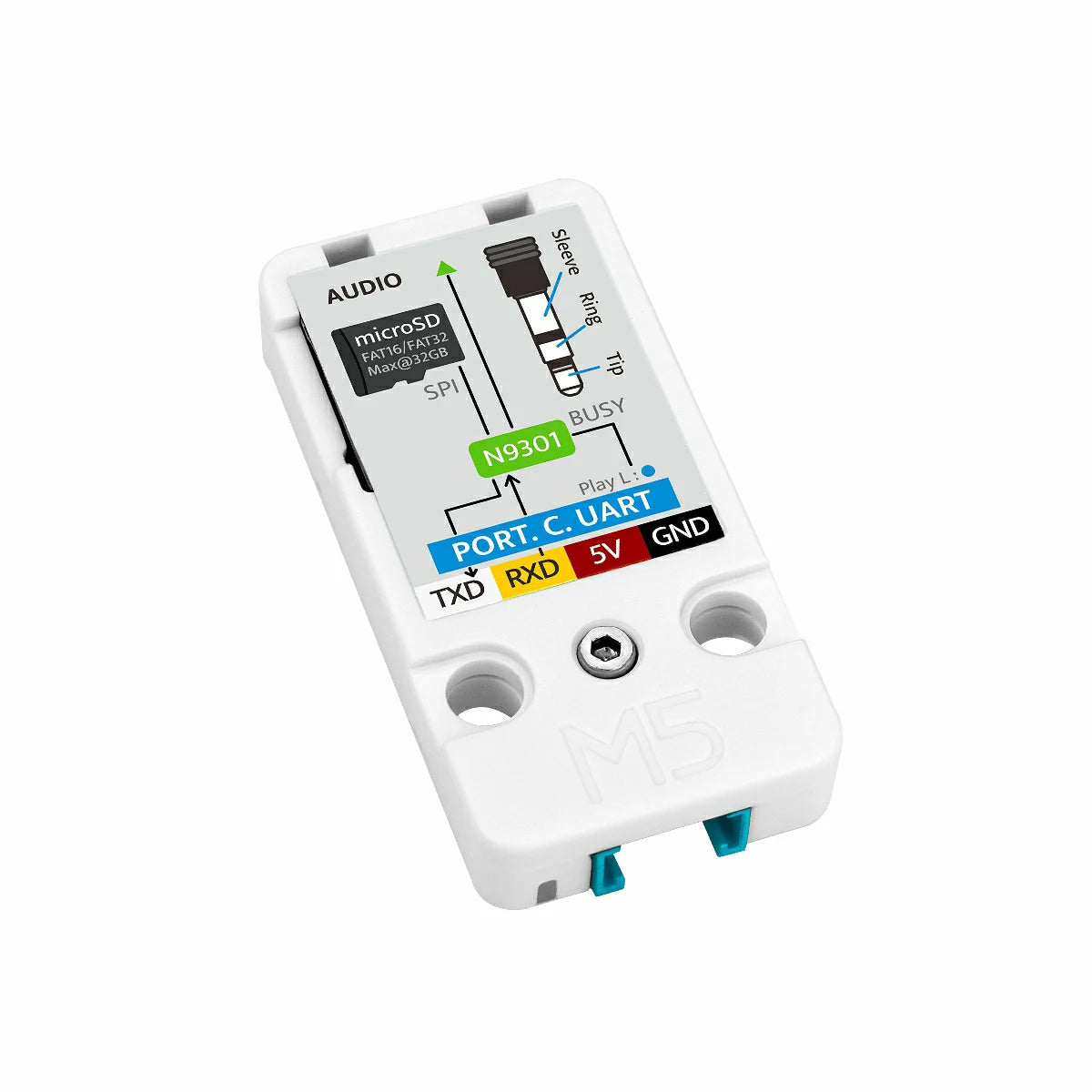

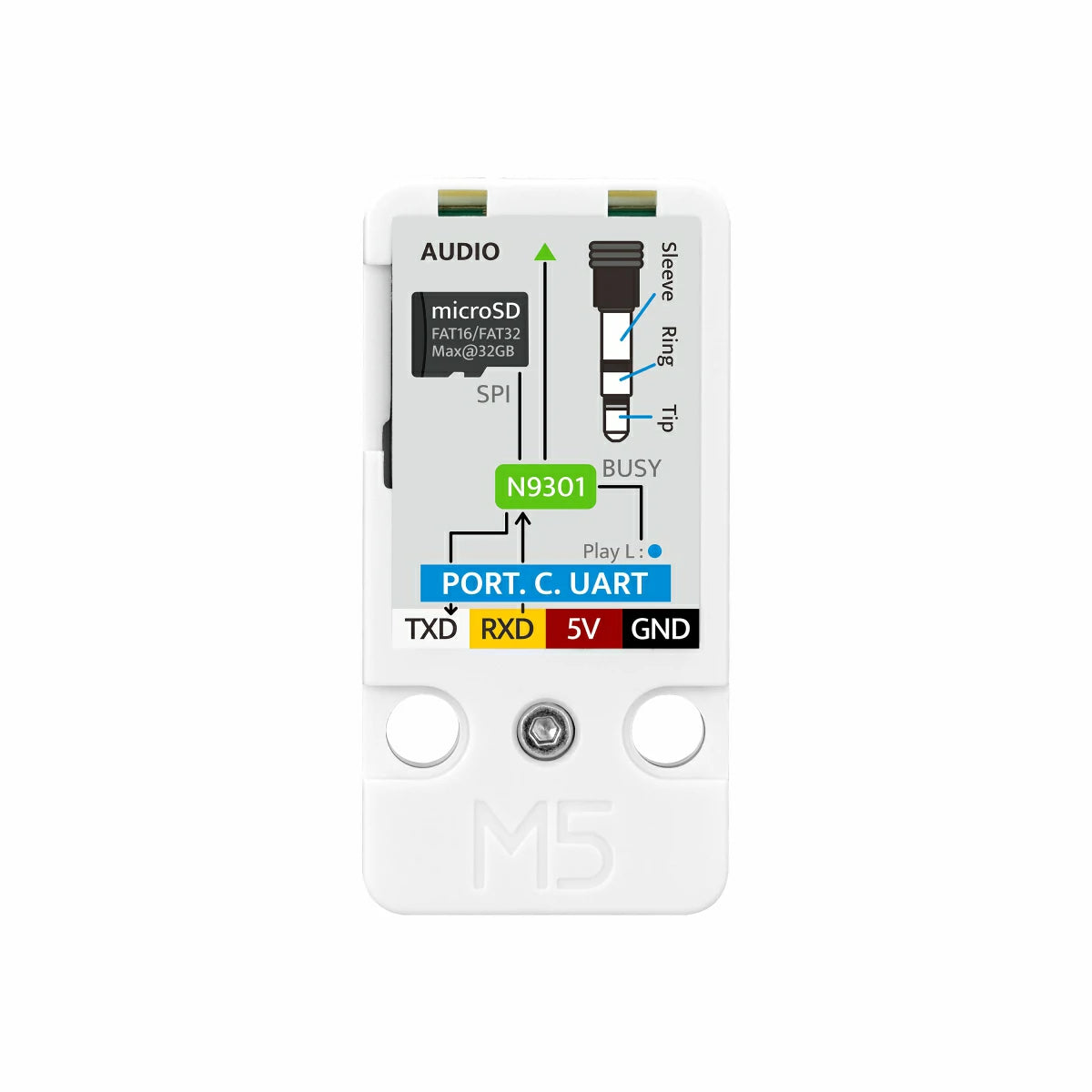

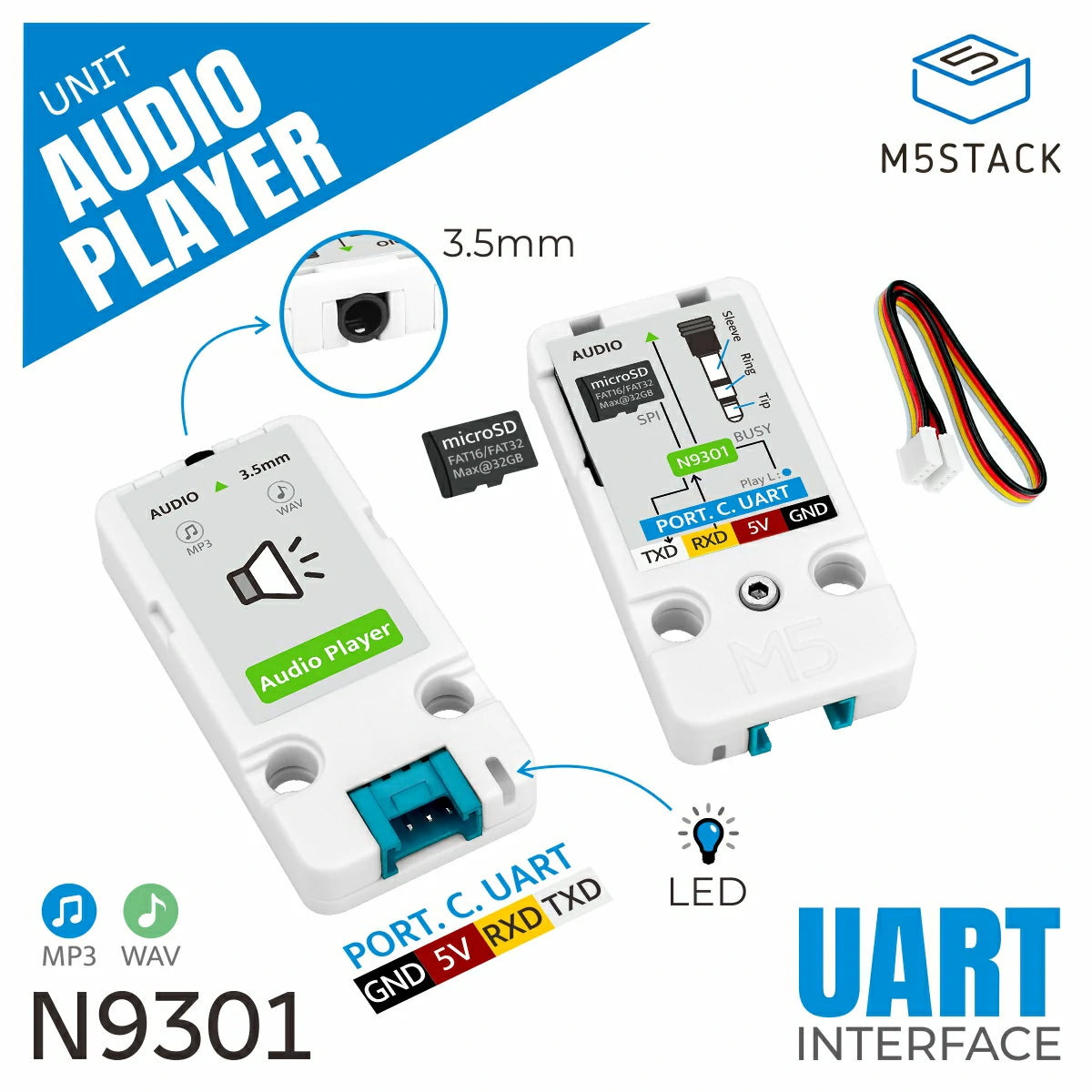

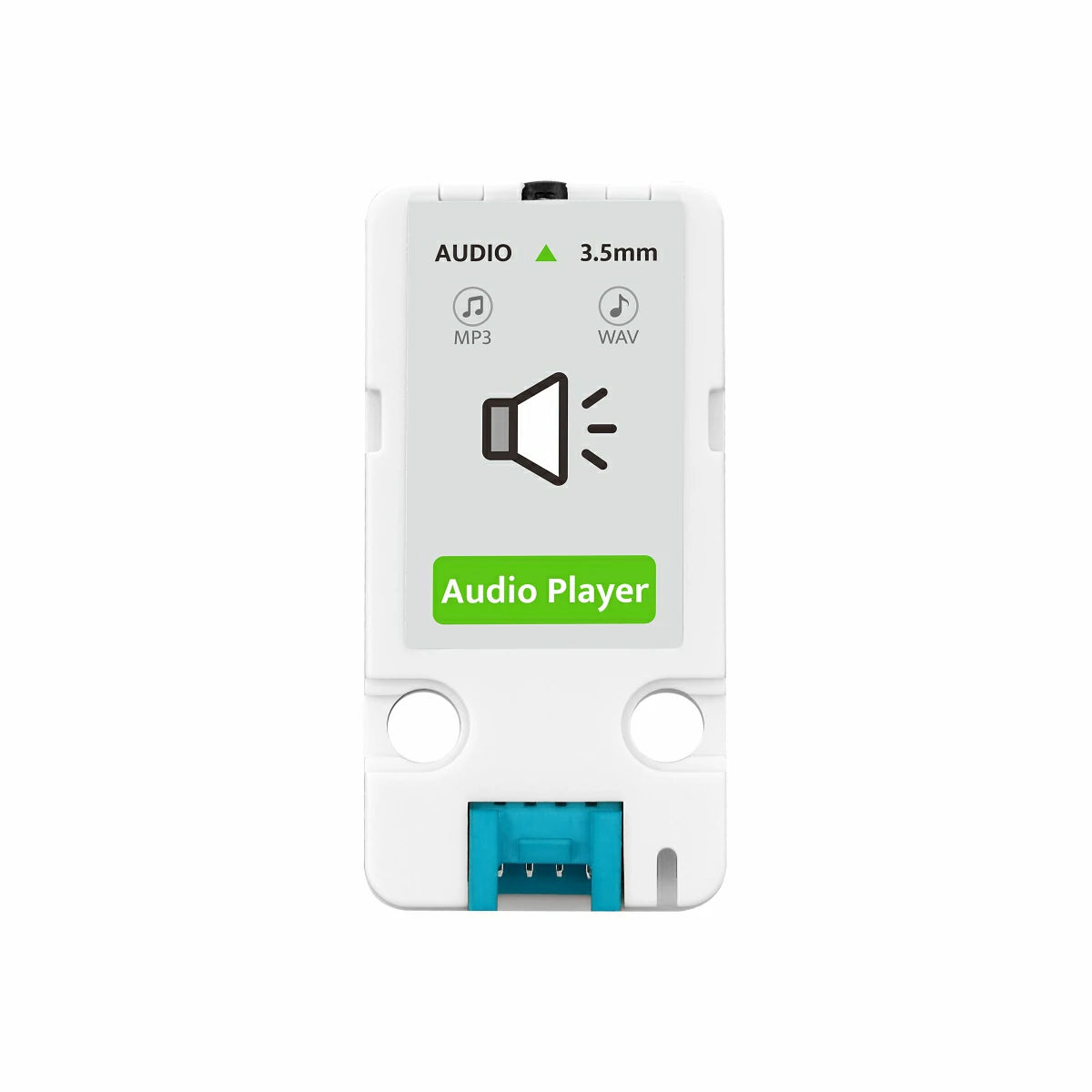

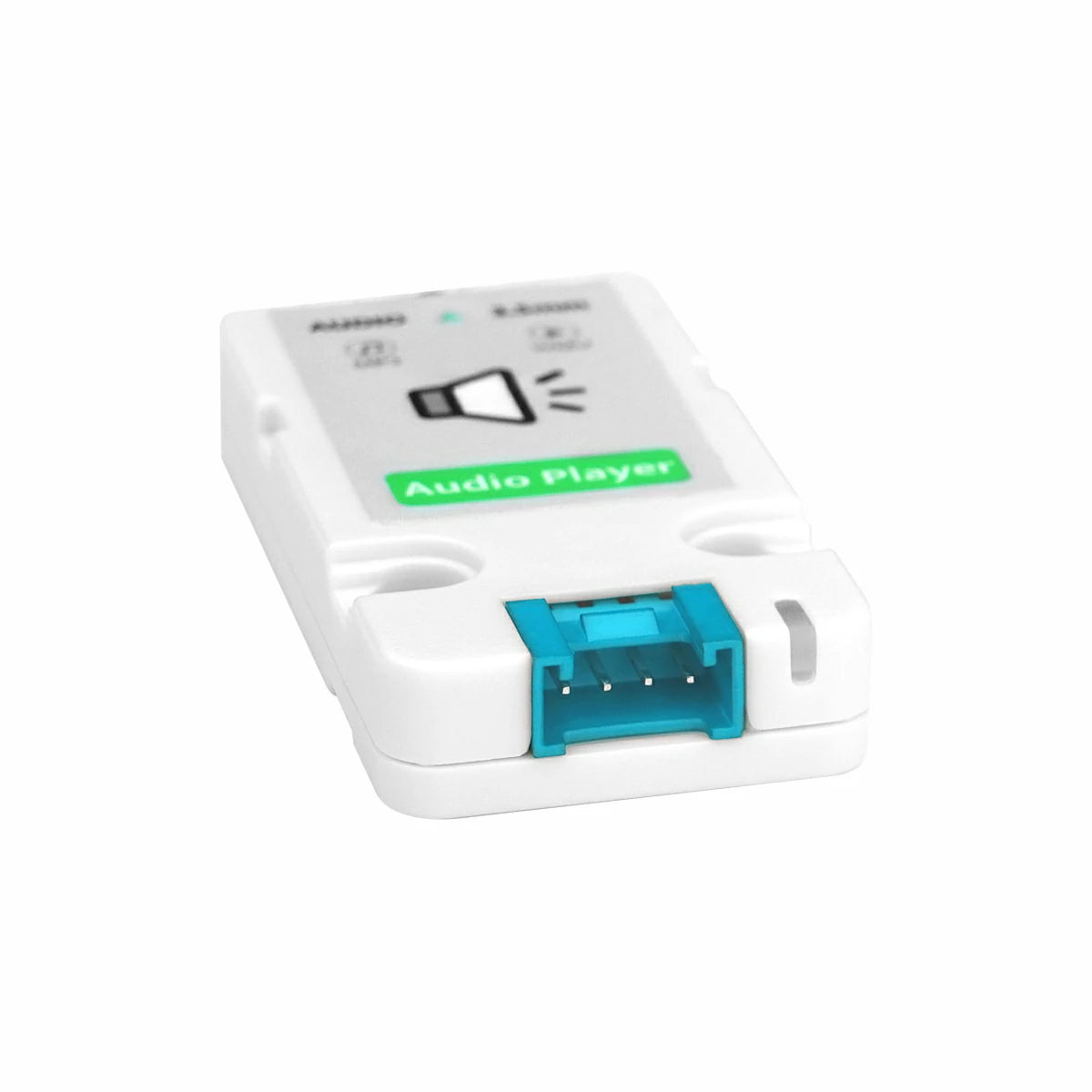

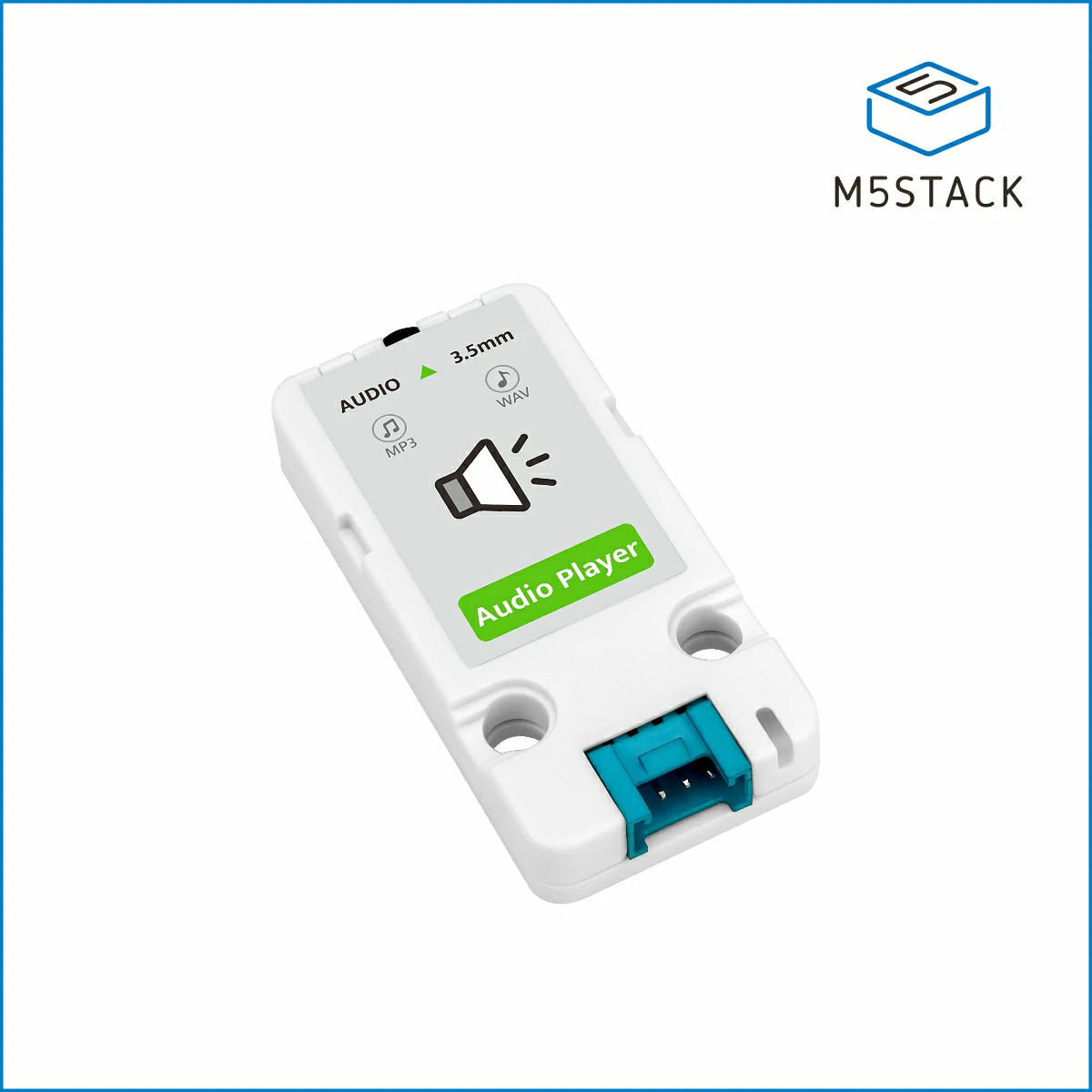

Unit AudioPlayer is an MP3 player unit with built-in decoding, equipped with the audio decoding chip N9301 and a microSD card slot. Users can control the playback of MP3 files on the microSD card through Grove's UART interface. The audio signal is output through a 3.5mm jack, providing clear audio output. This product is suitable for smart voice interaction devices (such as smart home controllers, voice tour guides), industrial automation alarm systems, medical equipment voice prompt terminals, STEAM education, and other scenarios. It can meet the demands of multiple industries for high-quality audio playback and flexible control, especially for embedded projects that require audio triggering through serial port instructions and integrated miniaturized audio solutions.
Features
- N9301 audio decoding chip

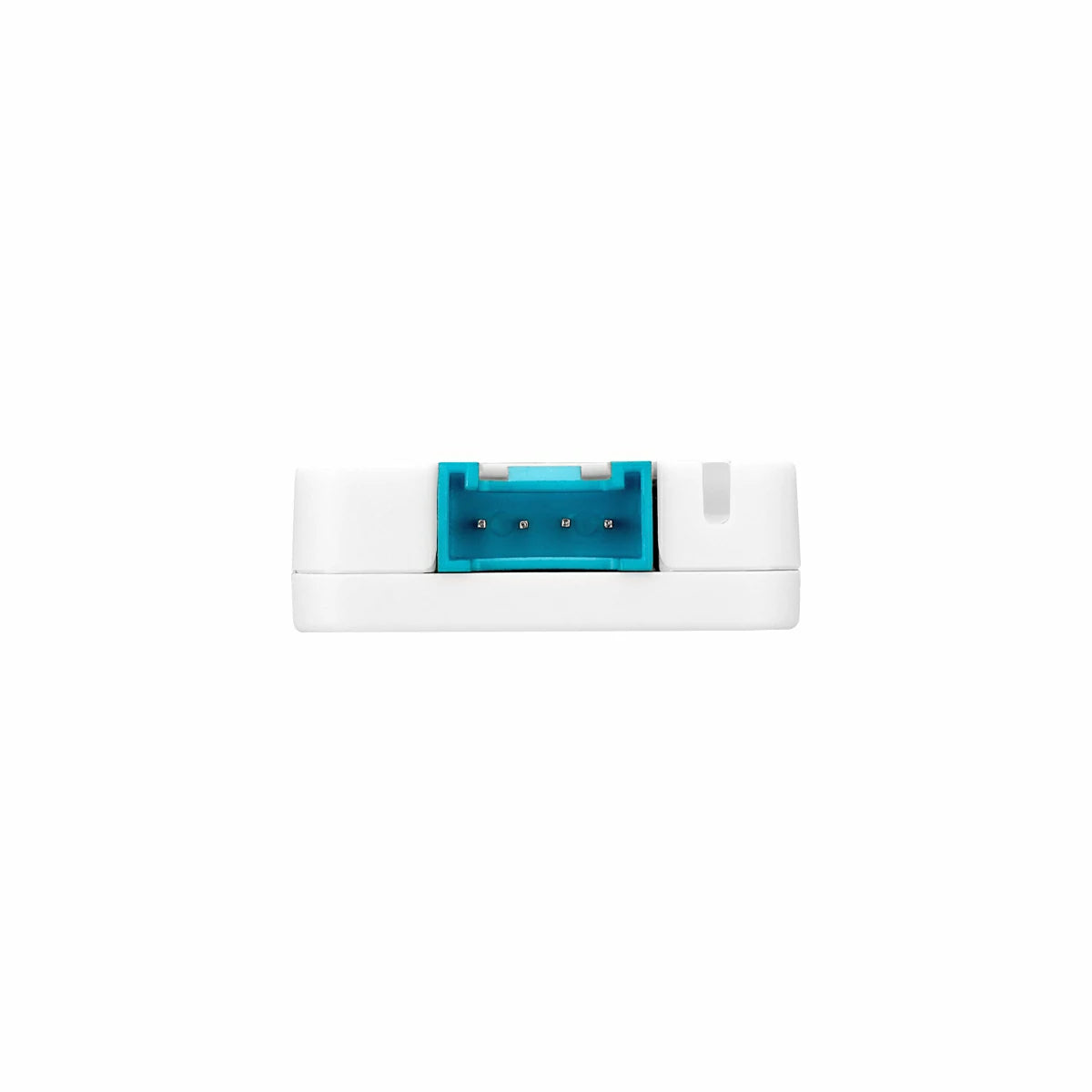

- UART communication interface
- 3.5mm stereo jack
- Supports MP3 and WAV audio formats
- Supports FAT16/FAT32 file systems
- Maximum support for 32GB microSD card
- Development platforms
- UiFlow1
- UiFlow2
- Arduino IDE
Includes
- 1 x Unit AudioPlayer
- 1 x HY2.0-4P Grove connection cable (20cm)
Application
- Intelligent voice interaction devices (such as smart home control centers, voice guides)
- Industrial automation alarm systems
- Medical device voice prompt terminals
- STEAM education
Specifications
| Specification | Parameter |
|---|---|
| Audio decoding chip | N9301 |

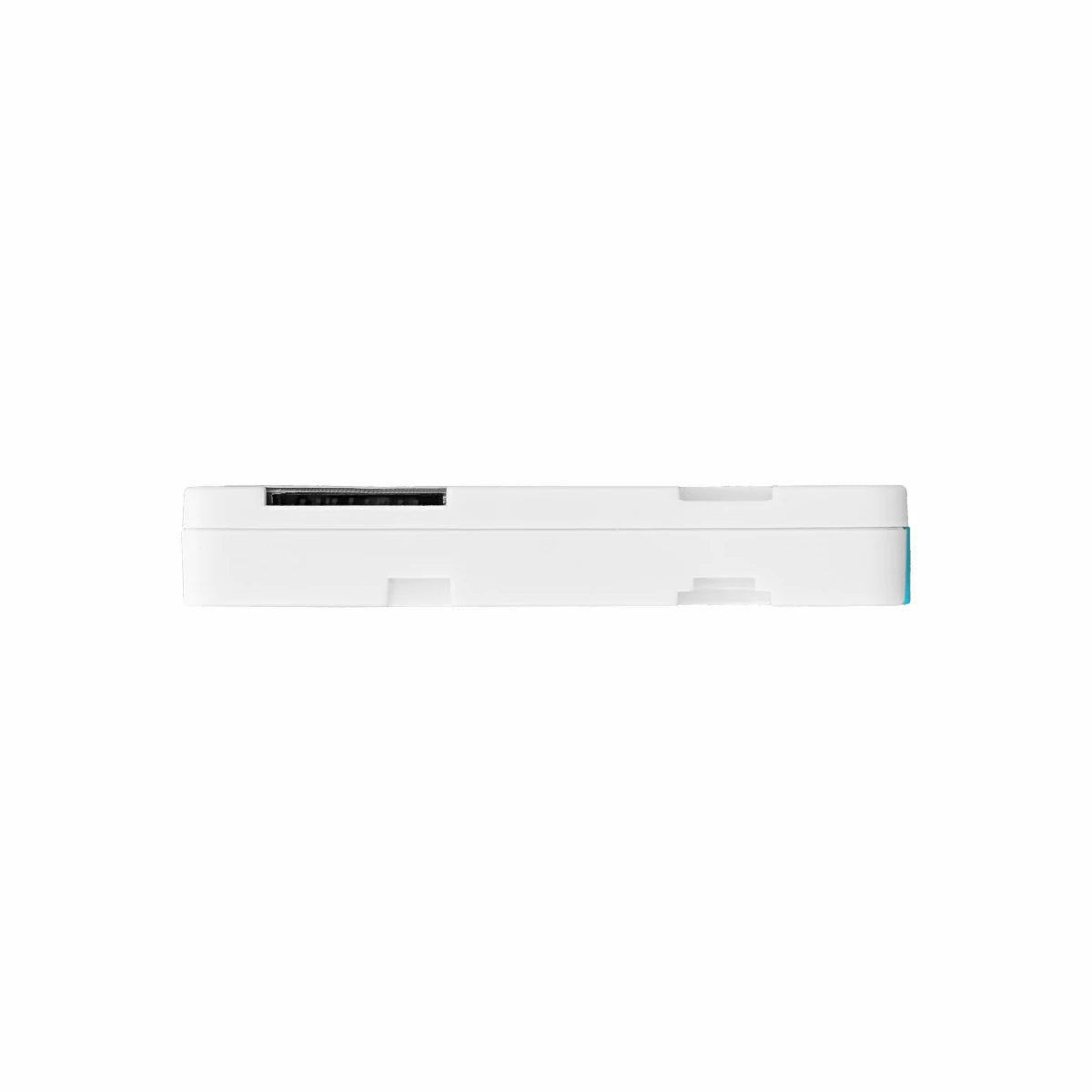

| Storage interface | microSD card slot |
| Communication method | UART serial communication. Default baud rate: 9600bps@8N1 |

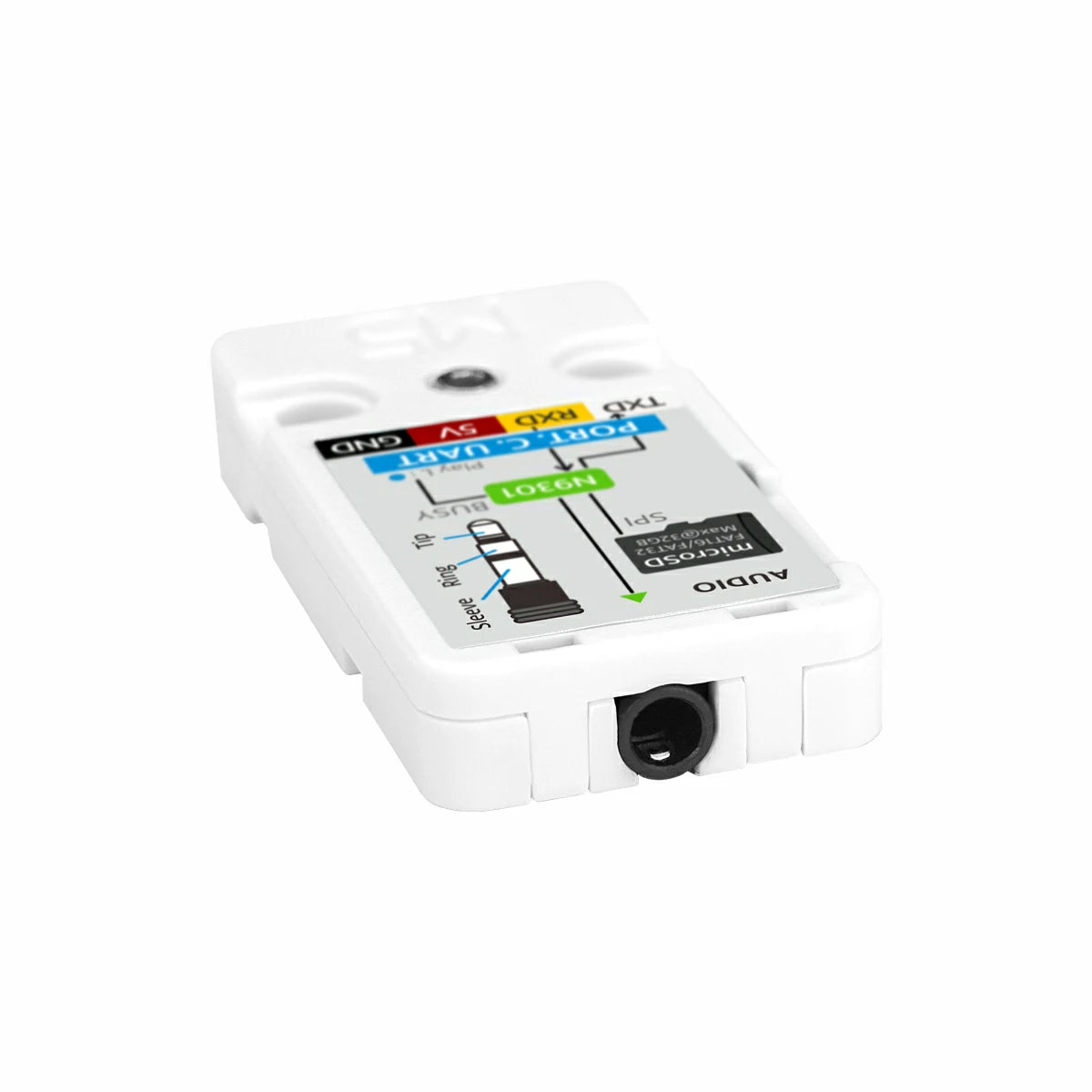

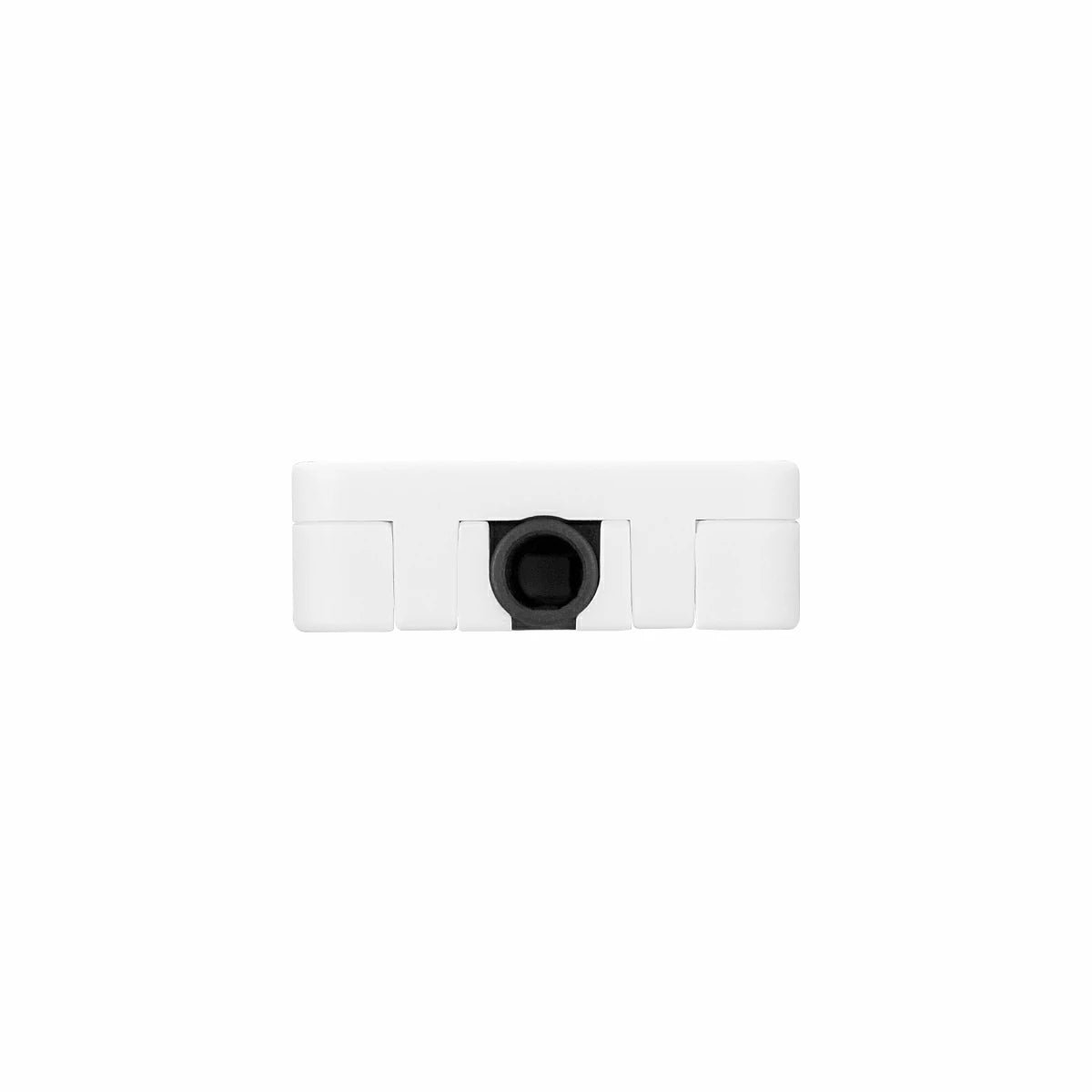

| Audio output interface | 3.5mm stereo jack |
| Power consumption | Operating: DC 5.01V@25.17mA; Standby: DC5.01V@7.33mA; Sleep: DC 5.02V@871.24uA |
| Product Size | 48.0 x 24.0 x 8.0mm |
| Product weight | 7.3g |
| Package Size | 138.0 x 93.0 x 9.0mm |
| Gross weight | 12.8g |
