AtomS3U ESP32S3 Development Kit with USB-A

SKU:K125

Regular price $12.50

10+ In Stock

Shipping calculated at checkout.
PRODUCT DETAILS

Description

AtomS3U is an extraordinary U disk-shaped ESP32-S3 multi-function development board that will revolutionize your projects. Powered by Espressif's ESP32S3 main control chip, this remarkable board features a dual-core Xtensa LX7 processor with a blazing main frequency of 240MHz, delivering exceptional performance for your applications. Equipped with built-in WiFi functionality, seamless wireless connectivity is at your fingertips.

With its versatile interfaces, AtomS3U offers unparalleled flexibility. It includes a USB-A port with OTG support, allowing for effortless data transfer and connectivity. Additionally, the board features a Grove port for easy integration with a wide range of sensors and modules. The 6Pin@2.54mm header provides 4 GPIOs, enabling seamless interaction with external components and expanding your project possibilities.

Incorporating essential peripherals, AtomS3U is ready to tackle various scenarios. It features a 1PDM microphone for precise voice input and recognition (STT), providing a seamless human-computer interaction experience. The inclusion of 1 IR tube allows for precise infrared communication and control. Furthermore, the board boasts a programmable RGB-LED, empowering you to create stunning visual effects and status indicators.

Embrace the endless possibilities with the AtomS3U development board. Whether you're working on human-computer interaction projects, voice input and recognition applications, or IO control systems, this compact and feature-rich board is your gateway to innovation and success. Unleash your creativity and bring your ideas to life with the extraordinary AtomS3U.

Features

  • ESP32-S3FN8@240Mhz,Xtensa LX7,WIFI,OTG,CDC
  • Integrated programmable RGB LEDs and buttons
  • Built-in infrared emitter
  • Expandable pin interface with GROVE
  • Development platform: MicroPython,Arduino

Includes

  • 1x AtomS3U

Applications

  • IoT controllers
  • Voice recording, cloud STT recognition

Specification

Resources Parameters
MCU ESP32-S3FN8@Xtensa LX7,WIFI,OTG,CDC
Microphone SPM1423
interface USB-A
Grove interface PORTA
2.54-6P interface GND/VIN_5V/G14/G17/G42/G40
Microphone sensitivity 94dB SPL@1KHz typical: -22dBFS
Microphone signal-to-noise ratio 94dB SPL@1KHz, A-weighted Typical: 61.4dB
Support for entering sound frequencies 100Hz ~ 10KHz
Supports PDM clock frequency 1.0 ~ 3.25MHz
RGB WS2812

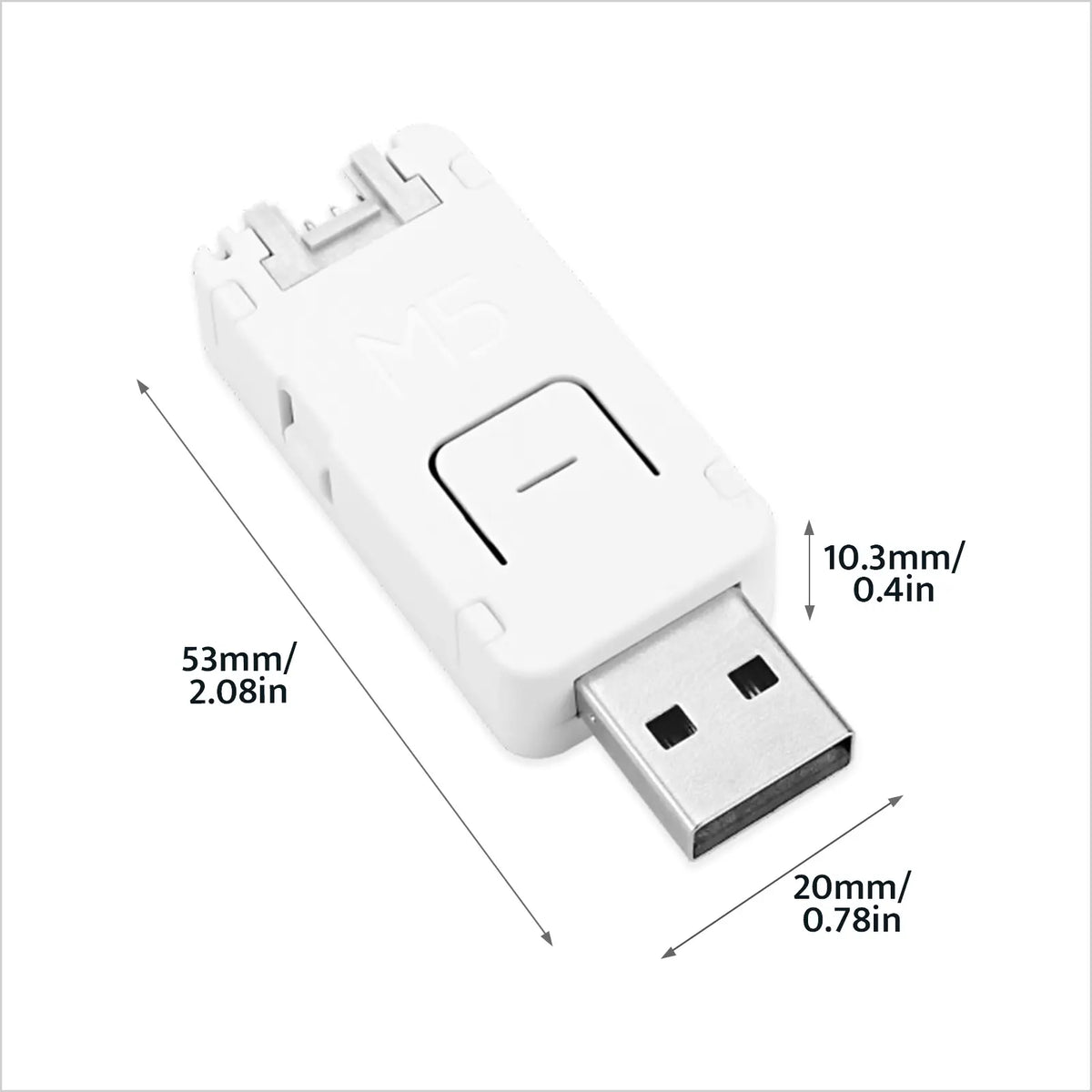

Product Size 52 * 20 * 10mm
Package Size 68 * 21 * 11mm
Product Weight 8.4g
Package Weight 10.6g
