Description

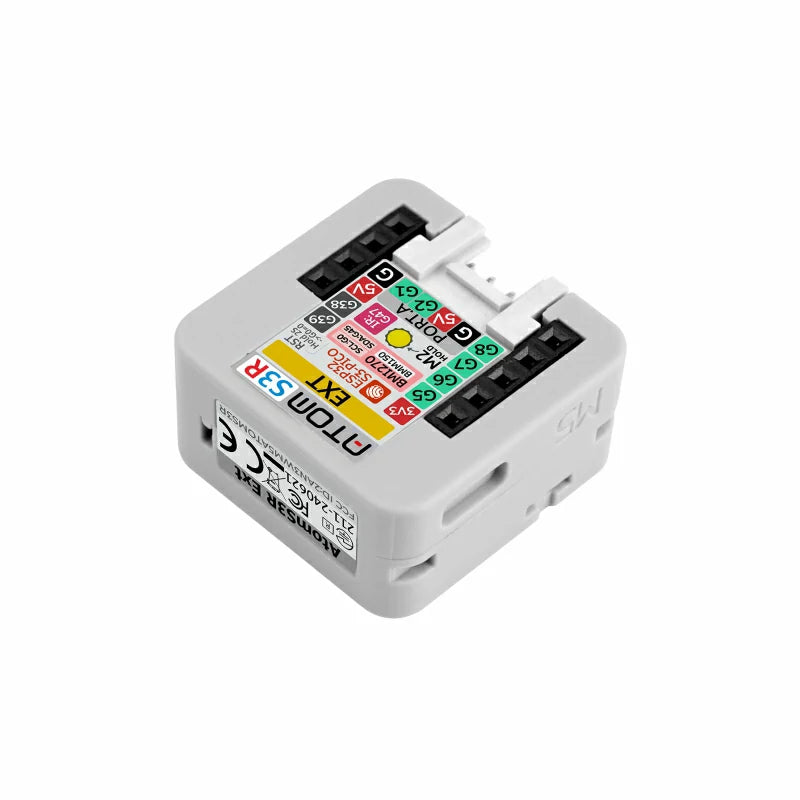

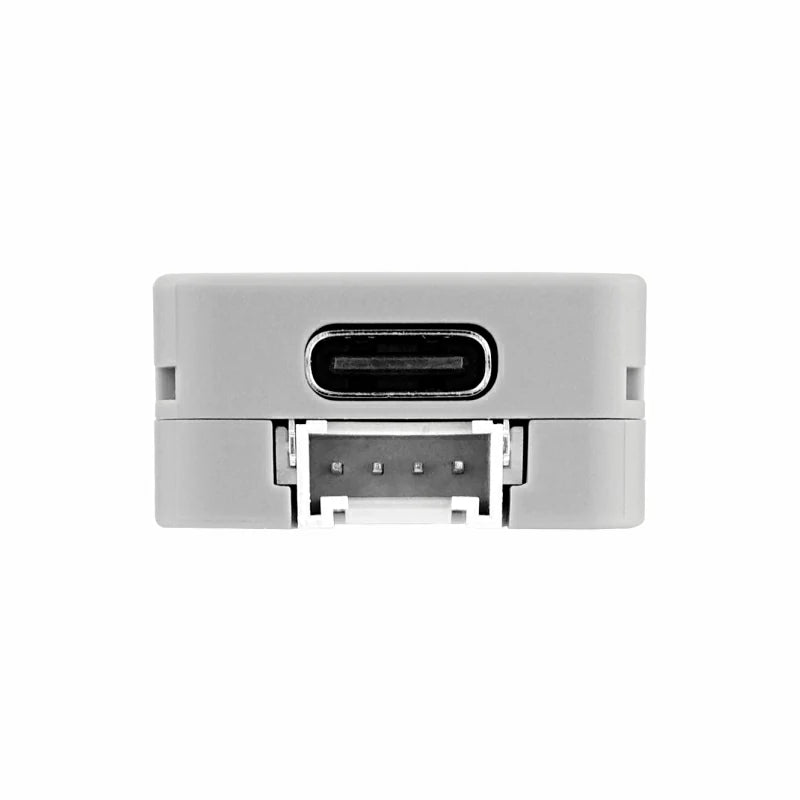

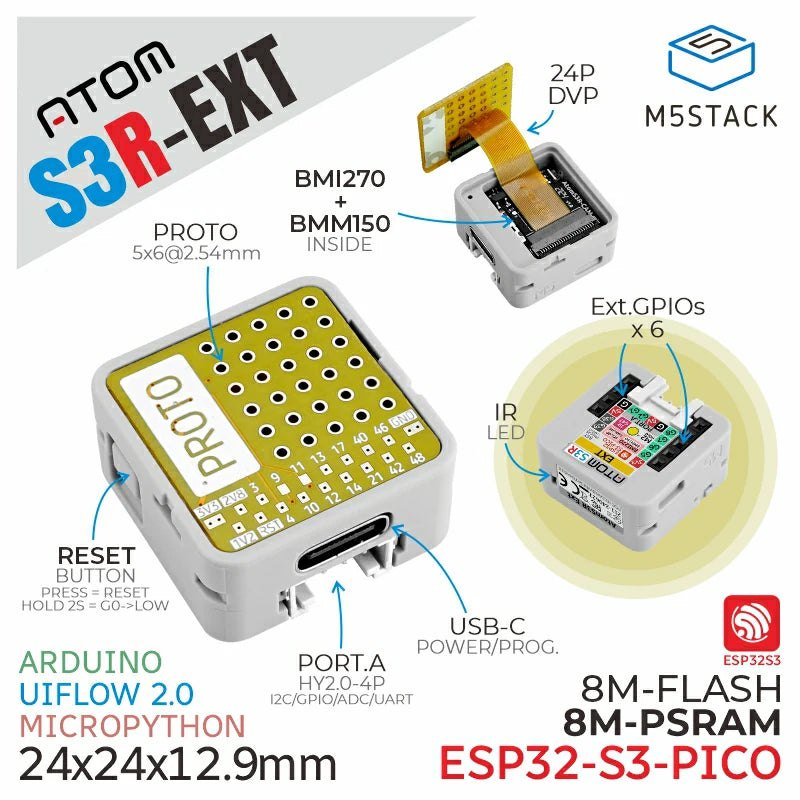

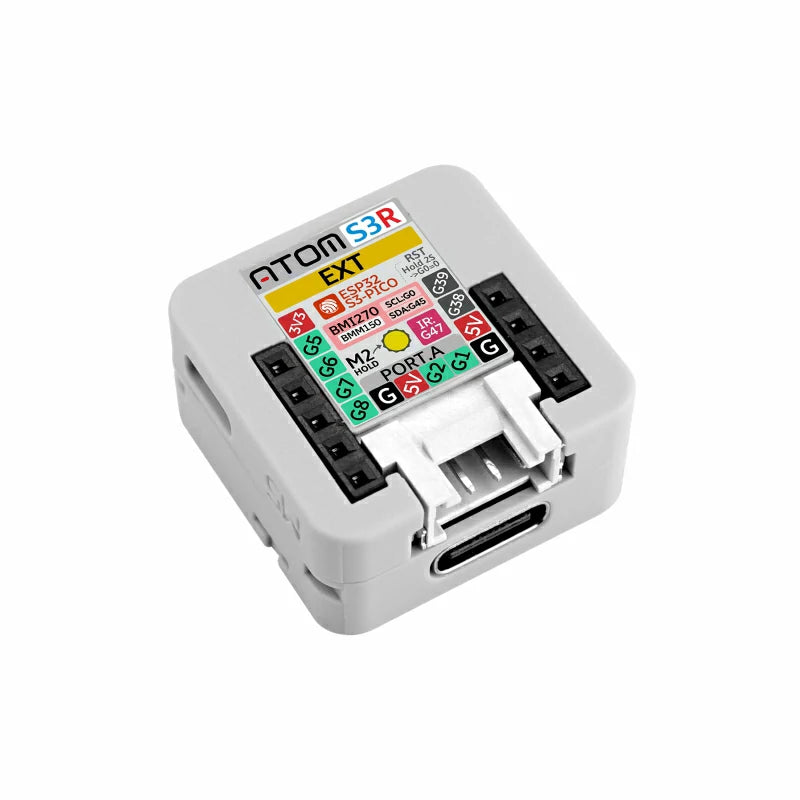

AtomS3R Ext is a prototype development expansion programmable controller based on the ESP32-S3 main controller, designed specifically for prototype validation and expansion development. It features a prototype breadboard on top, allowing users to connect and debug multiple IO ports, making it suitable for various peripheral module expansions and function validation. The device integrates the ESP32-S3-PICO-1-N8R8 main controller, supports WiFi functionality, and includes 8MB onboard FLASH and 8MB PSRAM, along with a power circuit that converts 5V to 3.3V/2.8V/1.2V. It also has a built-in three-axis BMM150 geomagnetic sensor and a six-axis BMI270 motion sensor. The controller is equipped with a Type-C interface for power supply and firmware downloads, as well as an HY2.0-4P expansion port, six GPIO, and power pins for easy functionality expansion. Compared to previous ATOM series host products, the AtomS3R Ext features an enhanced 3D antenna, providing better signal performance and stability. Measuring only 24x24x12mm, it is highly suitable for prototype development and validation applications in embedded smart devices.
Product Features
- Integrated ESP32-S3-PICO-1-N8R8 main controller
- Nine-axis sensor system (BMI270 six-axis + BMM150 three-axis geomagnetic sensor)
- 8MB Flash and 8MB PSRAM
- Supports infrared emission control

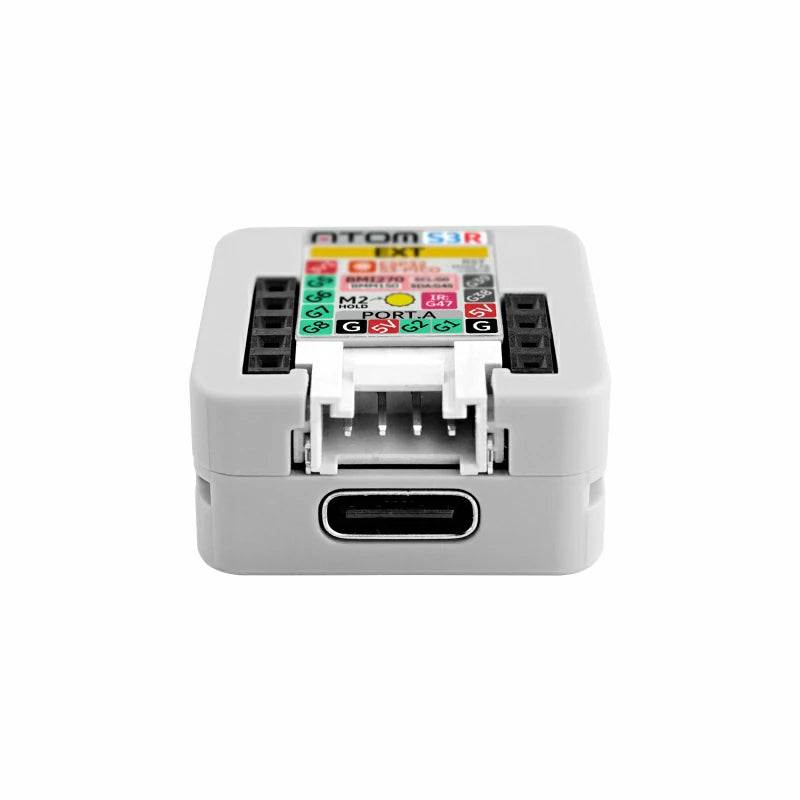

- Expandable pins and interfaces

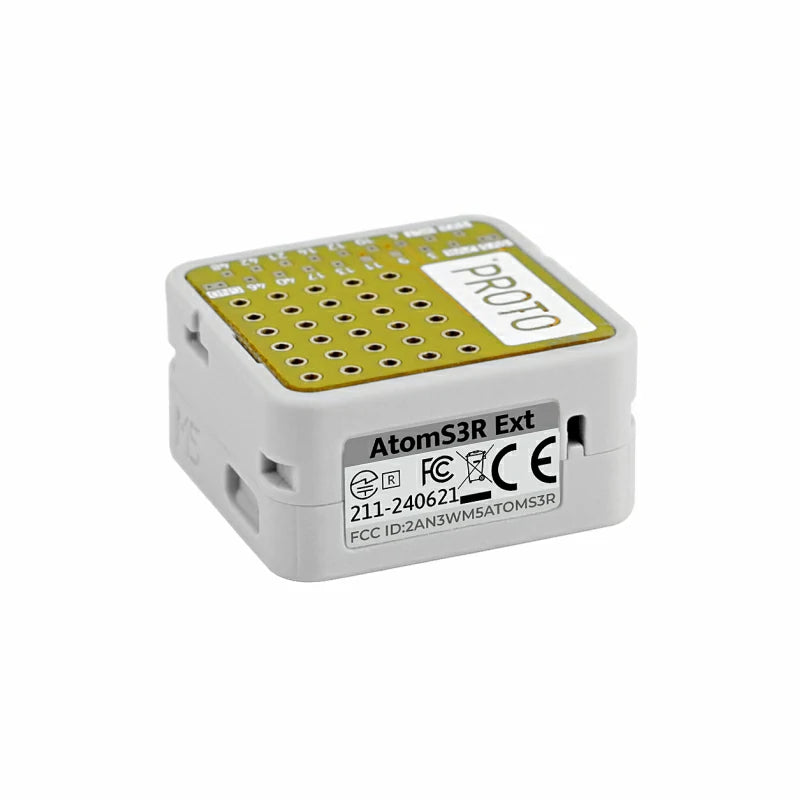

- Breadboard
- Development platforms: Arduino, UIFlow, MicroPython
Includes

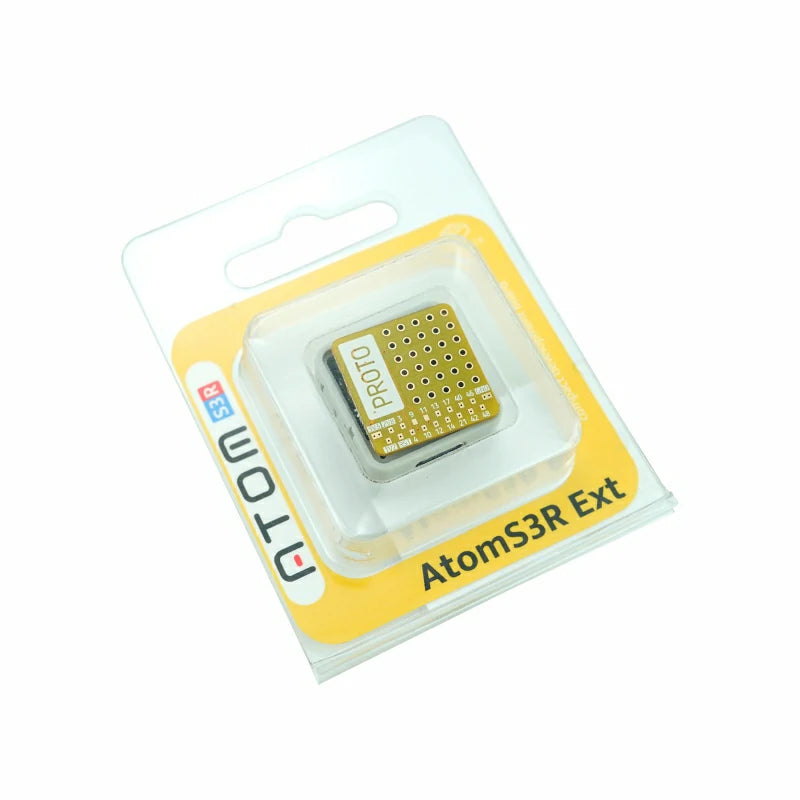

- 1x AtomS3R Ext
Applications
- Motion detection and directional awareness
- Wearable devices
- Smart device control
- IoT applications
Specifications
| Specification | Parameter |
|---|---|
| SoC | ESP32-S3-PICO-1-N8R8 @ Dual-core Xtensa LX7 processor, up to 240MHz @ USB-OTG |
| PSRAM | 8M PSRAM |
| FLASH | 8M FLASH |
| Six-axis Motion Sensor (BMI270) | Accuracy: 0.05% (acceleration), 0.05°/s (angular velocity) I2C address: 0x68 |
| Three-axis Geomagnetic Sensor (BMM150) | Accuracy: 0.3 μT Mounted on BMI270, obtaining magnetometer data via BMI270 |
| Infrared IR | IR emission distance at ∠180°: 12.46m IR emission distance at ∠90°: 1.45m IR emission distance at ∠45°: 3.88m |
| Sleep Current | GPIO-5V power supply: DC5V@11.63 uA Grove-5V power supply: DC5V@10.75 uA USB-5V power supply: DC5V@92.50 uA (including PD resistor loss) |
| Universal Expansion Board Size | 5*6@2.54mm |

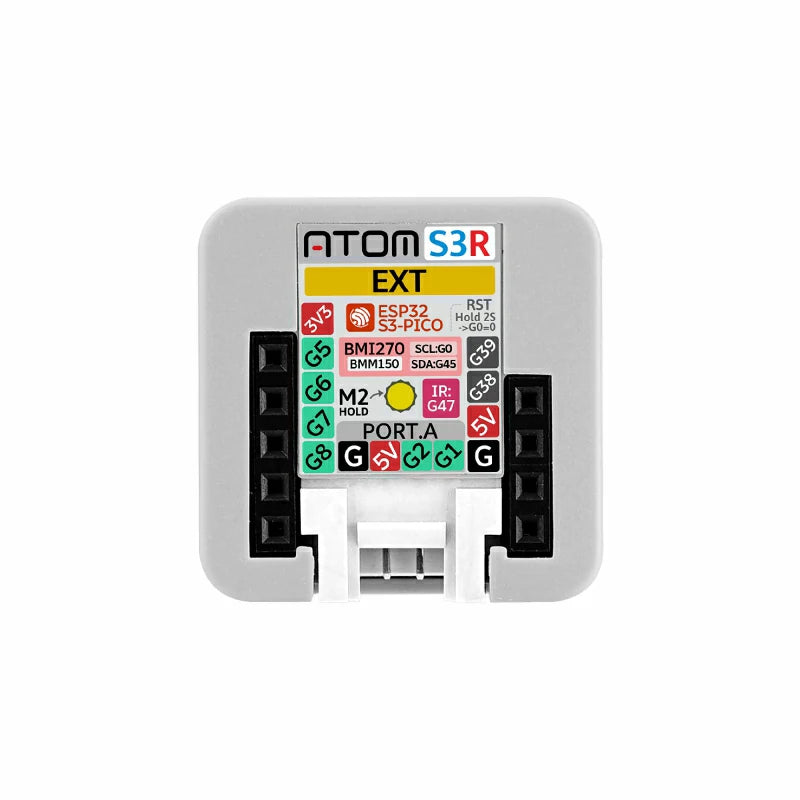

| Reserved GPIO | G5/G6/G7/G8/G38/G39 |

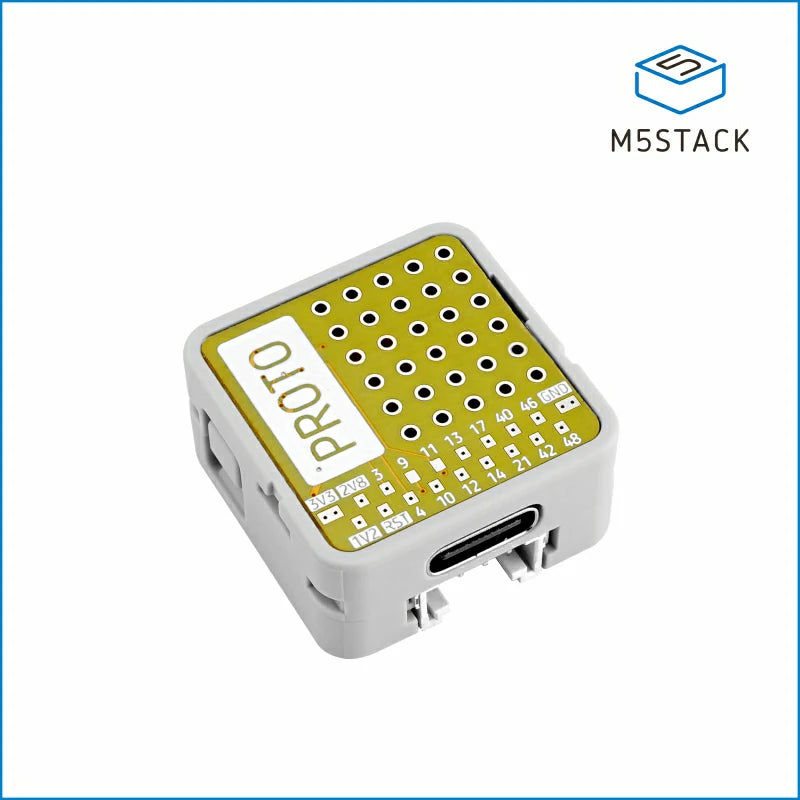

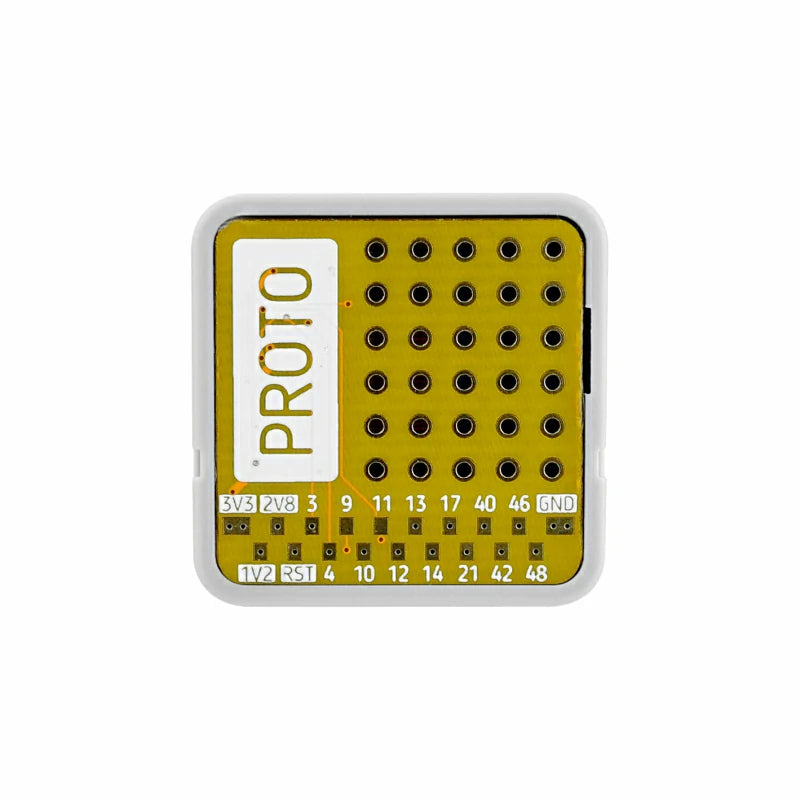

| Breadboard Reserved GPIO | G3/G4/G9/G10/G11/G12/G13/G14/G17/G21/G40/G42/G46/G48 |
| Operating Temperature | 0°C ~ 40°C |
| Product Dimensions | 24*24*12.9mm |
| Package Dimensions | 85*65.5*13mm |
| Product Weight | 7.0g |
| Package Weight | 13.4g |
