ATOMS3R Proto Kit without Screen (8MB PSRAM)

SKU:C126-Ext

Regular price $14.50

10+ In Stock

Shipping calculated at checkout.

Description

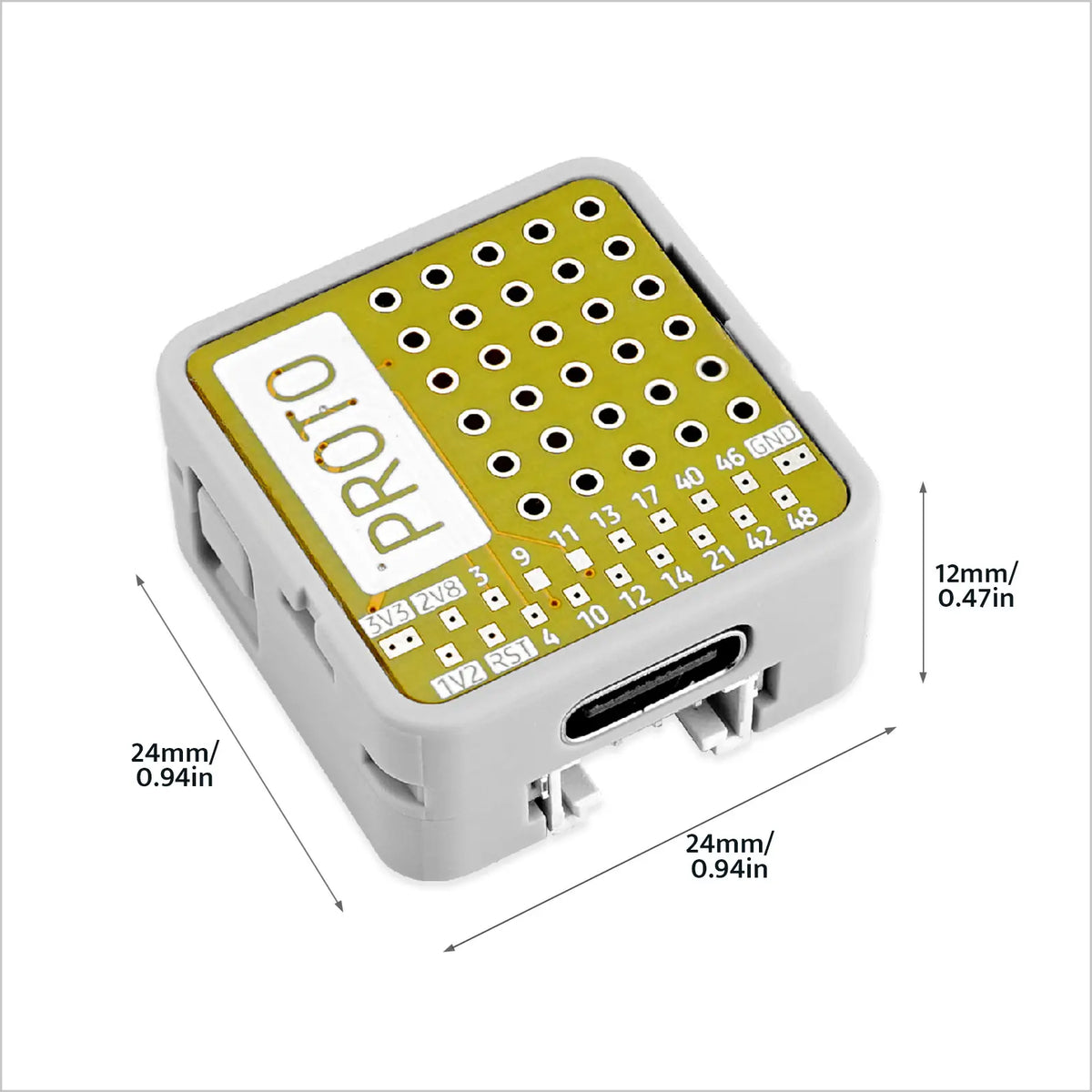

AtomS3R Ext is a prototype development expansion programmable controller based on the ESP32-S3 main controller, designed specifically for prototype validation and expansion development. It features a prototype breadboard on top, allowing users to connect and debug multiple IO ports, making it suitable for various peripheral module expansions and function validation. The device integrates the ESP32-S3-PICO-1-N8R8 main controller, supports WiFi functionality, and includes 8MB onboard FLASH and 8MB PSRAM, along with a power circuit that converts 5V to 3.3V/2.8V/1.2V. It also has a built-in three-axis BMM150 geomagnetic sensor and a six-axis BMI270 motion sensor. The controller is equipped with a Type-C interface for power supply and firmware downloads, as well as an HY2.0-4P expansion port, six GPIO, and power pins for easy functionality expansion. Compared to previous ATOM series host products, the AtomS3R Ext features an enhanced 3D antenna, providing better signal performance and stability. Measuring only 24x24x12mm, it is highly suitable for prototype development and validation applications in embedded smart devices.

Download Mode
To flash the firmware, press and hold the reset button (for about 2 seconds) until the internal green LED lights up, then release the button. The device will enter download mode and is ready for flashing.

schematics

Product Features

  • Integrated ESP32-S3-PICO-1-N8R8 main controller
  • Nine-axis sensor system (BMI270 six-axis + BMM150 three-axis geomagnetic sensor)
  • 8MB Flash and 8MB PSRAM
  • Supports infrared emission control
  • Expandable pins and interfaces
  • Breadboard
  • Development platforms: Arduino, UIFlow, MicroPython

Includes

  • 1x AtomS3R Ext

Applications

  • Motion detection and directional awareness
  • Wearable devices
  • Smart device control
  • IoT applications

Specifications

Specification Parameter
SoC ESP32-S3-PICO-1-N8R8 @ Dual-core Xtensa LX7 processor, up to 240MHz @ USB-OTG
PSRAM 8M PSRAM
FLASH 8M FLASH
Six-axis Motion Sensor (BMI270) Accuracy: 0.05% (acceleration), 0.05°/s (angular velocity)
I2C address: 0x68
Three-axis Geomagnetic Sensor (BMM150) Accuracy: 0.3 μT
Mounted on BMI270, obtaining magnetometer data via BMI270
Infrared IR IR emission distance at ∠180°: 12.46m
IR emission distance at ∠90°: 1.45m
IR emission distance at ∠45°: 3.88m
Sleep Current GPIO-5V power supply: DC5V@11.63 uA
Grove-5V power supply: DC5V@10.75 uA
USB-5V power supply: DC5V@92.50 uA (including PD resistor loss)
Universal Expansion Board Size 5*6@2.54mm
Reserved GPIO G5/G6/G7/G8/G38/G39
Breadboard Reserved GPIO G3/G4/G9/G10/G11/G12/G13/G14/G17/G21/G40/G42/G46/G48
Operating Temperature 0°C ~ 40°C
Product Dimensions 24*24*12.9mm
Package Dimensions 85*65.5*13mm
Product Weight 34.5g
Package Weight 68.5g
