PRODUCT DETAILS
Description

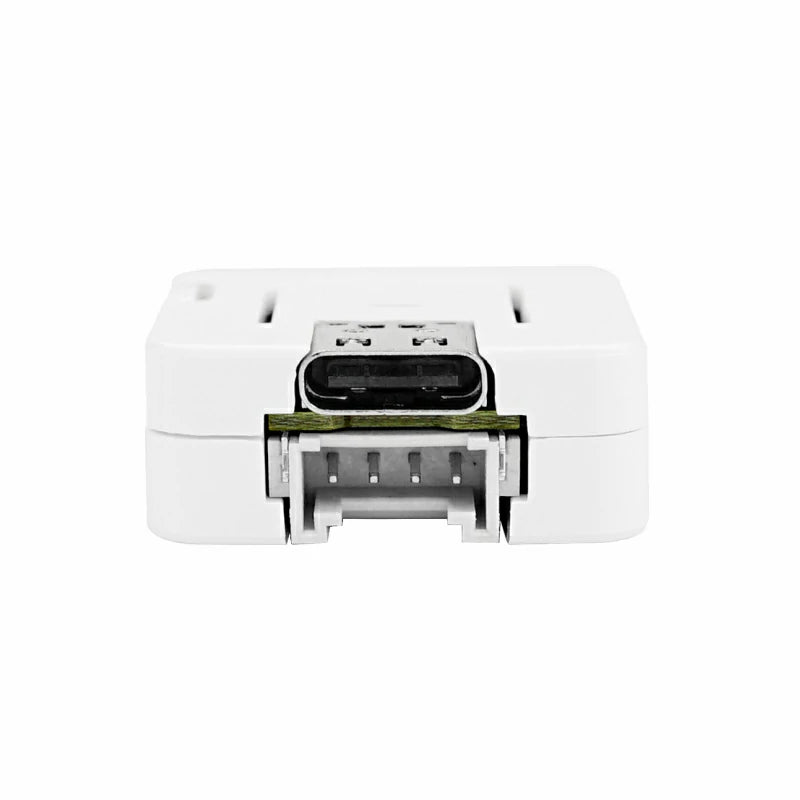

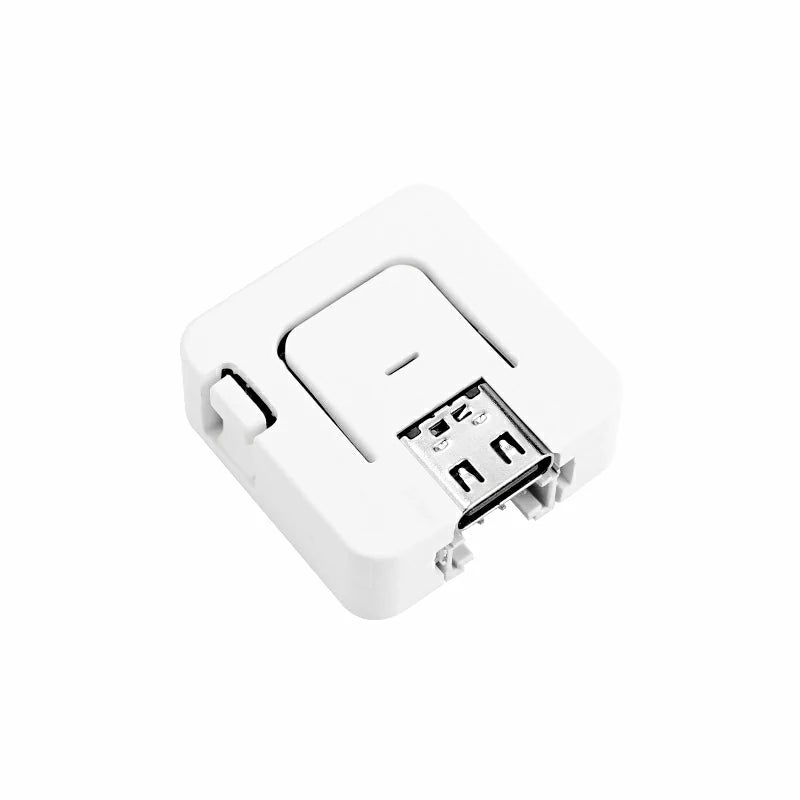

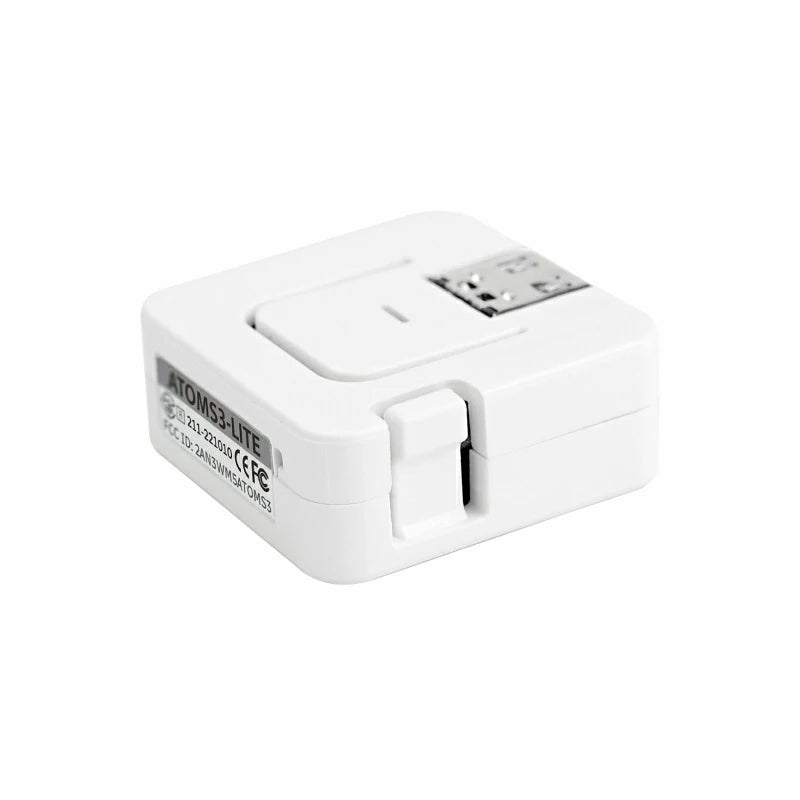

ATOMS3 Liteis anAtom Series Programmable Controllerin the M5Stack Development Kit series usingESP32-S3as the main control, its size is only 24249.5mm, the main control adopts theESP32-S3FN8scheme, with 8MB SPI flash memory , integrated Wi-Fifunction, built-in 3D antenna, 5V to 3.3Vpower circuit, providing infrared emitting light, RGBStatus Indicators, Button and GROVE/HY2.0-4Pinterfaces. The bottom of the product is equipped with apower supply and 6 GPIO headersto facilitate expansion applications. The on-board Type-C interfacecan realize program download and serial port communication functions; An M2 screw holeis provided on the back for fixing. Suitable for all kinds of embedded smart device applications.
Features
- Developed based on ESP32-S3FN8
- Comes with USB download function
- Programmable button
- Infrared emission function
- Expandable pins and interfaces
- Development platform: Arduino, UIFlow
Includes
- 1x AtomS3 Lite
Applications
- IoT node
- Microcontroller
- Wearables
Specification
| Resources | Parameters |
|---|---|
| MCU | ESP32-S3FN8 |
| RGB | WS2812B-2020 |
| DCDC | SY8089 |
| Operating temperature | 0°C ~ 40°C |
| Supply voltage | 5V |
| Power supply mode | TYPE C |
| Output voltage | 3.3V |

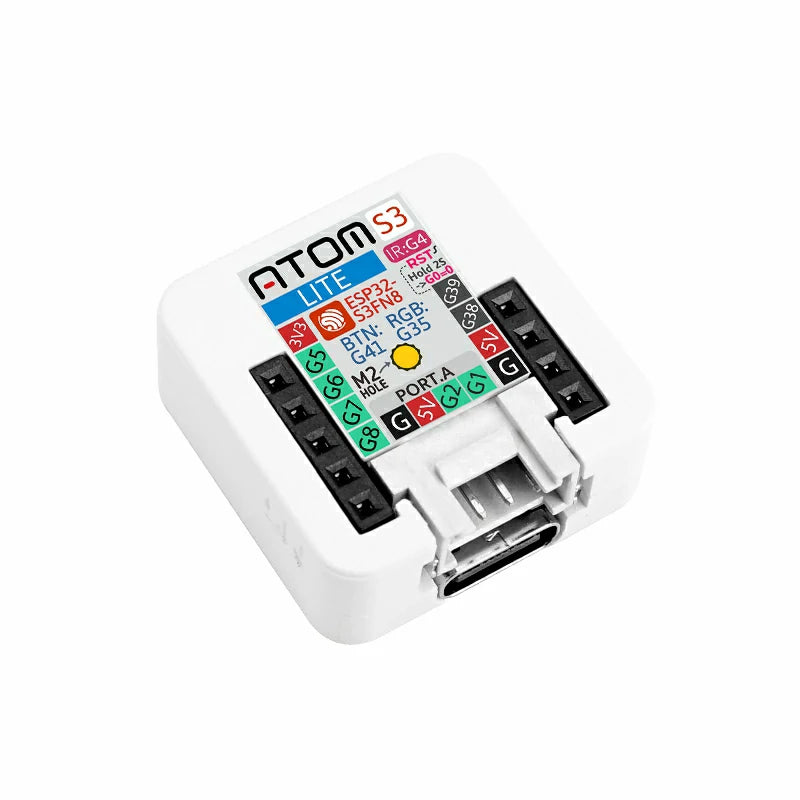

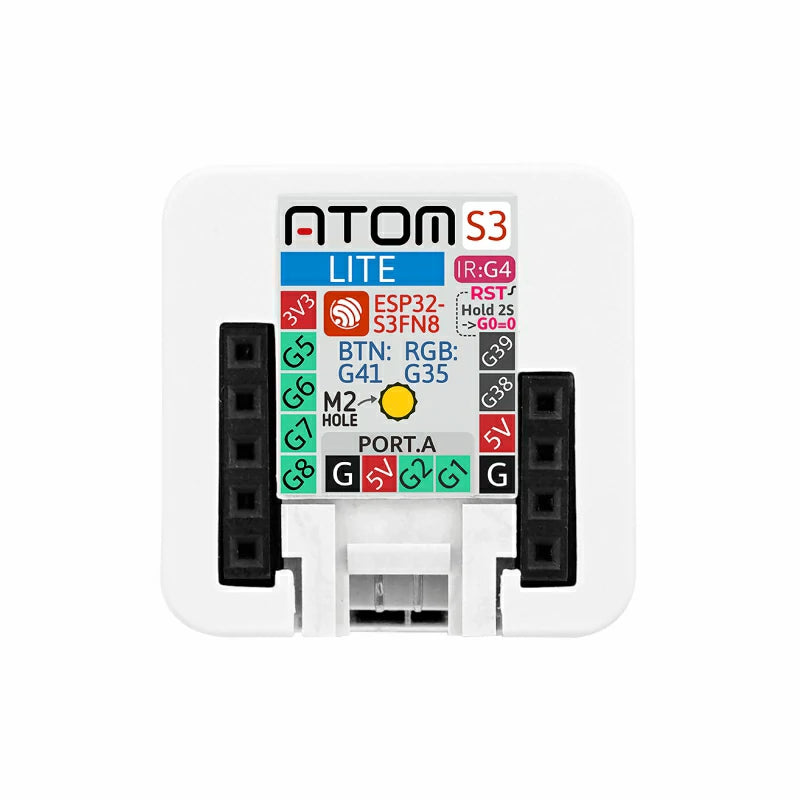

| IO interface × 6 | G5/G6/G7/G8/G38/G39 |

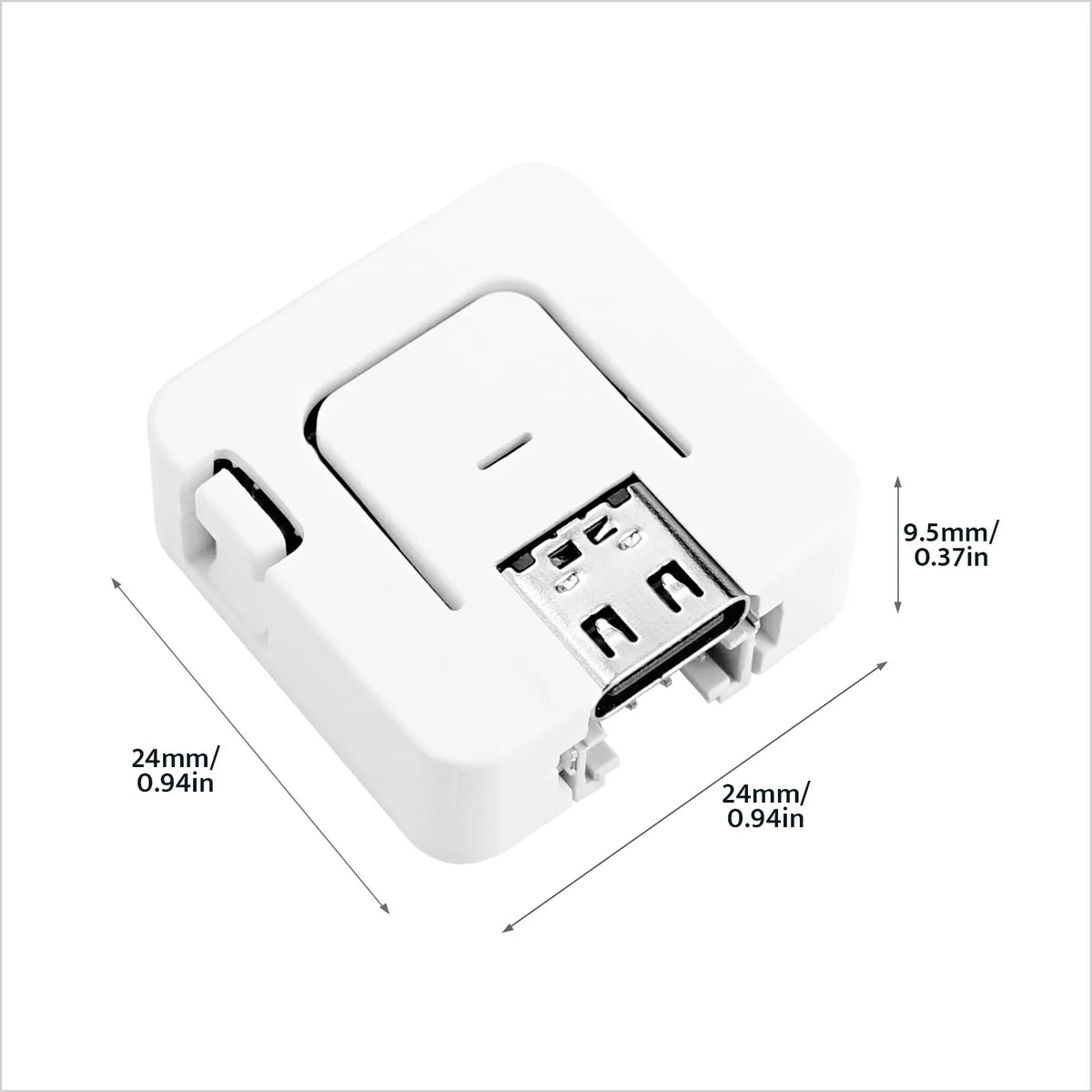

| Product Size | 24mm × 24mm ×9.5mm |
| Package Size | 65mm × 44.5mm × 14mm |
| Product Weight | 5.3g |
| Package Weight | 9.5g |
