PRODUCT DETAILS
Description

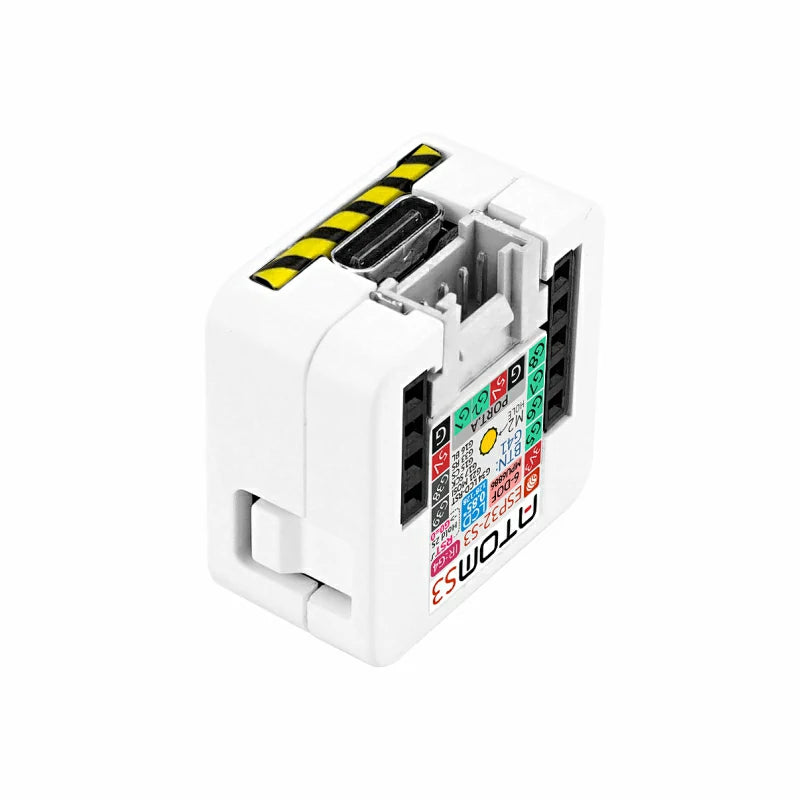

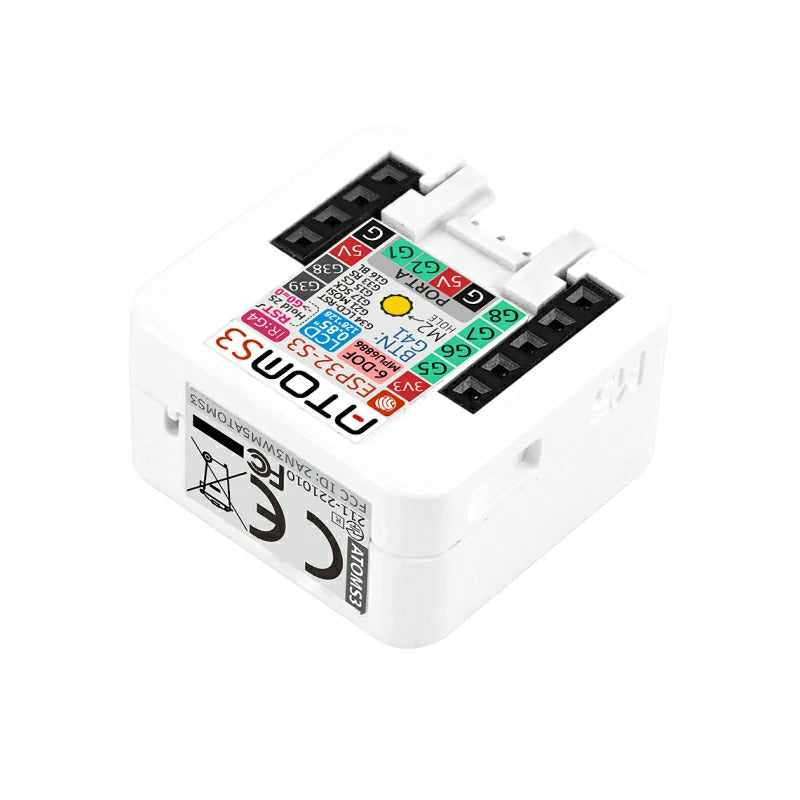

AtomS3 is a highly integrated programmable controller based on ESP32-S3 main control, which integrates ESP32-S3 main control, integrated WiFi function, and 8M on-chip FLASH; 0.85 inch IPS screen; Programmable button function at the bottom of the screen; Built-in 5V to 3.3V circuit, 6-axis gyro sensor MPU6886, on-board Type-C interface, power supply and firmware download, one HY2.0-4P expansion port, 6 GPIOs and power pins reserved at the bottom to facilitate expansion applications. The product size is only 24*24mm, which is suitable for various embedded smart device applications.
Reminder: If you need to burn the firmware, please press and hold the reset button (about 2 seconds) until the internal green LED lights up, then you can release it, at this time the device has entered download mode and waited for burning.
Features
- Developed based on ESP32-S3FN8
- Comes with USB download function
- Built-in 3-axis gyroscope and 3-axis accelerometer (MPU6886)
- Programmable keys
- 0.85 inch LCD screen
- Infrared emission function
- Expandable pins and interfaces
- Development platform: Arduino, UIFlow
Includes

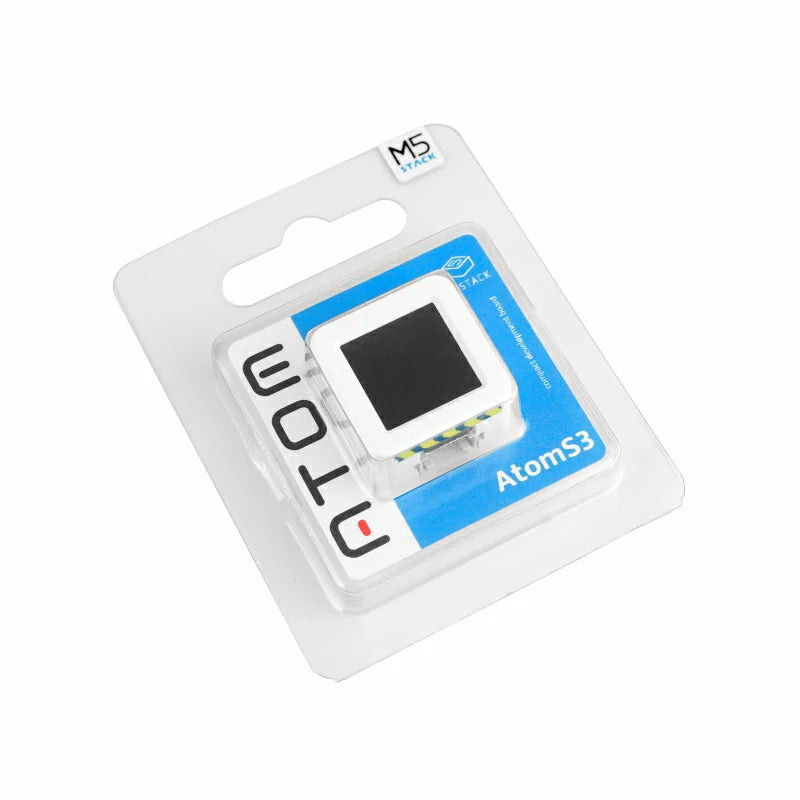

- 1x AtomS3
Applications
- IoT node
- Microcontroller
- Wearables
Specification
| Resources | Parameters |
|---|---|
| MCU | ESP32-S3FN8 |
| DCDC | SY8089 |
| IMU | MPU6886 |
| LCD | N085-1212TBWIG06-C08 |
| Operating temperature | 0°C ~ 40°C |
| Resolution | 128(H)RGB x 128(V) |
| support voltage | 5V |
| Power supply mode | TYPE C |
| output voltage | 3.3V |

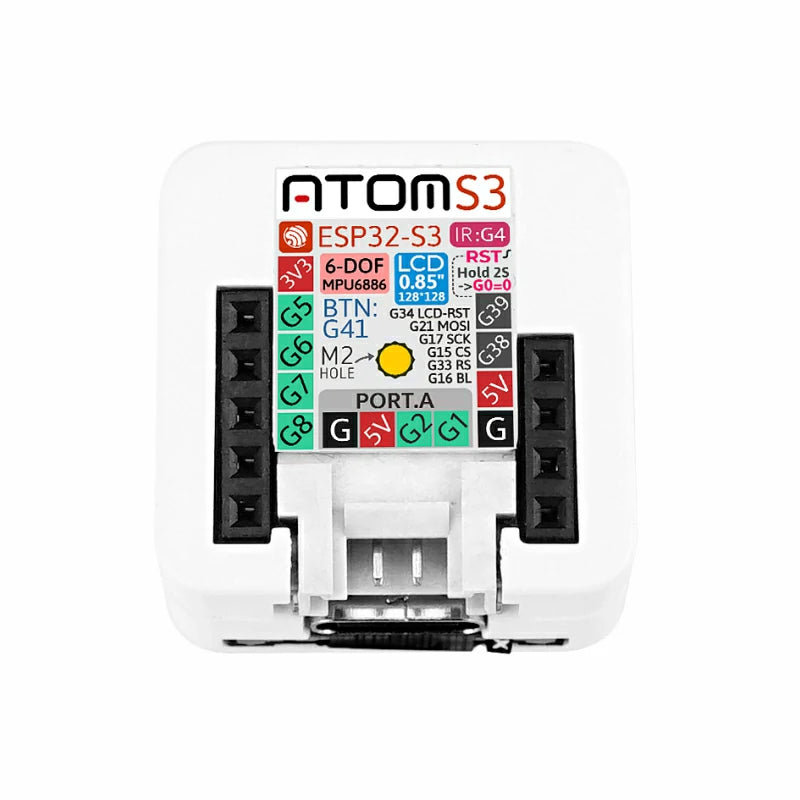

| IO interface × 6 | G5/G6/G7/G8/G38G39 |
| Screen communication protocol | SPI |
| Product Size | 24mm × 24mm × 13mm |
| Package Size | 65mm × 44.5mm × 14mm |
| Product Weight | 6.8g |
| Package Weight | 10.9g |
