Description

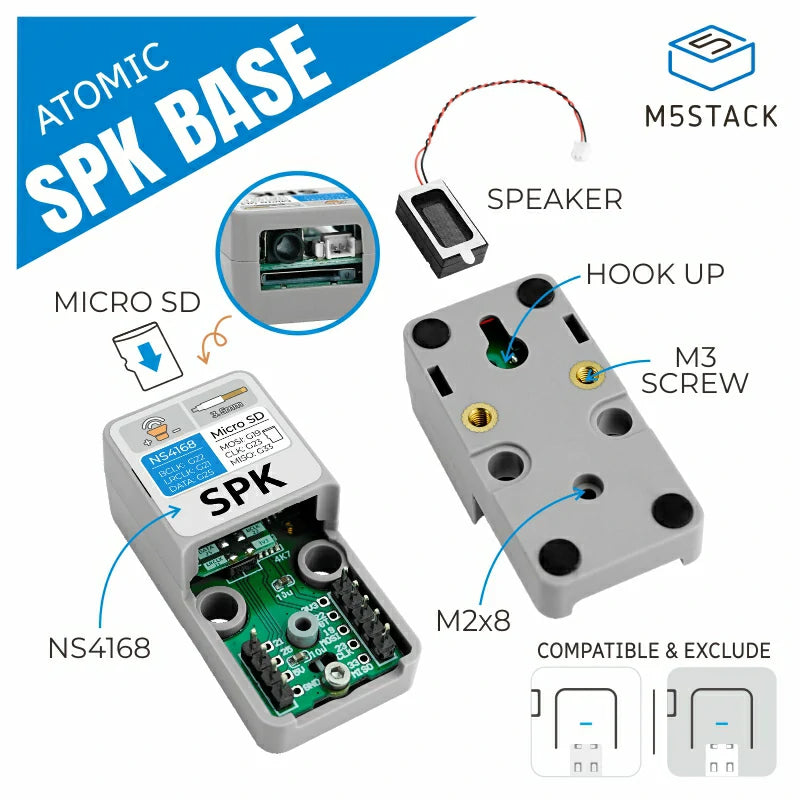

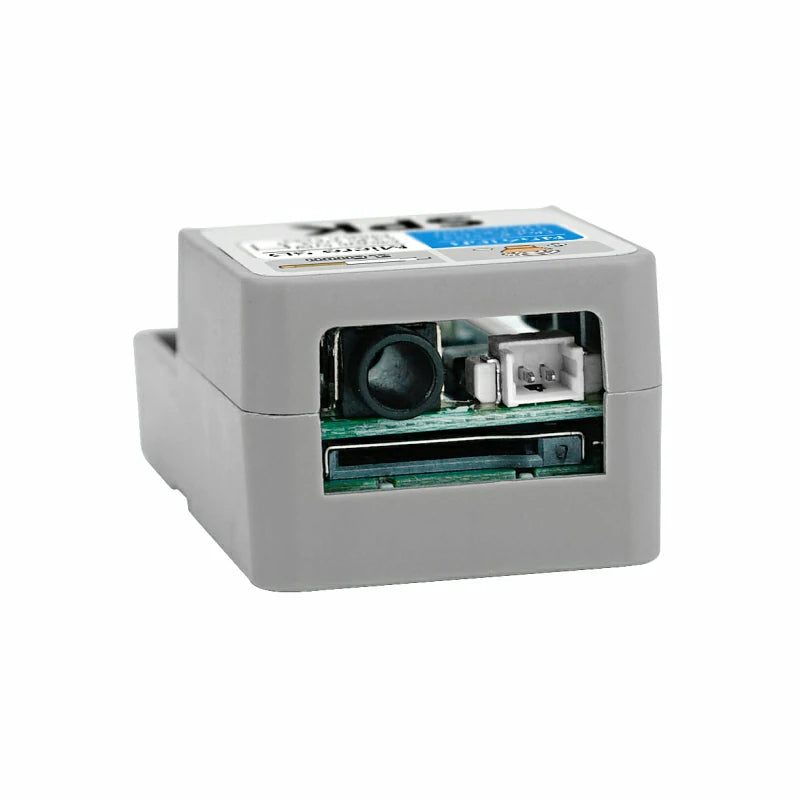

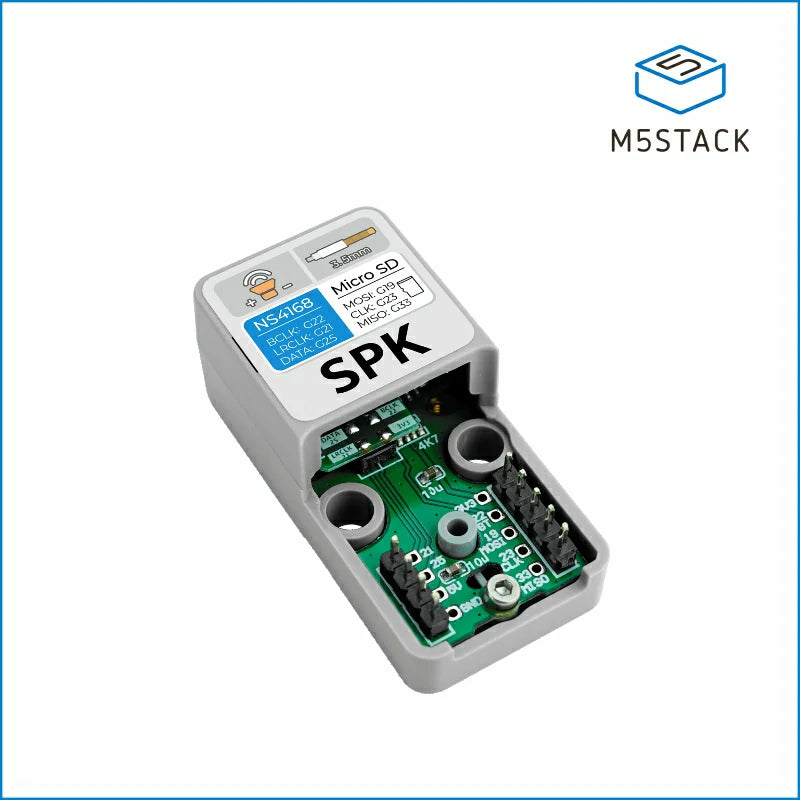

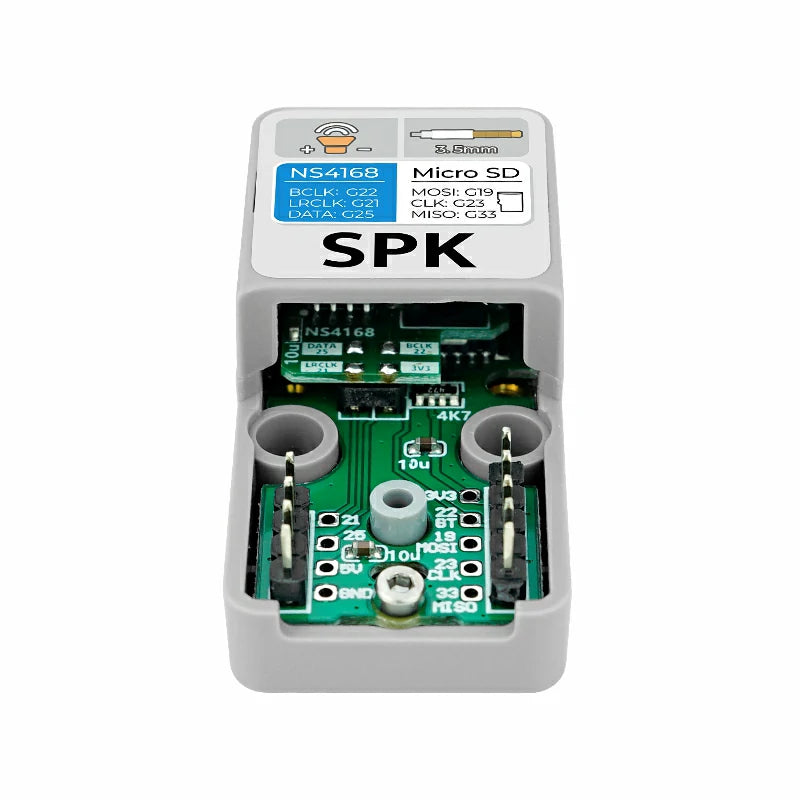

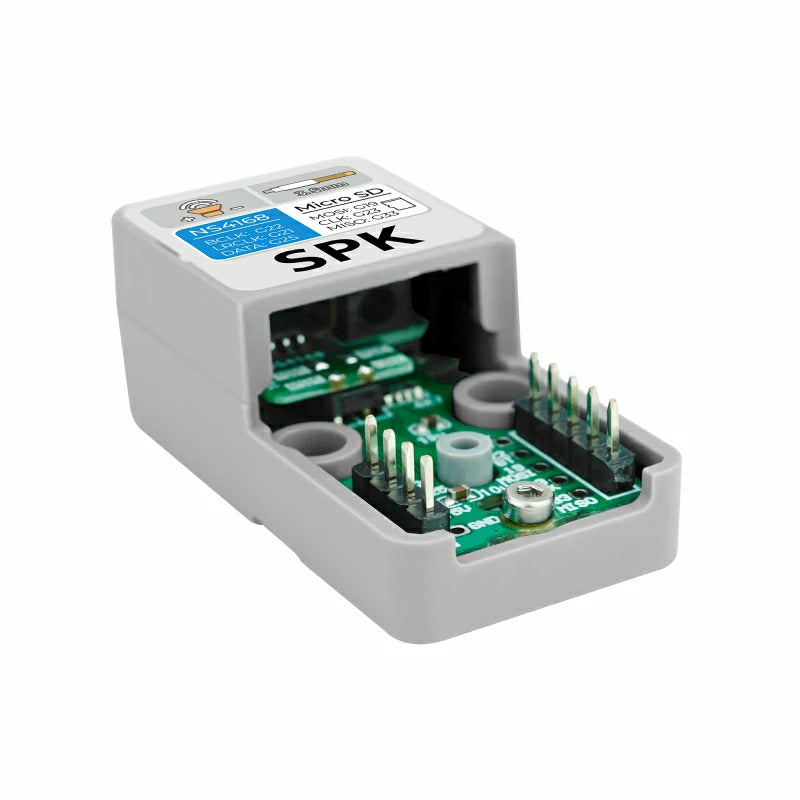

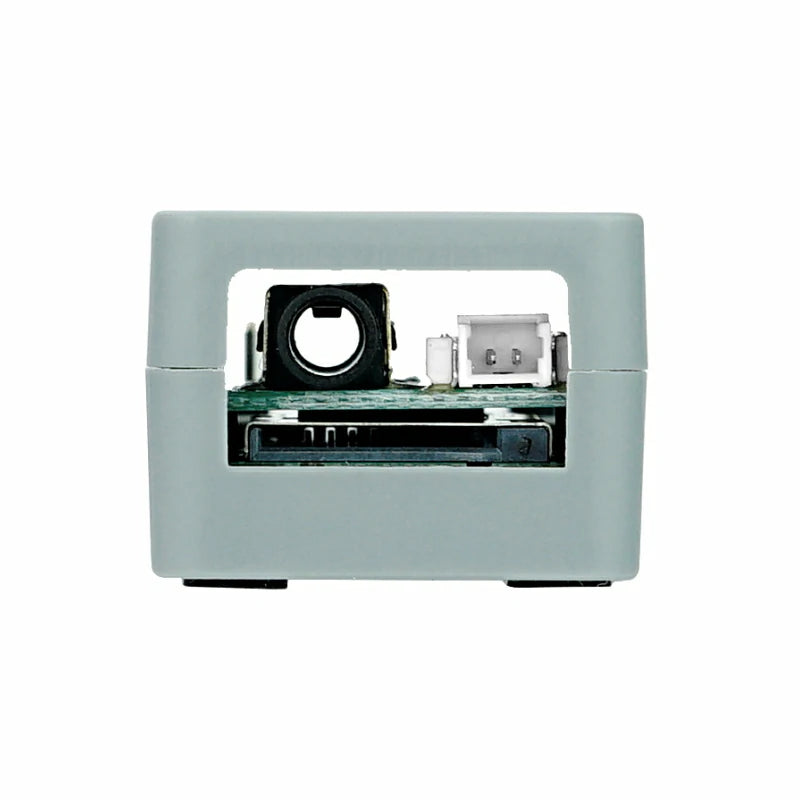

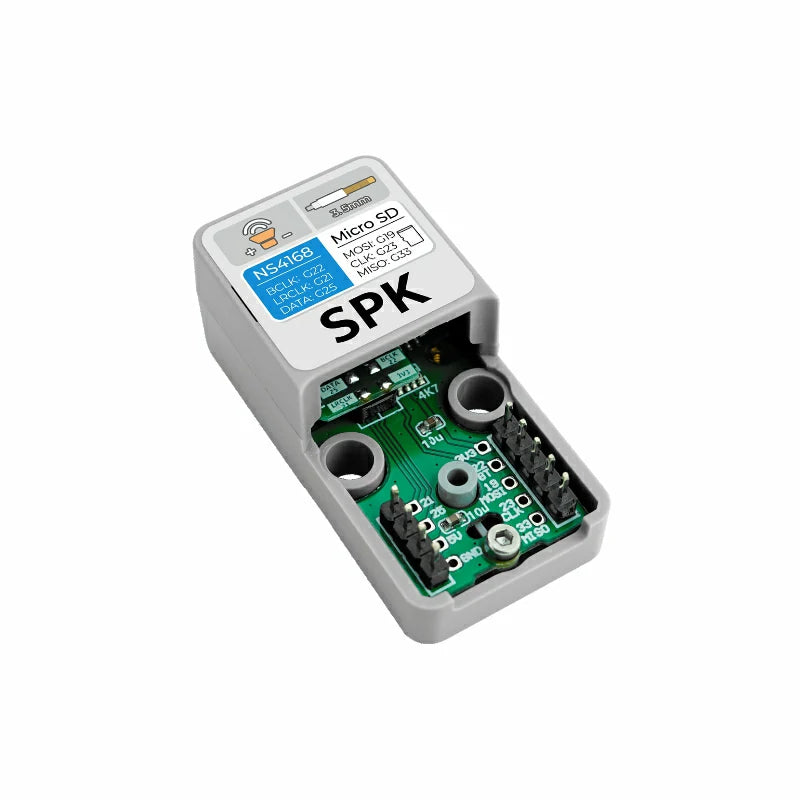

Atomic SPK Base is an audio player designed for the ATOM series controllers. It is equipped with the NS4168 power amplifier chip featuring an I2S digital audio interface, with automatic sampling rate detection, adaptive function, and effective prevention of audio signal distortion. It integrates a microSD card slot for convenient storage and reading of audio files. It provides a 3.5mm headphone jack and an external speaker interface, allowing users to play audio through external headphones or speakers.
Features
- Power amplifier chip NS4168
- I2S serial digital audio input interface
- Supports wide-range sampling rate: 8kHz ~ 96kHz
- Automatic sampling rate detection and adaptive function
- microSD Card slot
- Headphone jack
- Speaker interface

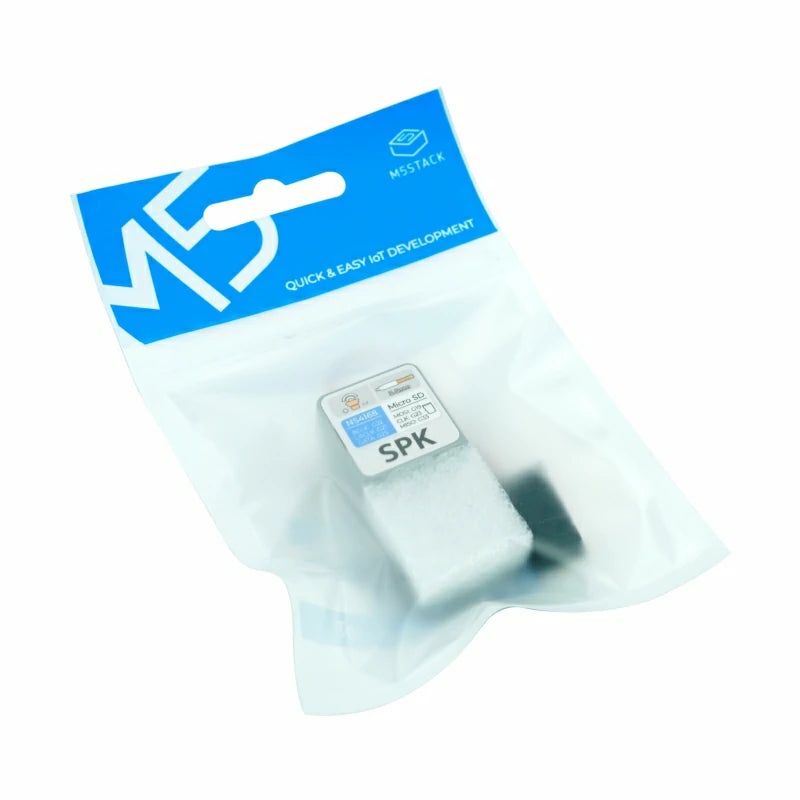

Includes
- 1 x Atomic SPK Base
- 1 x 1W@8Ω Speaker
Applications
- Audio player
- Wireless speaker
- Wi-Fi speaker
Specifications
| Specification | Parameter |
|---|---|
| Amplifier Chip | NS4168 |
| Amplifier Output | 1W (VDD=3.3V) |
| Headphone Jack | 3.5mm |
| Speaker Interface | 1.25mm-2P |
| Speaker Power | 1W@8Ω |
| Product Size | 24 x 48 x 18mm |
| Package Size | 136 x 92 x 8mm |
| Product Weight | 10.6g |
| Gross Weight | 29g |
