Description

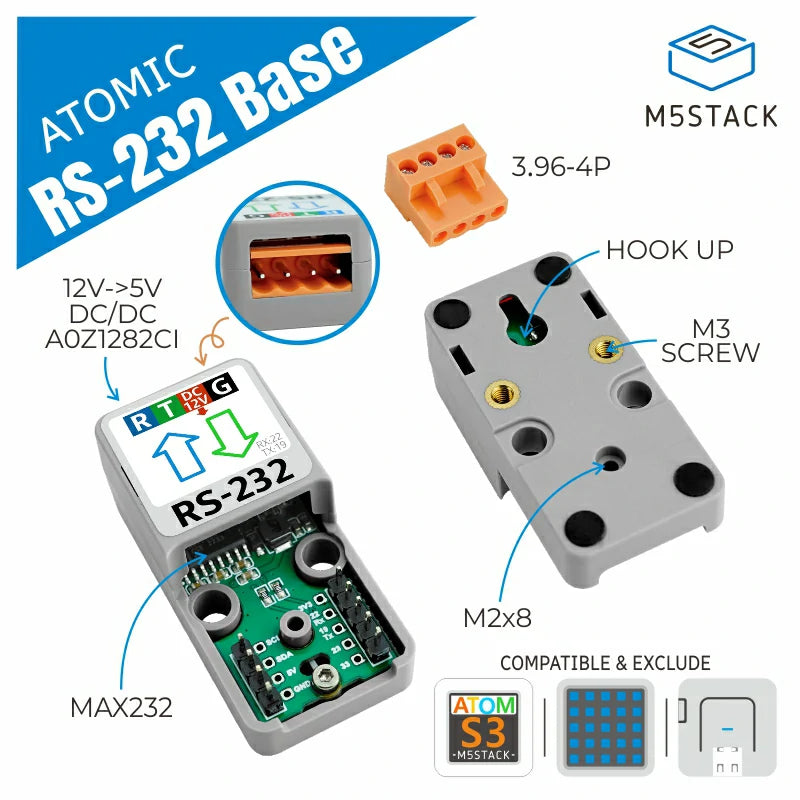

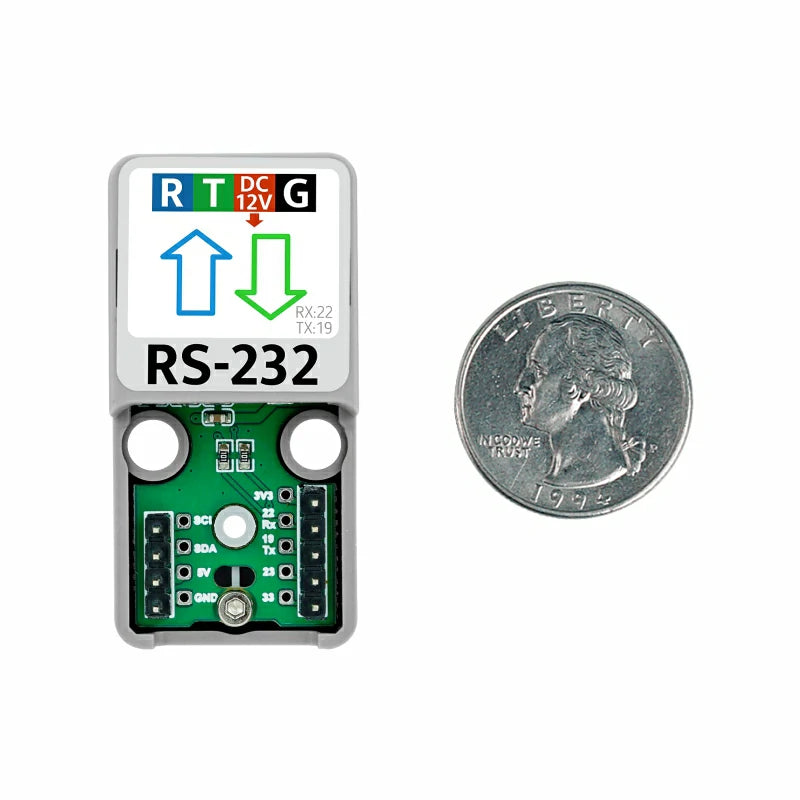

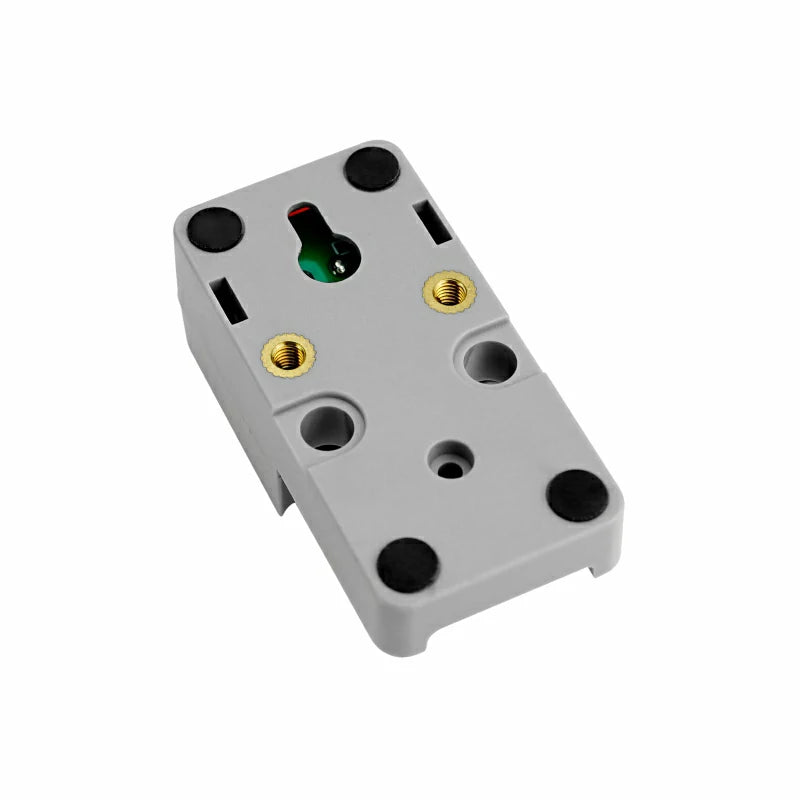

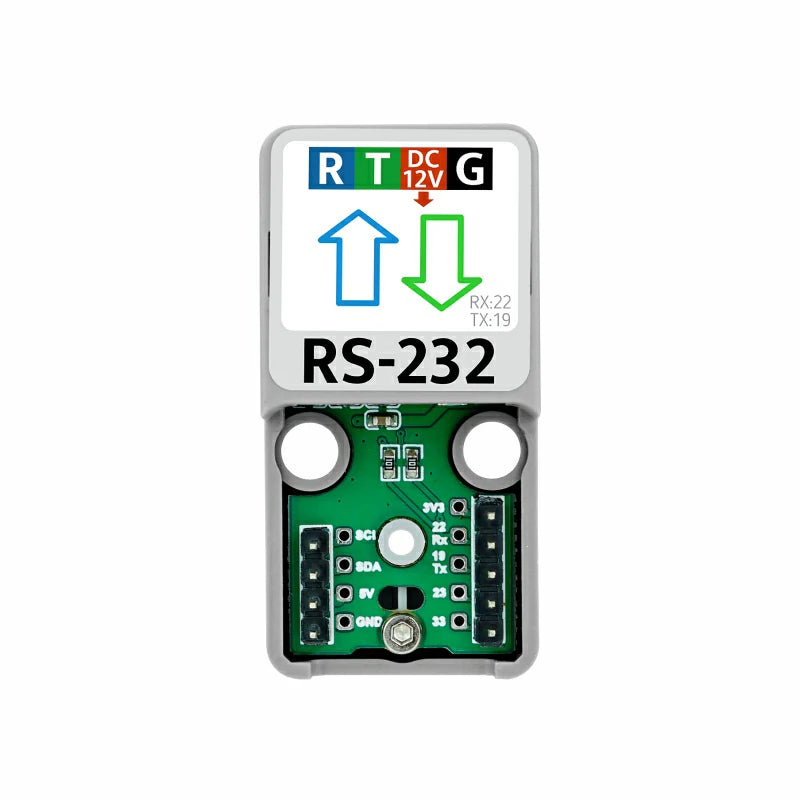

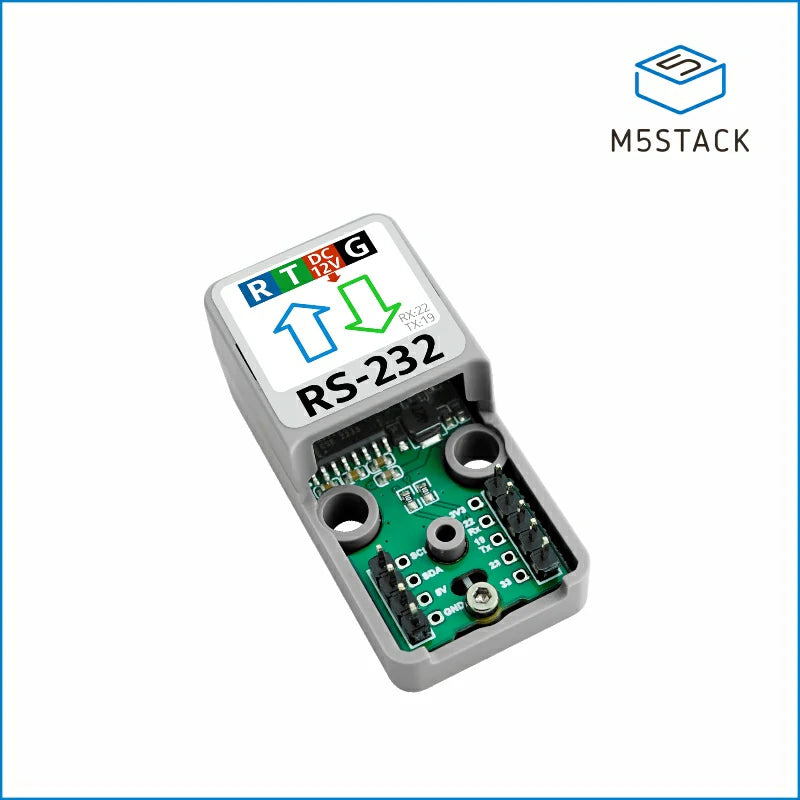

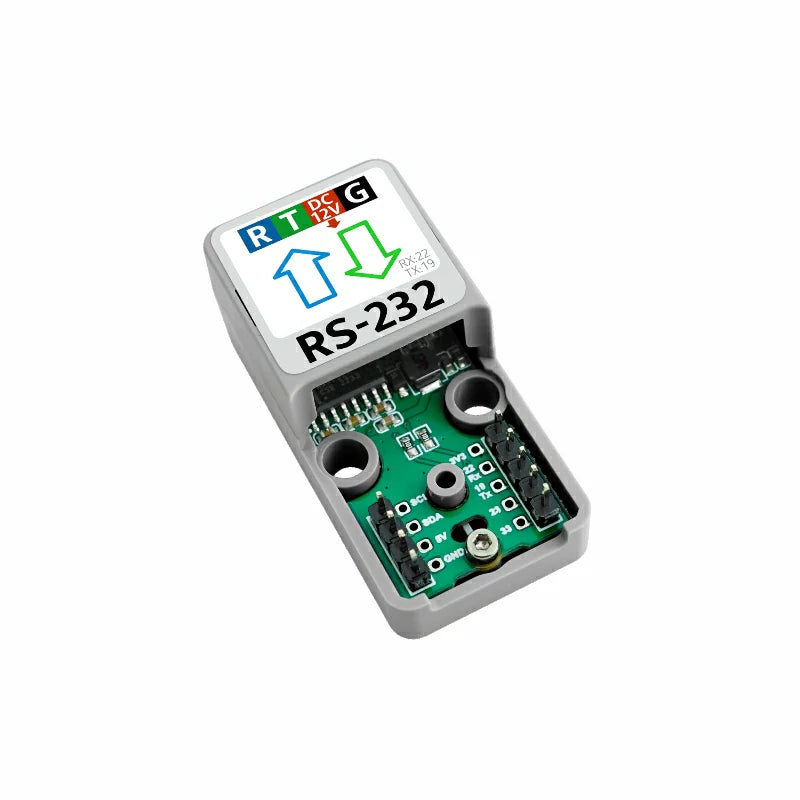

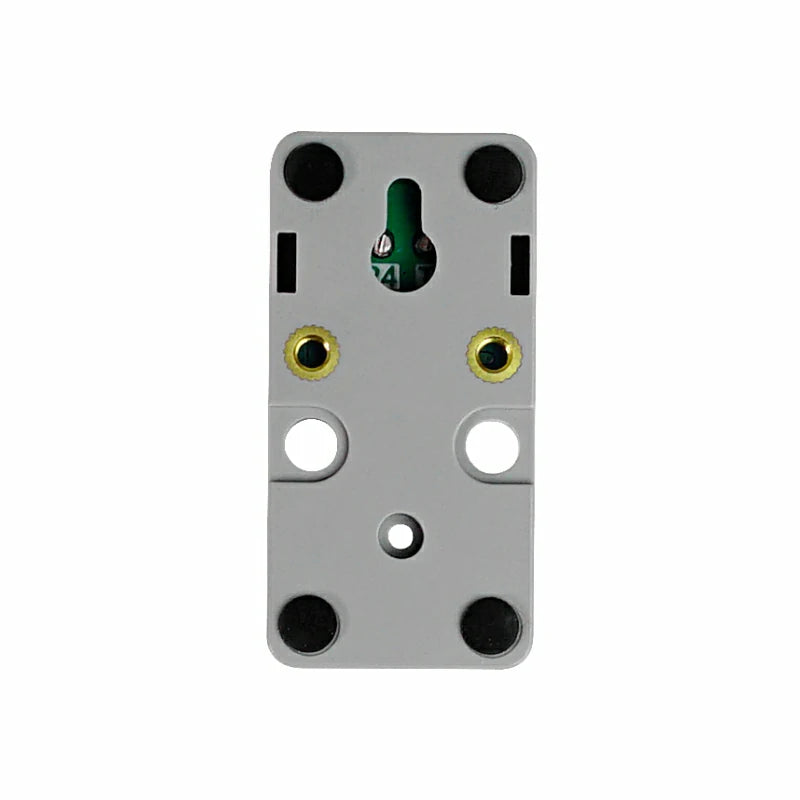

Atomic RS232 Base is a TTL-RS232 level converter designed for the Atom series hosts. RS-232 is a standard for serial communication between computers and peripheral devices, defining electrical characteristics and data transmission protocols. The module uses the MAX232 chip to support bidirectional conversion between TTL and RS232 levels. It also includes a built-in DC-DC step-down voltage regulator chip, allowing it to power the ATOM with an external 12V power supply.
Features
- Compatible with Atom-Matrix/Atom-Lite/AtomS3-Lite/ATOMS3
- Full-duplex communication
- Built-in DC-DC

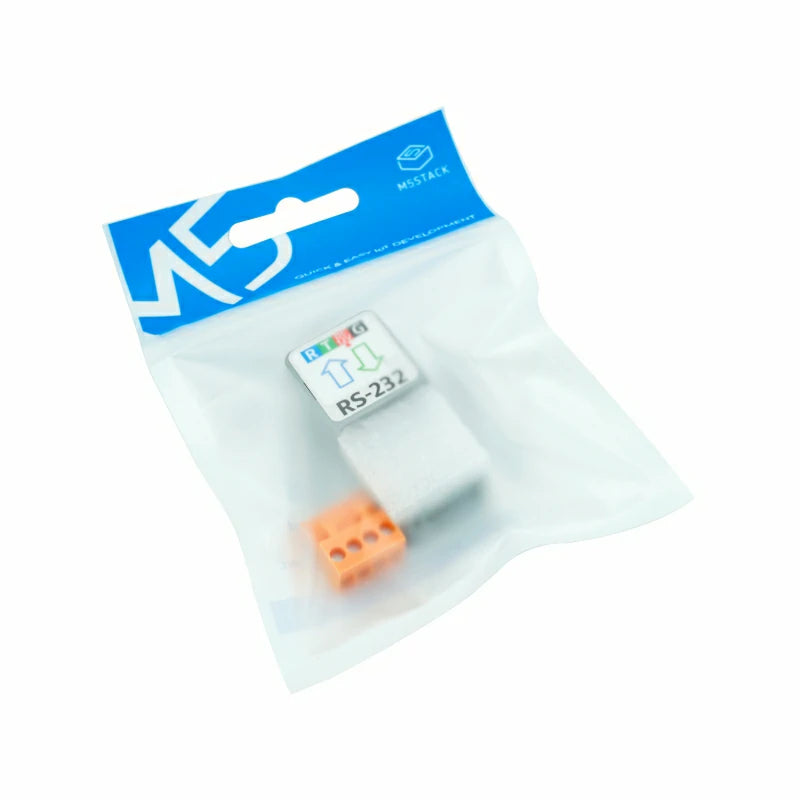

Includes
- 1 × Atomic RS232 Base
- 1 × HT3.96-4P
Applications
- RS232 communication
- Industrial control nodes
Specifications
| Specification | Parameter |
|---|---|

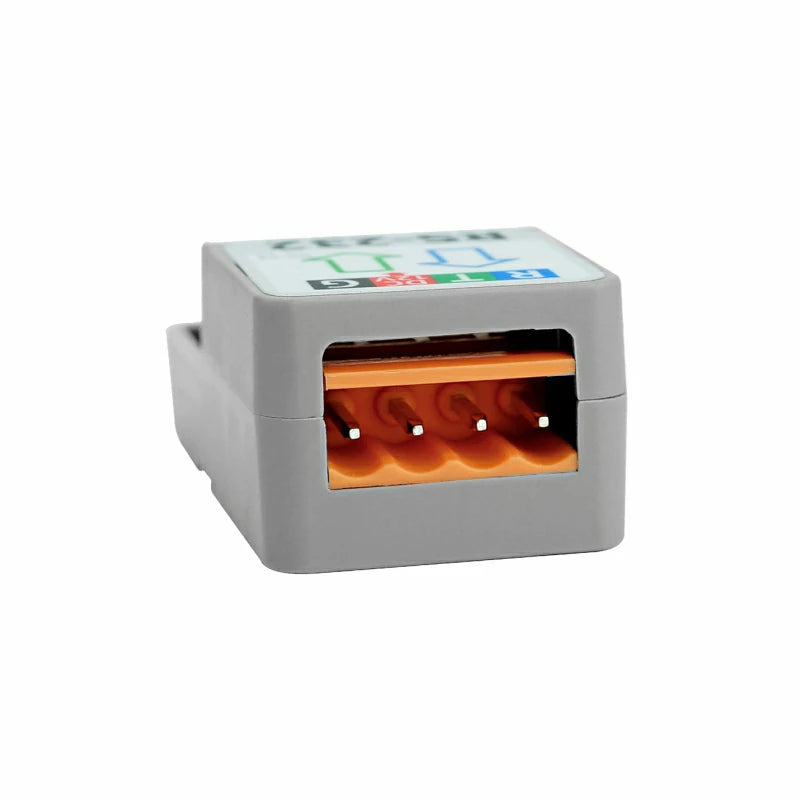

| External Port | VH-3.96 4P |
| Level Conversion Chip | MAX232 |
| DC-DC | A0Z1282CI |
| Housing Material | Plastic (PC) |
| Product Size | 24 x 48 x 18mm |
| Package Size | 136 x 92 x 13mm |
| Product Weight | 18g |
| Gross Weight | 28g |
