ATOMIC DIY Proto Kit for ATOM series

SKU:A077

Regular price $3.50

10+ In Stock

Shipping calculated at checkout.
PRODUCT DETAILS

Description

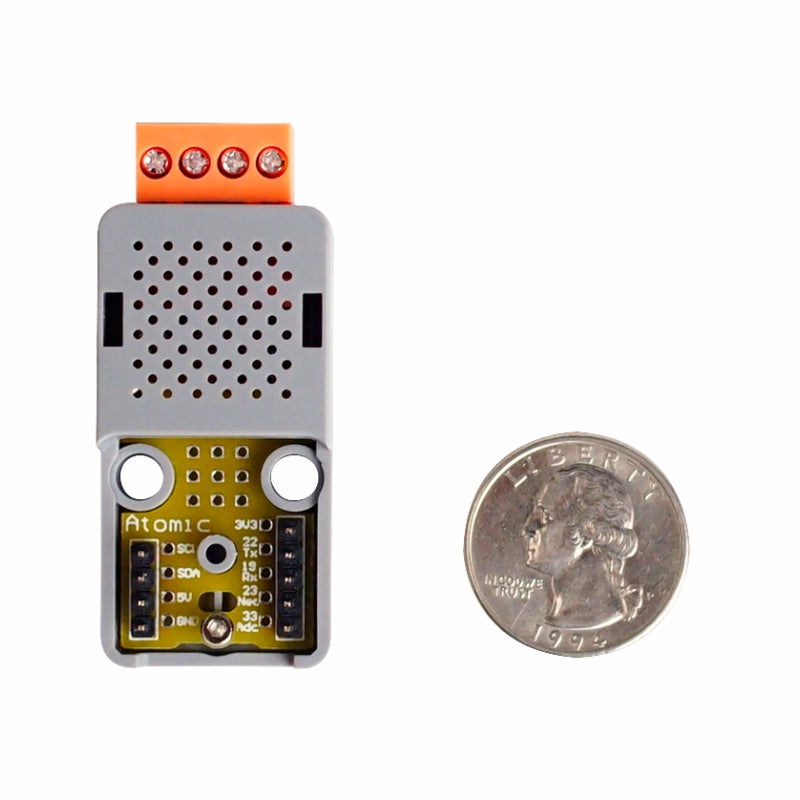

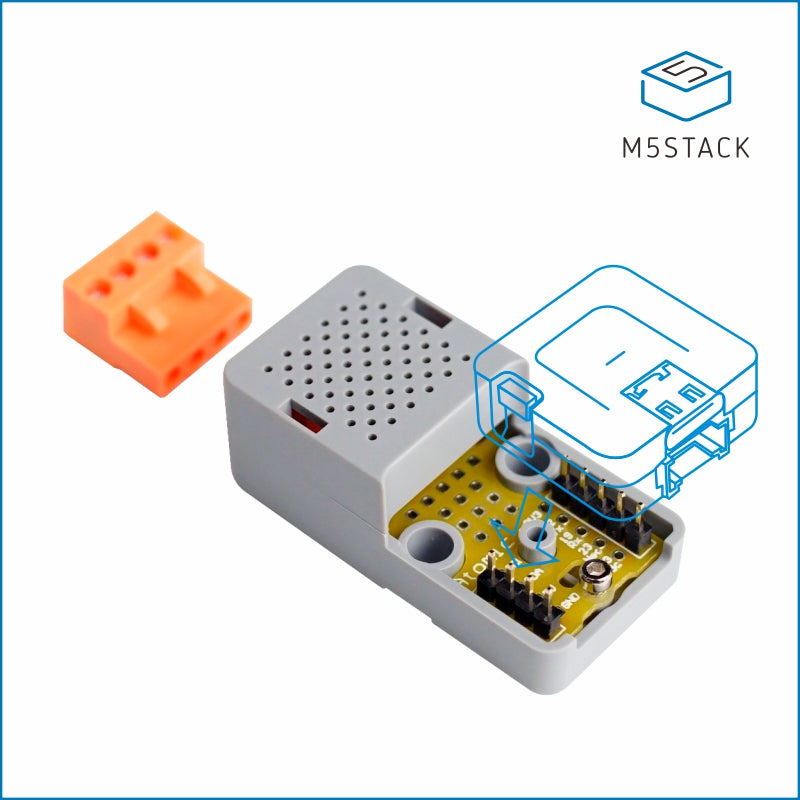

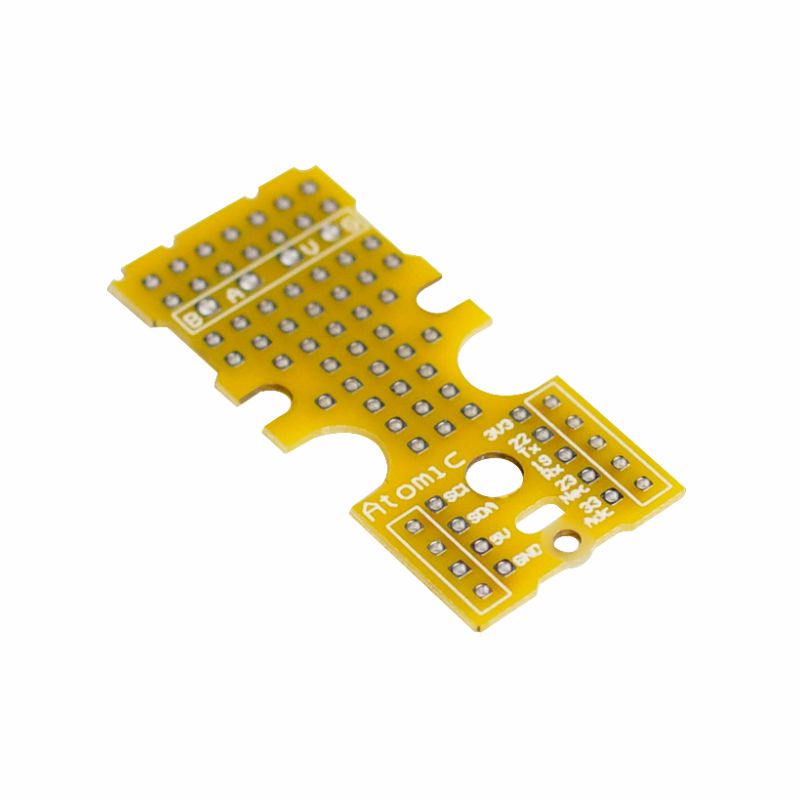

ATOMIC is a DIY expansion kit specifically designed for the ATOM series controllers, making it convenient for users to design their own small circuits or connect external hardware. It can be directly stacked on the ATOM series controllers via the 9 pins on the base.. The kit includes two Proto blank boards, with each board providing over 60 holes to accommodate users' spatial layout needs. It also comes with a pair of 3.96*4P connectors, ensuring reliable external electrical connections.

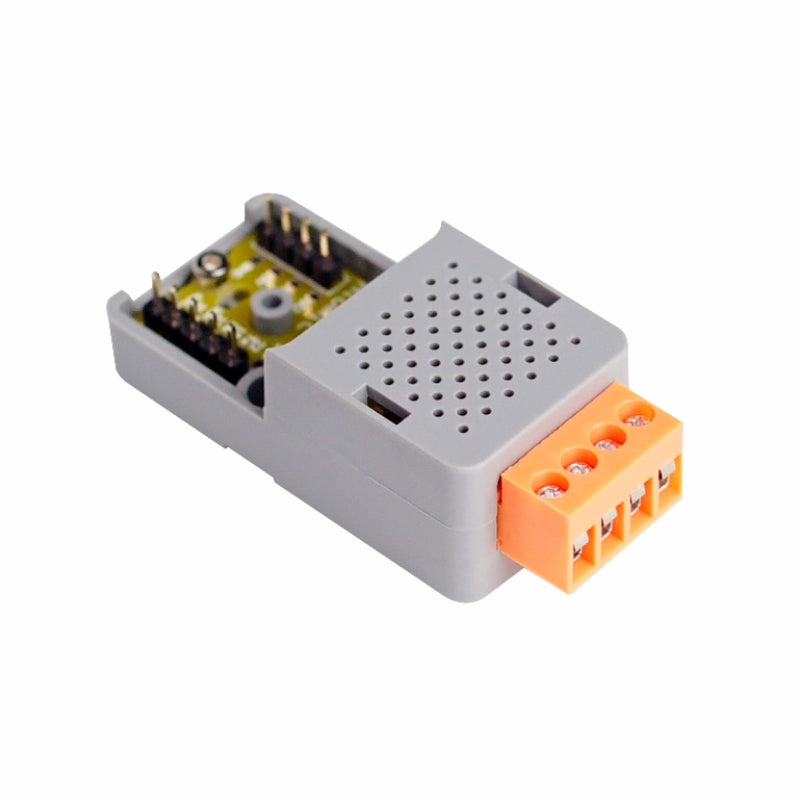

The enclosure features a perforated design, allowing for ventilation and meeting the requirements of non-enclosed space usage, such as temperature and humidity measurements. The product offers various mounting options, including hanging, LEGO connections, and screw fixation.

Product Features

  • Compatible with Atom Matrix/Atom Lite
  • Compact design
  • DIY Style
  • Built-in Infra-red
  • Open design

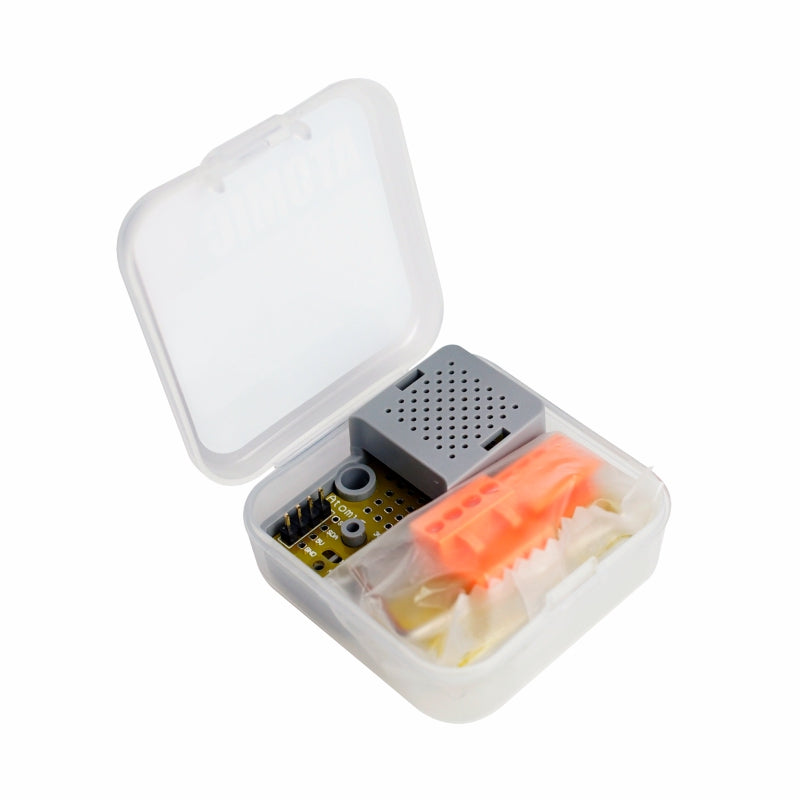

Include

  • 1x Proto Board
  • 1x Proto Board(soldered pin/finished product)
  • 1x 4P VH-3.96 Plug + Plug Base
  • 1x 4P 2.54 Pins
  • 1x 5P 2.54 Pins
  • 1x ATOMIC Case
  • 1x M2*3mm Hexagon self tapping screw
  • 1x M2*8mm Hexagon socket cup head machine screw

Applications

  • Atom expansion board
  • DIY node controller
  • Peripheral connection

Specification

Specification Parameter
External port VH-3.96 4P
Gross weight 42g
Product Size 24*48*18mm
Package Size 50*50*20mm
Case material Plastic (PC)
