ATOMIC PortABC Extension Base

SKU:A130

Regular price $3.50

10+ In Stock

Shipping calculated at checkout.

Description

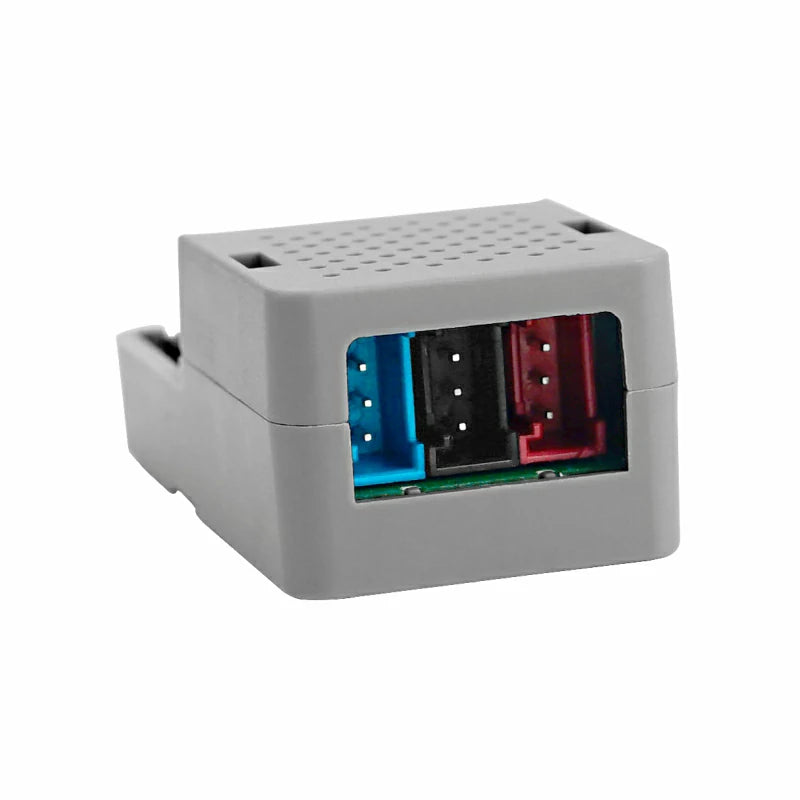

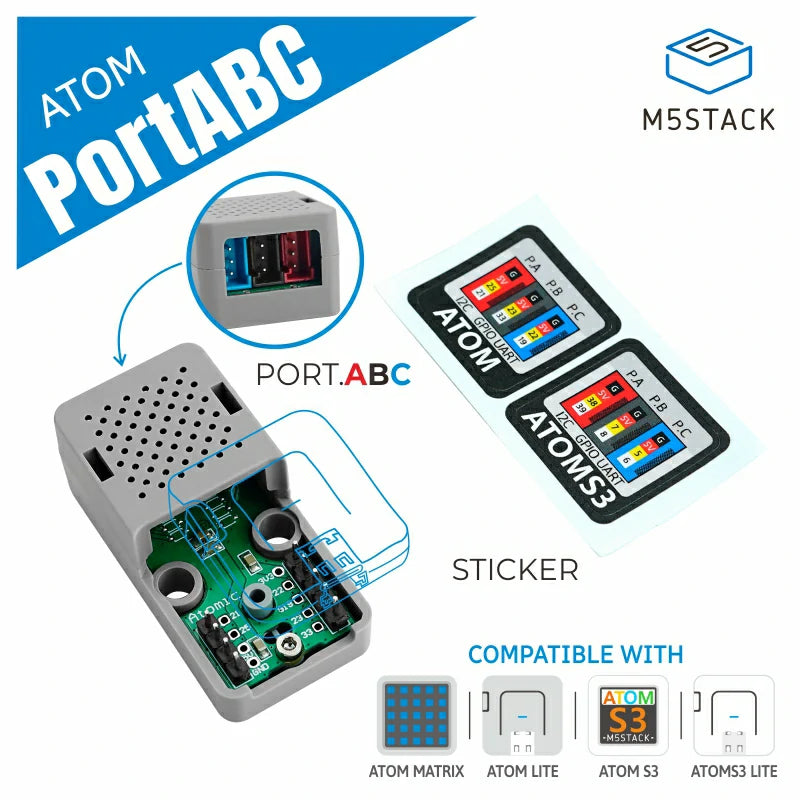

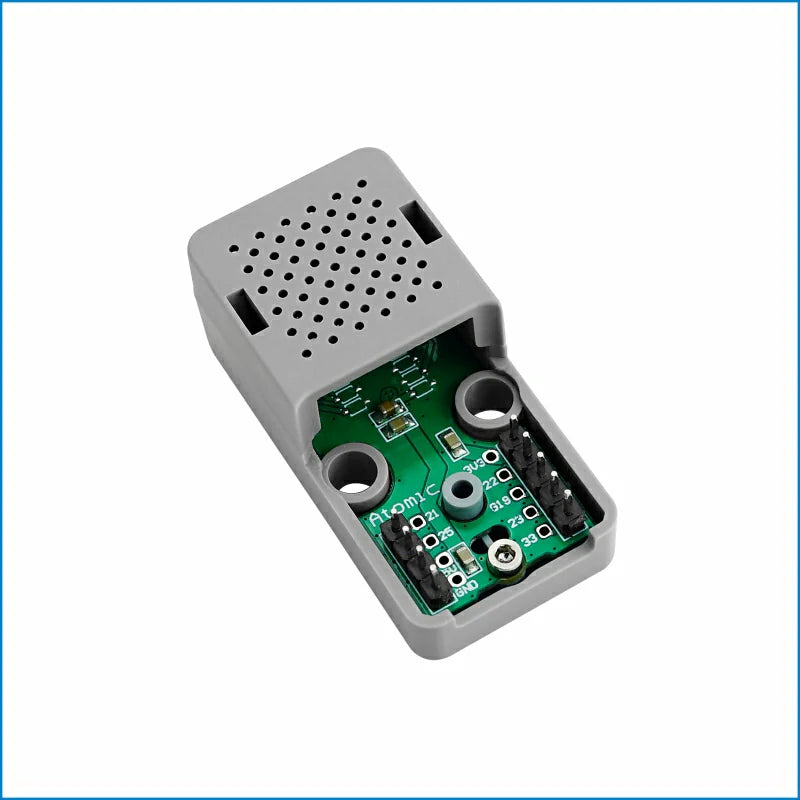

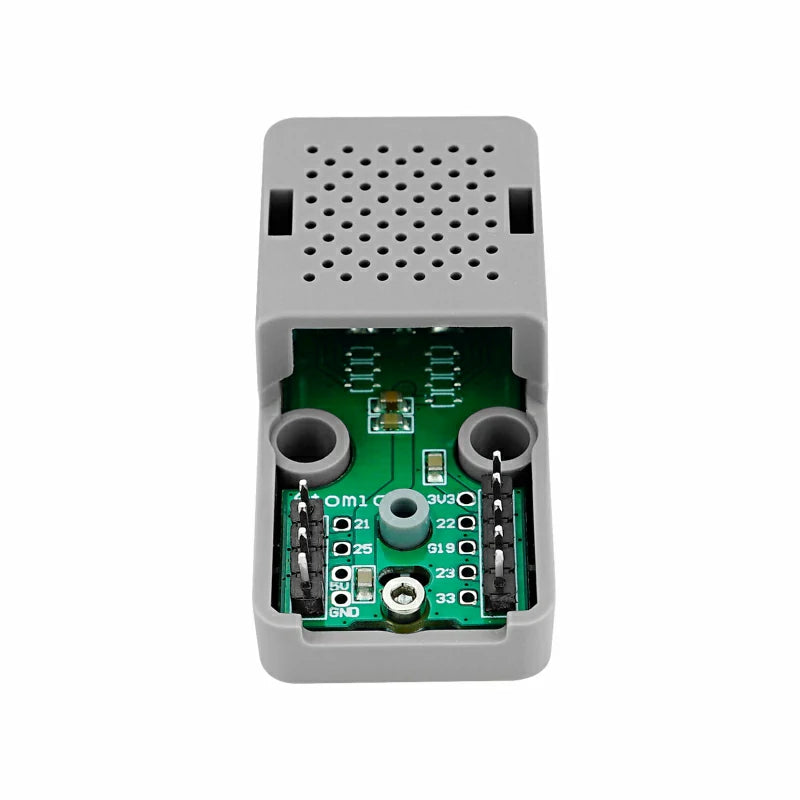

Atom PortABC is a Grove port extension base specifically designed for the ATOM series. This innovative product allows users to conveniently connect multiple I2C, UART, and GPIO type UNIT units simultaneously.

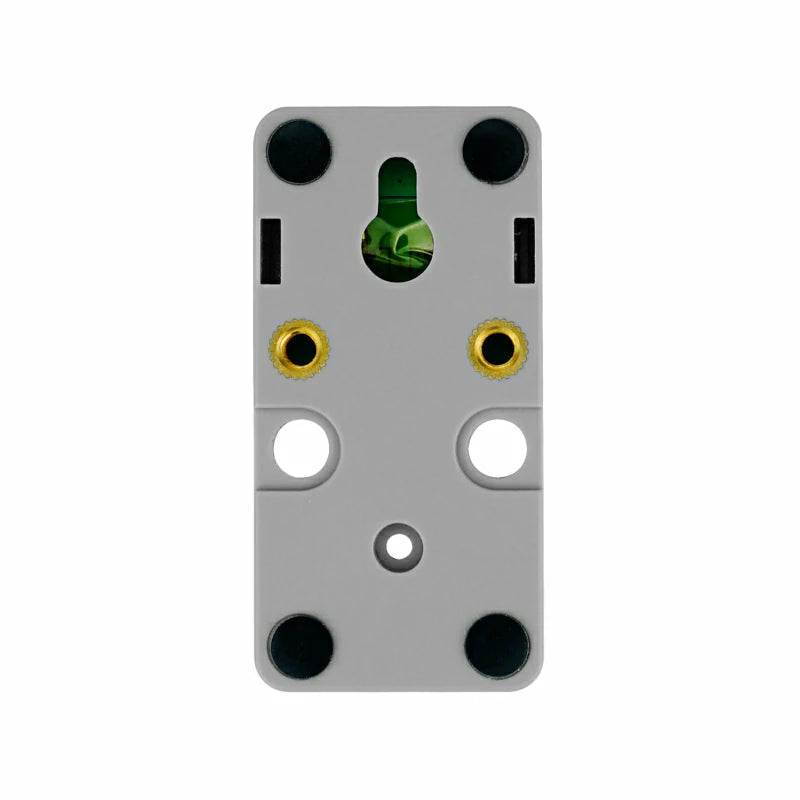

With the Atom PortABC, users can enjoy the flexibility of expanding their ATOM-based projects with ease. It offers a range of fixing methods, including suspension, Lego connection, and screw fastening, ensuring secure and versatile installation options.

Whether you're building multi-functional mini-node controllers or exploring complex IoT applications, the Atom PortABC provides the perfect solution for expanding your ATOM series capabilities. With its user-friendly design and compatibility with various UNIT units, the Atom PortABC opens up endless possibilities for creating innovative and customized projects.

Features

  • Compatible with port ABC(I2CGPIOUART)
  • Compatible with ATOM series hosts

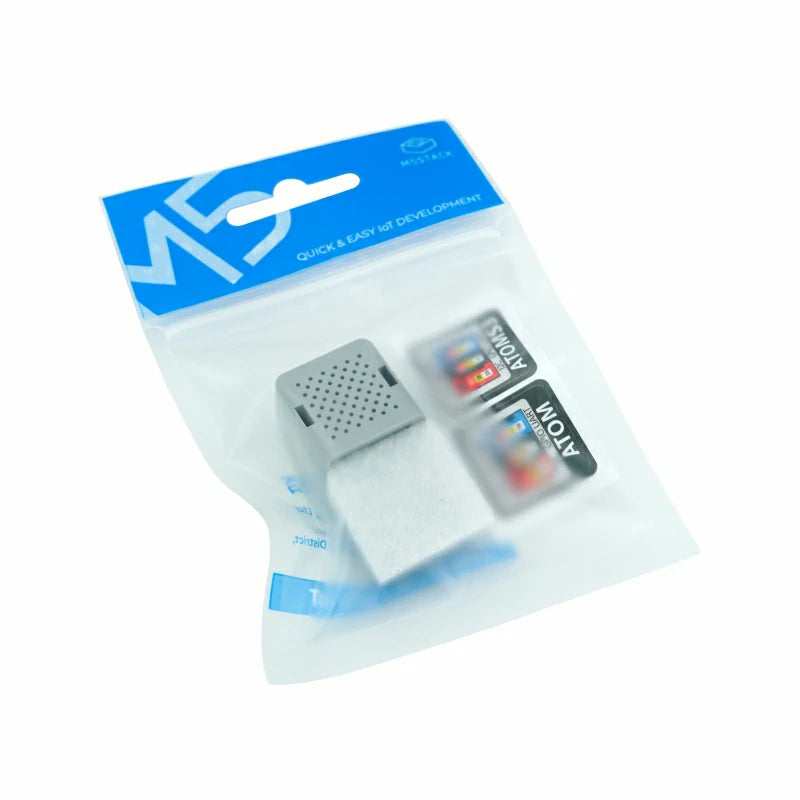

Includes

  • 1 x AtomPortABC
  • 1 x Pin Map sticker

Applications

  • Multifunctional control node

Specification

Resources Parameters
Applicable sensor interface type I2C、UART、GPIO
Operating temperature 0-40°C
Supported ATOM ATOM Matrix、ATOM Lite、ATOMS3、ATOMS3 Lite

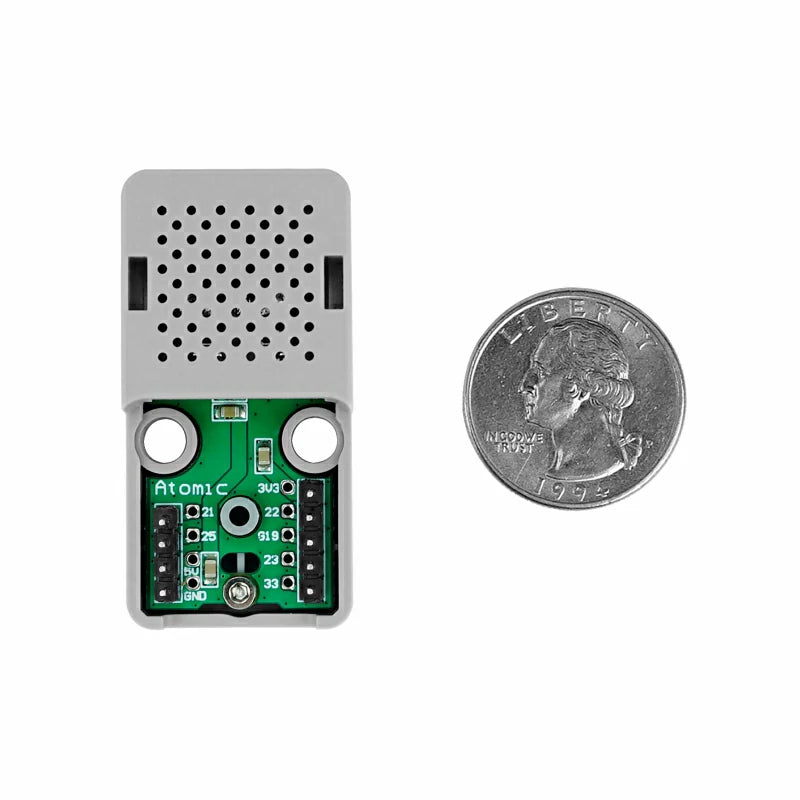

Product Size 64 * 24 * 29mm
Package Size 91 * 42 * 24.5mm
Product Weight 5g
Package Weight 10g

Schematic

schematics

PinMap

schematics schematics
