Description

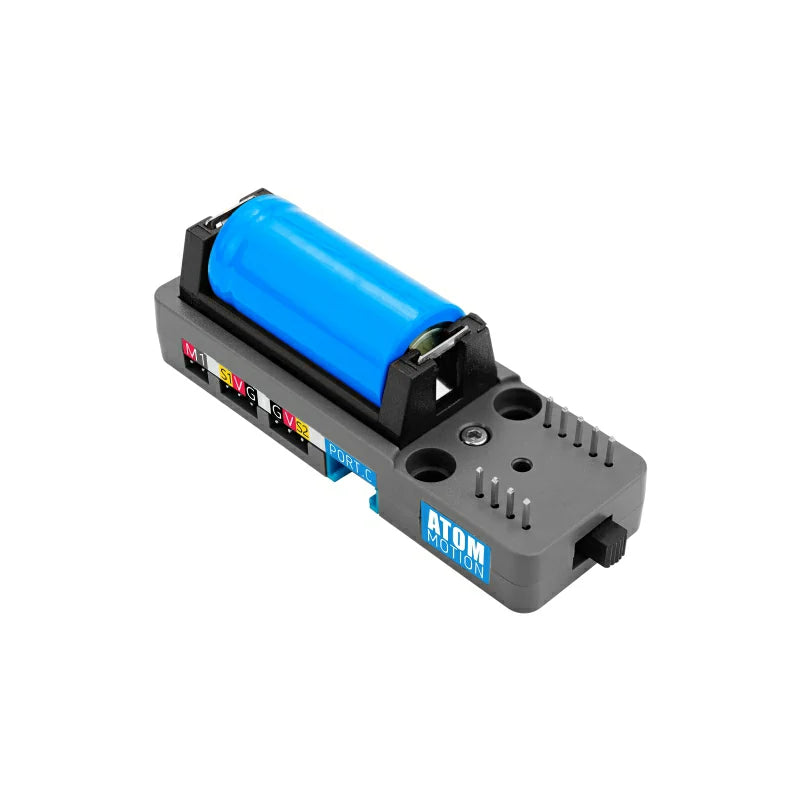

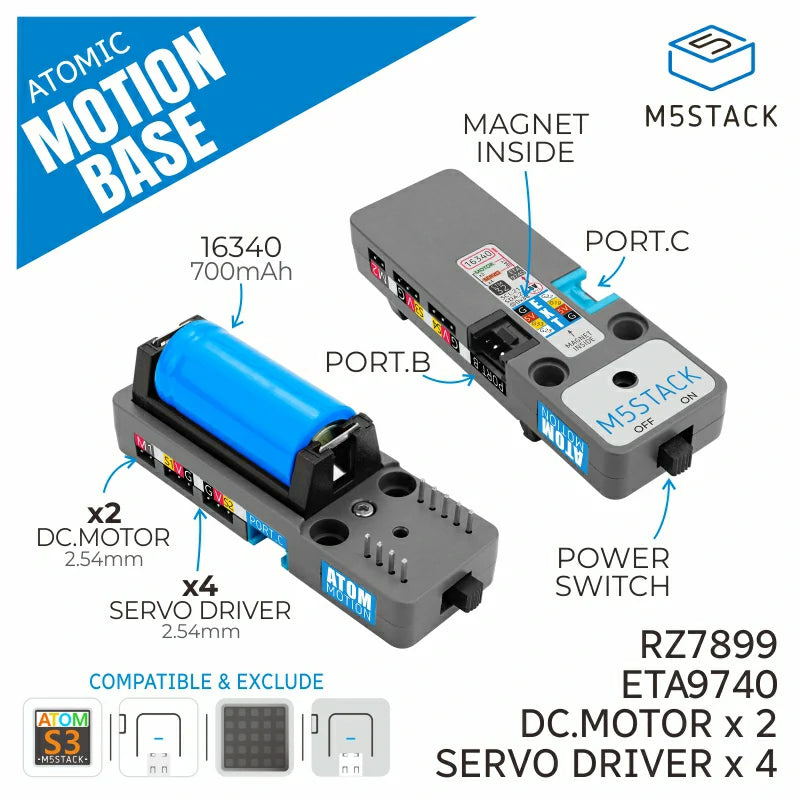

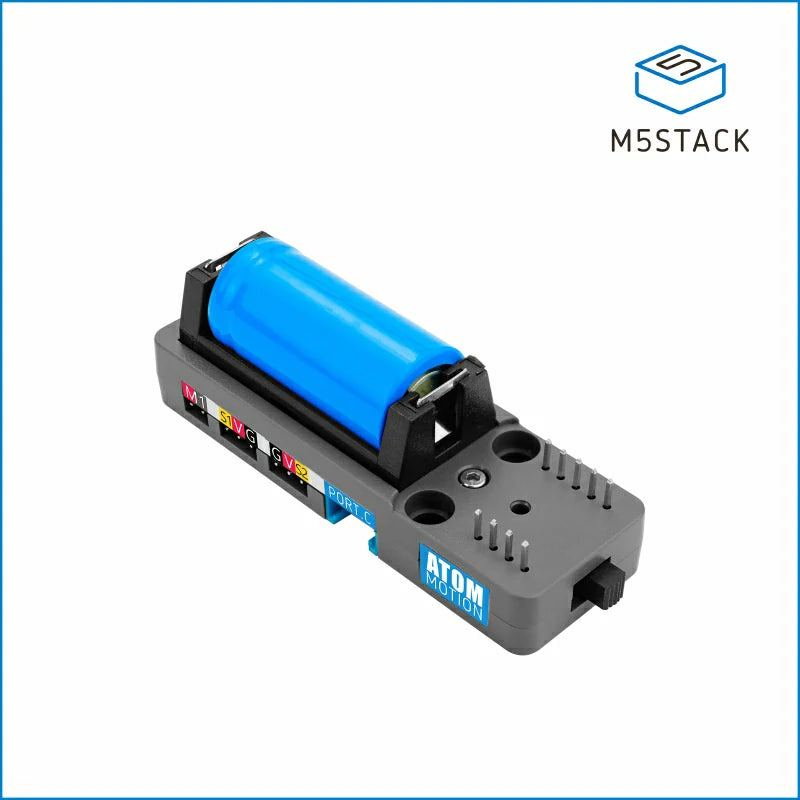

Atomic Motion Base is a servo and DC motor driver designed specifically for the ATOM series controllers. It integrates an STM32 control chip internally and uses I2C communication for control. Atomic Motion Base provides 4 servo channels and 2 DC motor interfaces, offering convenience for scenarios that require control of multiple servos or motor drivers, such as multi-axis servo robotic arms or small car motor control.
Internally, Atomic Motion Base integrates a 16340 lithium battery with a capacity of 700mAh, enabling independent power supply and convenient portability without the need for an external power source. Additionally, Atomic Motion Base provides two HY2.0-4P interface extensions, which expose 4 PIN pins that can be used for connecting sensors and other expansion devices.
Features
- Applicable to AtomS3/AtomS3 Lite/Atom Lite/Atom Matrix
- 4 channel servo control
- 2 channel DC motor control

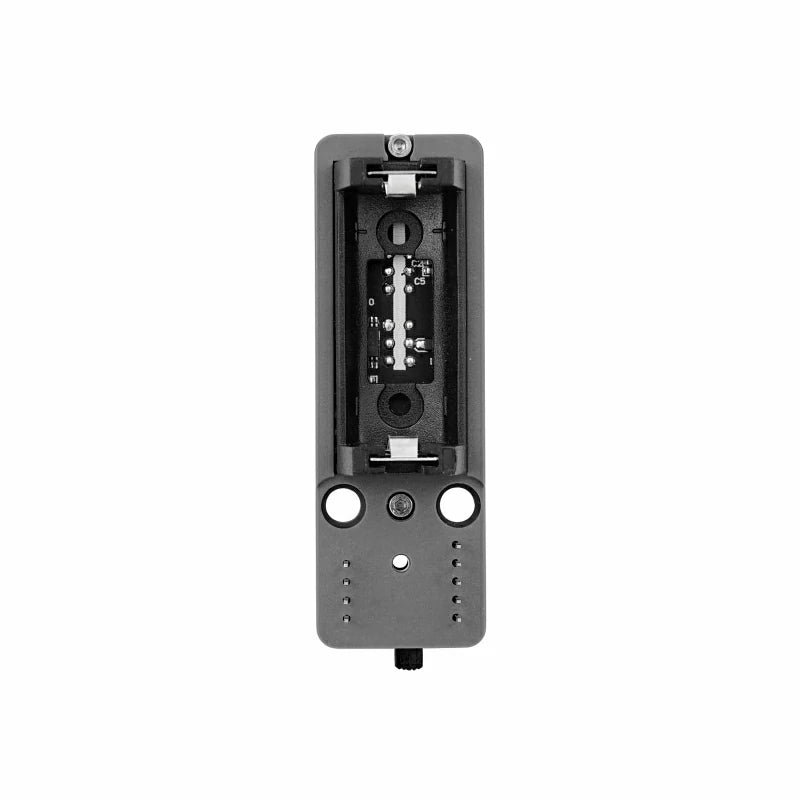

- Removable lithium battery

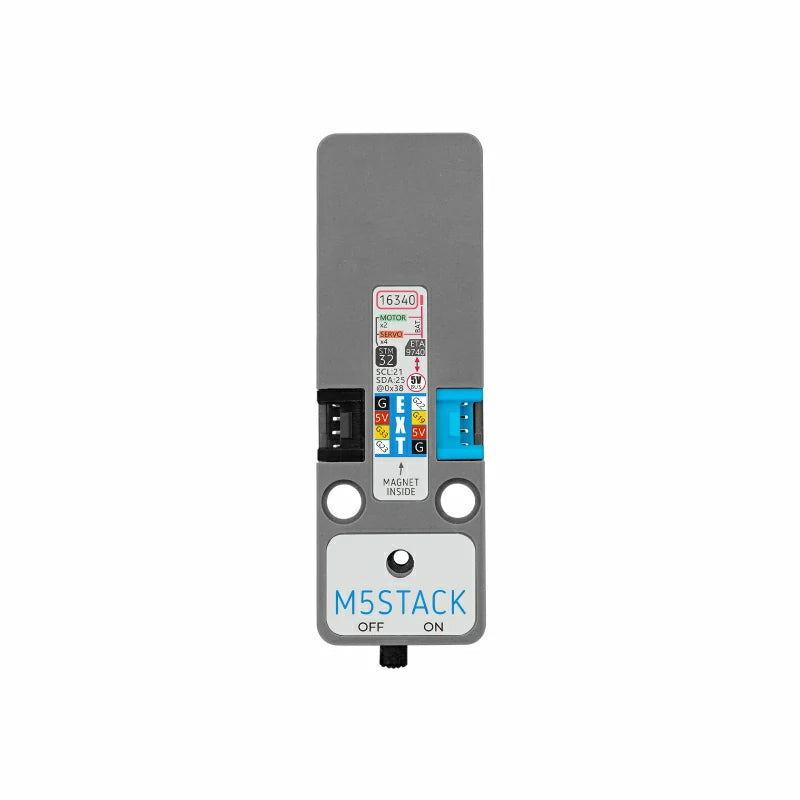

- Magnetic back design

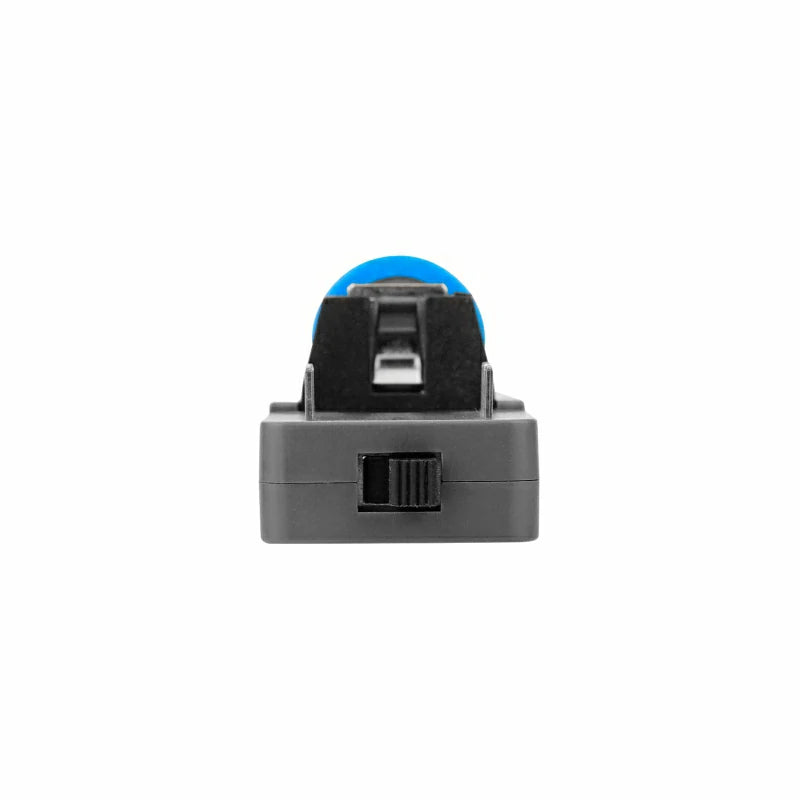

- Independent power switch
- 2 way HY2.0-4P expansion interface

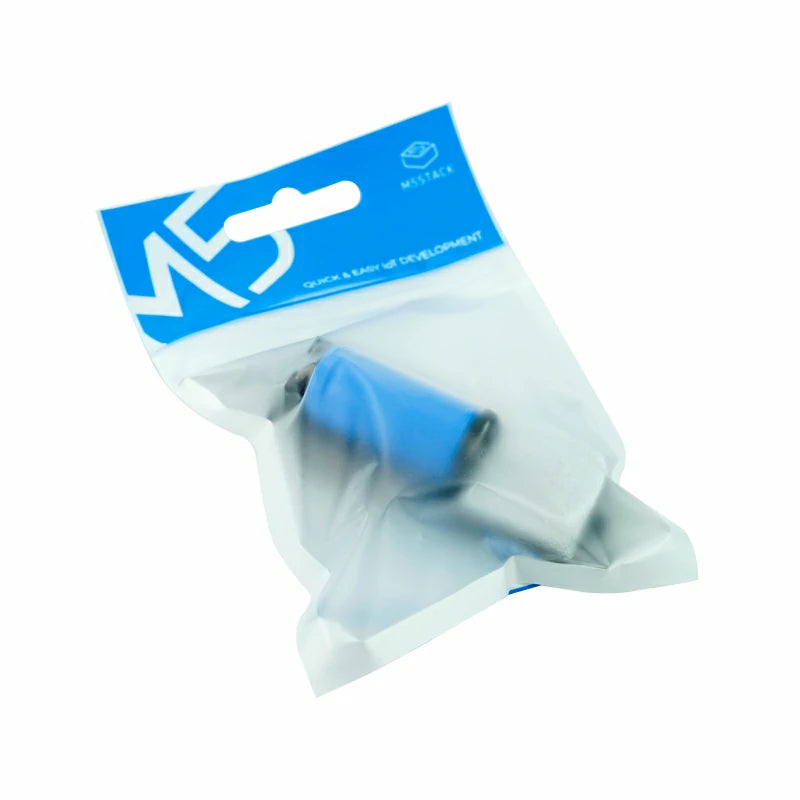

Includes
- 1x Atomic Motion Base
Applications
- DC motor trolley control
- Steering gear arm control
Specification
Resources | Parameters |
---|---|
Removable lithium battery | Specification: 16340, capacity 700mAh |
Motor interface PIN spacing | 2.54mm |
Full load steering current | 3A |
Single-channel motor operating peak current | 1A |
Single channel servo working peak current | 0.4A |
Product Size | 74*24*20.7mm |
Package Size | 136* 92*13mm |
Product Weight | 35g |
Package Weight | 37g |
