Description

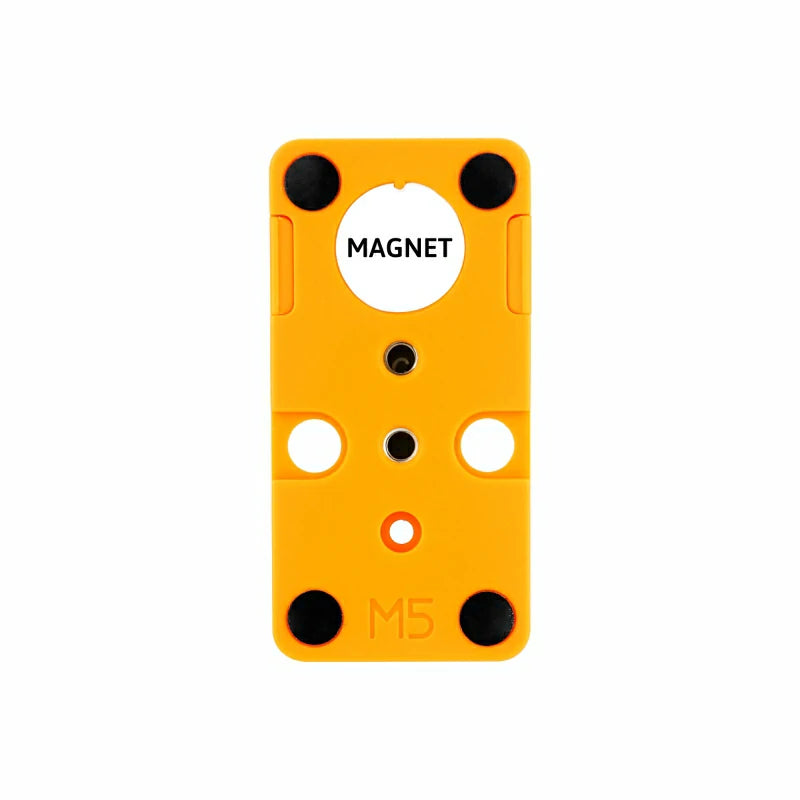

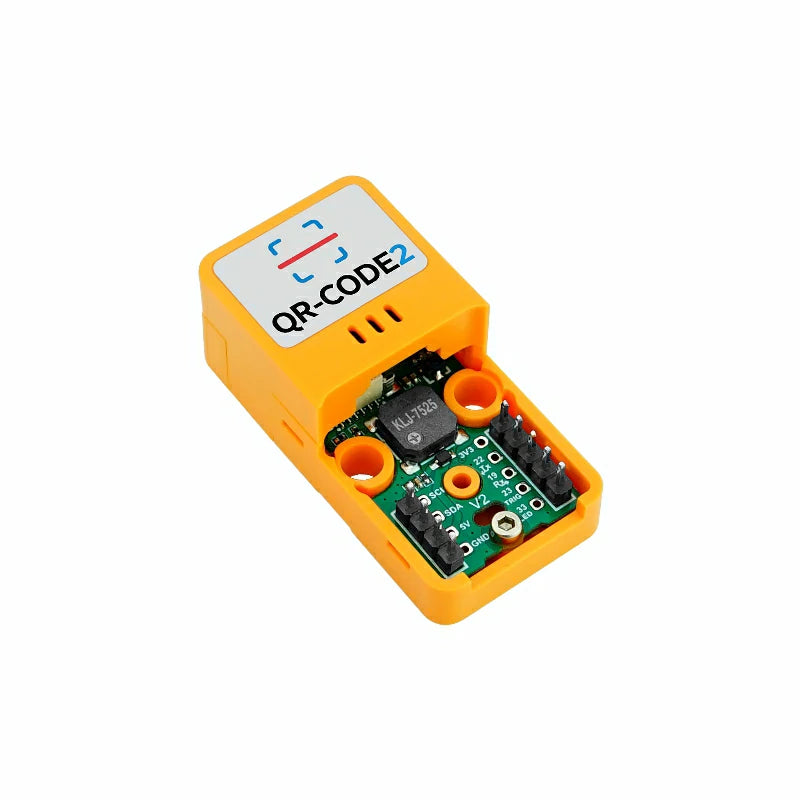

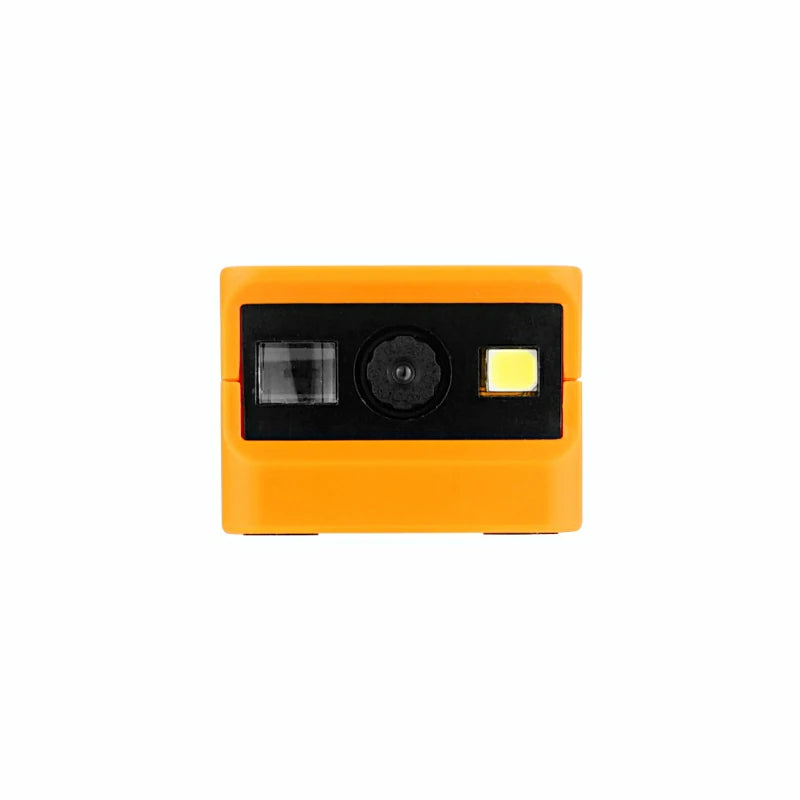

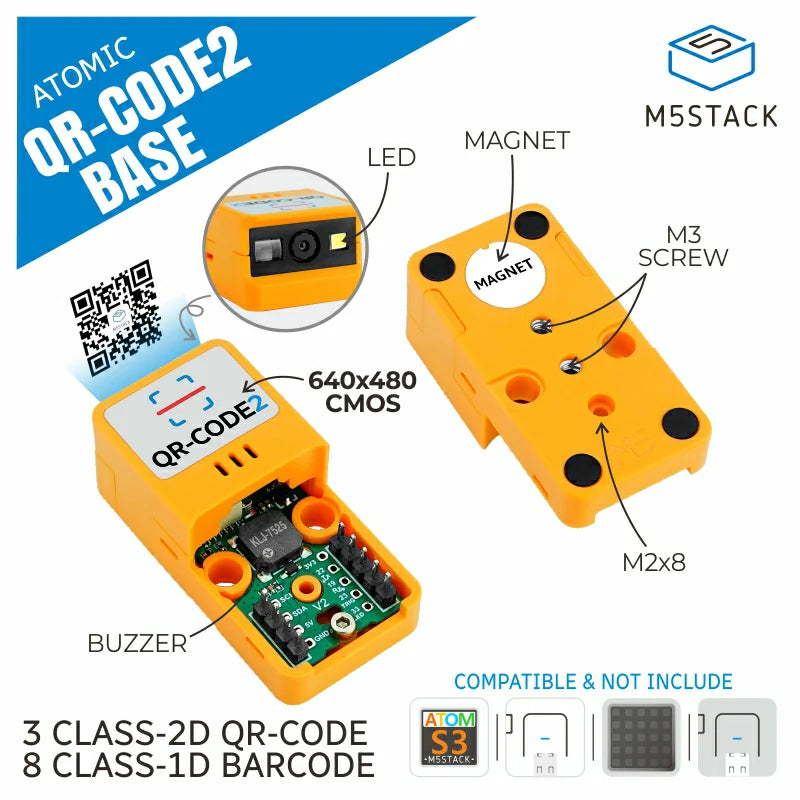

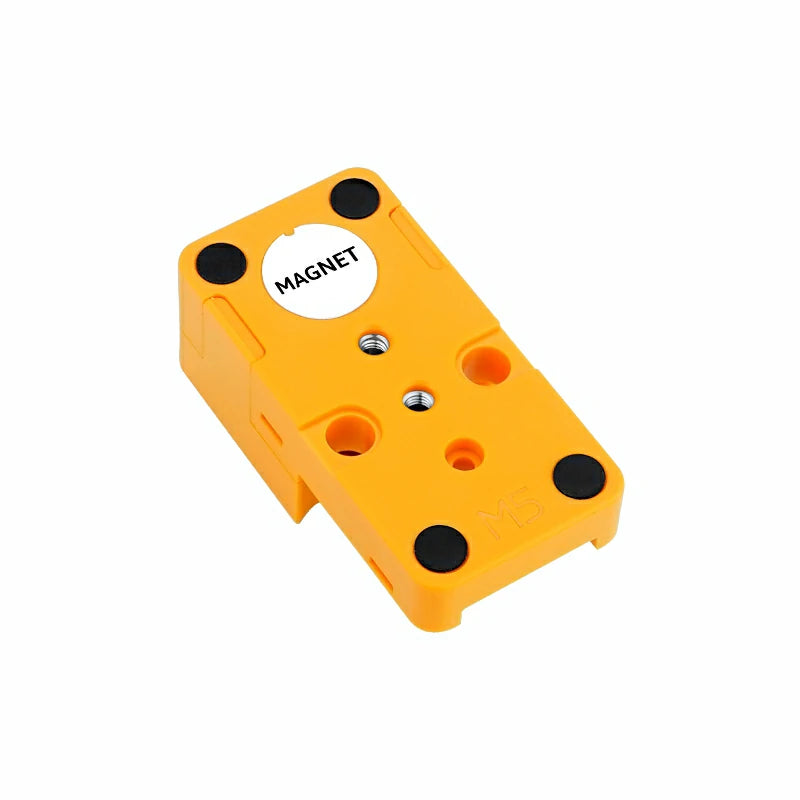

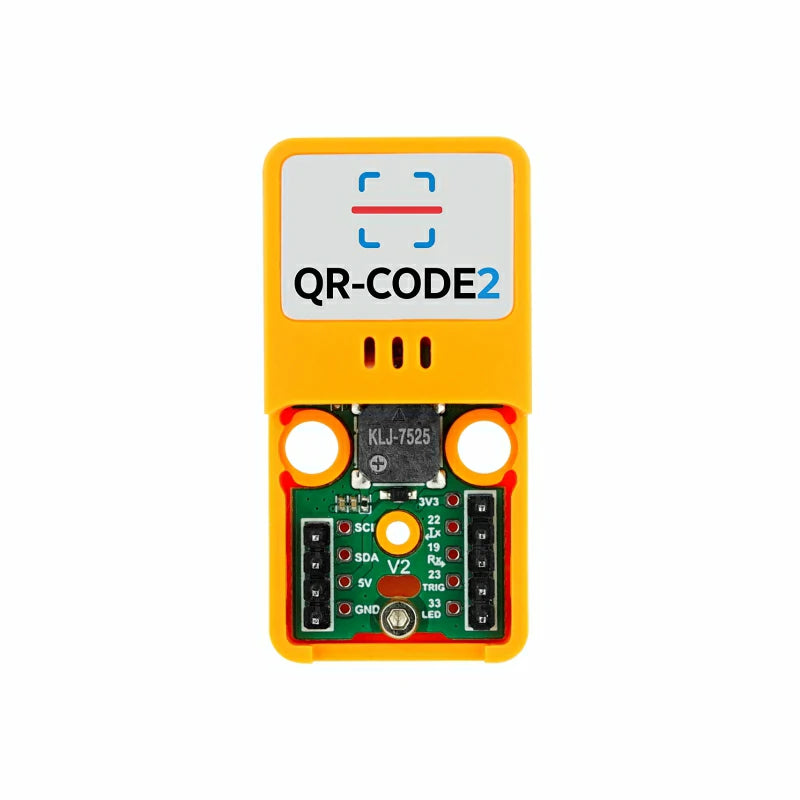

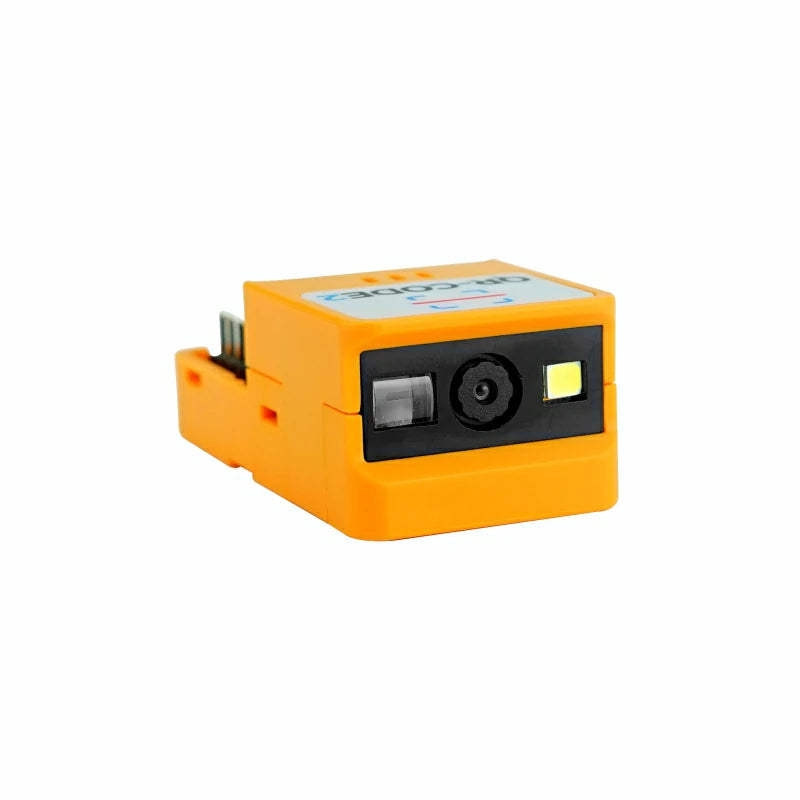

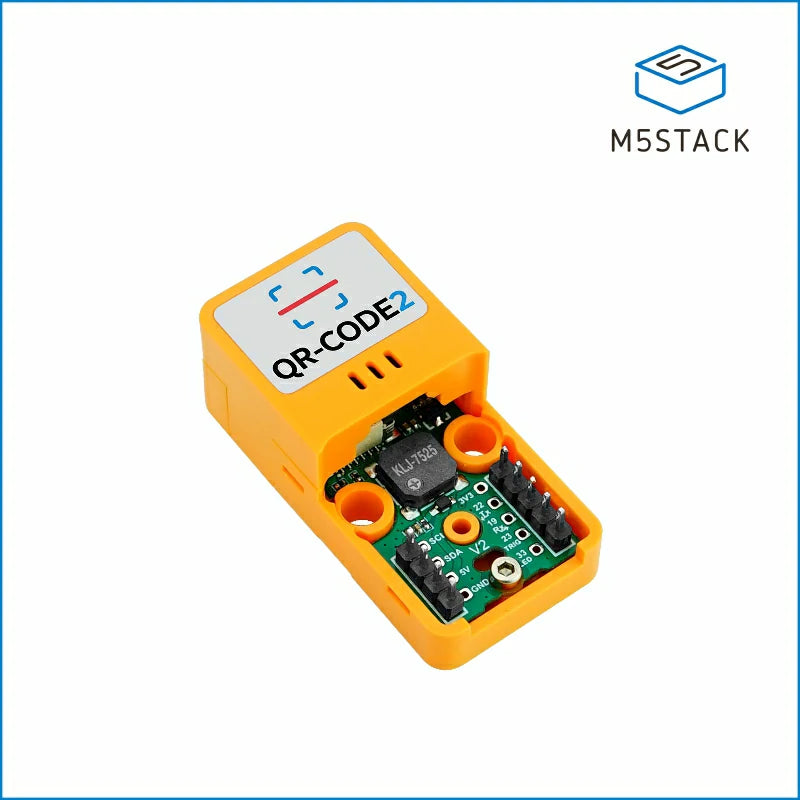

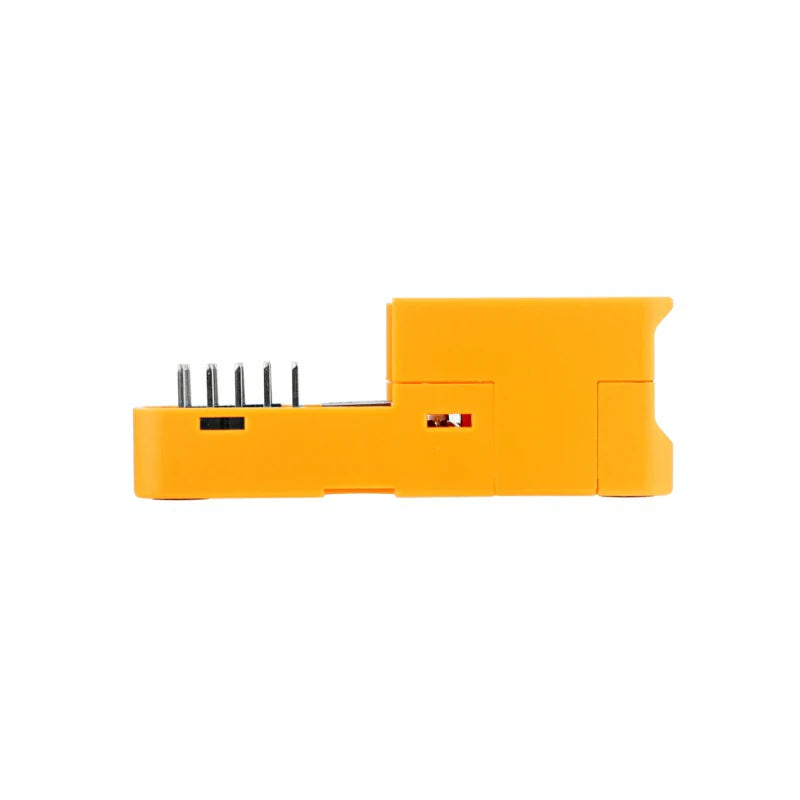

Atomic QRCode2 Base is specifically designed for the ATOM series hosts. It is an integrated 1D/2D barcode scanning base that supports 3 major types of 2D barcodes and 8 types of 1D barcodes. The base features a built-in buzzer and supplementary LED light, providing sound effects in different states, and a green LED for focus and aiming assistance. You can transmit the scanned data to the receiving end via wired or wireless means using the ESP32 built into the M5Atom host. The back of the base is equipped with magnets, M3 screw holes, and LEGO-compatible holes, offering multiple mounting options. It is suitable for logistics, retail, manufacturing, and other fields.
Features
- Supports 3 types of two-dimensional code and 8 types of one-dimensional code
- Built-in buzzer sound prompts
- Built-in lighting LED
- High resolution imaging
- Focusing and aiming functions
Includes
- 1x Atomic QRCode2 Base
Applications
- Material Flow
- Retail
- Manufacture
Specification
| Resources | Parameters |
|---|---|
| Sensor | 640x480 CMOS |
| Illumination | White LED |
| Focus Indicator | Green LED |
| Recognized 2D Barcode Types | PDF417, QR Code, Data Matrix |
| Recognized 1D Barcode Types | Code39, Code93, Code 128, EAN-13, EAN-8, UPC-A, UPC-E, Interleaved 2 of 5 |
| Recognition Precision | ≥5mil |
| Print Contrast | ≥20% |
| Scan Angle | Rotation 360°, Tilt ±55°, Skew ±55° |
| Field of View | Horizontal 34°, Vertical 28° |
| Communication Interface | UART |
| Power Consumption | Standby current (without ATOM Lite): DC5V/116.57mA Standby current (with ATOM Lite): DC5V/174.18mA |
| Casing Material | Plastic (PC) |
| Operating Temperature | 0-40°C |
| Product Size | 48*24*17.5mm |
| Package Size | 136* 92* 18mm |
| Product Weight | 12g |
| Package Weight | 14.2g |
