ATOM TF-Card Reader Development Kit up to 16GB

SKU:K044

Regular price $17.50

10+ In Stock

Shipping calculated at checkout.
PRODUCT DETAILS

Description

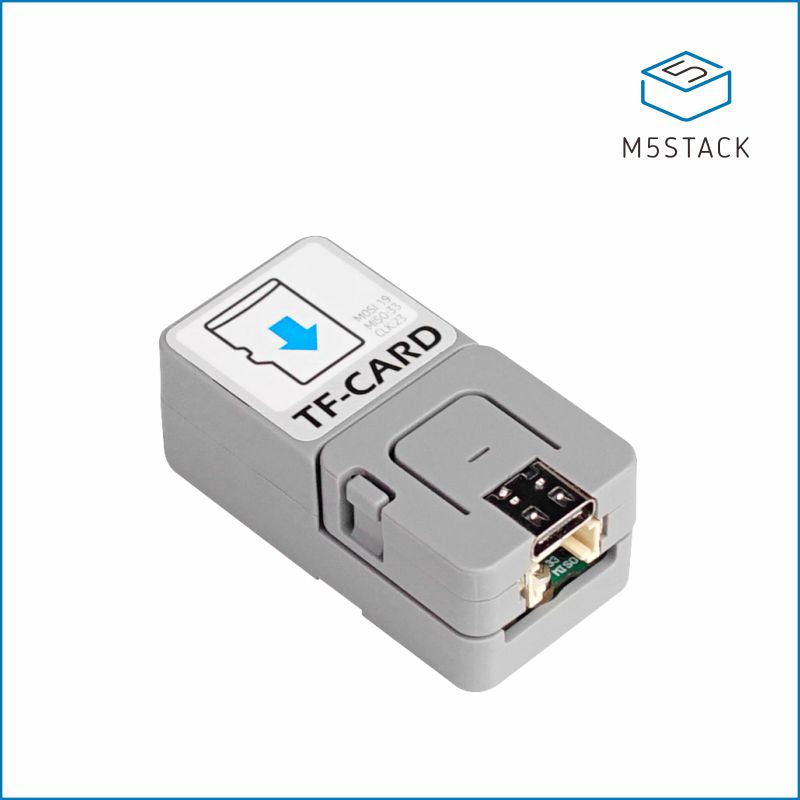

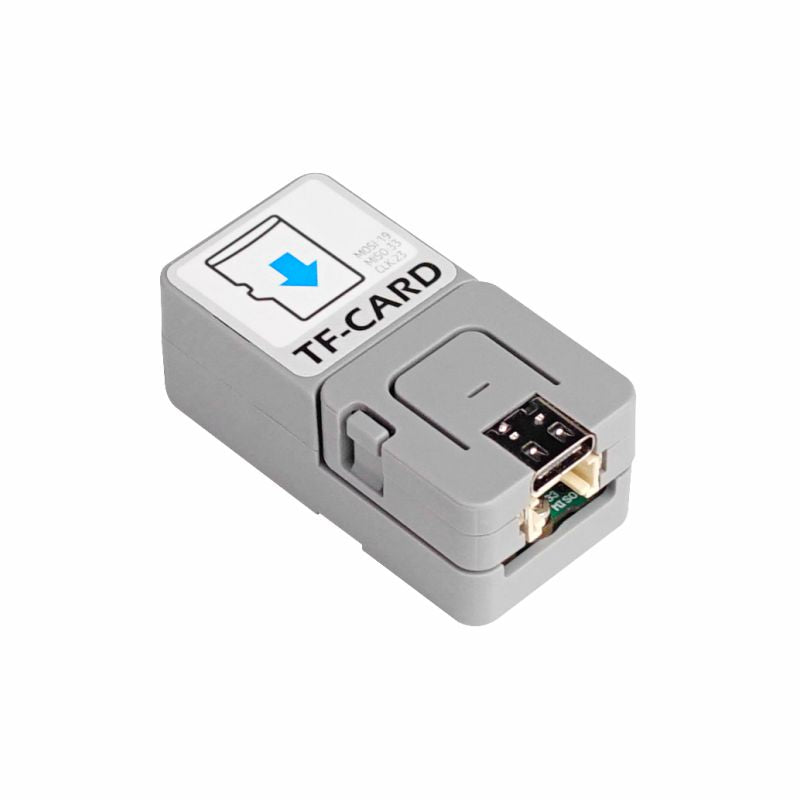

ATOM TF-CARD is a TF (MicroSD) card read/write module based on Atomic. It features a self-ejecting card slot design and supports TF cards with a capacity of up to 16GB. With this module, you can store essential configuration files and user data in the TF card, allowing you to access these files at any time during program execution.

By utilizing the TF card read/write module, you can significantly reduce the utilization of valuable Flash space by external resource files. This module provides a convenient solution for storing and accessing important program files and data, enabling efficient management of resources and optimizing the usage of Flash memory.

Product Features

  • Compatible with ATOM Matrix/ ATOM Lite
  • Up to 16G TF card
  • FAT/FAT32 format

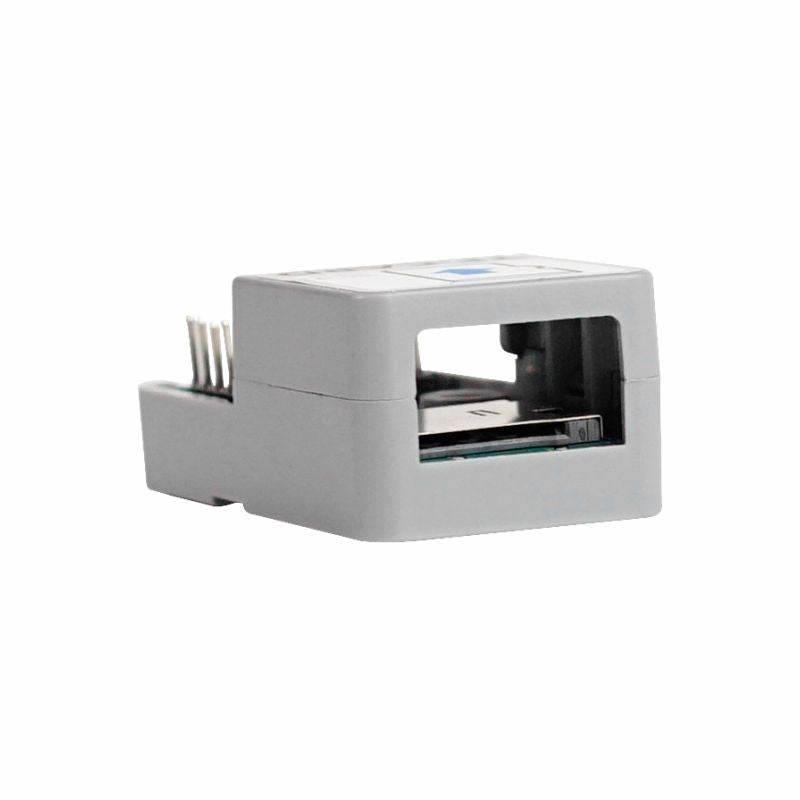

  • Self elastic TF-card (microSD) slot

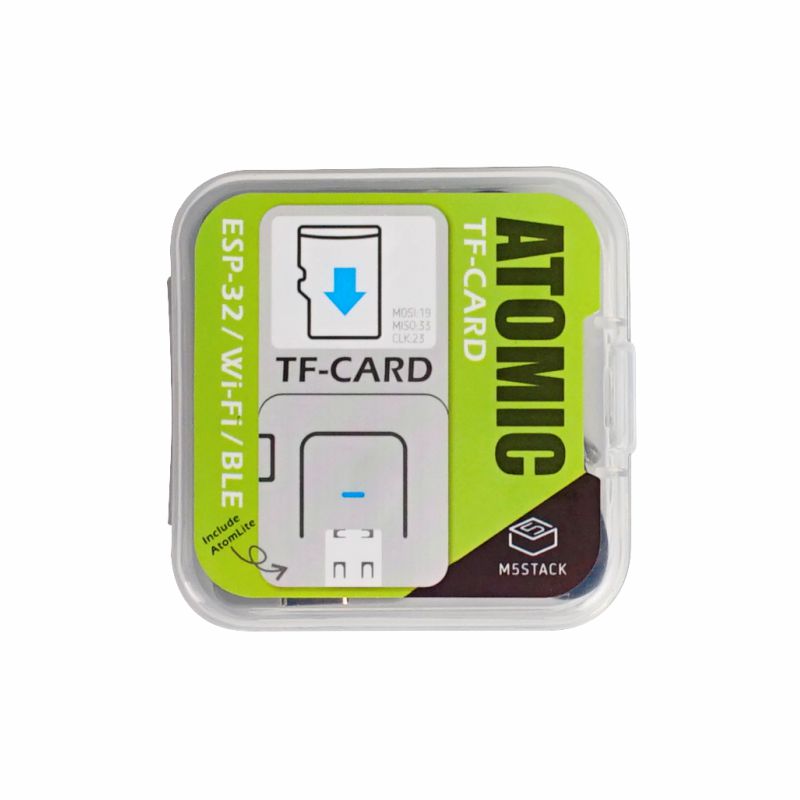

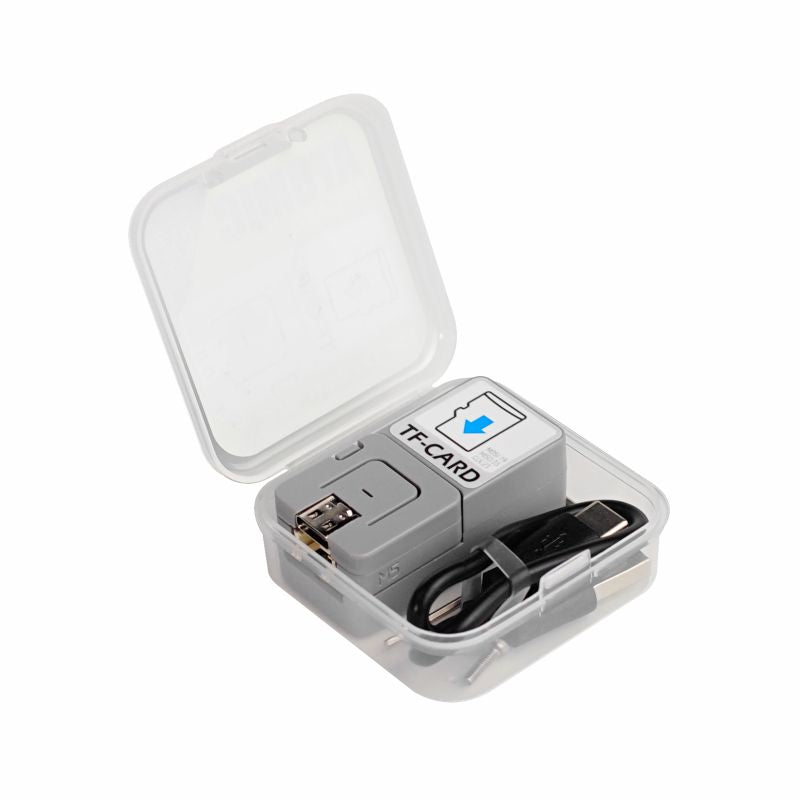

Include

  • 1x ATOM TF-CARD
  • 1x ATOM Lite
  • 1x M2 HEX Key
  • 1x M2*3mm Hexagon self tapping screw

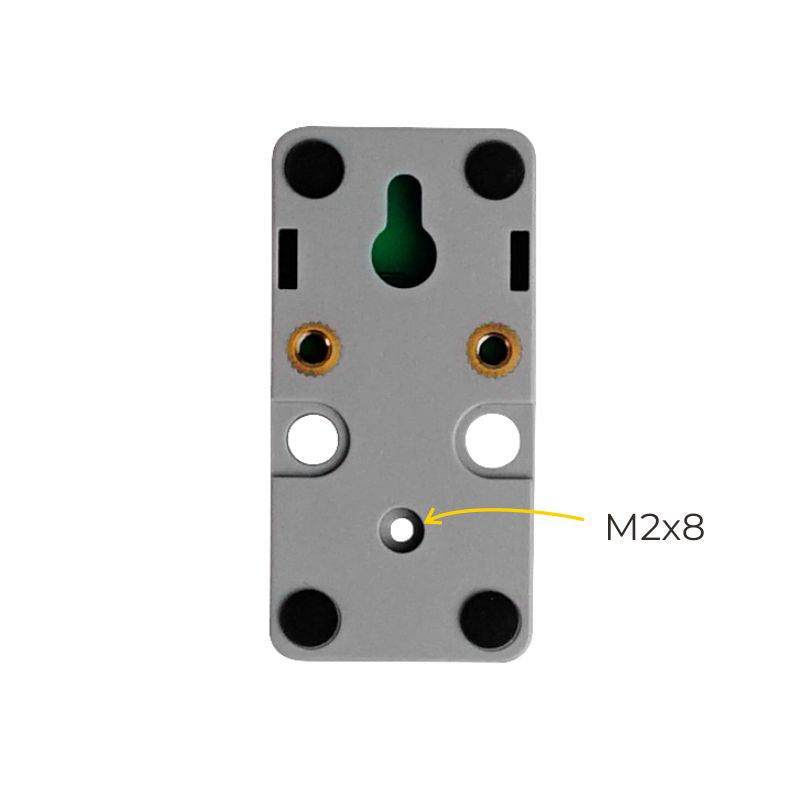

  • 1x M2*8mm Hexagon socket cup head machine screw
  • 1x 18cm TYPE-C Cable

Application

  • Data saving
  • File reading and writing
  • Logging
  • Self elastic slot

Specification

Resources Parameter
Support type 16G FAT/FAT32 MicroSD
Net weight 23g
Gross weight 33g
Product size 24*48*18mm
Package size 54*54*20mm
