ATOM H-Bridge Driver Kit (DRV8876)


Regular price $33.90

Out Of Stock

Shipping calculated at checkout.

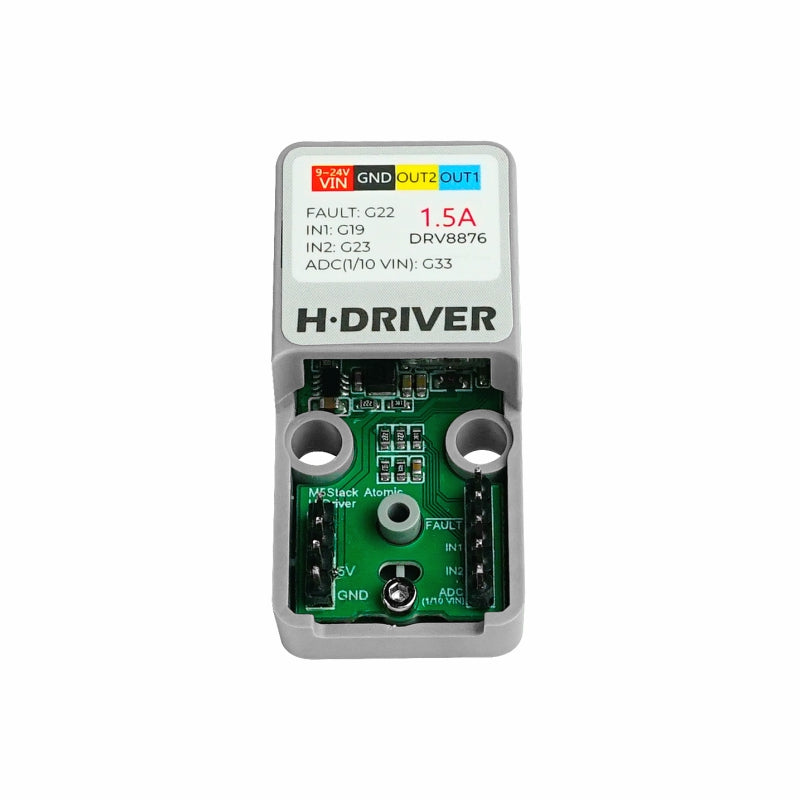

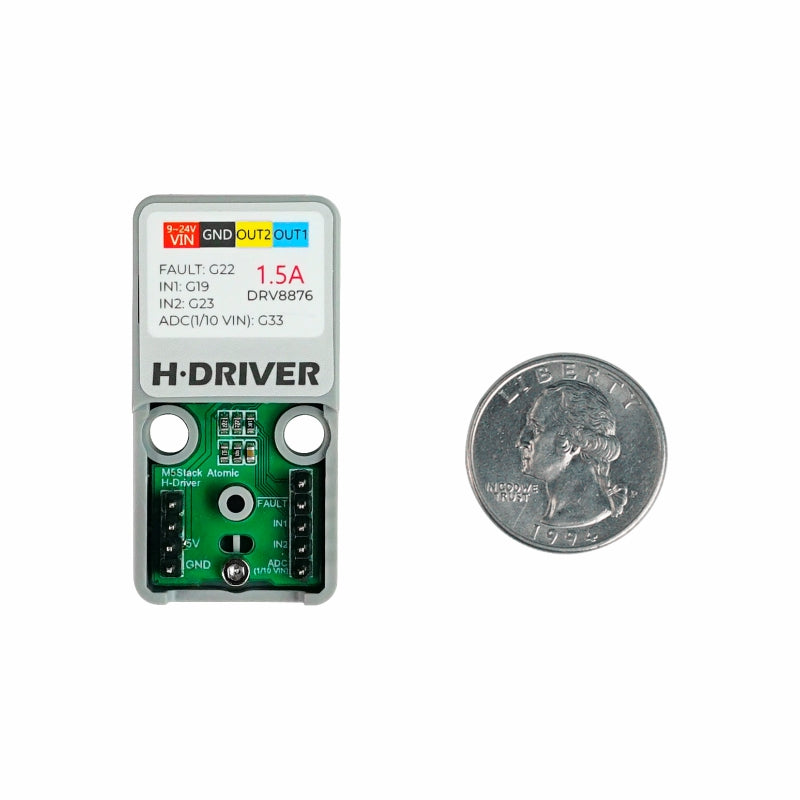

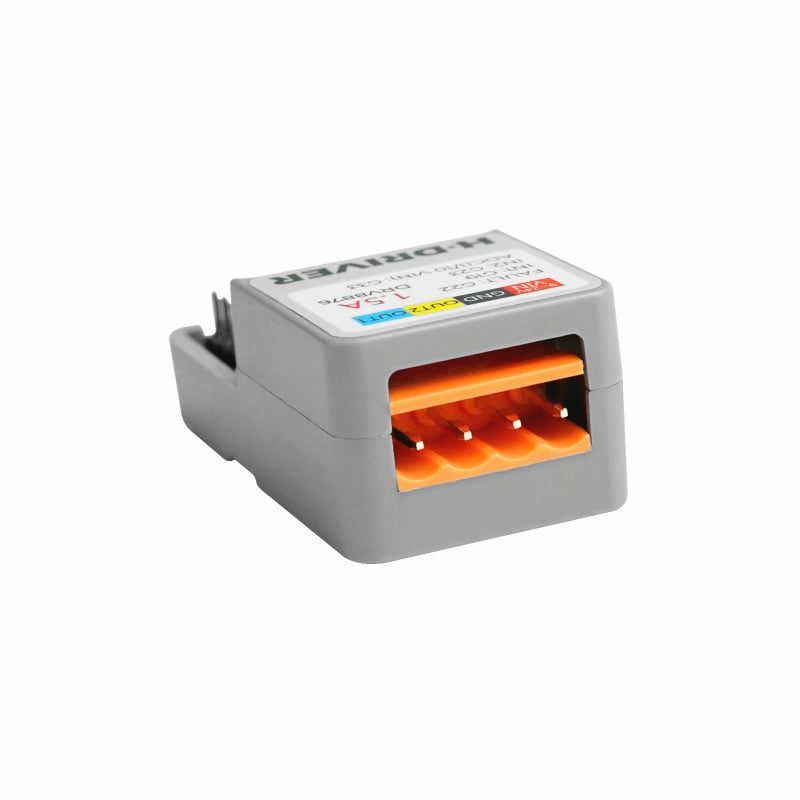

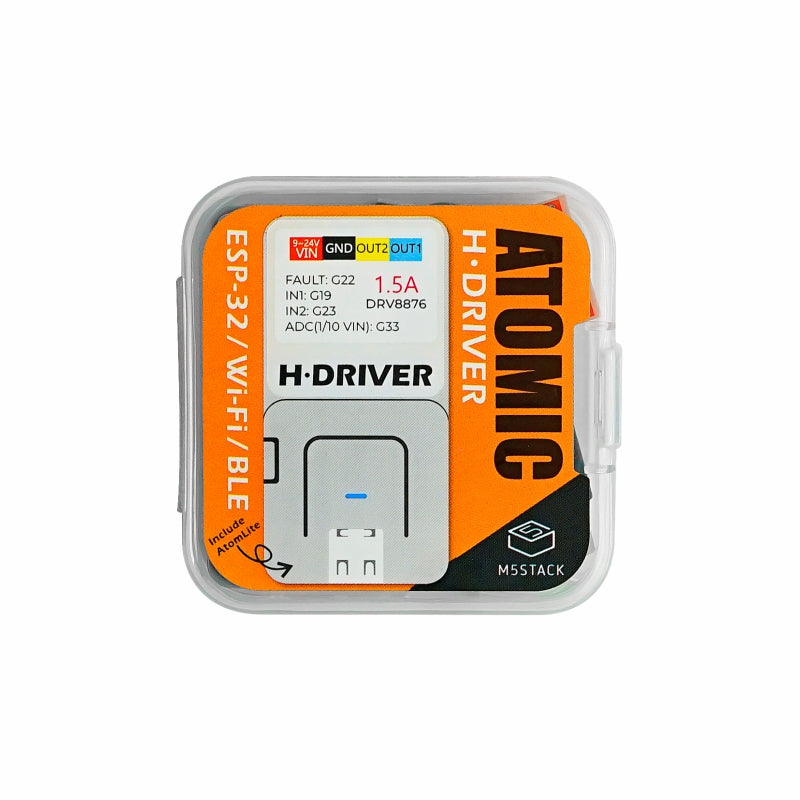

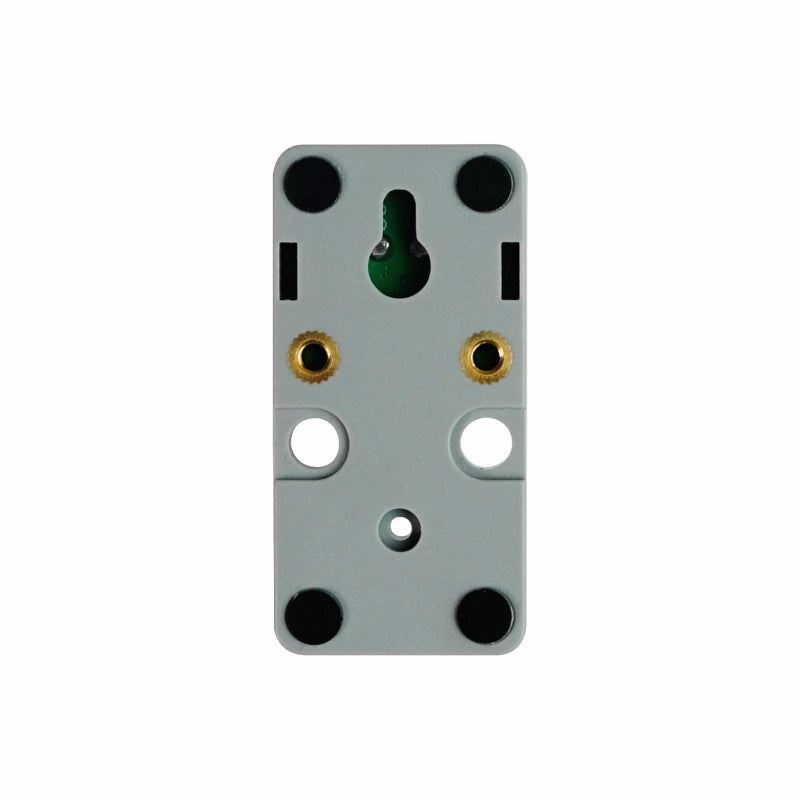

ATOM HDriver is an H-bridge motor driver accessory specifically designed for the M5Atom series. It incorporates the DRV8876 motor driver chip, which provides robust motor control capabilities.

The ATOM HDriver supports a voltage input range of 9-24V DC. The inline DC/DC circuit supplies power to the entire device. The ADC pin G33 is directly connected to a voltage divider circuit, allowing you to monitor the power input level in real-time.

With a current output of 1.5A (maximum 2A), the ATOM HDriver is suitable for DC motor speed regulation and control in various applications. The N-channel H-bridge design enables both forward and reverse motor control, allowing you to easily change the motor's rotational direction.

The driver integrates several essential features for motor control. It includes a charge pump regulator to generate the necessary voltage levels for driving the motor. Current detection and regulation circuits ensure precise control of the motor's current, preventing excessive current draw or damage.

The ATOM HDriver also provides current proportional output, allowing for feedback control of the motor's speed or position. This feature enhances the precision and stability of motor control applications.

To ensure safe operation, the driver includes various protection circuits. These circuits provide protection against power supply under voltage lockout (UVLO), charge pump undervoltage (CPUV), output overcurrent (OCP), and device over-temperature (TSD) conditions. The FAULT pin can indicate fault conditions, providing an indication of any issues that may occur during motor operation.

Product Features

  • N-channel H-bridge motor driver
    • Drives one bidirectional brushed DC motor
    • Other resistive and inductive loads – DRV8876: 700-mΩ (High-Side + Low-Side)
  • High output current capability
    • output 1.5A, Peak 2A – H-bridge control modes
  • 3.3-V logic inputs
  • Spread spectrum clocking for low electromagnetic interference (EMI)
  • Integrated protection features
    • Under voltage lockout (UVLO)
    • Charge pump under voltage (CPUV)
    • Over current protection (OCP)
    • Automatic retry or outputs latched off(IMODE)
    • Thermal shutdown (TSD)
    • Automatic fault recovery
    • Fault indicator pin (nFAULT)

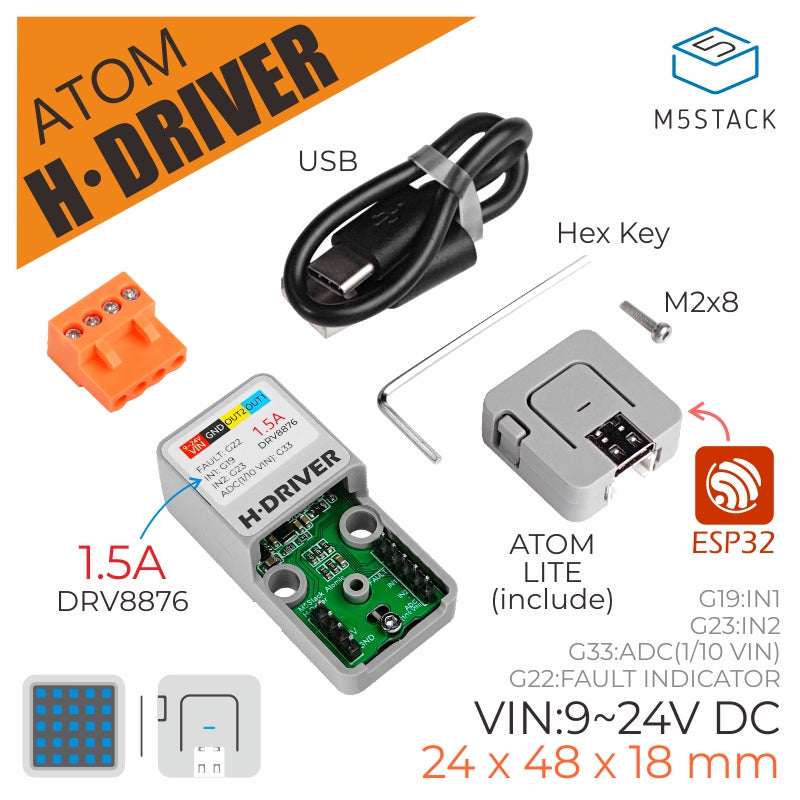

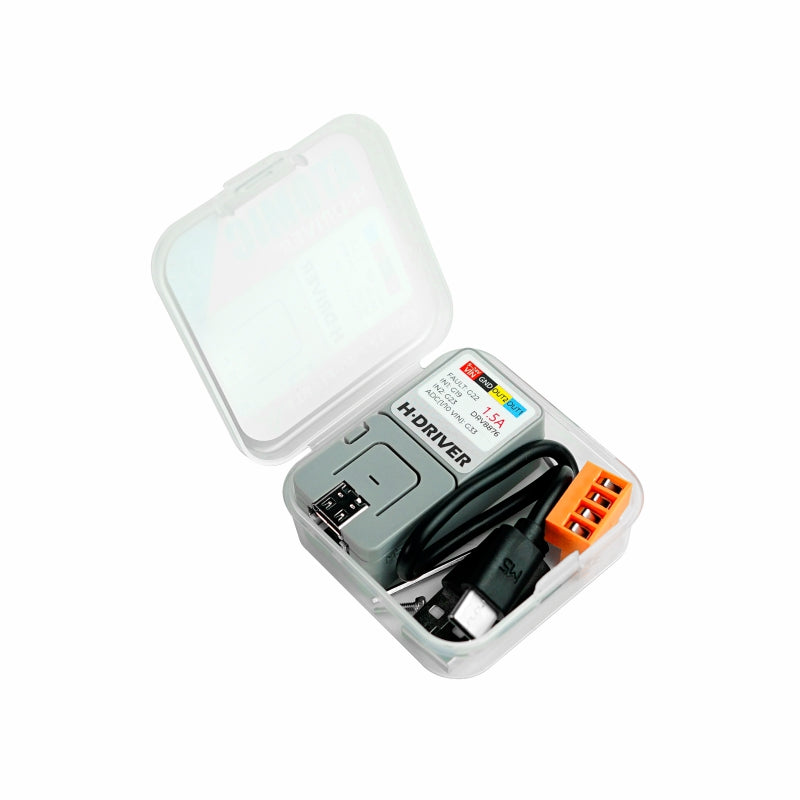

  • 1x ATOM Lite
  • 1x ATOM H-driver
  • 1x 3.96*4P Male
  • 1x M2 Hex Key
  • 1x M2*8mm Hexagon socket cup head machine screw
  • 1x TYPE-C USB Cable(20cm)


  • DC motor control


Specification Parameter
Power Input 9-24V/DC
Current Output output 1.5A, peak 2A
Net weight 16g
Gross weight 36g
Product Size 24*48*18mm
Package Size 54*54*20mm


  • Customer Reviews

    Based on 1 review
    Seth Head
    Good for small motor

    Requires active cooling to run at the rated max for any length of time but it dose what it says on the tin
