This product is EOL. Please order the new version Atomic CAN Base
Description

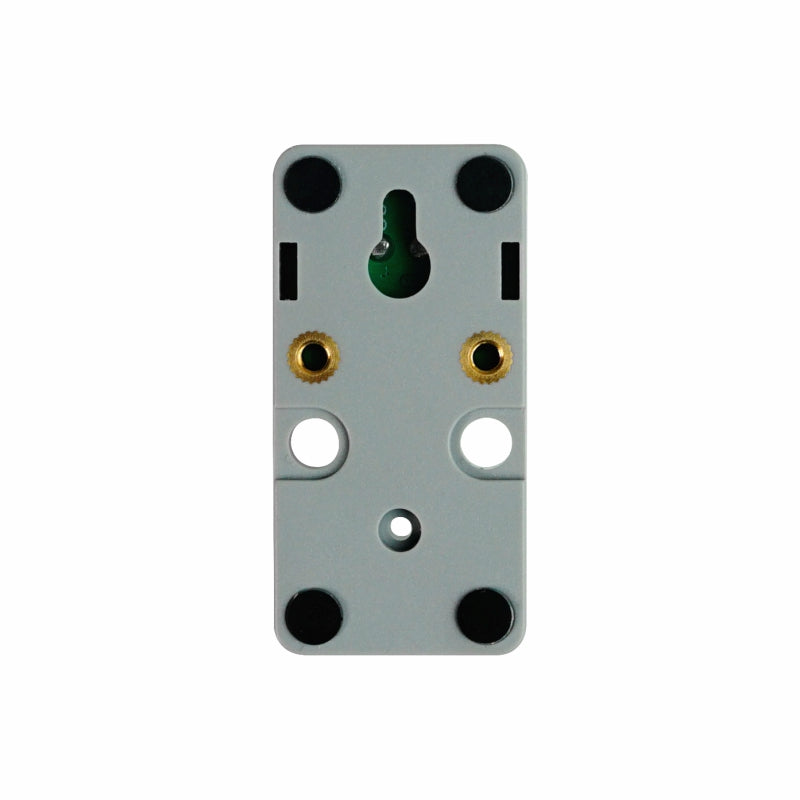

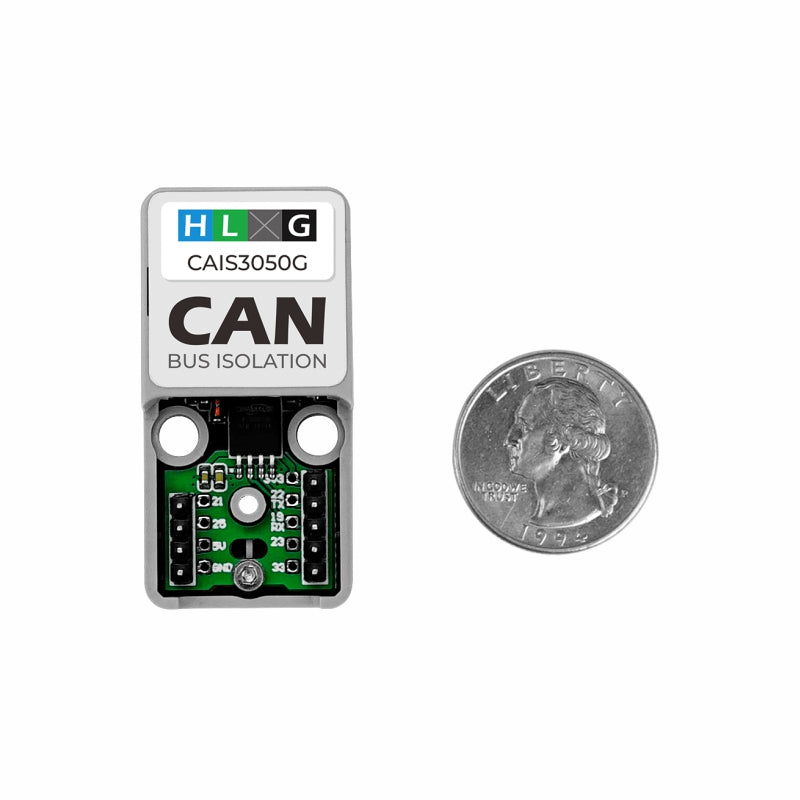

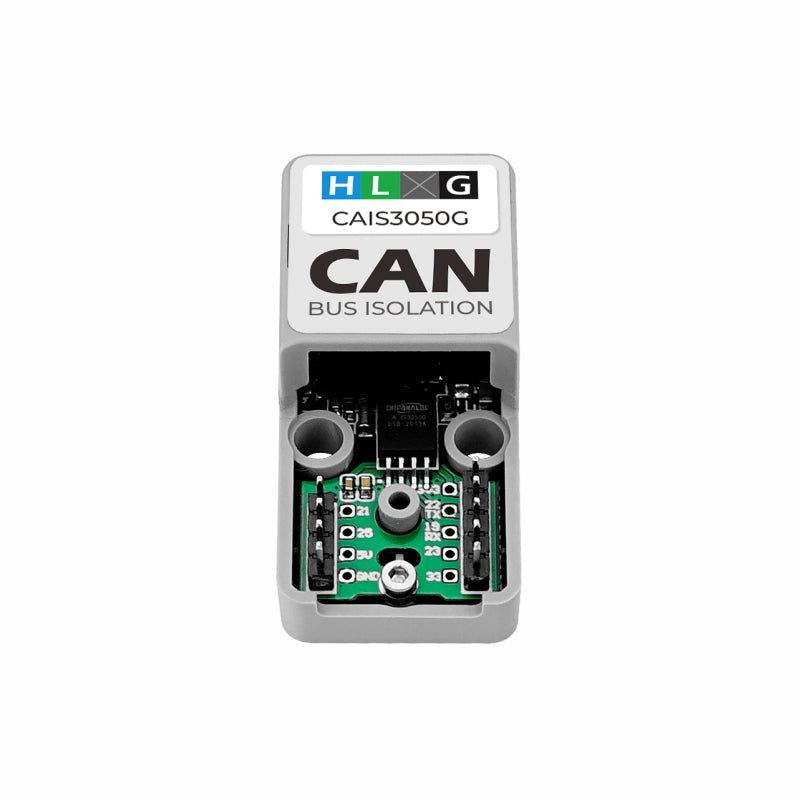

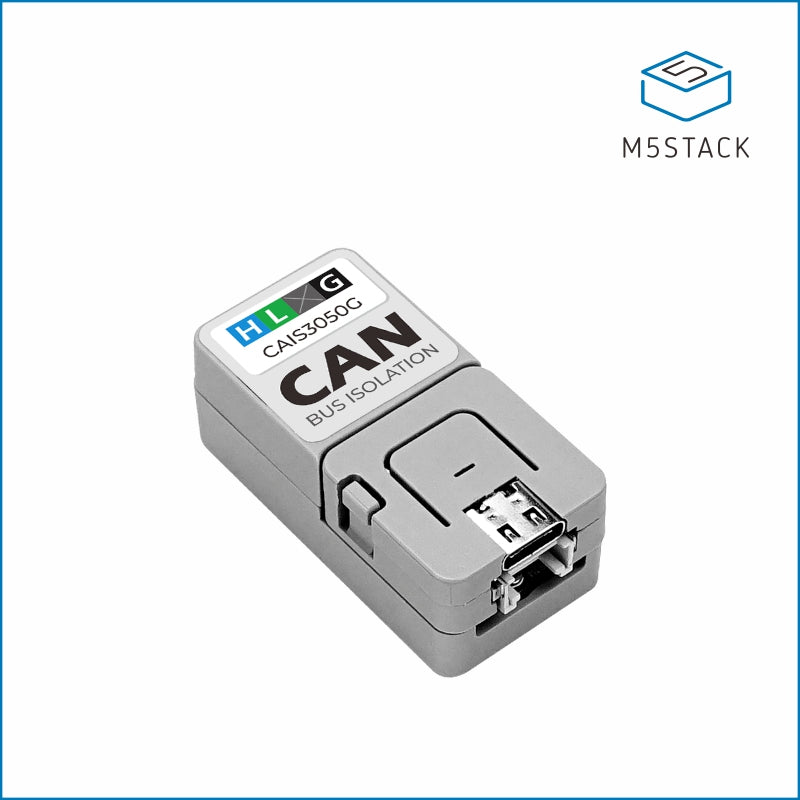

Atom CAN is a CAN bus communication unit that uses the CA-IS3050G transceiver solution (the built-in DC-DC isolation power chip can effectively isolate interference and prevent damage to sensitive circuits). The communication bus can support up to 110 nodes, with a signal transmission rate of up to 1Mbps and multiple electrical line protection functions. It is very suitable for applications such as vehicle transportation and security systems.
Features
- Compatible with Atom-Matrix/Atom-Lite
- CAN bus multi-point communication
- Built-in isolated DC-DC
- Signal rate up to 1Mbps
- Common-mode voltage range from –12V to 12V
- Protection features:
- Signal isolation
- Current limiting
- Overvoltage protection
- Thermal shutdown
- Ground loss protection (-40V to 40V)

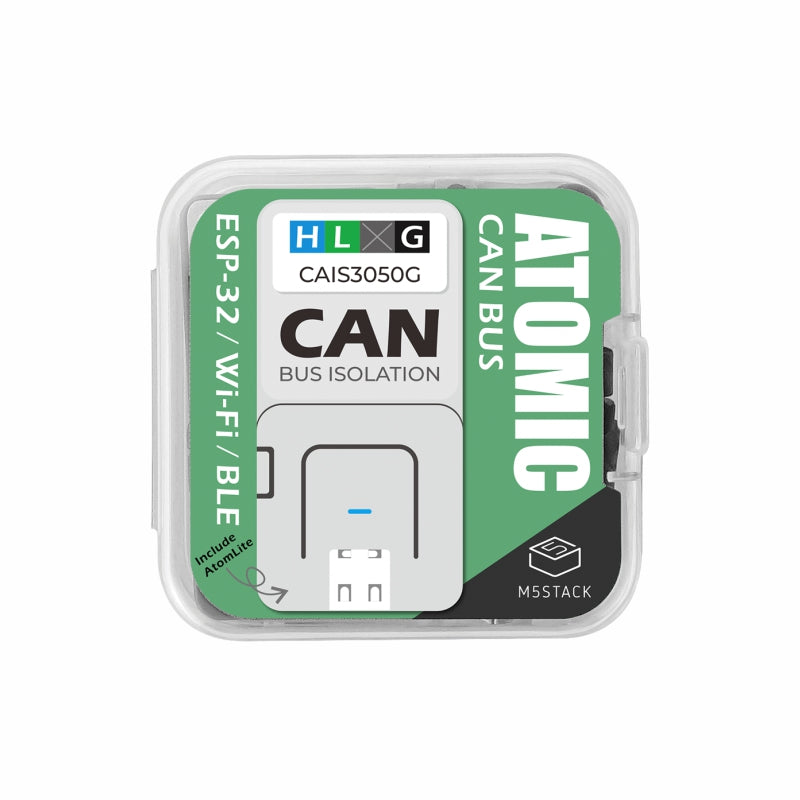

Includes
- 1 x Atom-Lite
- 1 x Atomic CAN Base
- 1 x VH3.96-4P terminal
Applications
- CAN bus communication
- Vehicle equipment control
- Industrial field control
Specifications
| Specification | Parameter |
|---|---|
| External port | VH3.96-4P |
| CAN transceiver model | CA-IS3050G |
| Maximum speed | 1Mbps |
| Supported nodes | 110 |
| Low loop delay | 150ns |
| Common-mode voltage | -12V ~ 12V |
| Protection features | Current limiting, overvoltage, active timeout, thermal shutdown |
| Operating temperature | 0 ~ 40°C |
| Housing material | Plastic (PC) |
| Product Size | 24 x 48 x 18mm |
| Product weight | 14.0g |
| Package Size | 54 x 54 x 20mm |
| Gross weight | 33.0g |
