Description

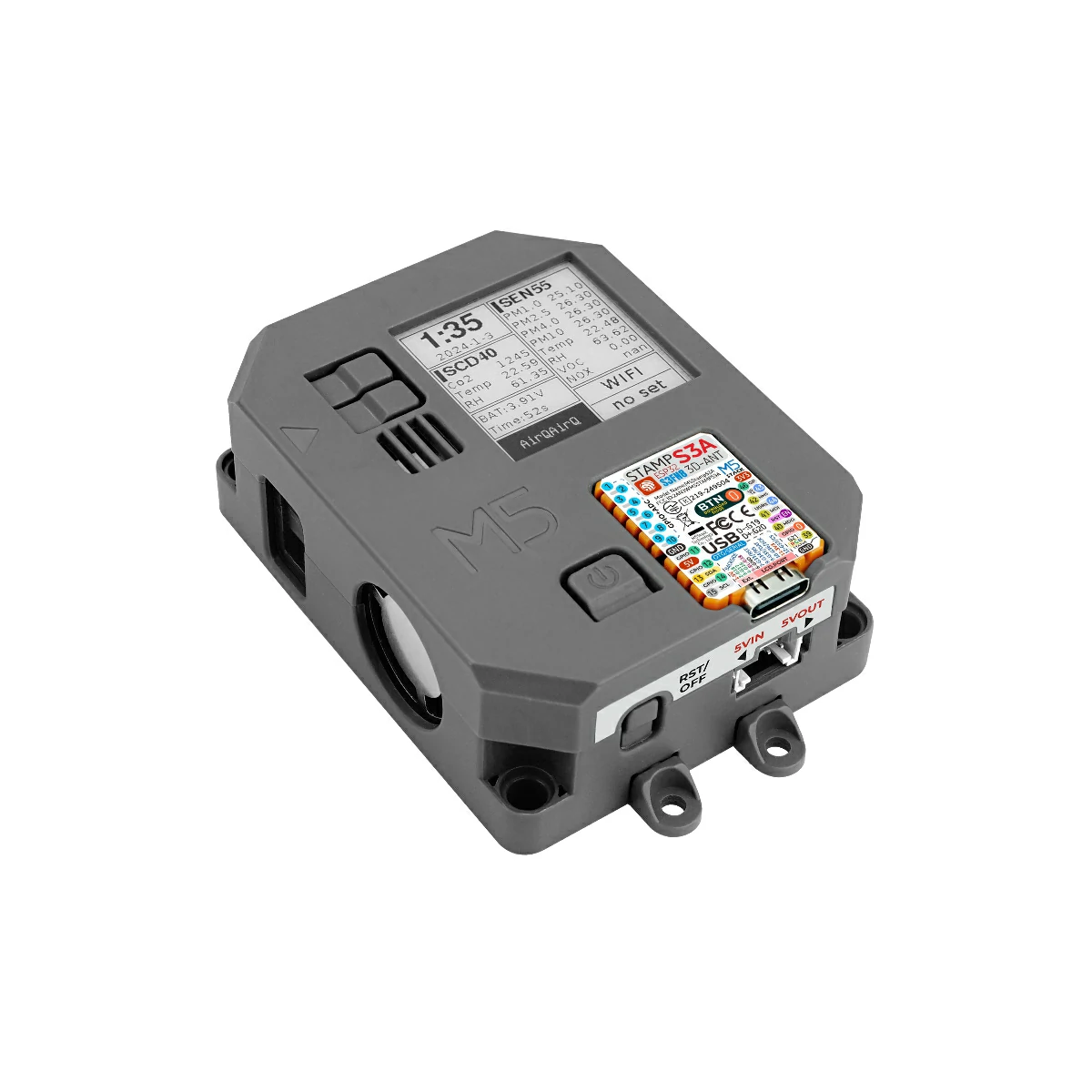

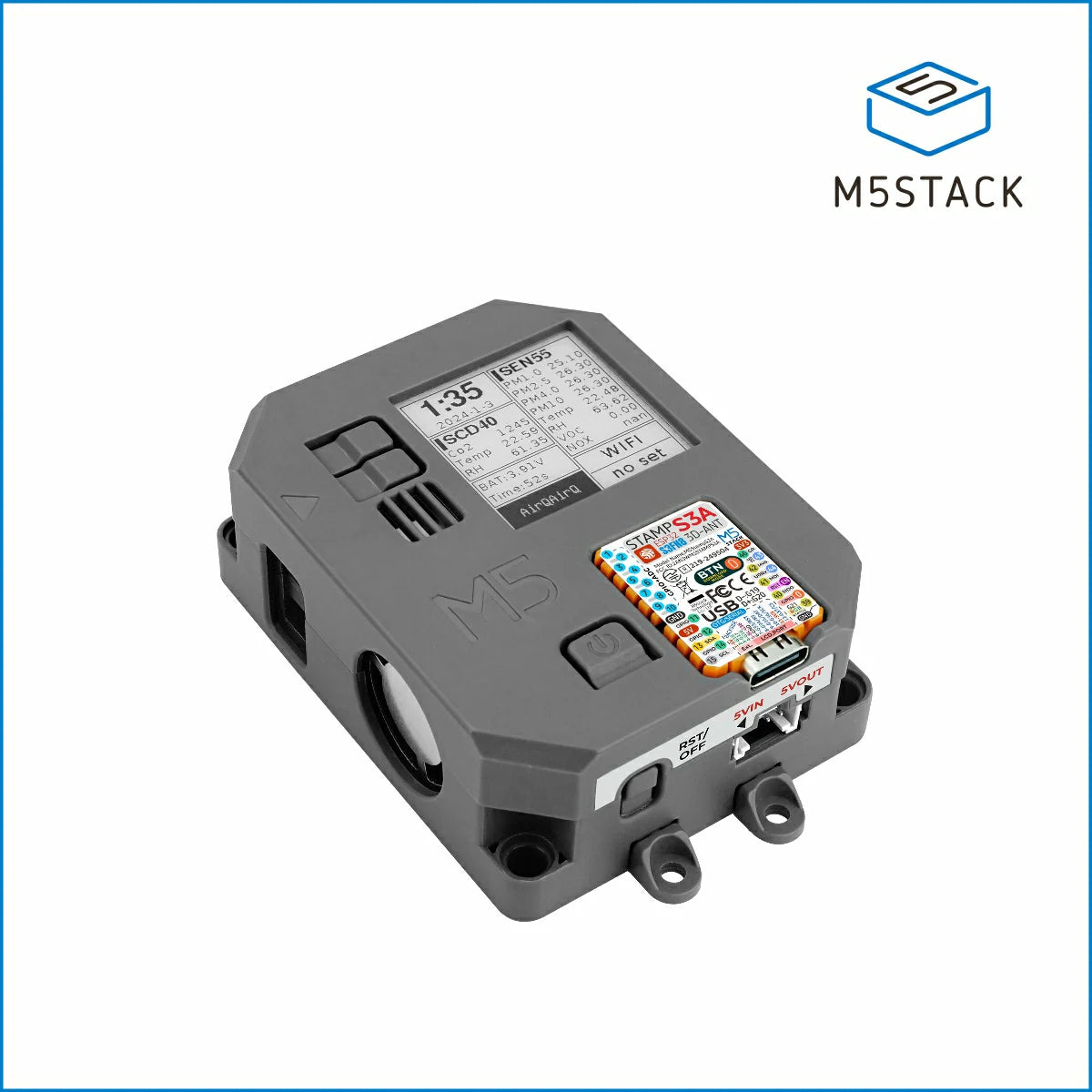

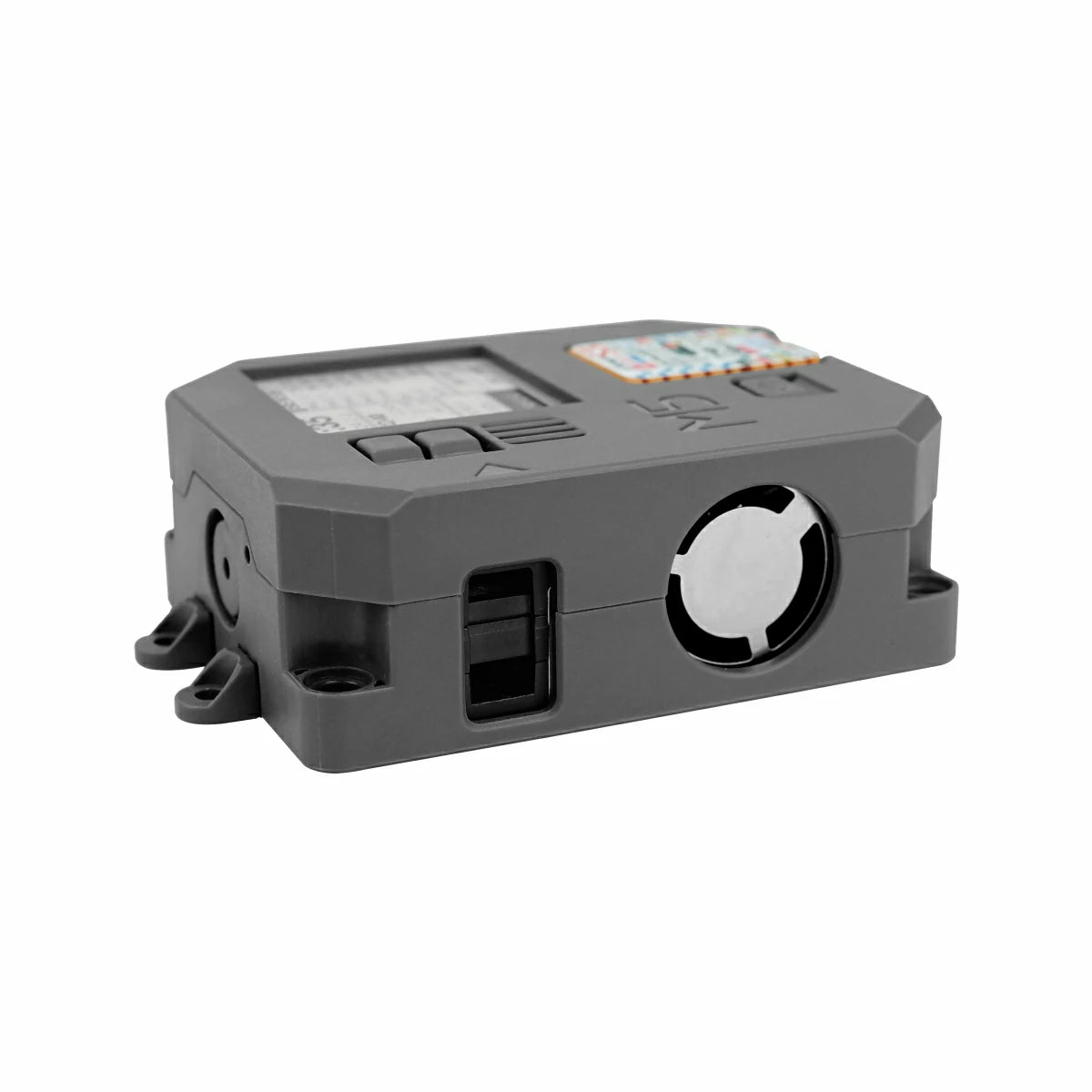

Air Quality v1.1 is an integrated low-power air quality monitoring device. Compared to the previous generation, the new version adopts the Stamp-S3A master control, with optimizations and improvements in overall power consumption and Wi-Fi antenna design.

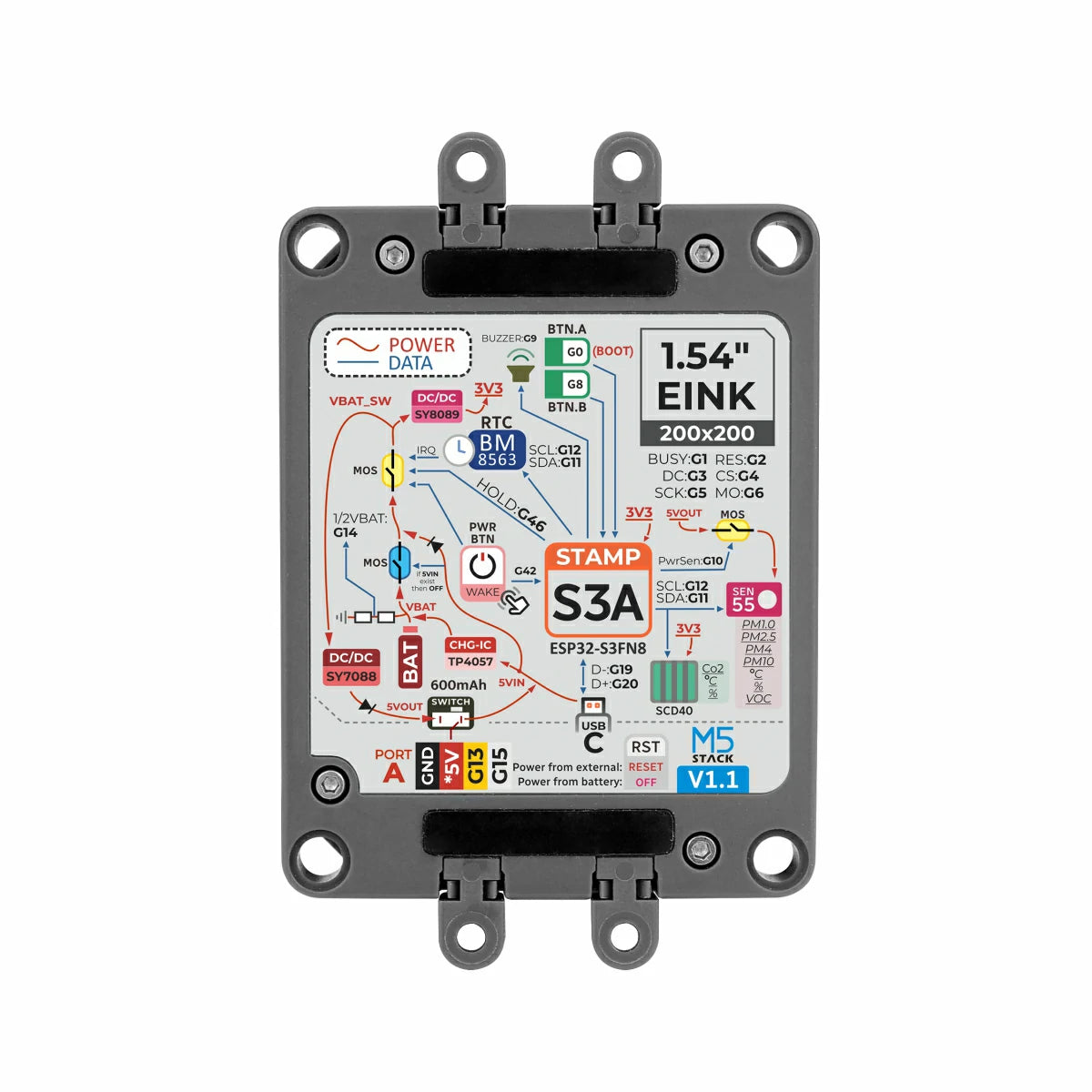

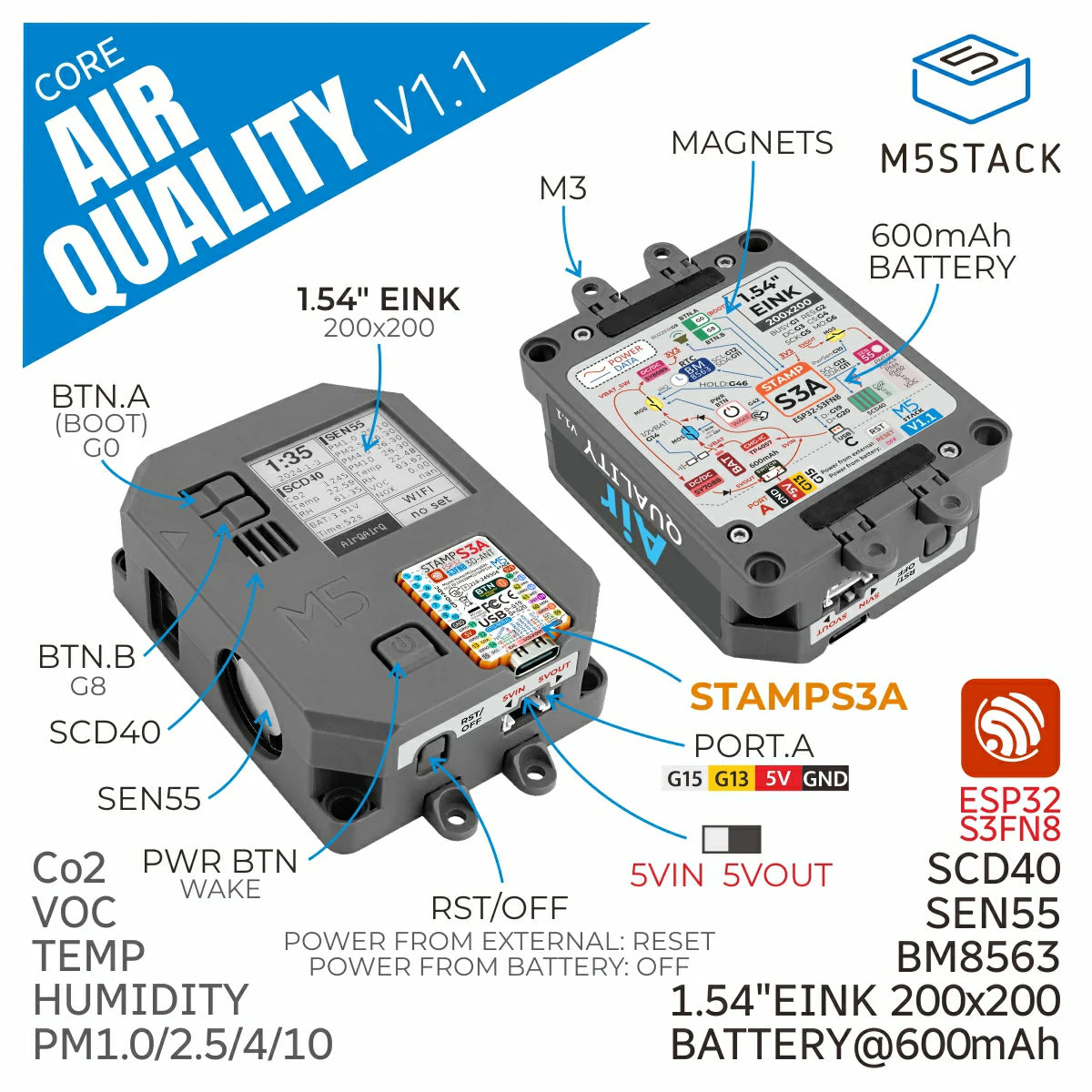

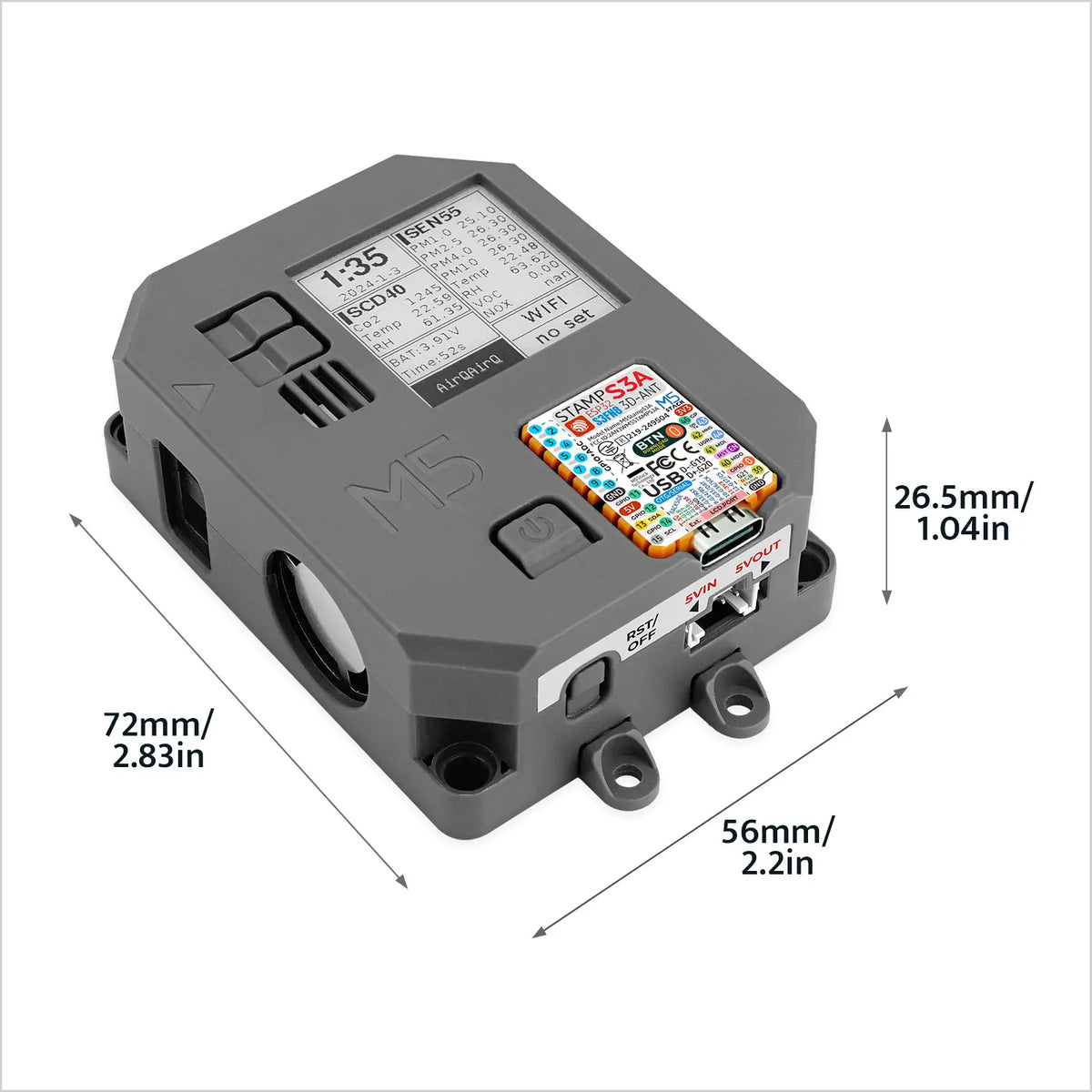

The device features a 1.54-inch e-ink screen with a resolution of 200 x 200. It is equipped with a multifunctional air quality sensor SEN55 and a CO2 sensor SCD40, capable of monitoring PM1.0, PM2.5, PM4, PM10 particulates, temperature, humidity, VOC, and CO2 concentration in the air. The built-in 600mAh lithium battery and RTC low-power power management circuit allow it to achieve sleep and timed wake-up functions. The factory firmware supports uploading air quality data to the M5Stack Ezdata cloud platform, providing users with a convenient remote data viewing function. The bottom structure offers LEGO-compatible mounting holes, a magnetic base, and 4 removable mounting lugs, supporting various mounting methods. Suitable for air monitoring in homes, schools, industrial sites, and medical environments.

Features

• Stamp-S3A master control
• SEN55 and SCD40 sensors

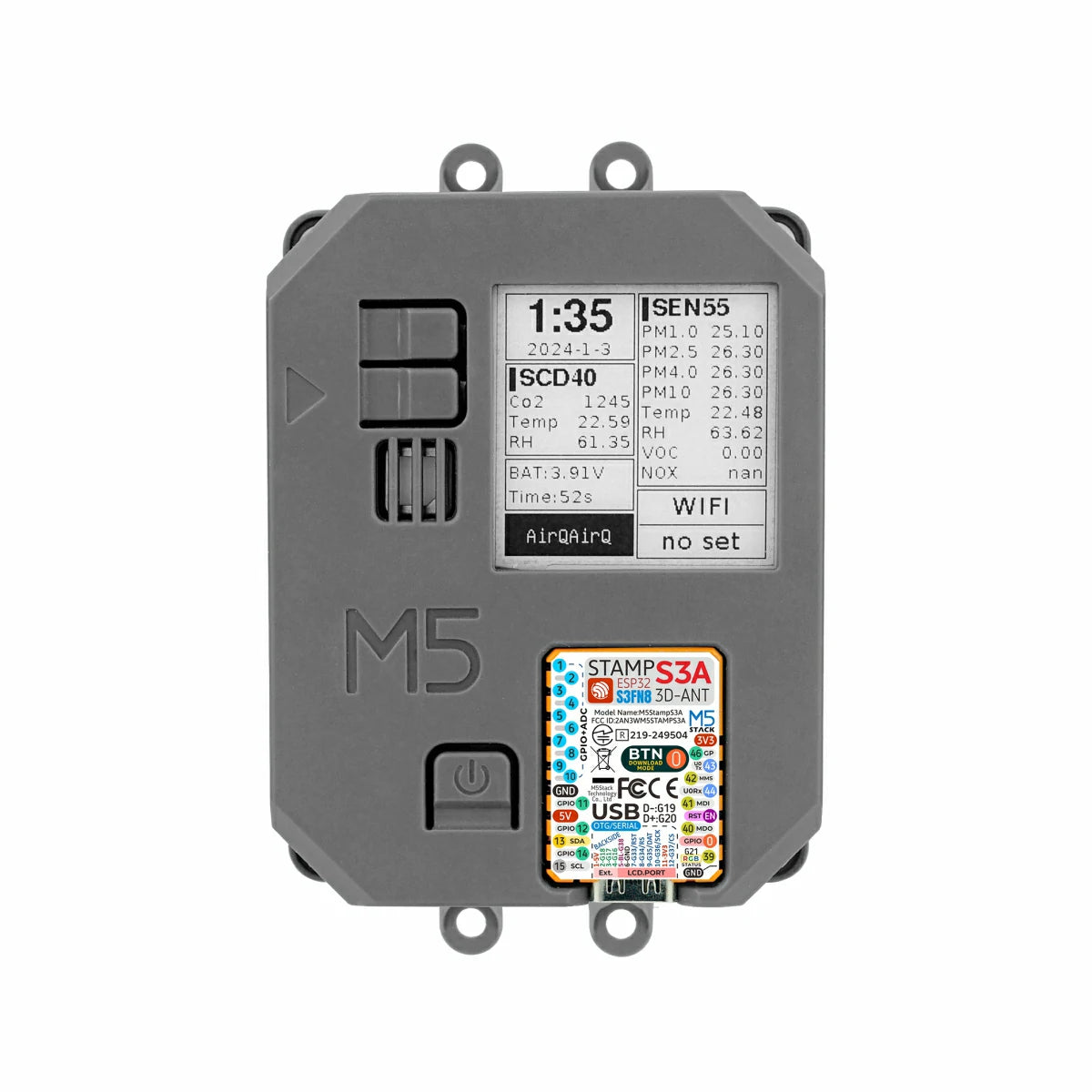

• 1.54-inch e-ink screen (200 x 200 resolution)
• Built-in 600mAh lithium battery

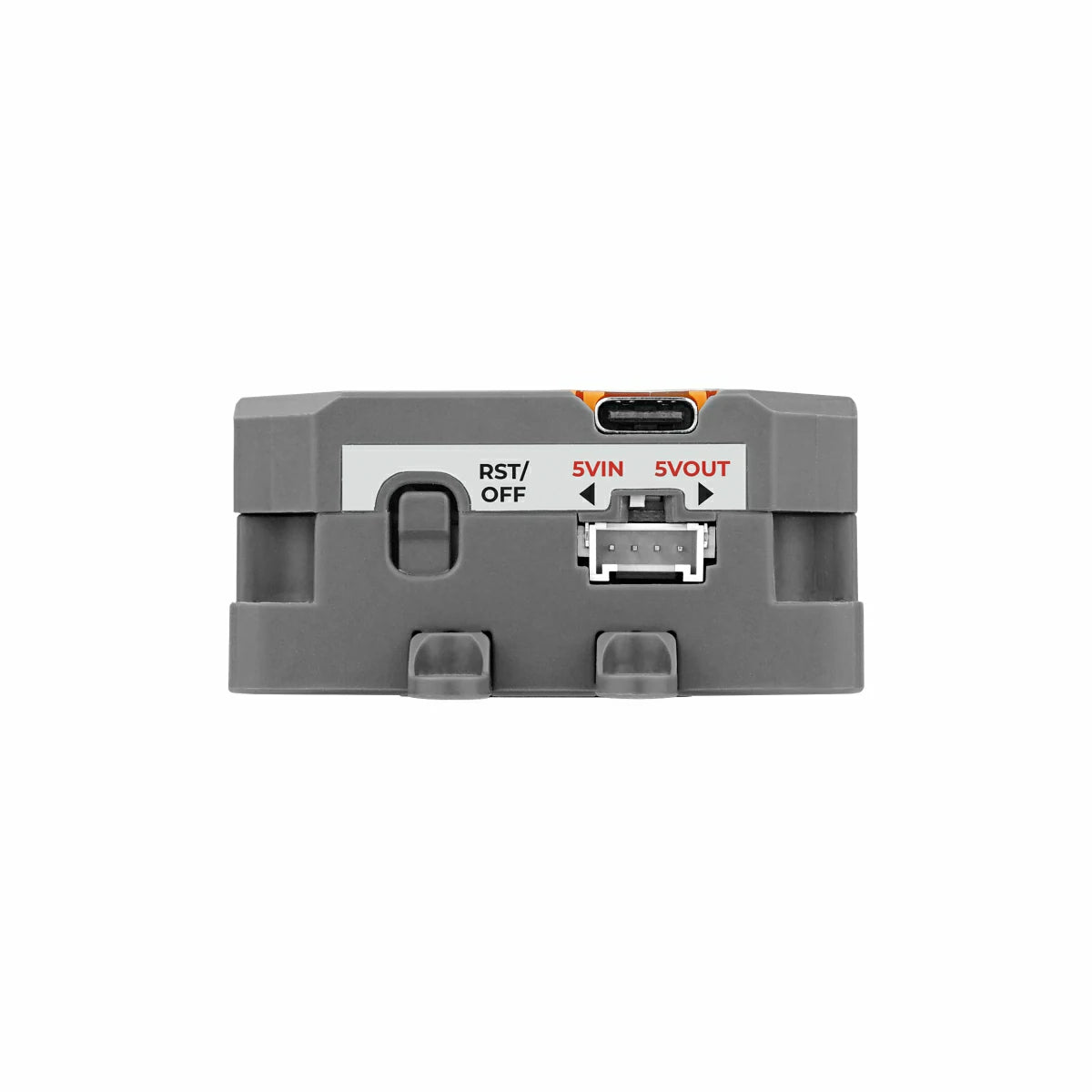

• HY2.0-4P interface
• EZDATA cloud platform access
• RTC timed wake-up
• Development Platform
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 x Air Quality v1.1
• 1 x User Manual

Applications

• Home environment monitoring
• Industrial automation
• Medical facilities
• Scientific laboratories
• Remote monitoring applications
• Air conditioning system optimization
• Construction sites

Specifications

Product Comparison

Product Compare	Air Quality v1.1	Air Quality
Core Module	Stamp-S3A	Stamp-S3
Antenna Design	Optimized antenna design, better signal reception	Standard antenna design
Module Boot Key	Optimized button feel, 4.0 x 3.0 x 2.0mm button size	Button size 2.6 x 1.6 x 0.55mm
