Analog to 12C Unit 4-20mA Input (STM32G030)

SKU:U162

Regular price $7.50

10+ In Stock

Shipping calculated at checkout.

Description

AIN4-20mA Unit is a single-channel 4~20mA current analog measurement unit. It adopts the STM32G030F6 main control chip to communicate with the M5 host through i2c. Supports switching to internally or externally powered wiring via jumper caps. On-board power isolation chip and built-in op amp circuitry accurately measure external current sensors and ensure signal accuracy and system safety. It is suitable for power system equipment monitoring, motor control, energy management and automation, and industrial process control.

Features

  • STM32G030F6® 32-bit Cortex®-M0+ CPU
  • I2C communication
  • Supports 2 or 4-wire sensors, jumper cap switching
  • Built-in galvanic isolation chip
  • Support Arduino, UIFlow and other programming platforms

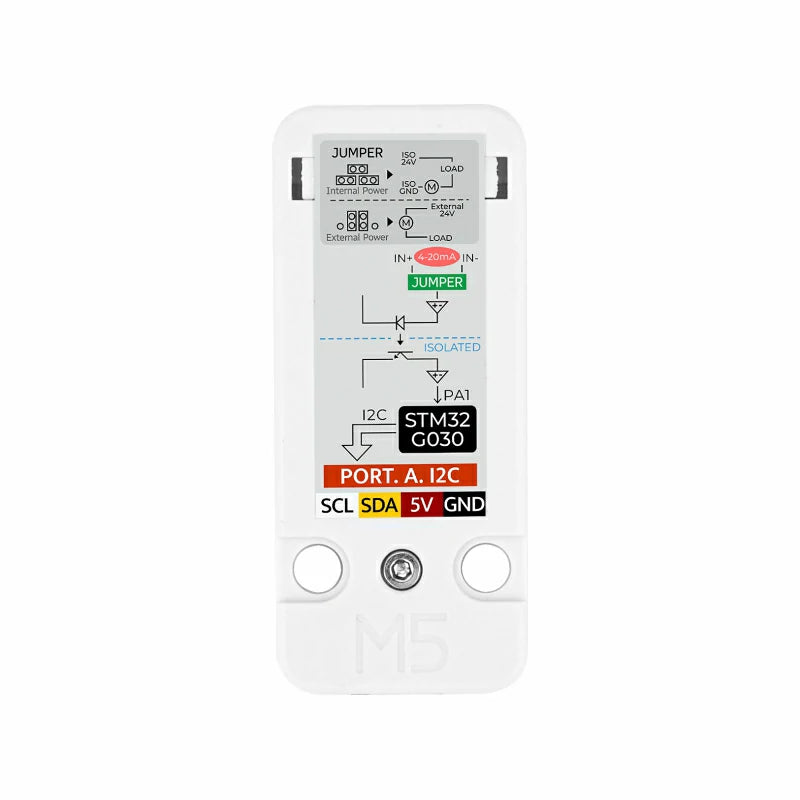

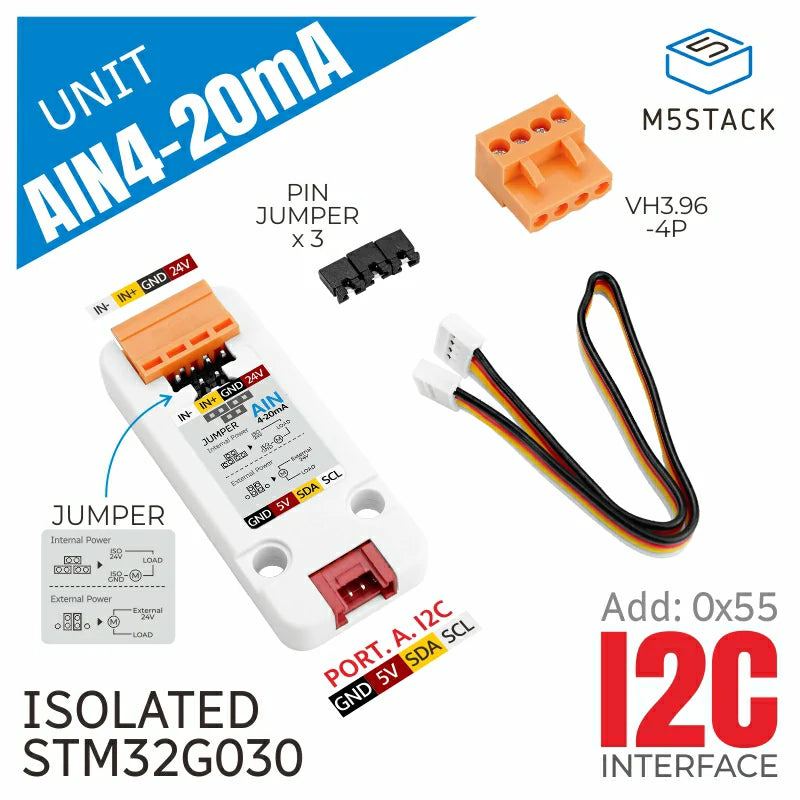

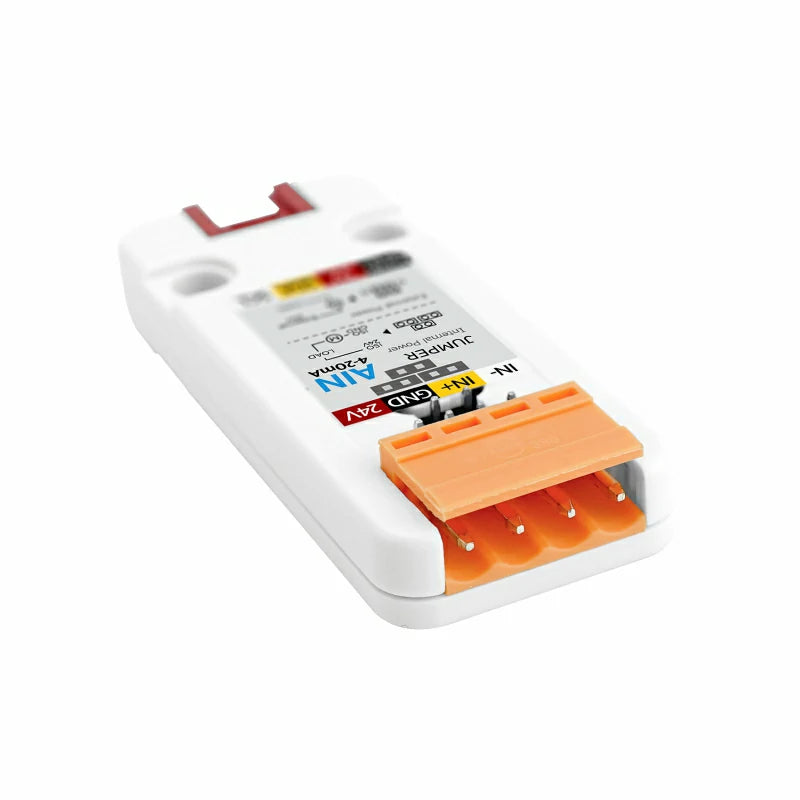

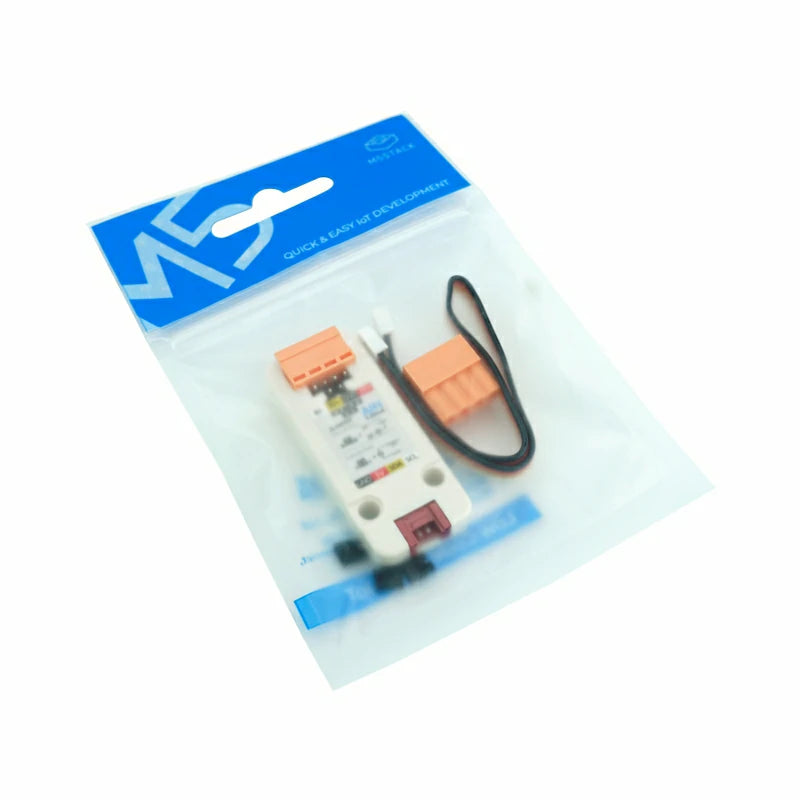

Includes

  • 1* AIN4-20mA Unit
  • 1 × VH3.96-4.0P
  • 1*grove wire(20cm)
  • 3*Jumper caps

Applications

  • Power system equipment monitoring
  • Motor control
  • energy management
  • Automation and industrial process control

Specification

Resources Parameters
MCU STM32G030F6(64 Kbytes of Flash/8 Kbytes of SRAM)
Power isolation chip HCNR200
Op amp chip SGM321YC5/TR
I2C address 0x55
Operating temperature 0-40°C

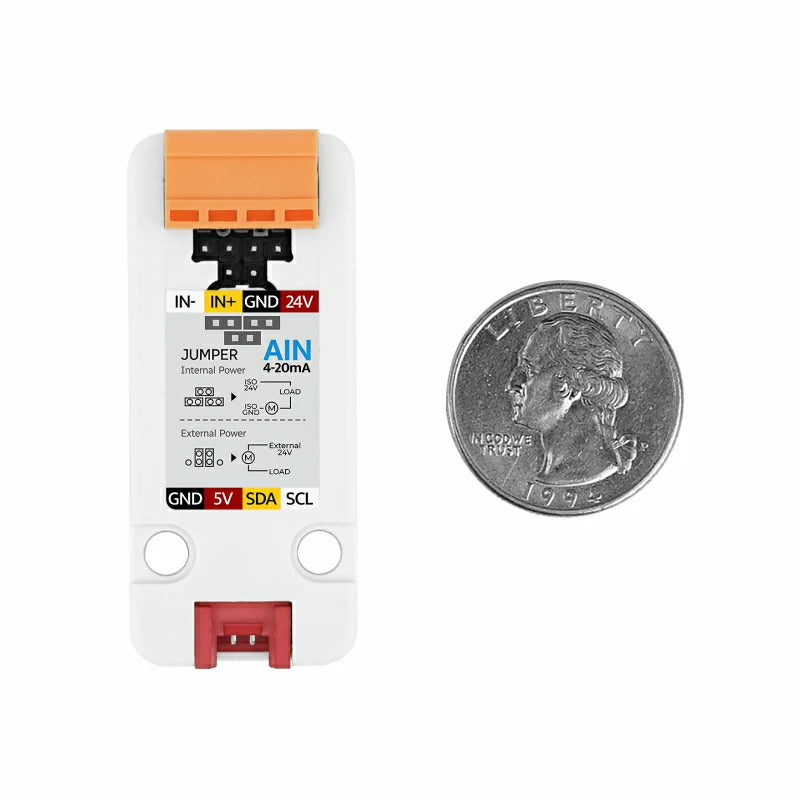

Product Size 56*24*12mm
Package Size 136* 92* 13mm
Product Weight 8.2g
Package Weight 15.6g

Schematic

schematics

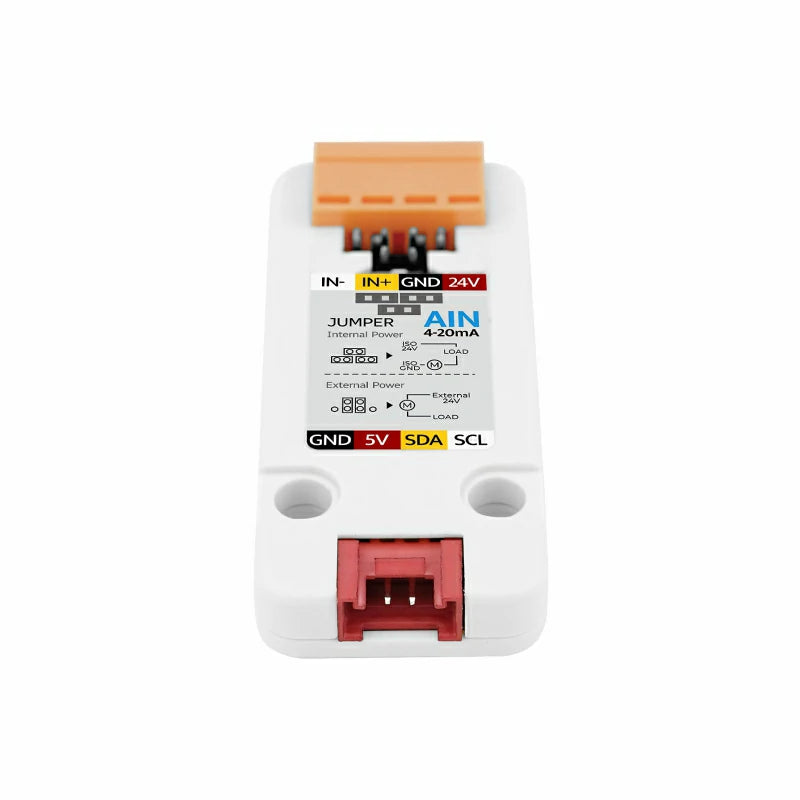

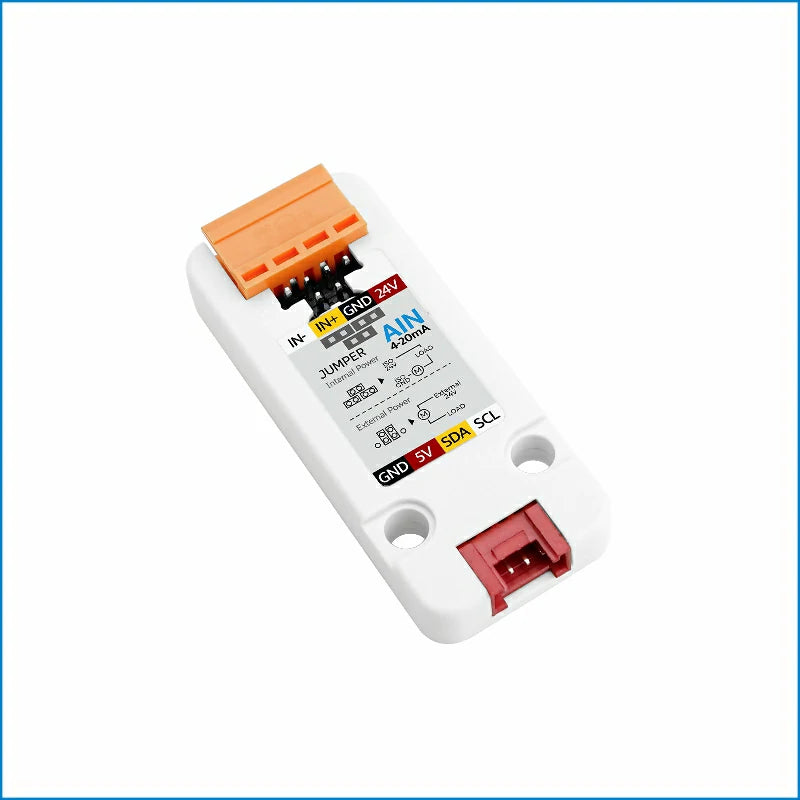

Jumper cap connection and instructions

  • If your current sensor already has an external power supply, the jumper cap is connected as shown on the left
  • If your current sensor does not have an external power supply, connect the jumper cap as shown on the right, and connect the interface of AIN4-20mA Unit to the appropriate external power supply as needed.
schematics

Examples

Arduino

UIFlow

UIFlow Blocks

  • Init device I2C address
  • Get ADC 16bit raw value
  • Get current value
  • Get device firmware version
  • Set device I2C slave address
