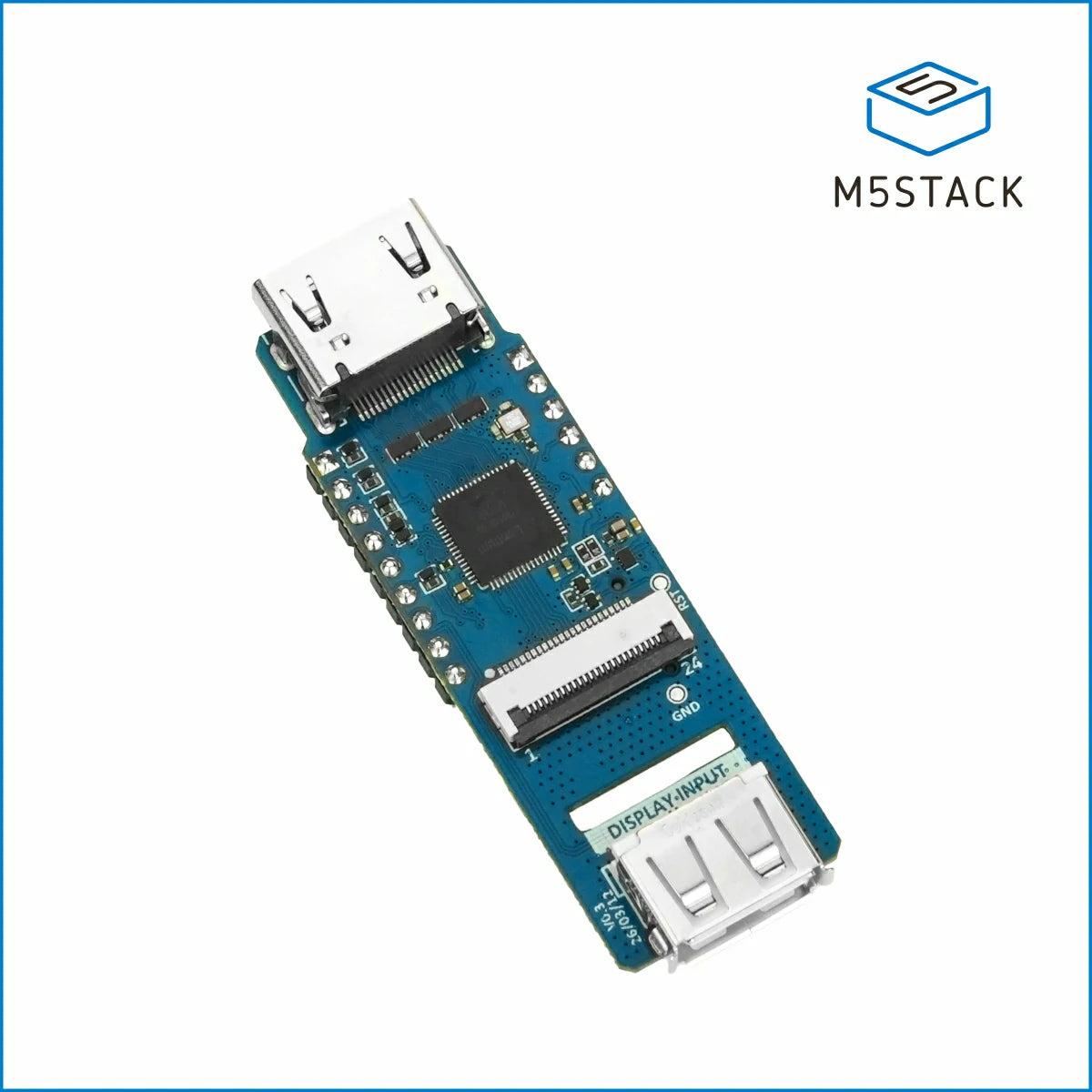

Add-on Display In for PoE-P4 (LT6911D)

Description

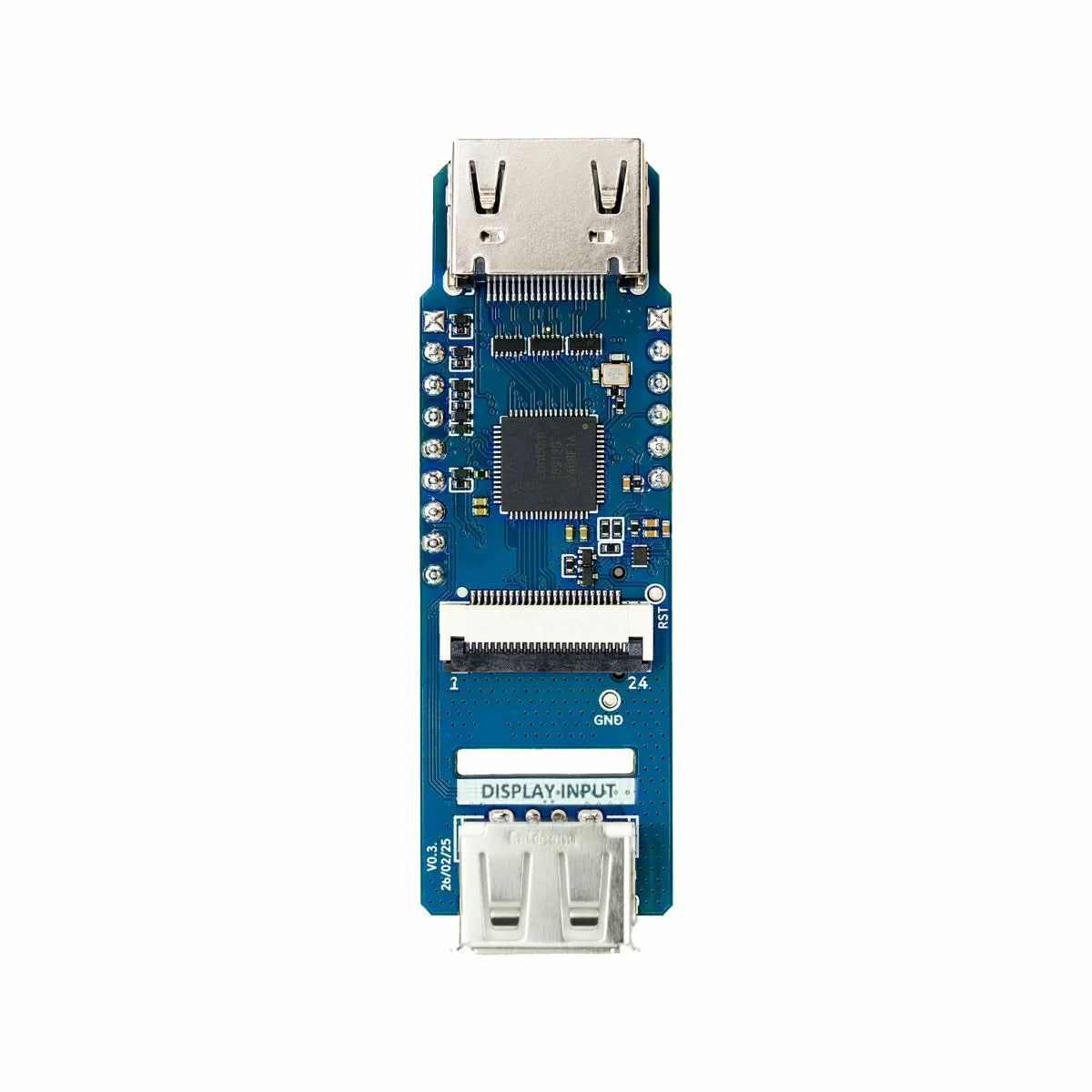

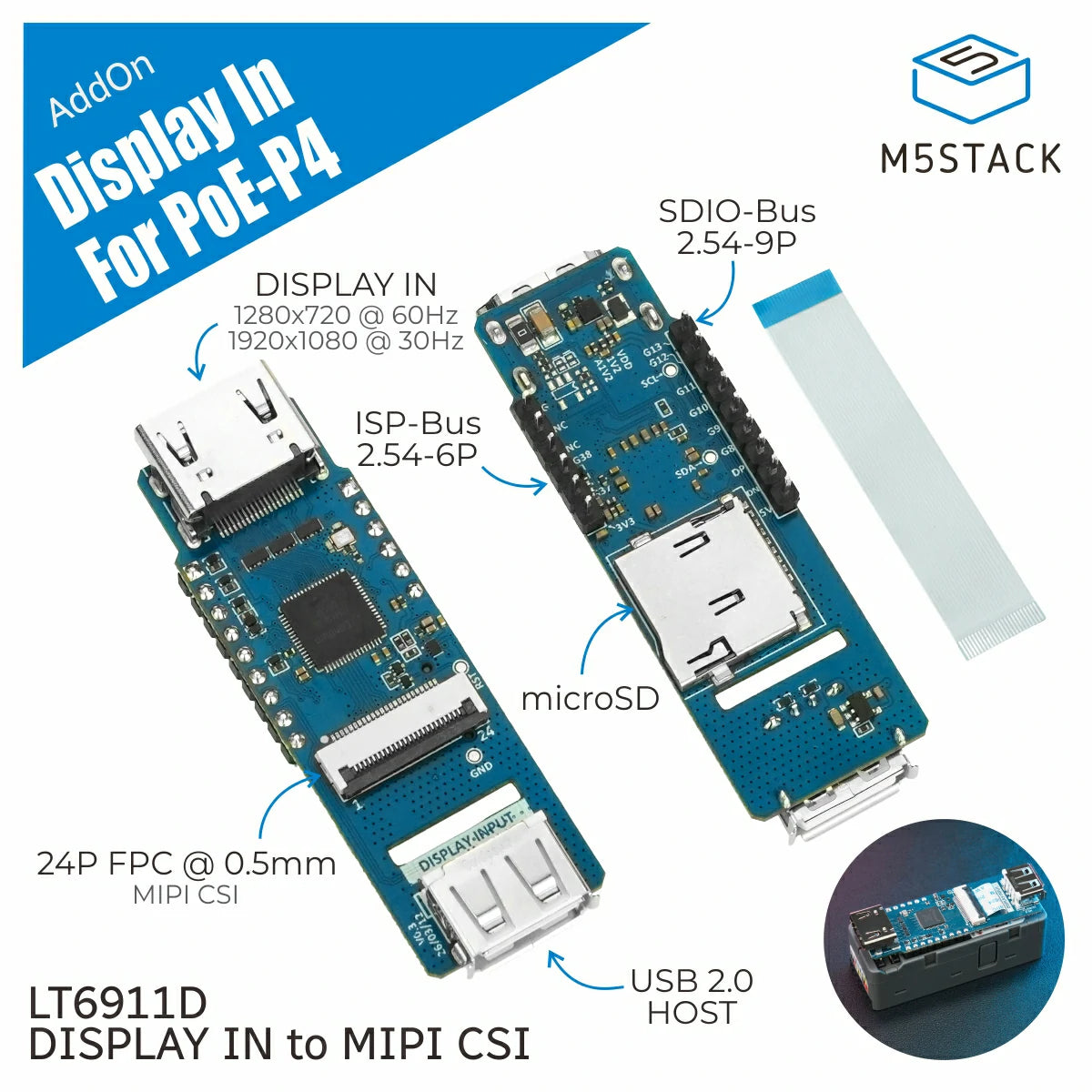

AddOn Display In For PoE-P4 is an HDMI video input expansion module designed for Unit PoE-P4. Built around the LT6911D chip, it converts HDMI video signals from external devices into 2-Lane MIPI CSI signals and transmits them to Unit PoE-P4, enabling the host controller to capture, process, and analyze video.

In addition to video input, the module provides peripheral connectivity and local storage expansion. The onboard microSD slot connects to the host controller's SDIO bus for storing captured video, images, and related data, while the onboard USB Type-A port supports peripherals such as mice and keyboards. Video, control, storage, and USB signals are routed to Unit PoE-P4 through a 24P FPC interface. The module is suitable for HDMI video capture, image processing and analysis, machine vision, video surveillance, and embedded multimedia terminals.

Features

• HDMI video input expansion module for Unit PoE-P4
• HDMI to MIPI CSI video input conversion based on LT6911D

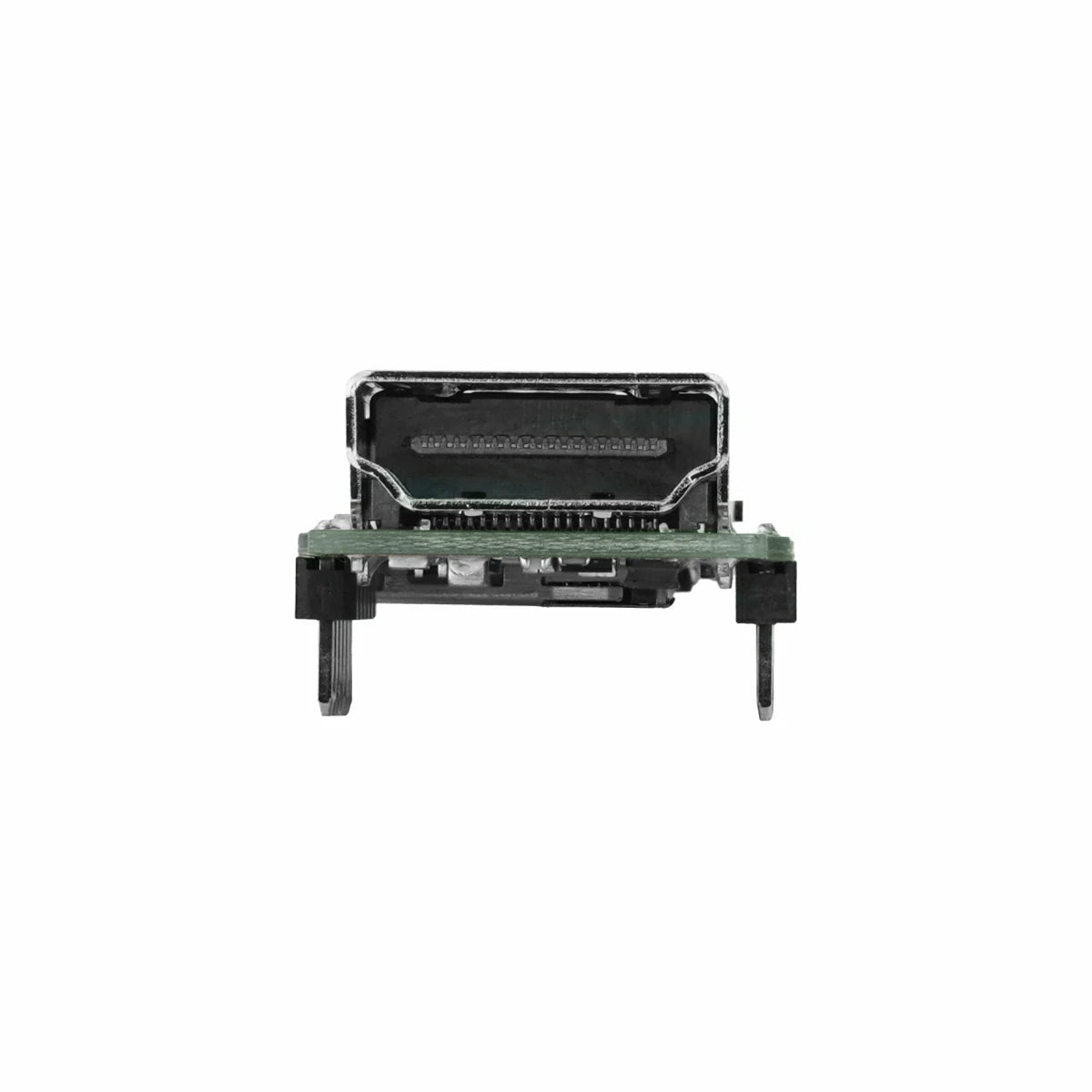

• Standard HDMI Type-A input for quick connection to external HDMI video sources

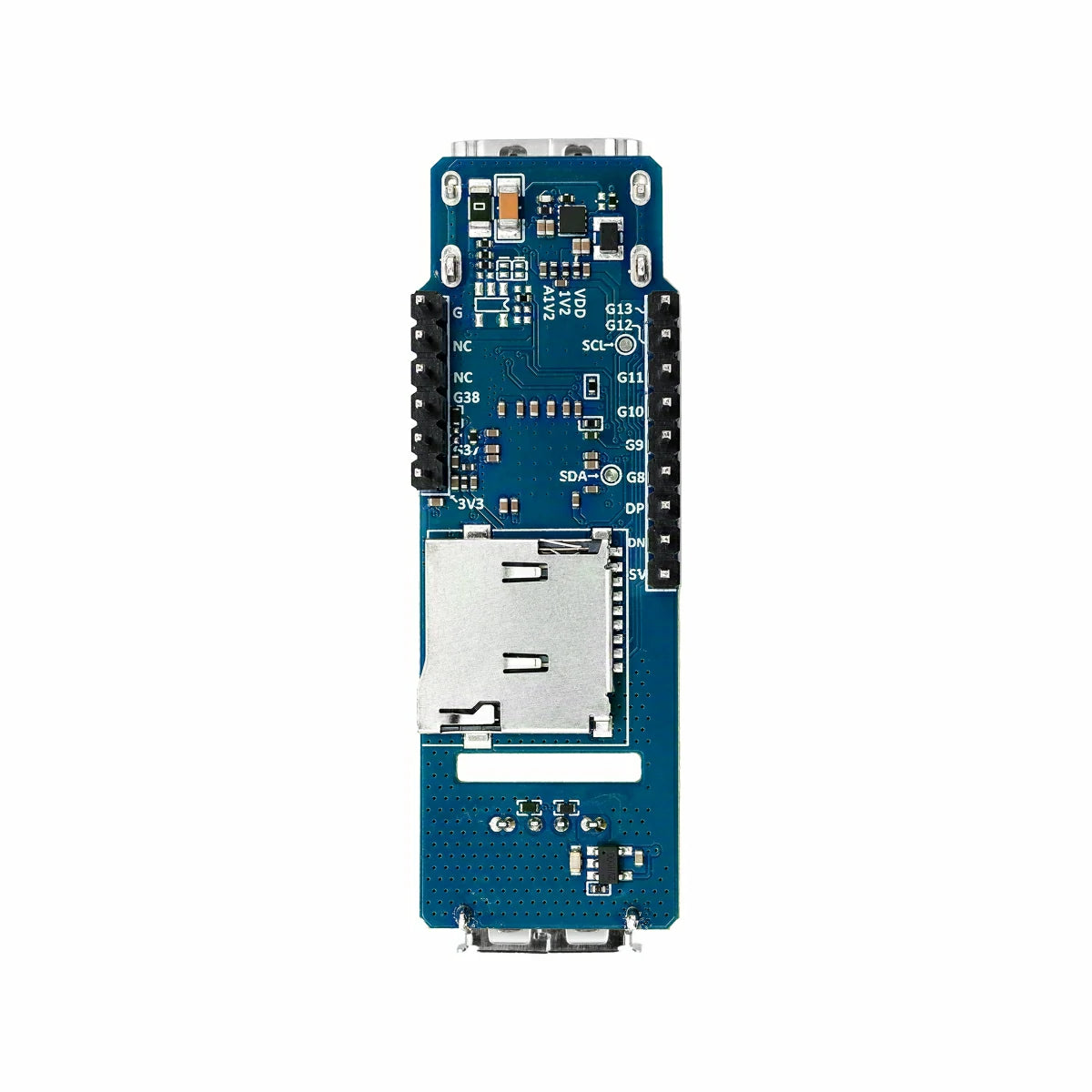

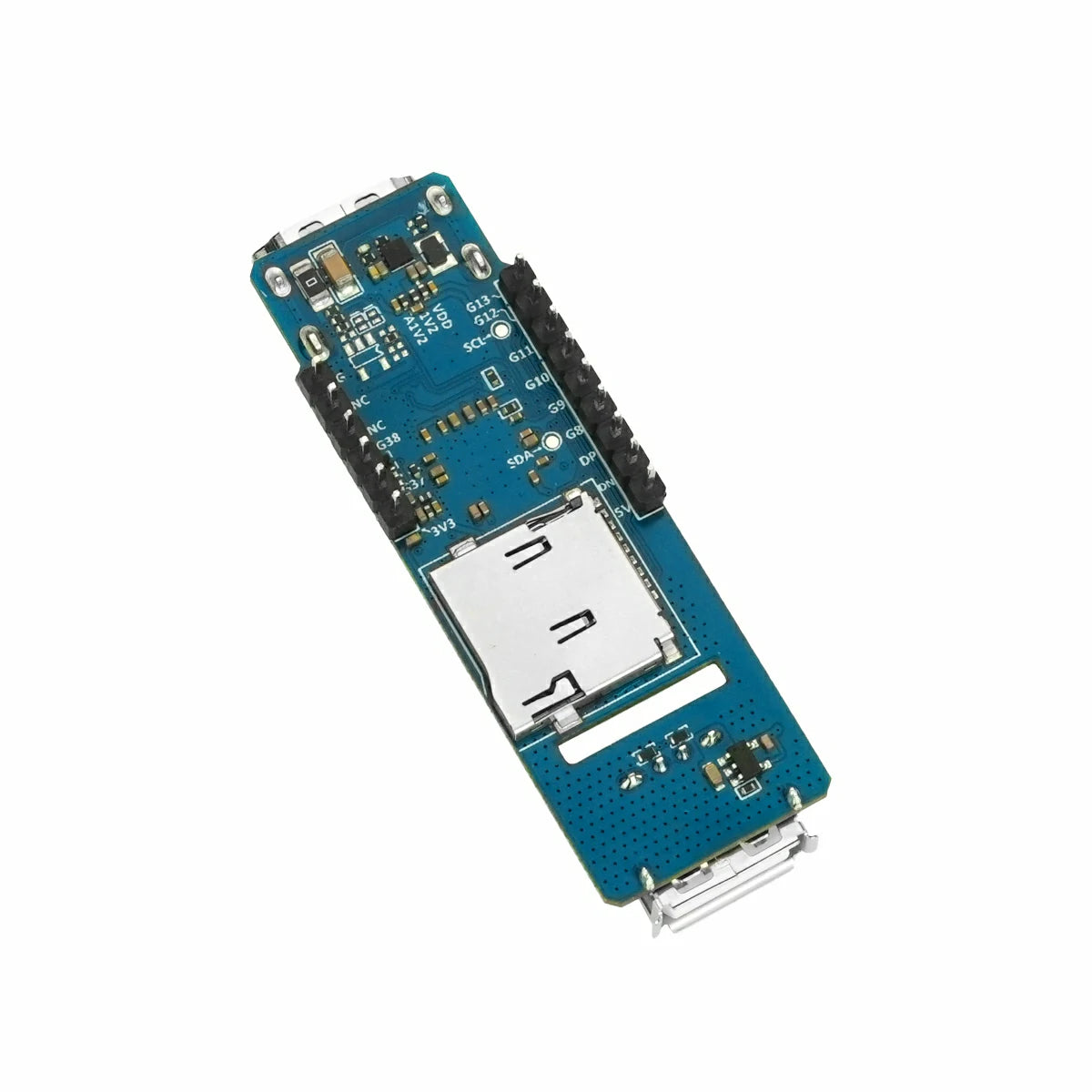

• Onboard microSD slot connected to the host controller's SDIO bus for local storage of captured video, images, and related data

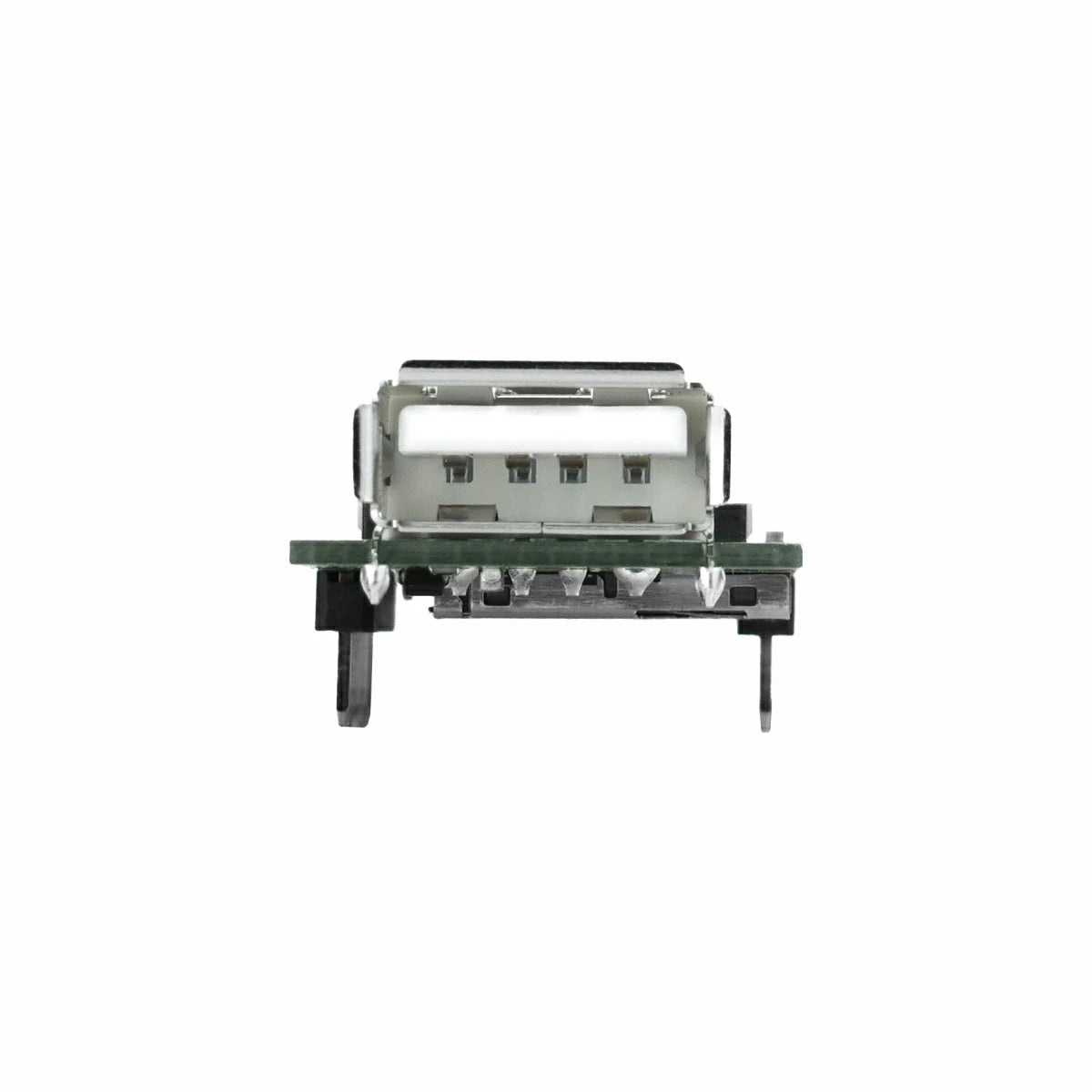

• Onboard USB Type-A port supporting peripherals such as mice and keyboards
• Supports integrated applications combining video capture, image processing, peripheral connectivity, and local storage
• Supports 1280 x 720 @ 60Hz and 1920 x 1080 @ 30Hz input resolutions

Includes

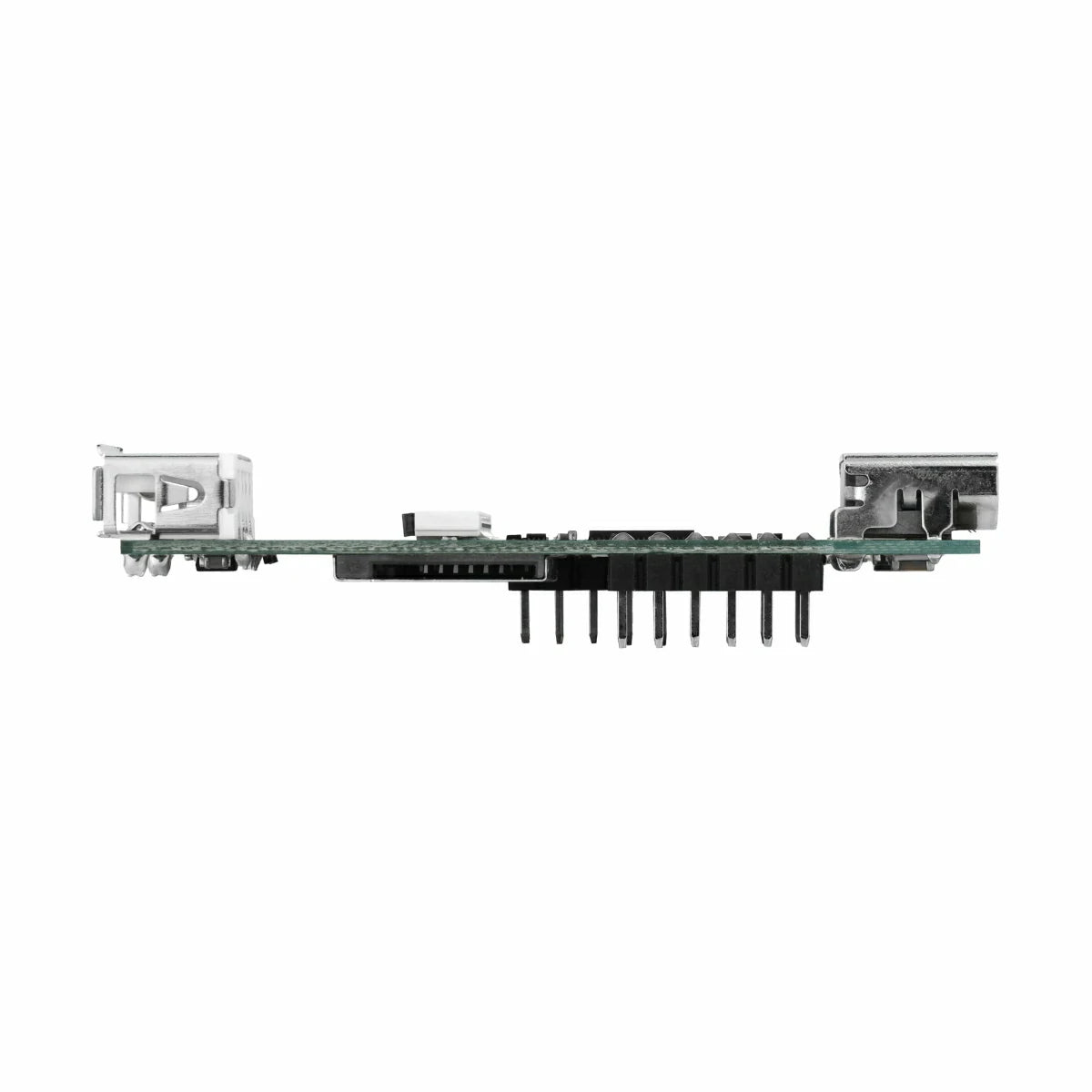

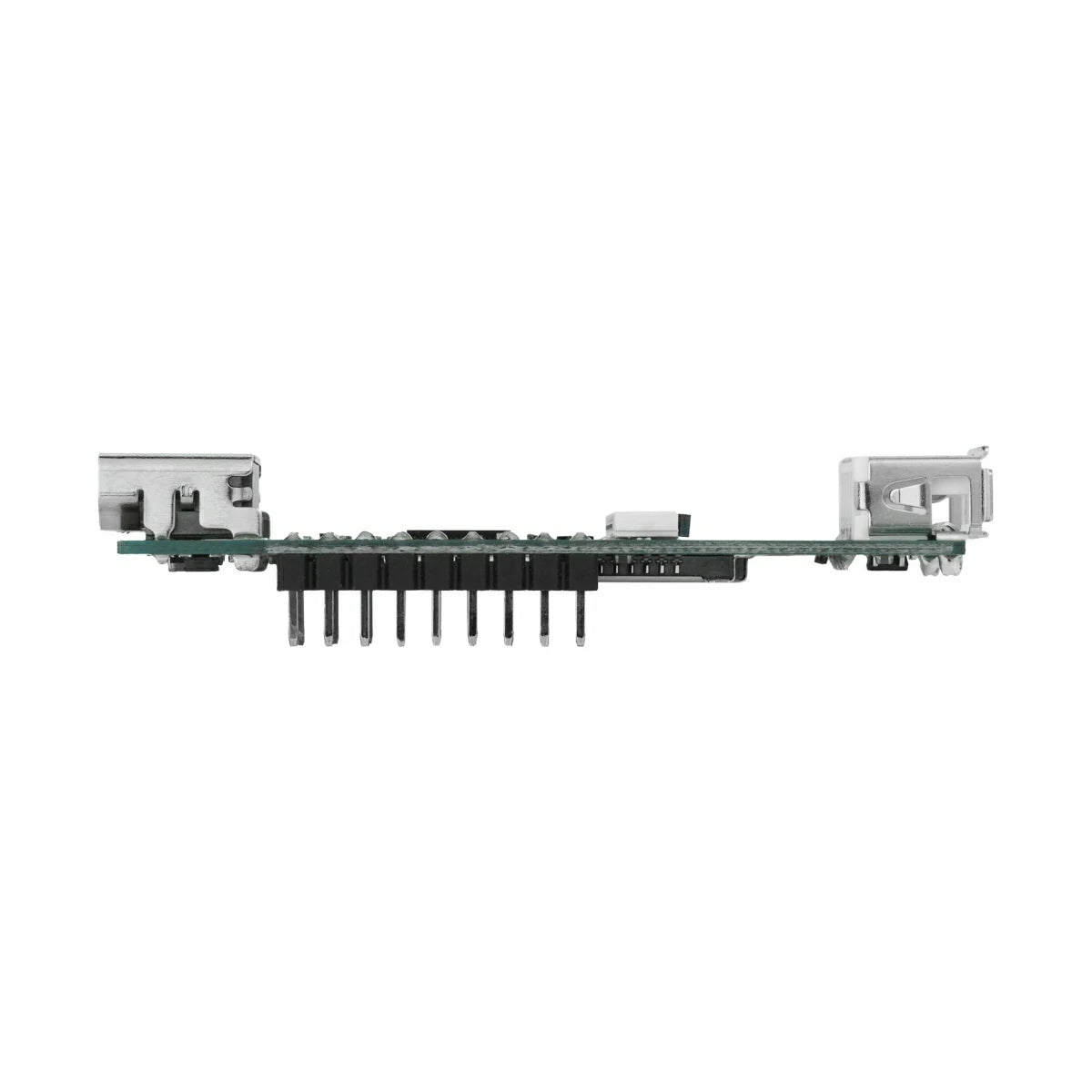

• 1 x AddOn Display In For PoE-P4

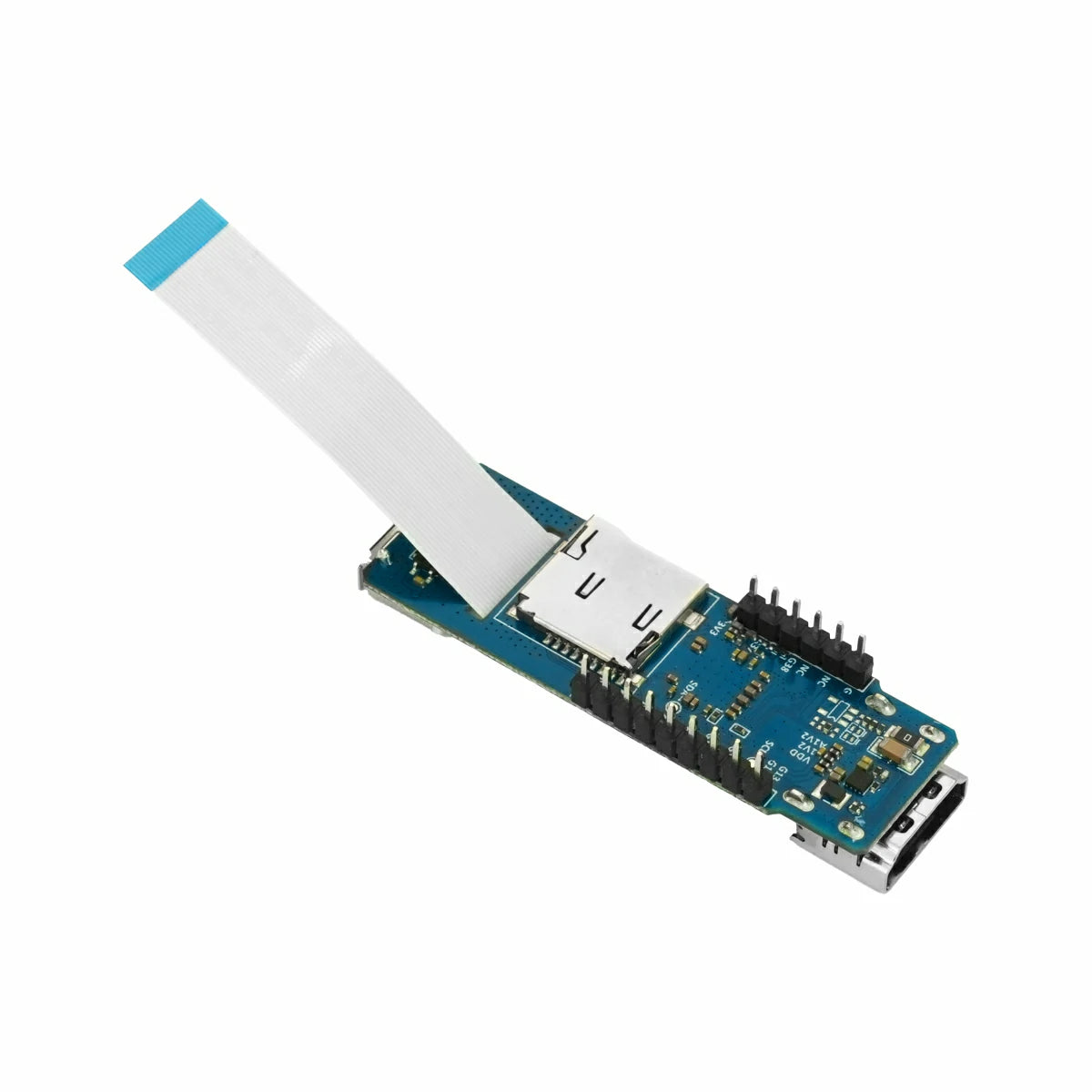

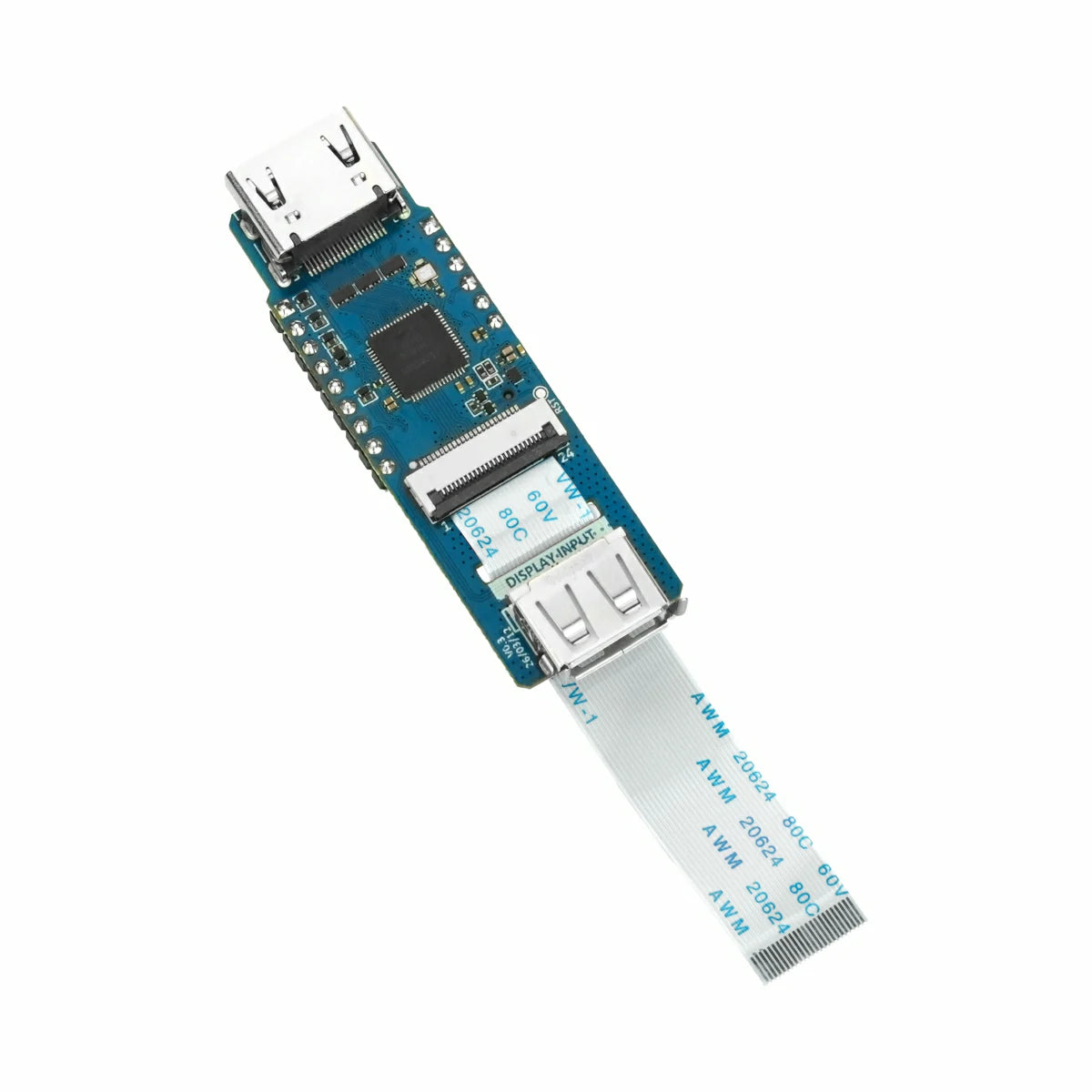

• 1 x 24P FPC Cable (0.5mm Pitch)

Applications

• HDMI video capture
• Image processing and analysis
• Machine vision
• Video surveillance
• Embedded multimedia terminals

Specifications
