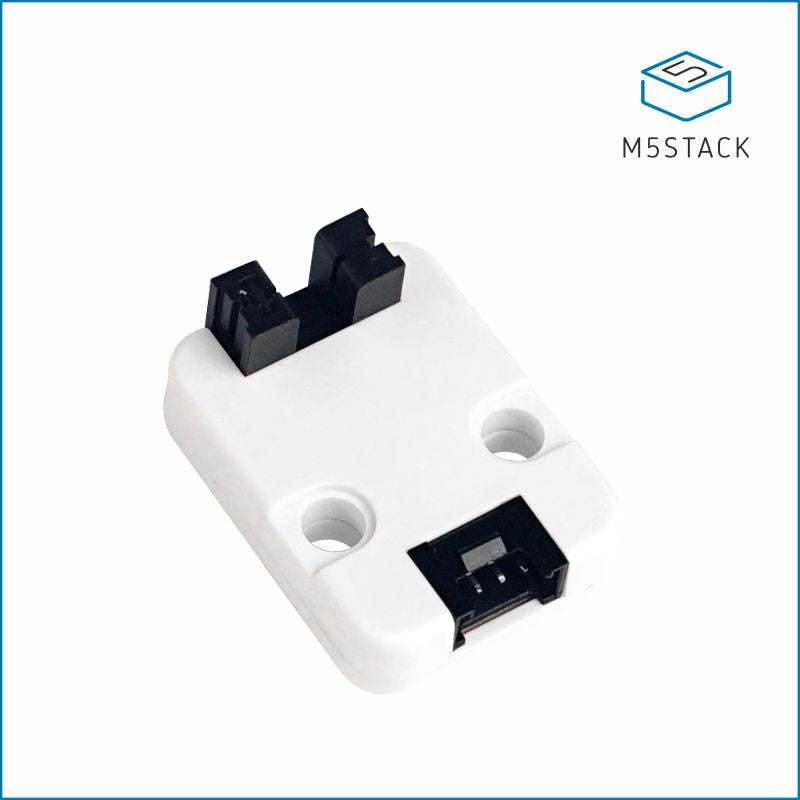

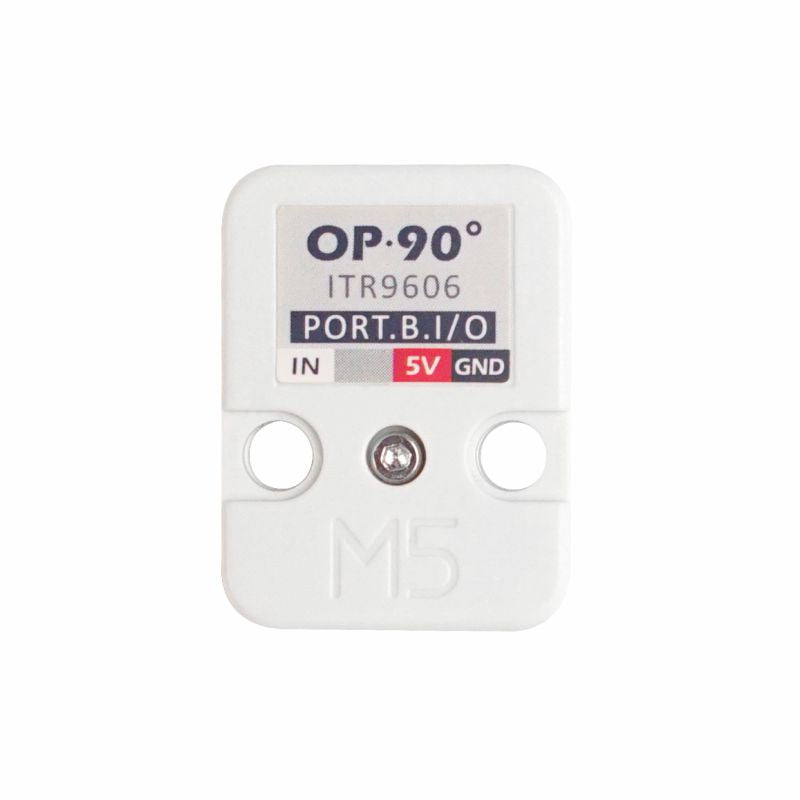

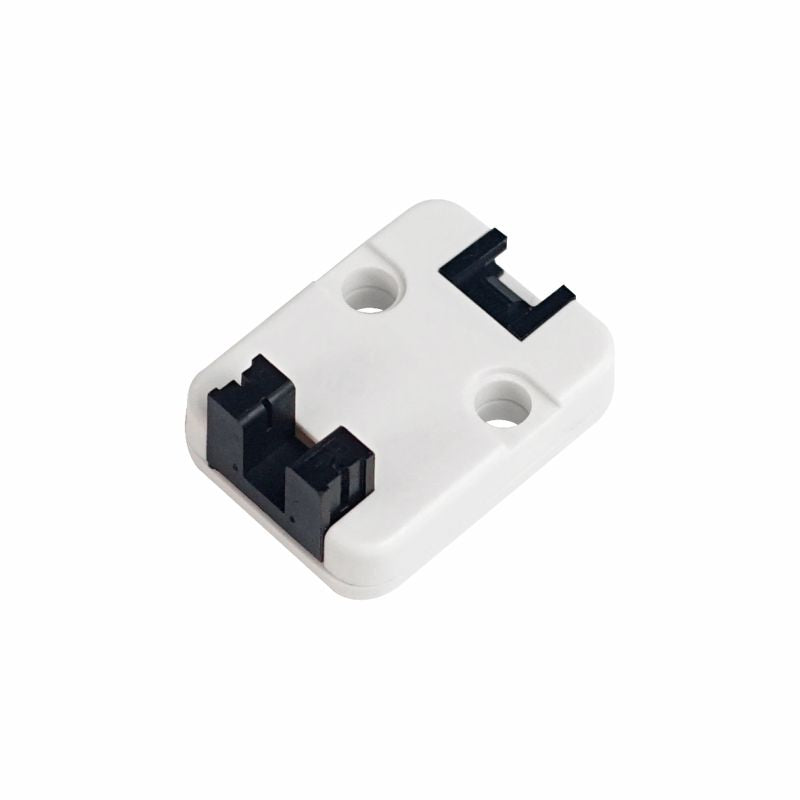

90° Infrared Reflective Unit (ITR9606)

SKU:U057

Regular price $2.50

10+ In Stock

Shipping calculated at checkout.
PRODUCT DETAILS

Description

OP.90 is a non-contact optical limit switch with a 90° detection angle. It consists of infrared emitters and receivers on both sides. During normal operation, the emitter continuously emits infrared signals to the receiver. When an object passes through the middle and blocks the infrared signal, the output terminal generates an action signal, indicating the detection of the object passing by.

OP.90 unit is commonly used in mechanical control systems, serving as a safety interlock or an optical counting device. It provides a reliable and non-contact method of detecting the presence or movement of objects within its detection range. It finds applications in various systems such as automated machinery, conveyor systems, robotic arms, and other industrial equipment.

The non-contact nature of the OP.90 optical limit switch eliminates the need for physical contact with the object being detected, reducing wear and tear on the switch and increasing its lifespan. It offers a versatile and efficient solution for object detection and positioning in automated systems.




Product Features

  • Vertical Layout
  • IR limit switch
  • Fast response time
  • High sensitivity

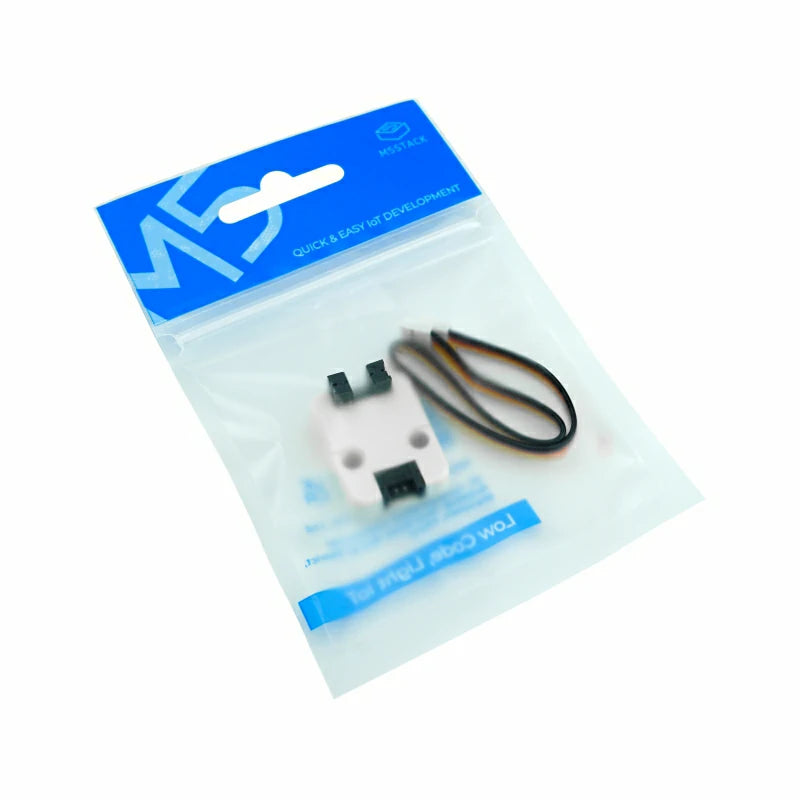

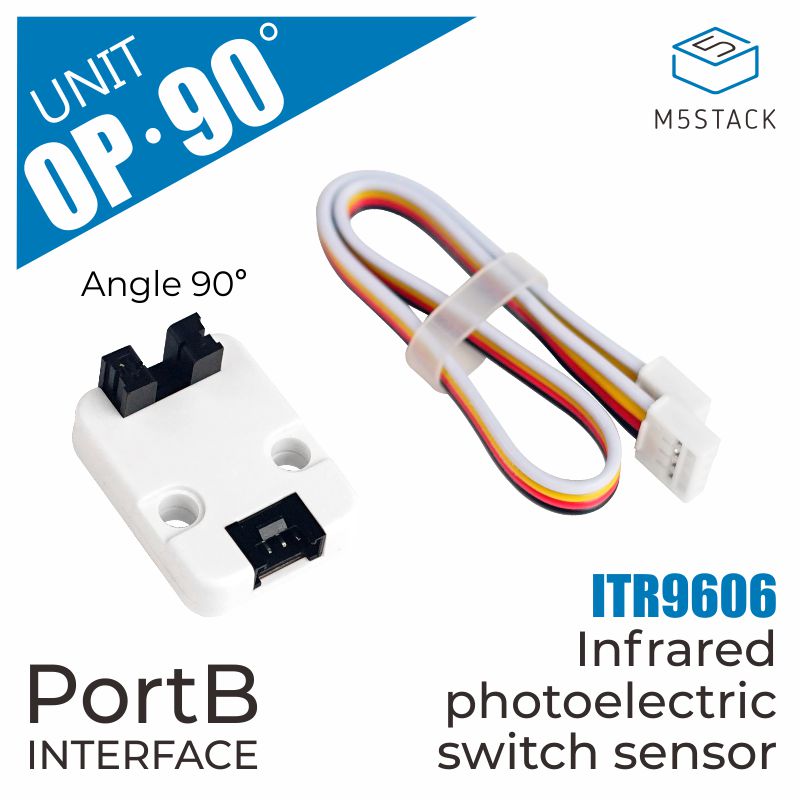

Include

  • 1x OP.90 unit
  • 1x GROVE Cable

Applications

  • Door Switch
  • Machinery Control
  • Mouse Copier
  • Switch Scanner
  • Non-contact Switching

Specification

Resources Parameter
Net weight 4g
Gross weight 18g

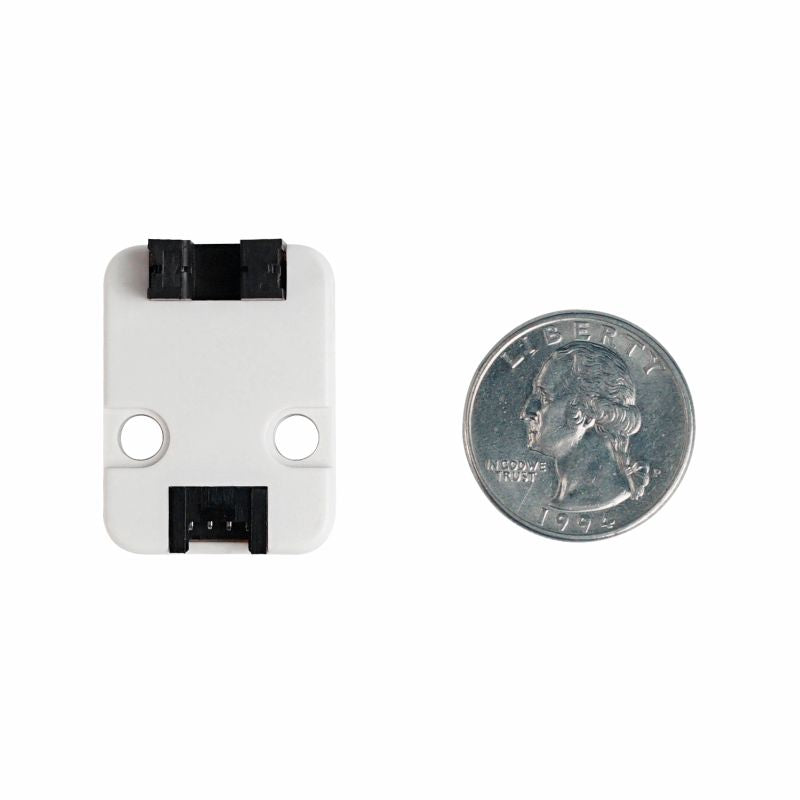

Product Size 32*24*14mm
Package Size 60*57*17mm
