PRODUCT DETAILS
Description

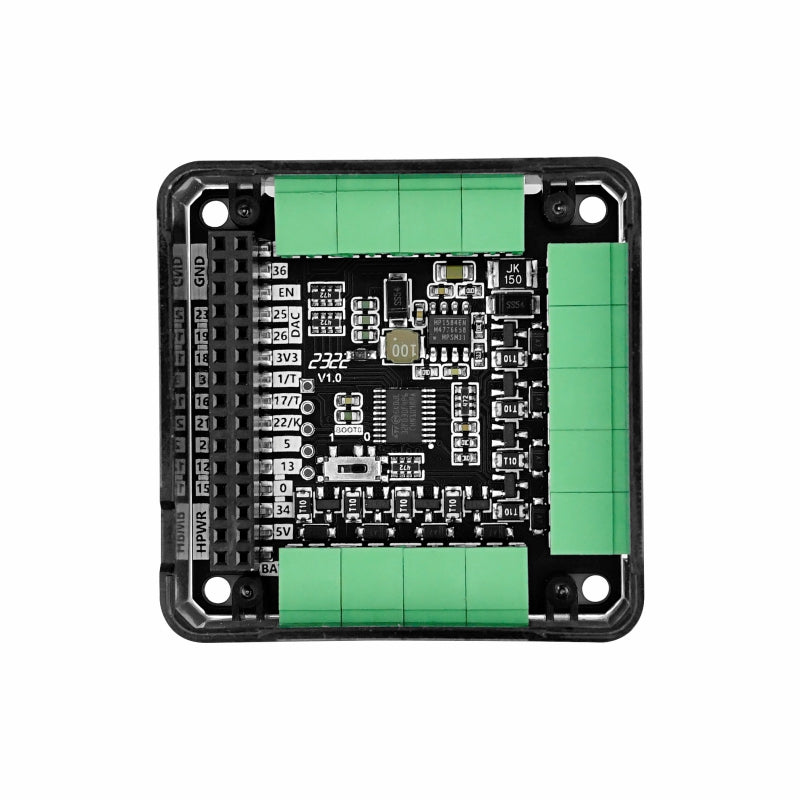

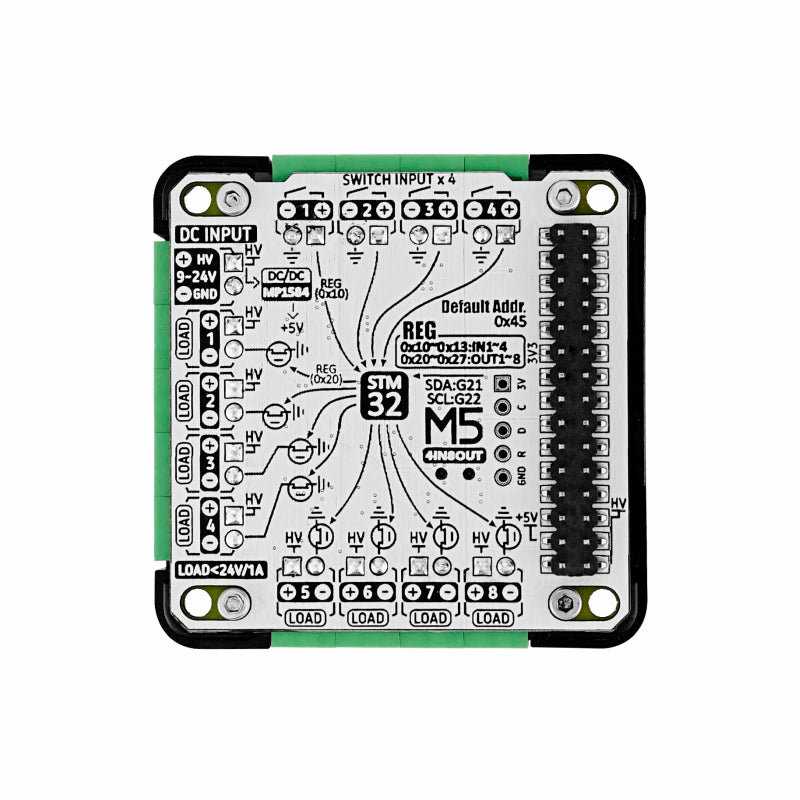

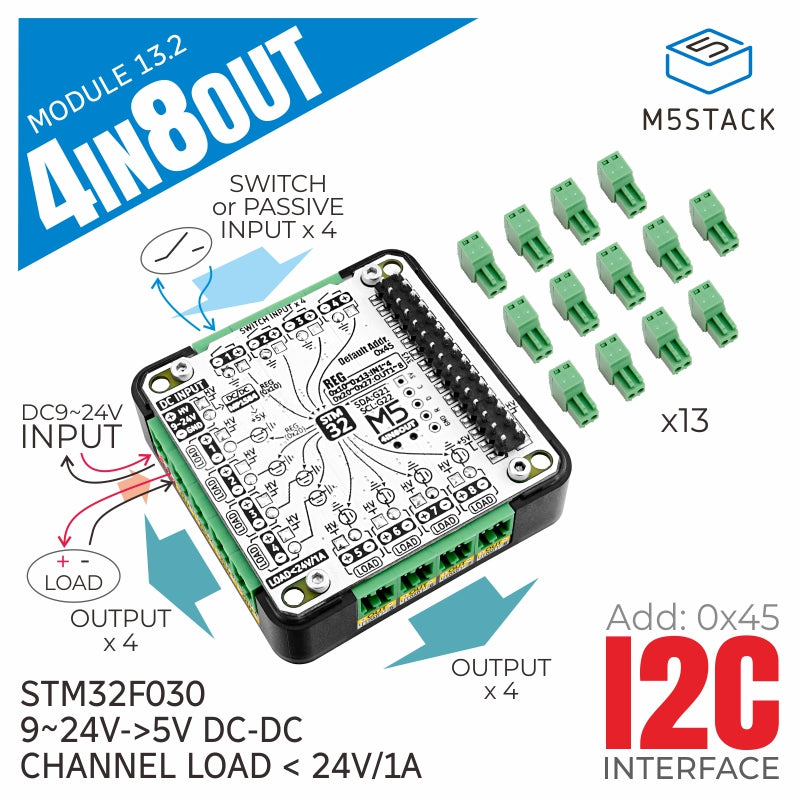

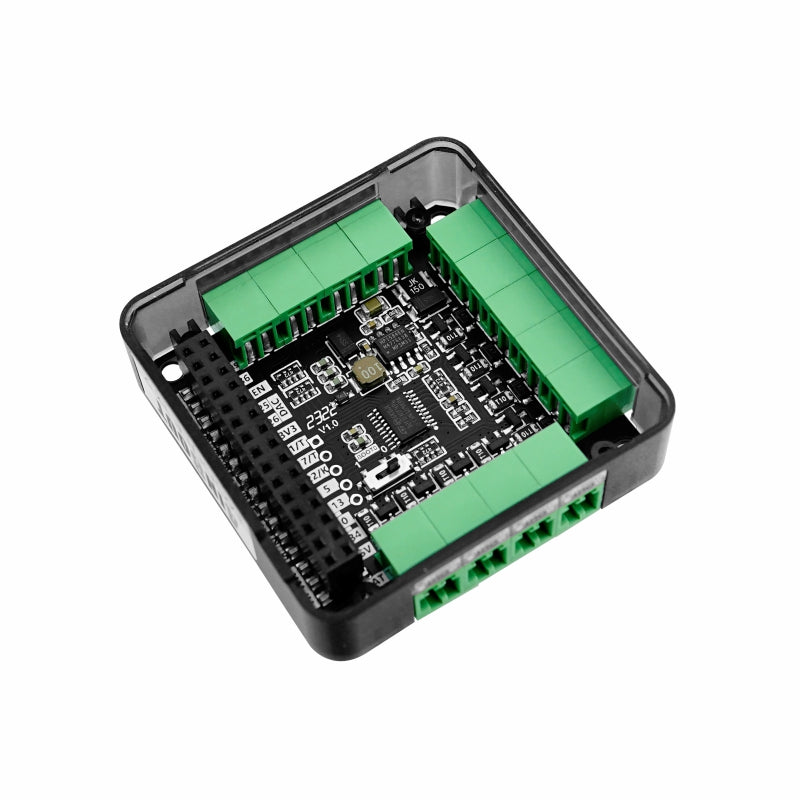

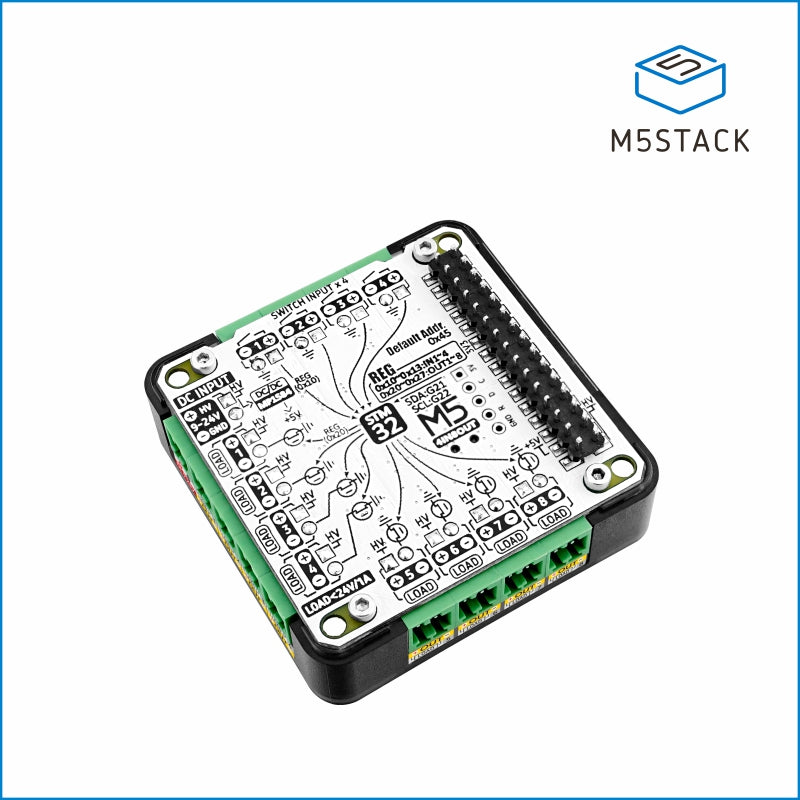

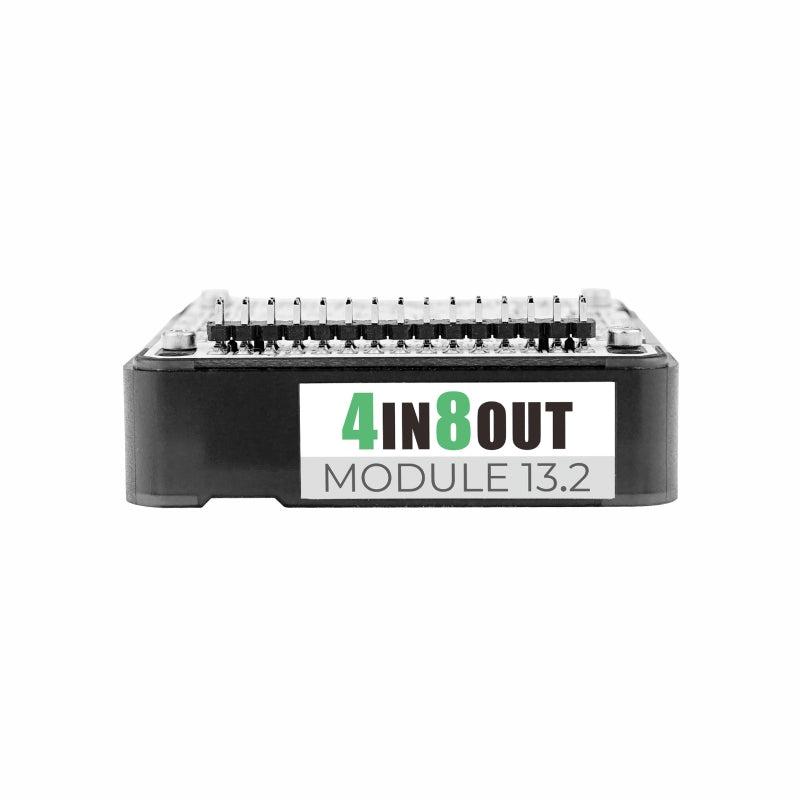

MODULE 13.2 4IN8OUT is a '4-Channel Passive Input/Switch + 8-Channel MOS Drive Output' drive module. Adopt STM32F030 as the I2C IO chip, support 9-24V DC input, with internal DC-DC circuitry to 5V.
Product Features
- Compatible with Basic/Fire/Core2
- Adopt STM32F030 as the IO chip, I2C communication, I2C address is changeable by modifying the register

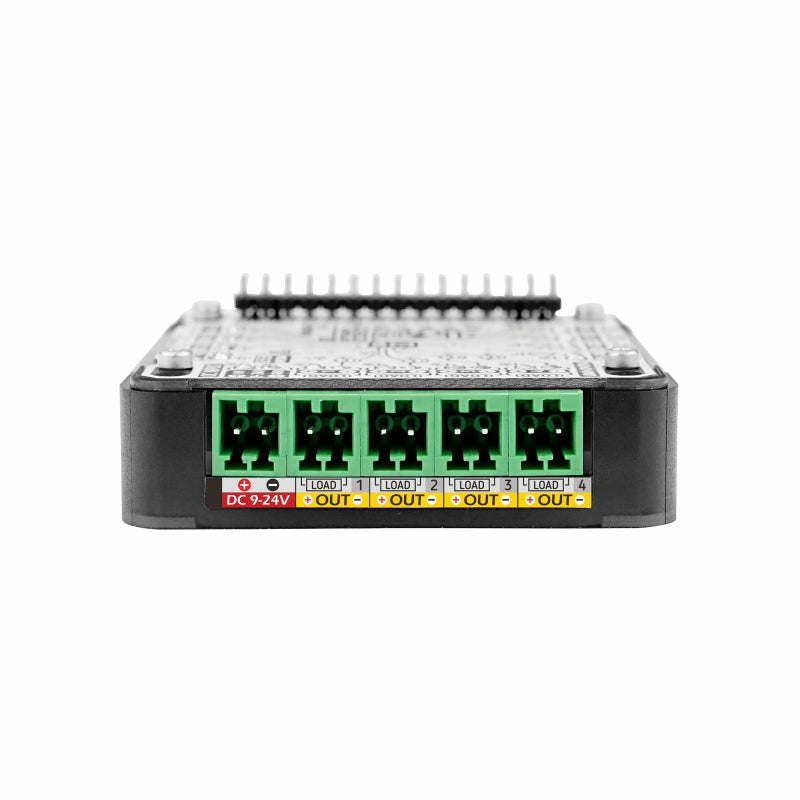

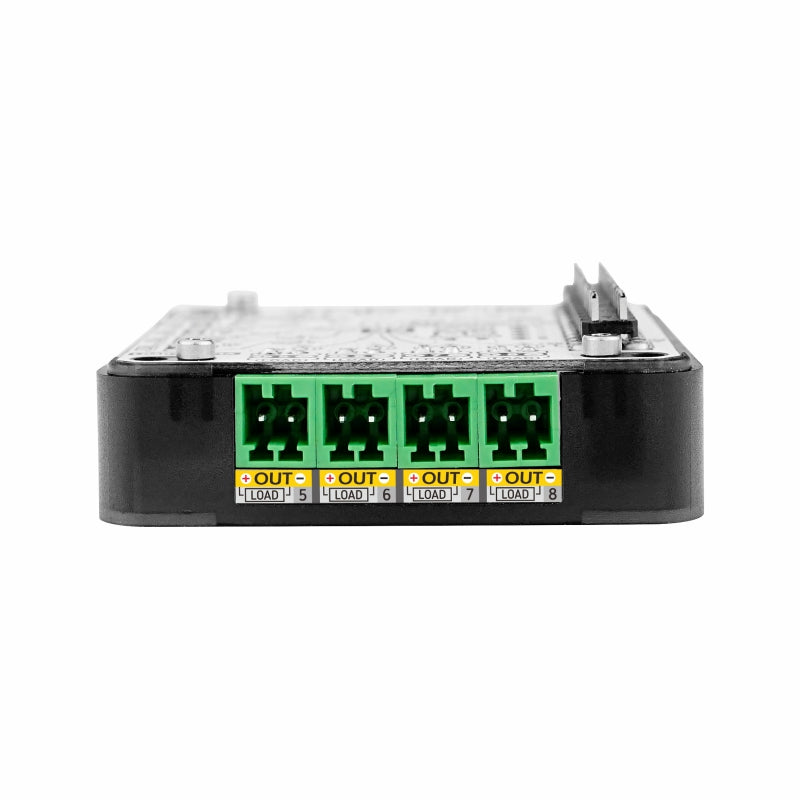

- 8-channel MOS Drive circuitry share the same VCC, channle load <1A

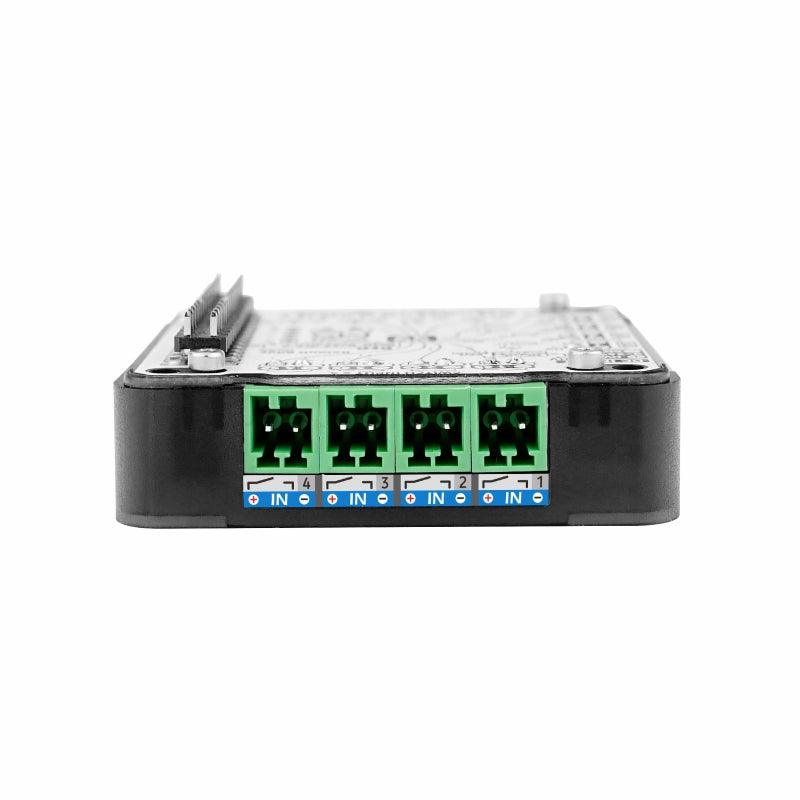

- 4-channel Passive Input share the same GND, no active signal or >5V signal allowed
- With internal MP1584, 9~24V -> 5V DC-DC converter

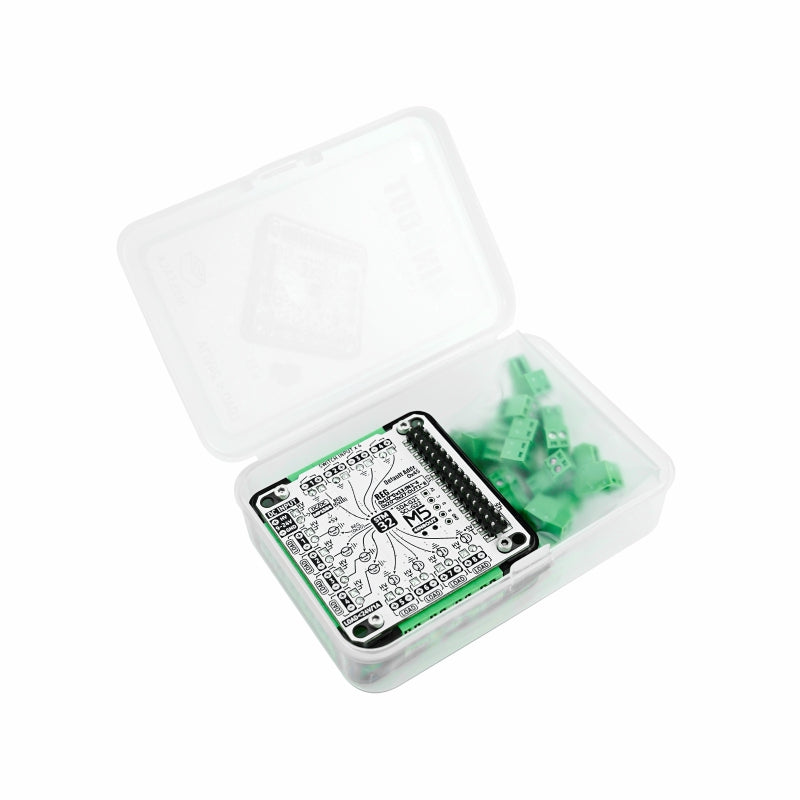

Include
- 1x MODULE 13.2 4IN8OUT
- 13x 2P Terminal
Application
- Multi-channel load drive (Relay, Valva, Single-phase Motor, Singal LED)
- Limit Switch or Button test
Specification
Spec | Parameter |
---|---|
Input Voltage | 9~24V |
Output Channel | 8 |
Input Channel | 4 |
Output Load | <1A each Channel |
Communication Interface | I2C |
I2C Address | Default 0x45, changeable by modifying the register 0xF0 |
Net Weight | 21.9g |
Gross Weight | 52.5g |
Product Size | 54*54*13mm |
Package Size | 125*68*23mm |
