4-Channel Encoder Motor Driver Module (STM32F030)

SKU:M138

Regular price $14.50

10+ In Stock

Shipping calculated at checkout.

Description

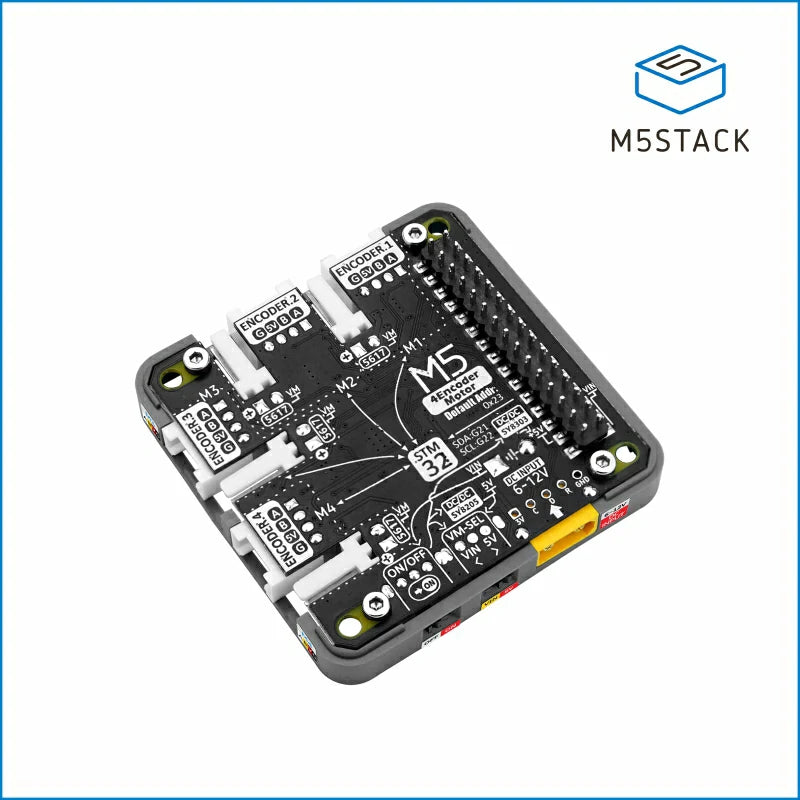

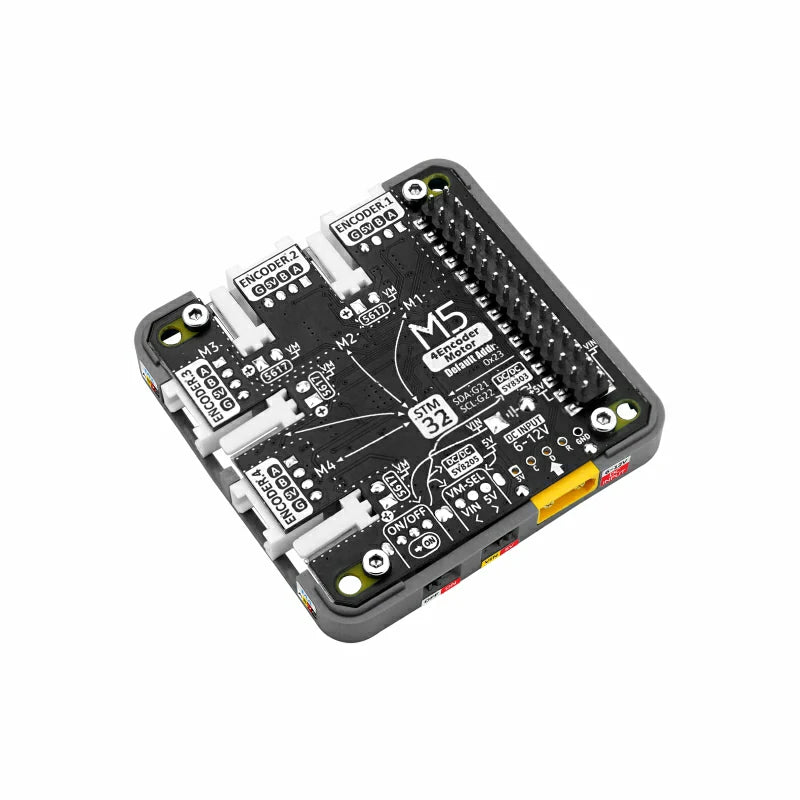

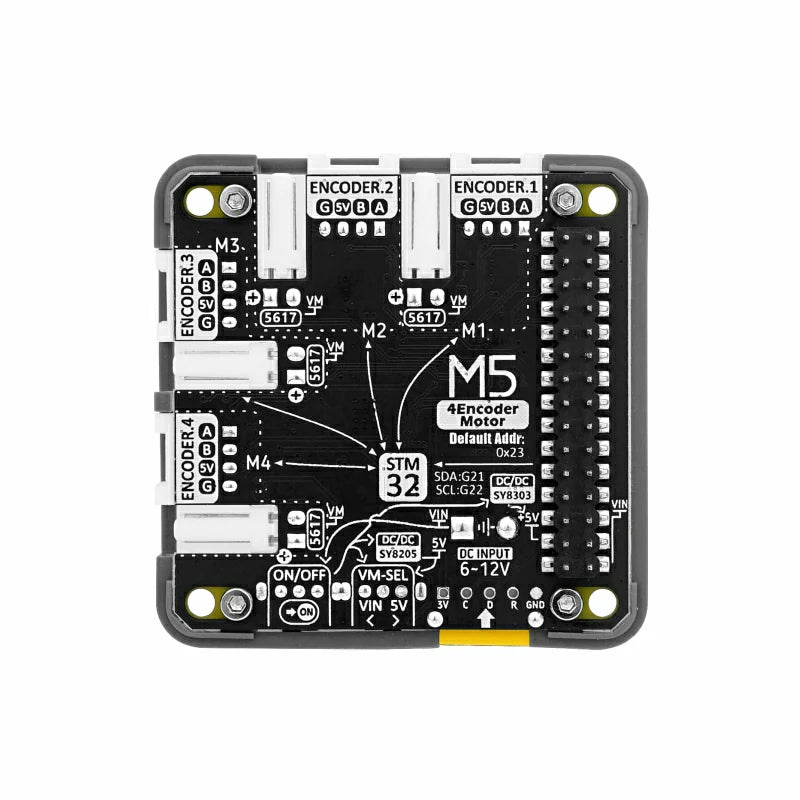

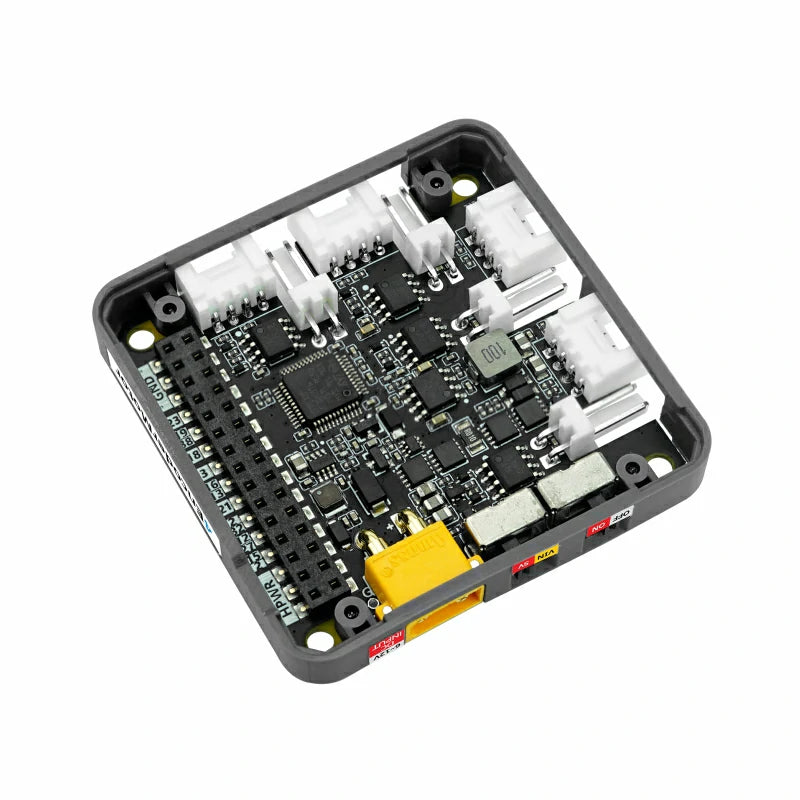

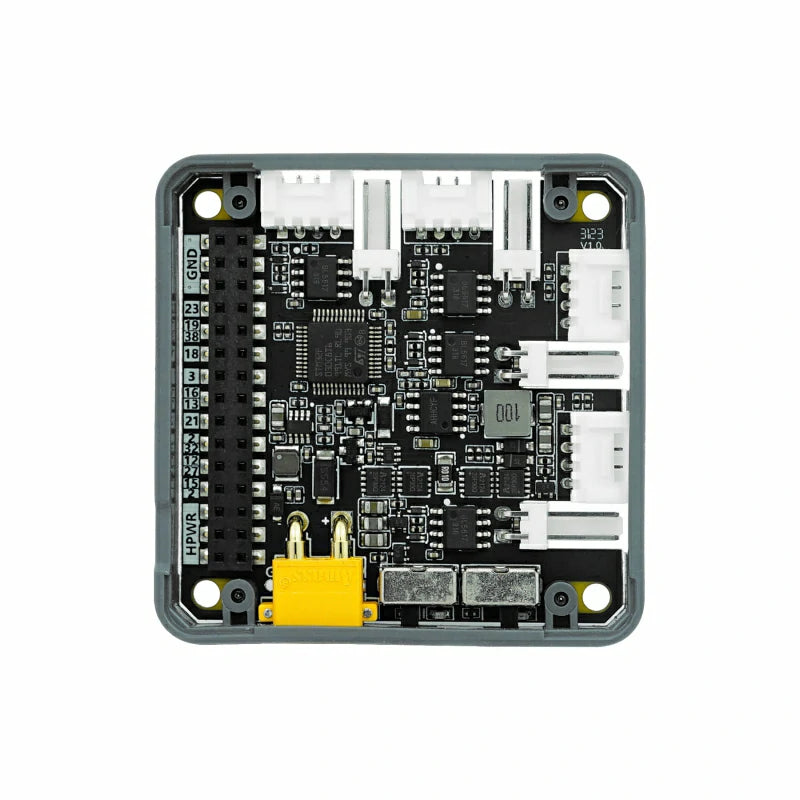

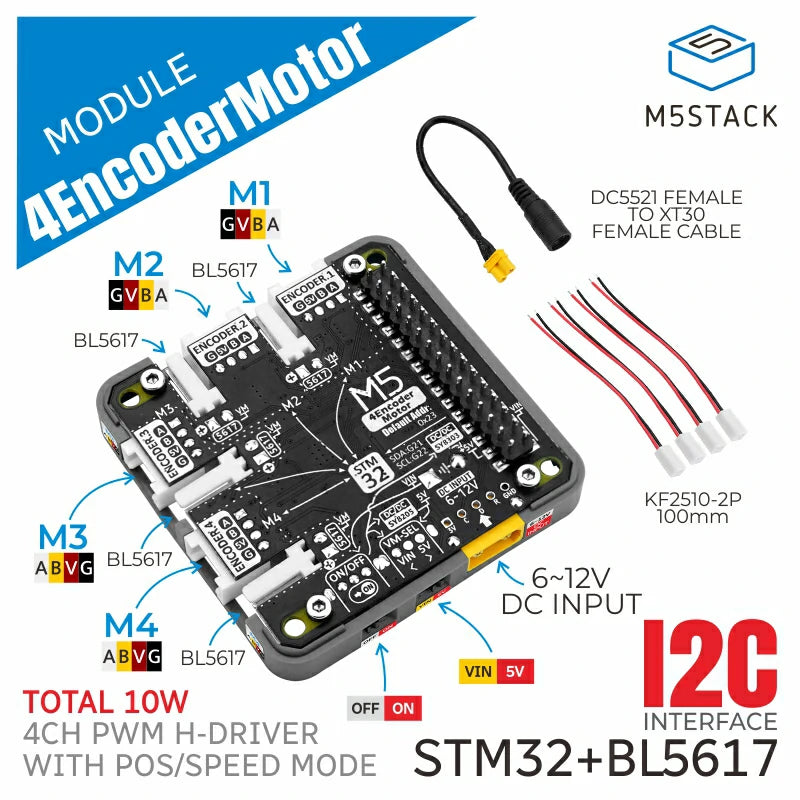

4EncoderMotor Module is a 4-channel encoder motor driver module that utilizes the STM32+BL5617 solution. It is suitable for various applications such as robot motion control, automation equipment, smart vehicles, laboratory equipment, and industrial automation systems.

4EncoderMotor Module supports multiple control modes, including duty cycle control, absolute position positioning, and speed adjustment. Users can easily implement functions such as forward rotation, reverse rotation, stop, and braking for the motors. This module adopts I2C communication and allows for the modification of the slave address, providing flexible control options. With the input of AB pulse encoder signals, it can accurately detect the motor's motion state and position.

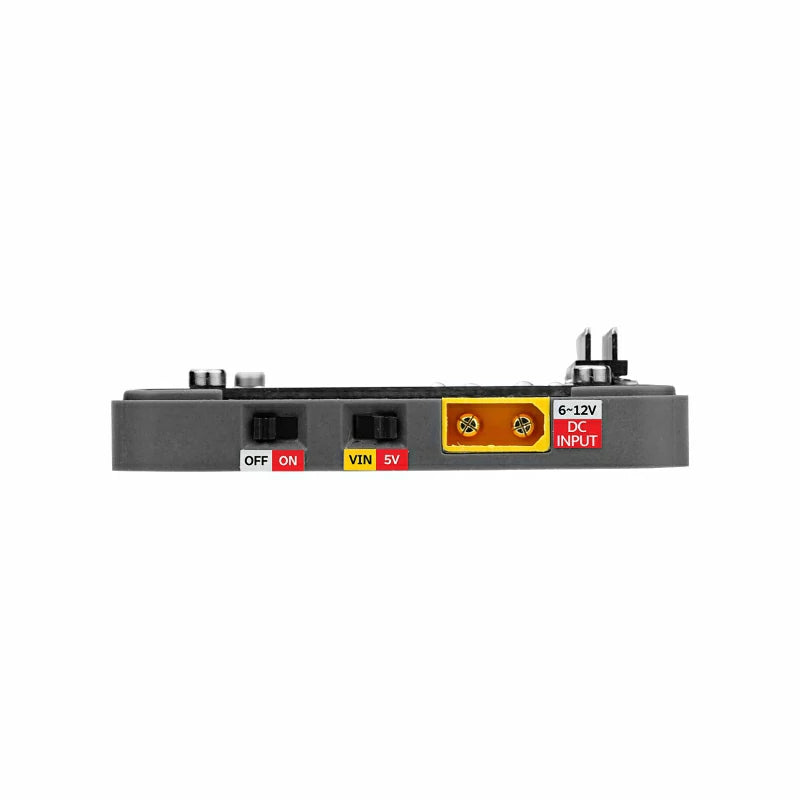

To ensure the stability and safety of the motor system, the module also integrates the INA199 power monitoring, which continuously monitors the voltage and current status in real-time, ensuring that the motor operates within the appropriate power range. Additionally, the 4EncoderMotor Module features an onboard power input switch. Users can choose between DC 5V or external DC 6-12V power input to meet the requirements of different application scenarios.

Features

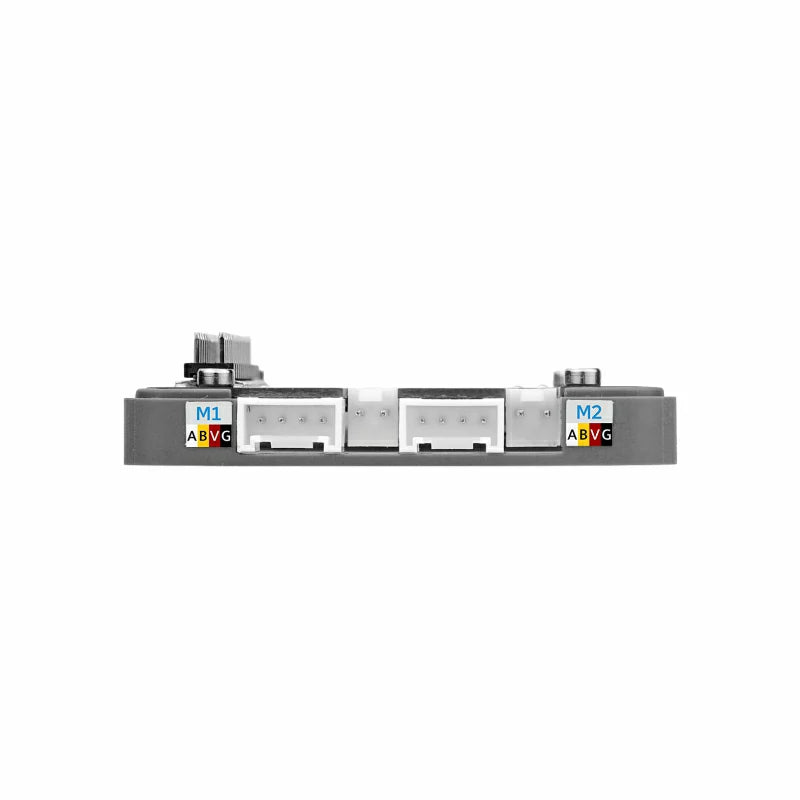

  • 4 channel coded motor drive

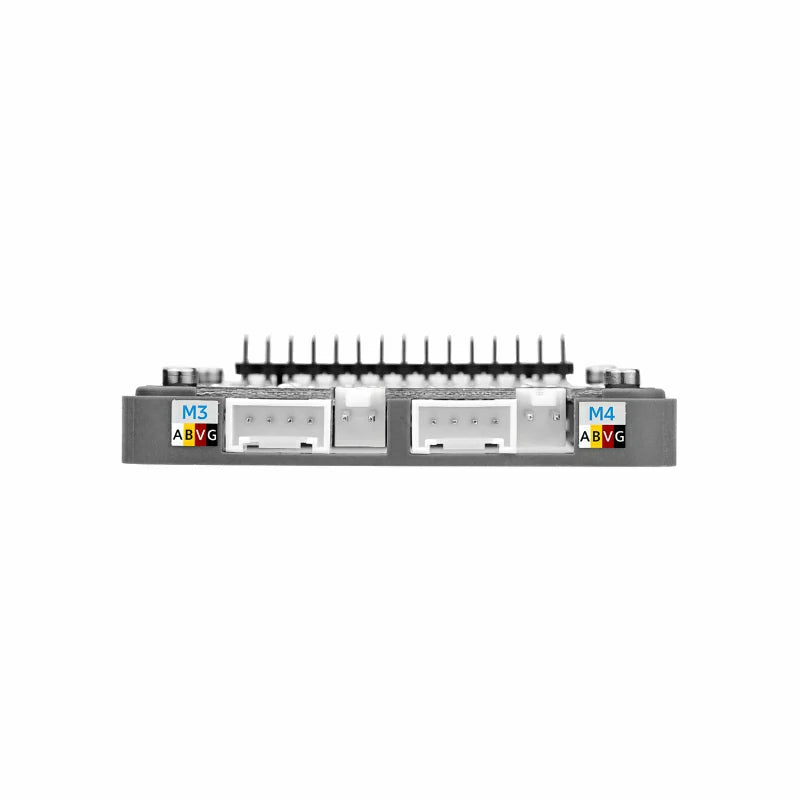

  • AB Pulse signal input
  • Duty cycle, absolute position positioning, speed adjustment control mode
  • I2C communication mode
  • Power supply current and voltage monitoring

Includes

  • 1x 4EncoderMotor Module
  • 1x DC5521 Female To XT30 Female Cable
  • 4x KF2510-2P 100mm

Applications

  • Robot motion control
  • Automation equipment
  • Intelligent vehicle
  • Industrial automation system

Specification

Resources Parameters
Coded motor drive IC BL5617
Supported maximum current 3.0A
Power 10W Max
External DC power source 6-12V
I2C communication address 0x24
Operating temperature 0-40°C
Product Size 54*54*13.1mm
Package Size 94*67*25mm
Product Weight 15.9g
Package Weight 46.4g
