PRODUCT DETAILS
Description

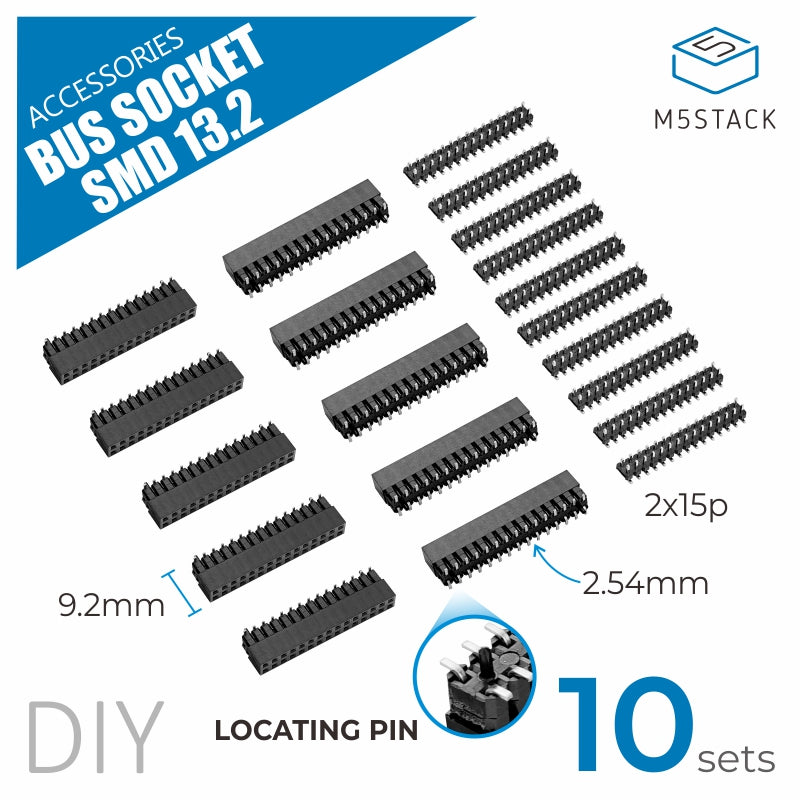

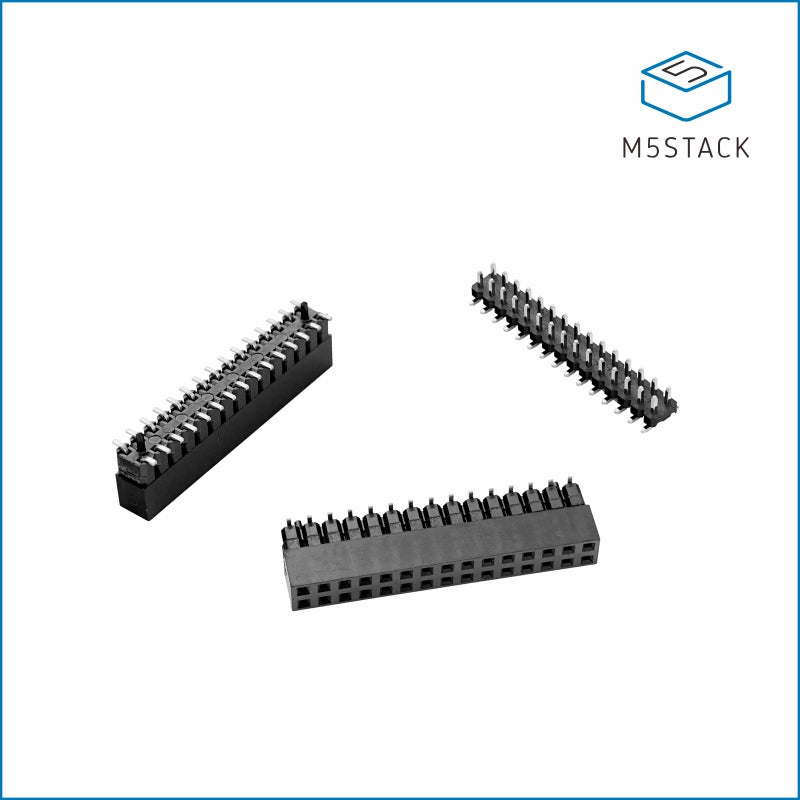

BUS SOCKET SMD 13.2 is the SMD male and female header kit that contains 10 sets 2 x 15Pin male and female headers. The spacing and number of holes are the same as the M-BUS on M5Core and M5Core2, allowing you to design your own circuit and connect it to M5Core and M5Core2.
Product Features

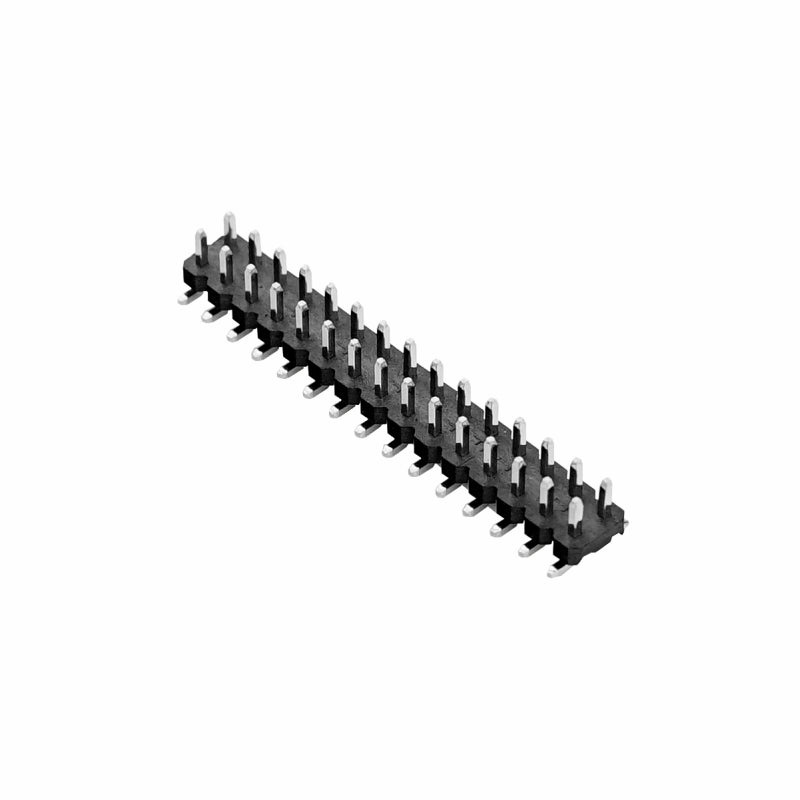

- Male header 2 x 15Pin @ 2.54mm

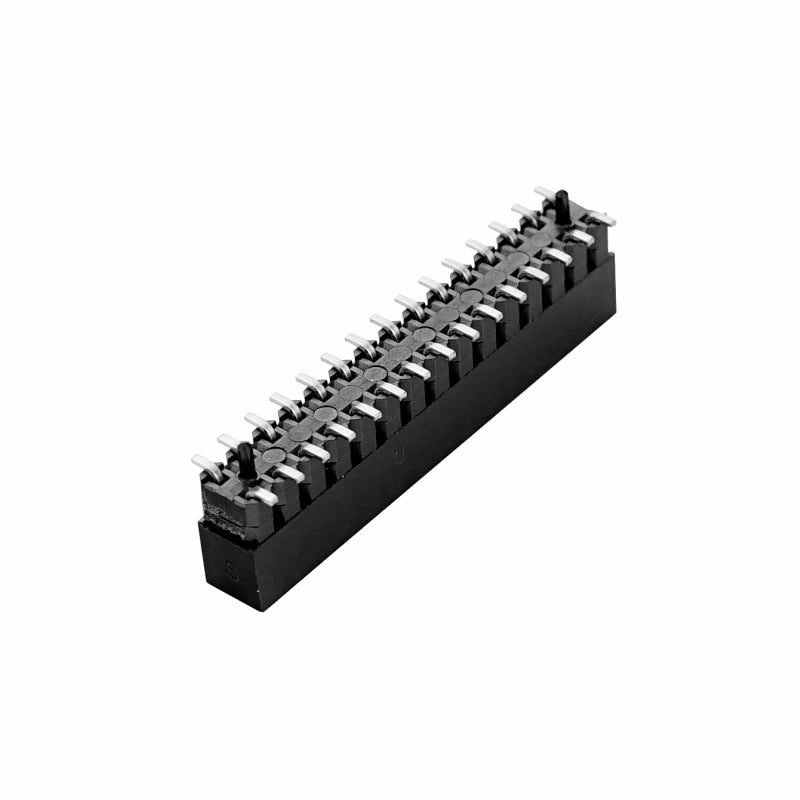

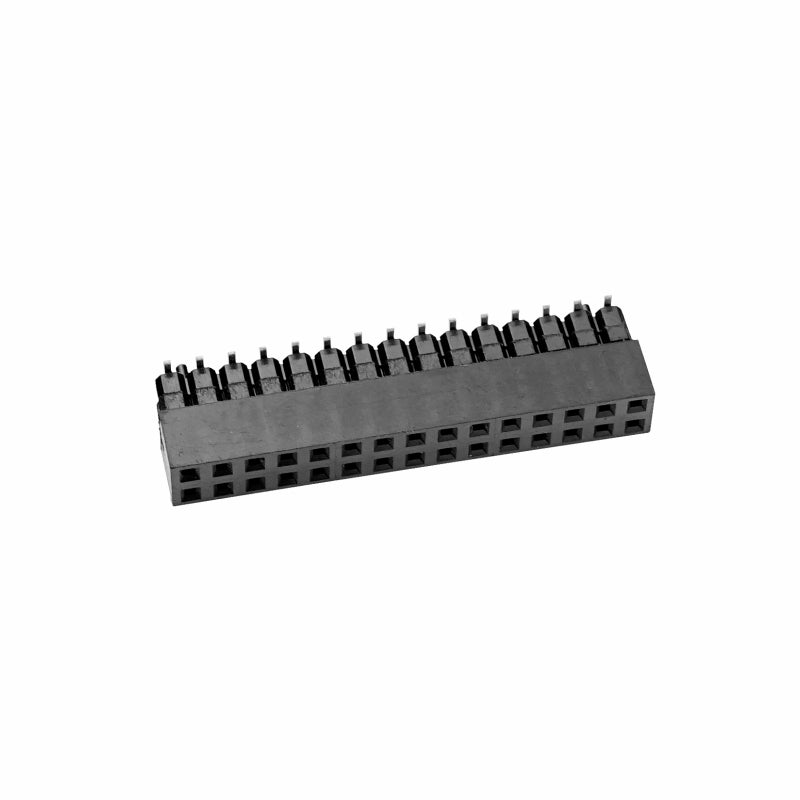

- Female header 2 x 15Pin @ 2.54mm
- With Locating Pins
Includes
- 10 x BUS SOCKET SMD 13.2 male header
- 10 x BUS SOCKET SMD 13.2 female header
Application
- PCB DIY
Specifications
Specifications | Parameters |
---|---|
SMD header | 2x15P |
Female row height | 9.2mm |
Pin header height | 3.0mm gold-plated, horizontal sticker |
Spacing | 2.54mm |
Single Net Weight | 2.7g |
Gross Weight | 49g |
Product size | 9.8 * 39 * 5mm |
Packing Size | 76 * 46 * 29mm |
