Description

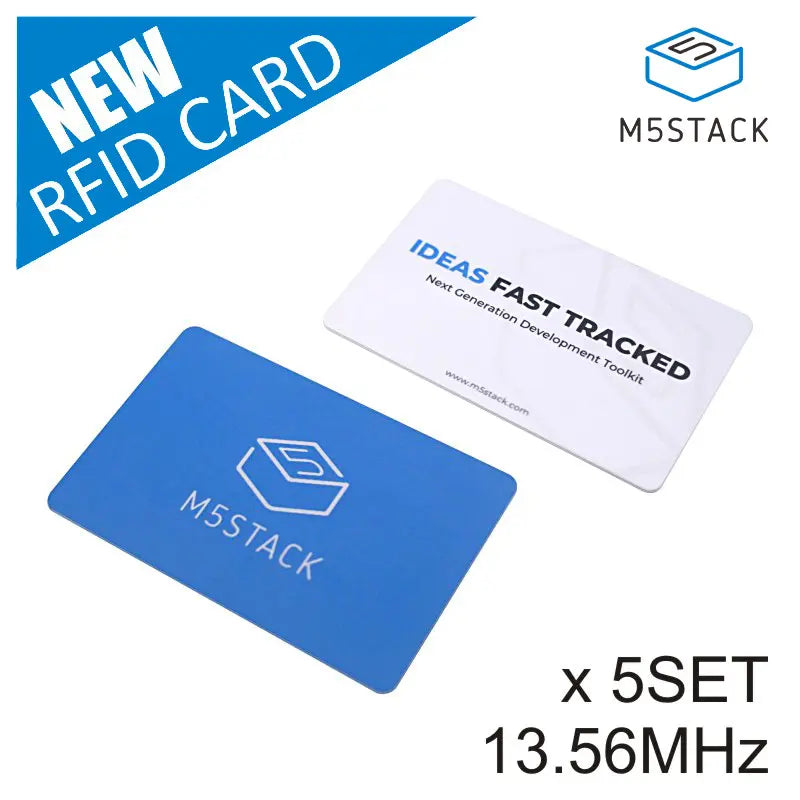

The RFID Card is a 13.56MHz RFID / NFC card with the M5Stack logo.

The main part of the card is composed of the chip, coil antenna and card base, and does not carry power itself;

The antenna works by obtaining the radio wave emitted by the reader, and the communication between the reader is realized by radiofrequency technology.

Due to its good stability and security, this type of card is widely used in traffic, communication, security, and other inductive card management systems that require radio frequency identification.

The Fudan F08 chip built into the proximity card provides long data retention, read and write life while maintaining good sensing performance.

Product Features

• Category: Contactless IC Card
• Material: new PVC material, copper coil, chip
• Chip storage capacity: 1K x 8Bits
• Sensing distance: less than 10mm (related to the reader)
• Data retention period: >10 years
• Read and write life: >100,000 times
• Working temperature: -20 ~ 50 °C
• Working frequency: 13.56MHz
• The encryption algorithm conforms to the M1 standard.

Weight&Size

• Item size: 85.5mm x 54mm x 1mm
• Item weight: 5.3g

Application

• Access control system
• Electronic tags
• Attendance System
