This product is EOL. Please order Atomic PWM Base
Description

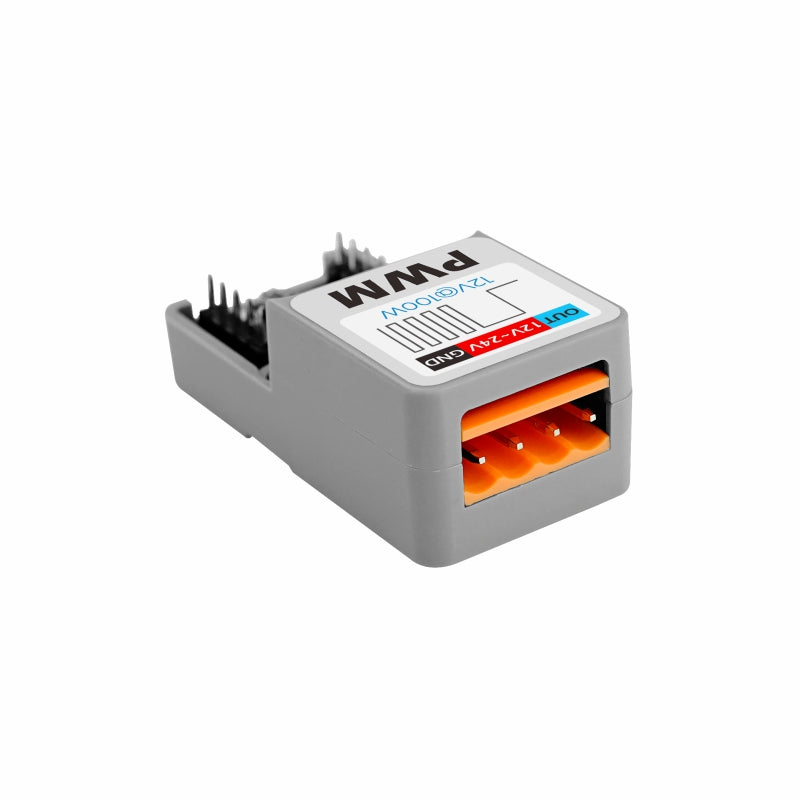

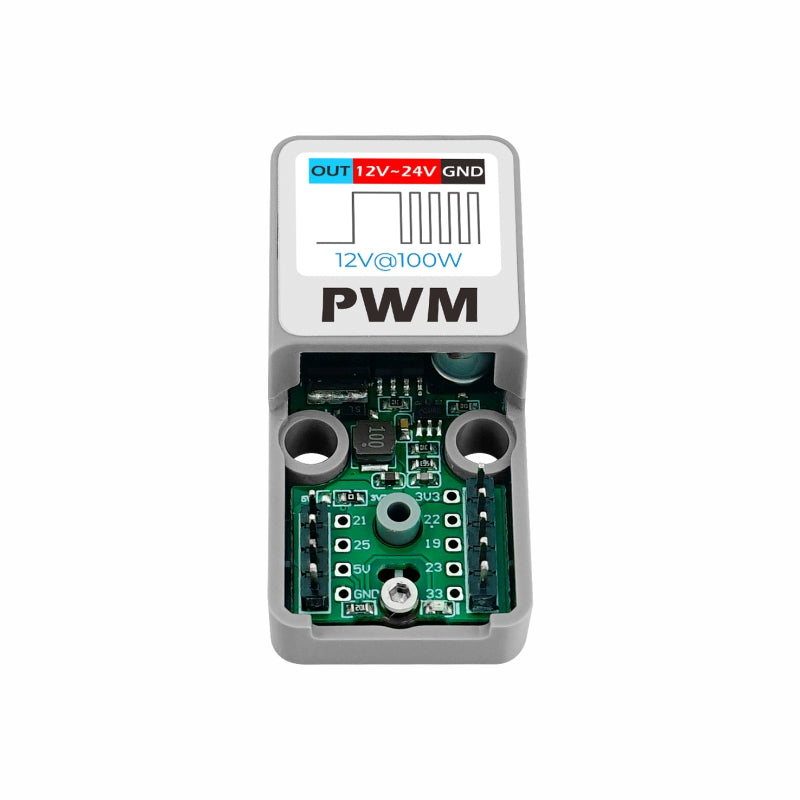

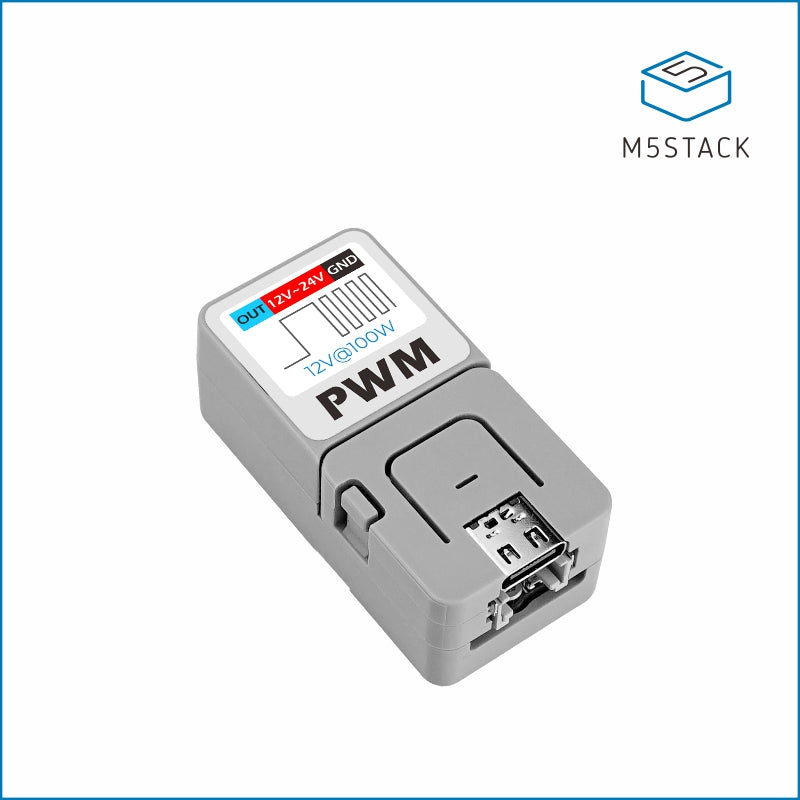

Atom PWM is a single-channel PWM adjustable DC driver with a built-in MOSFET capable of handling up to 12V@100W. It is suitable for applications such as high-power DC motor PWM speed control and industrial heating wire control. Using Atom-Lite as the core controller (built-in ESP32), it offers a wide range of PWM dynamic adjustment (e.g., at a frequency of 5 kHz, the duty cycle adjustment range is 0-100%, with a resolution of up to 13 bits). Combined with the built-in WIFI function, it can easily achieve remote control. It supports UiFlow graphical programming, making it easy to configure signal output and function expansion.
Features
- Single-channel low-latency PWM signal output
- High-power MOSFET with an output capability of 12V@100W
- Built-in DC-DC (12V->5V) conversion circuit
- Easy installation and simple operation
- Integrated design with a protective casing
- Development platforms: Arduino, UiFlow

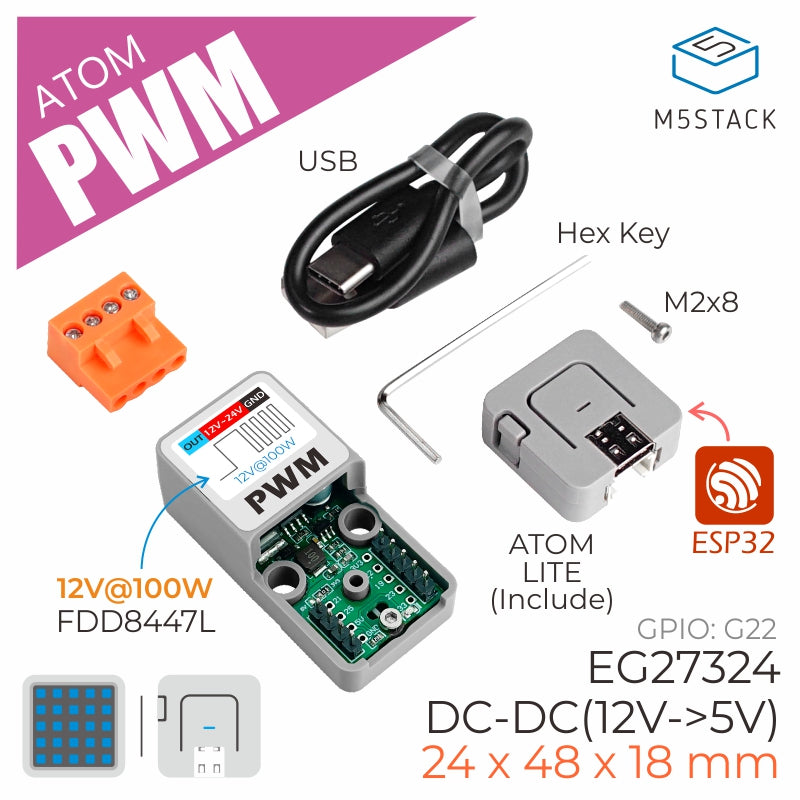

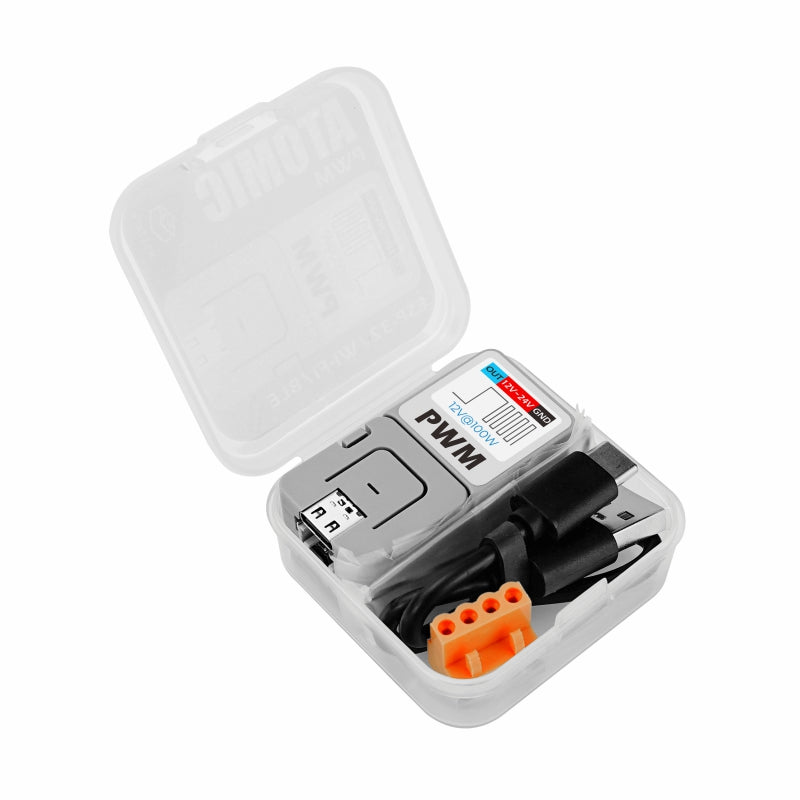

Includes
- 1 x Atom-Lite
- 1 x Atomic PWM Base
- 1 x M2 Hex Key
- 1 x M2*8 Cup Head Machine Screw
- 1 x VH3.96-4P Terminal
- 1 x TYPE-C USB Cable (20cm)
Applications
- DC motor control
- Lighting control
- Heating wire control
- DC load
Specifications
| Specification | Parameter |
|---|---|
| Driver Chip | EG27324 |
| MOSFET | FDD8447L |
| Maximum Output Power | 100W |
| Input Voltage Range | DC 12V-24V |
| Number of Channels | 1 |
| Power Indicator | Red |

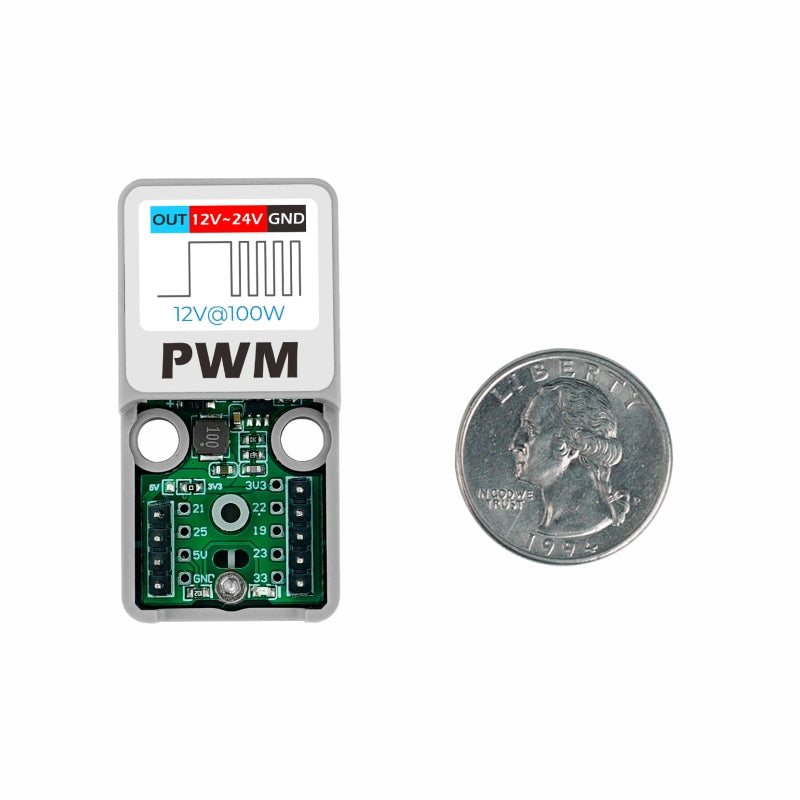

| Product Size | 24 x 48 x 18mm |
| Product Weight | 28.9g |
| Package Size | 54 x 54 x 20mm |
| Gross Weight | 37.3g |
