[EOL] M5Paper ESP32 Development Kit COMM Edition

SKU:K049-C

Regular price $79.00

EOL

Shipping calculated at checkout.
PRODUCT DETAILS

Description

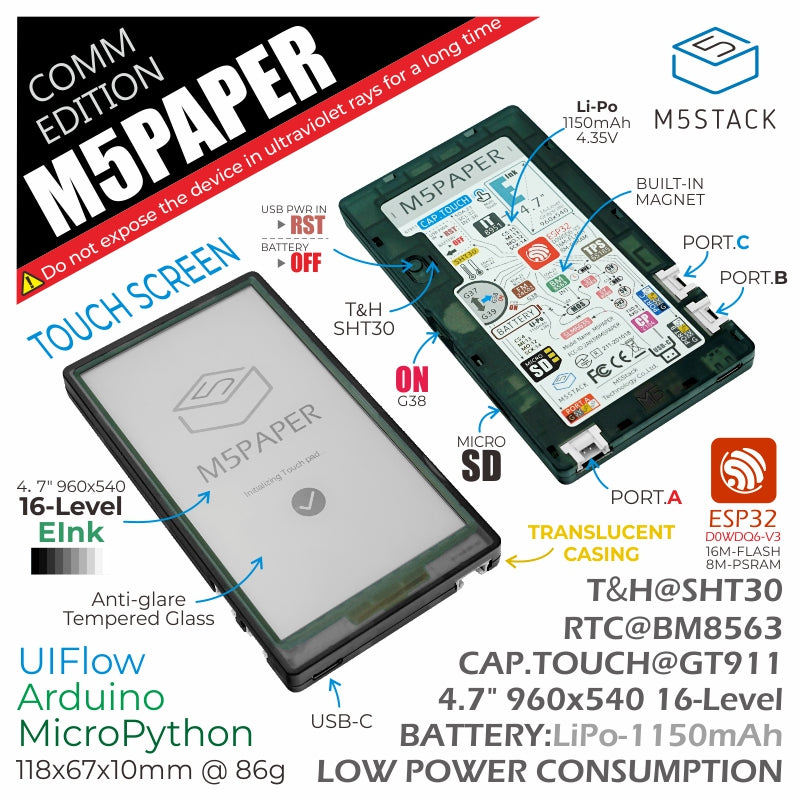

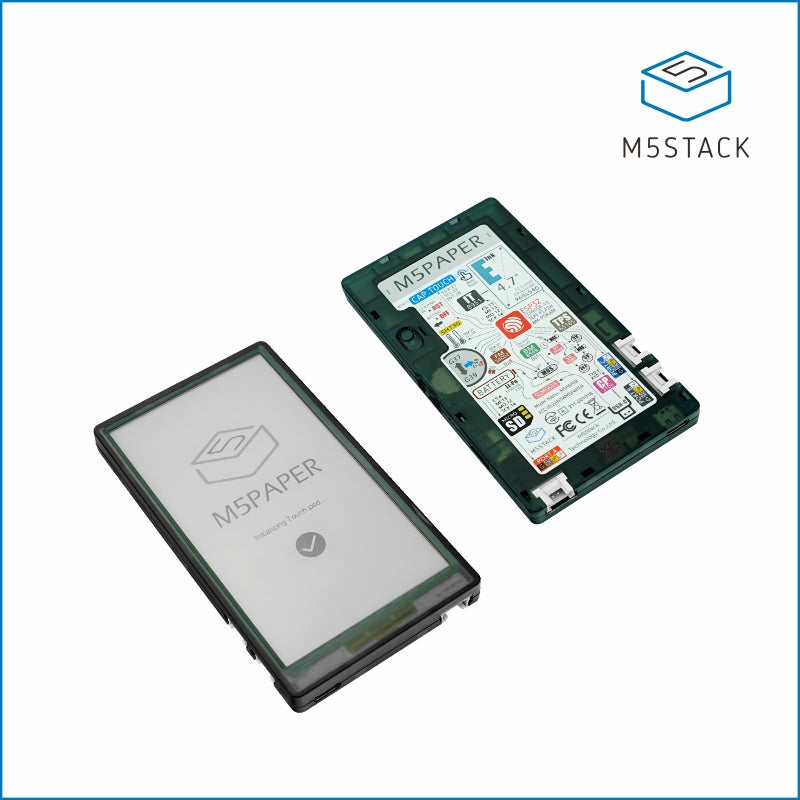

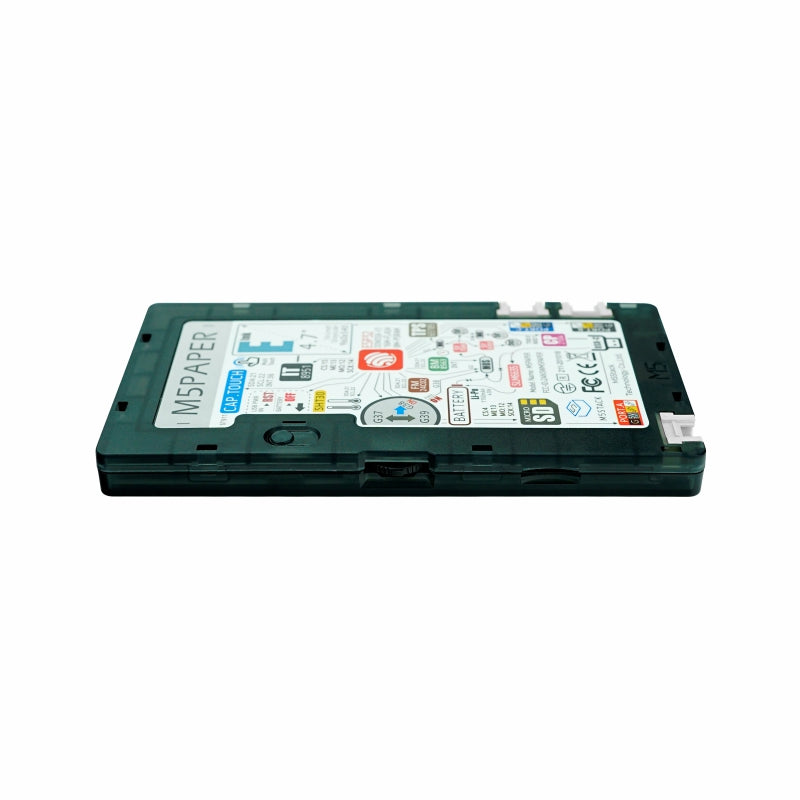

M5Paper COMM it's a Commemorative Edition device with a touchable E-ink display from M5Stack, Powered by ESP32. The front side is embedded with a 540*960 @4.7" resolution e-ink screen which supports 16-level gray scale. The display is a GT911 capacitive touch screen, which supports multi-Point touch and a variety of gesture controls. Compared to a regular LCD, E-ink displays are easier on the eyes, which makes them a great choice for reading or viewing for longer period. Other benefits are the low power consumption, and the ability to retain the image even if power to the display is terminated. Integrated into the M5Paper are a multi-function button for operation, SHT30 temperature and moisture sensor, physical button for reset, and a TF-card (microSD) port for data storage.

Additionally, the FM24C02 internal eeprom chip provided 2K-bit (256x8)-EEPROM, which can be used to store vital data even when the device is off. A 1150mAh lithium polymer battery keeps the device going for long period, and battery life can be further preserved by using the RTC(BM8563) to set the device into a deep sleep mode, and wake it up again when needed. Three HY2.0-4P expansion ports are included which allow for building complex projects using the existing sensors in the M5Stack ecosystem.

Warning:
1. Do not expose to ultraviolet rays for a long time, otherwise, it may cause irreversible damage to the ink screen.
2. The low-power power management solution adopted by M5Paper is different from M5CORE and M5StickC devices. When using it, the PWR button is used as the power-on button (long press for 2s). If you need to shut down the device, you need to use the software API, or realized by pressing the reset button on the back. When using the USB power supply, it cannot be shut down.
3. If the program cannot be flashed normally (the prompt is over time or Failed to write to target RAM), you can try to reinstall the device driver. For driver downloading, please see the content at the bottom of the documentation.

Product Features

  • ESP32 Standard wireless functions Wi-Fi
  • Internal 16M Flash
  • Low Power consumption Display
  • Multi-Point touch screen
  • 180 degree viewing angle
  • Built-in Magnet
  • Internal 1150mAh Battery

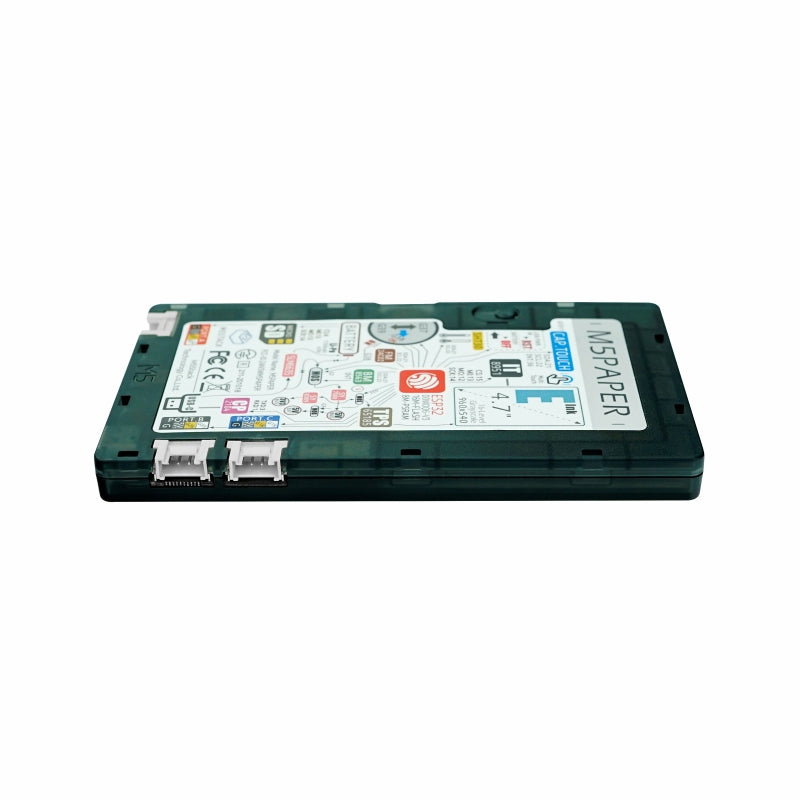

  • Expandable - HY2.0-4P x 3 external expansion ports

Include

  • 1x M5Paper COMM Edition

Applications

  • IoT Terminal
  • E-Book
  • Industrial Control Panel

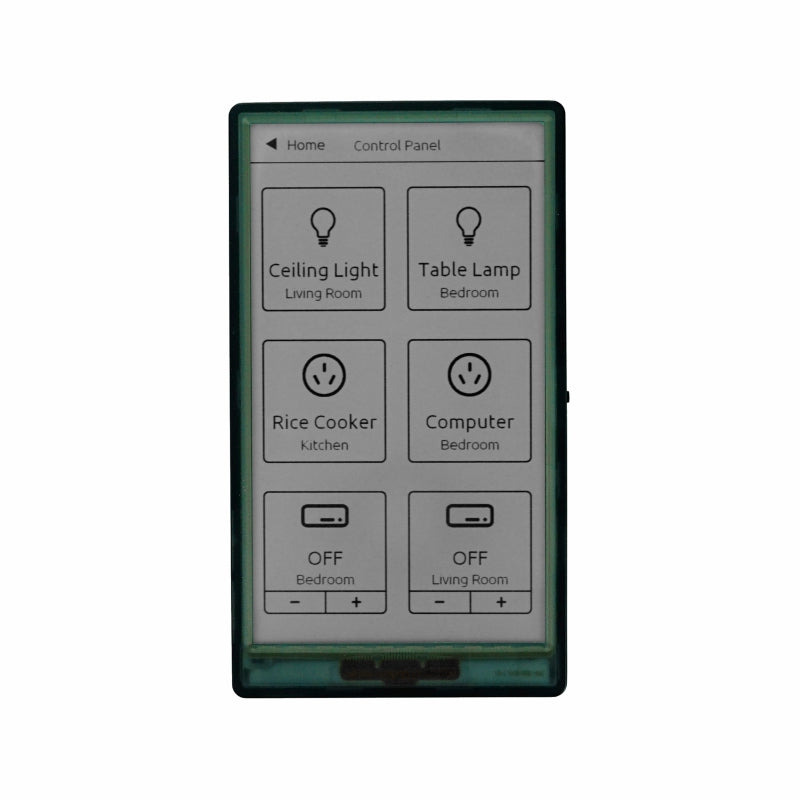

  • Smart Home Panel
  • Electronic labeling

Version distinction

Version Housing Color E Ink Screen
M5Paper COMM Black transparent The first generation E-ink screen rigid panel
M5Paper White Second-generation E-ink screen rigid display panel
M5Paper v1.1 White The third-generation E-ink screen flexible display panel

Specification

Master resource Parameters
ESP32-D0WDQ6-V3 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
Flash 16MB
PSRAM 8MB
Input Voltage 5V @ 500mA

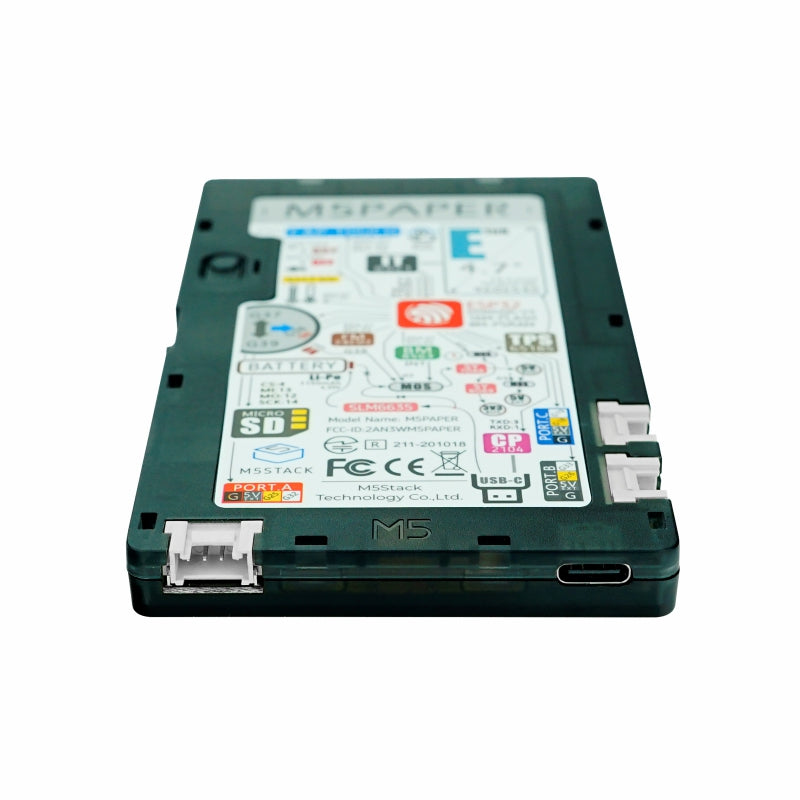

Interface TypeC * 1, HY2.0-4P * 3 , TF-card (microSD) card slot
Ink screen Model: EPD_ED047TC1
540 * 960@4.7 "
Gray scale: 16 levels
Display area: 58.32 * 103.68mm
Display driver chip: IT8951E
Physical button Dial switch *1 , reset button *1
RTC BM8563
TOUCH GT911 capacitive touch panel
Antenna 2.4G 3D Antenna

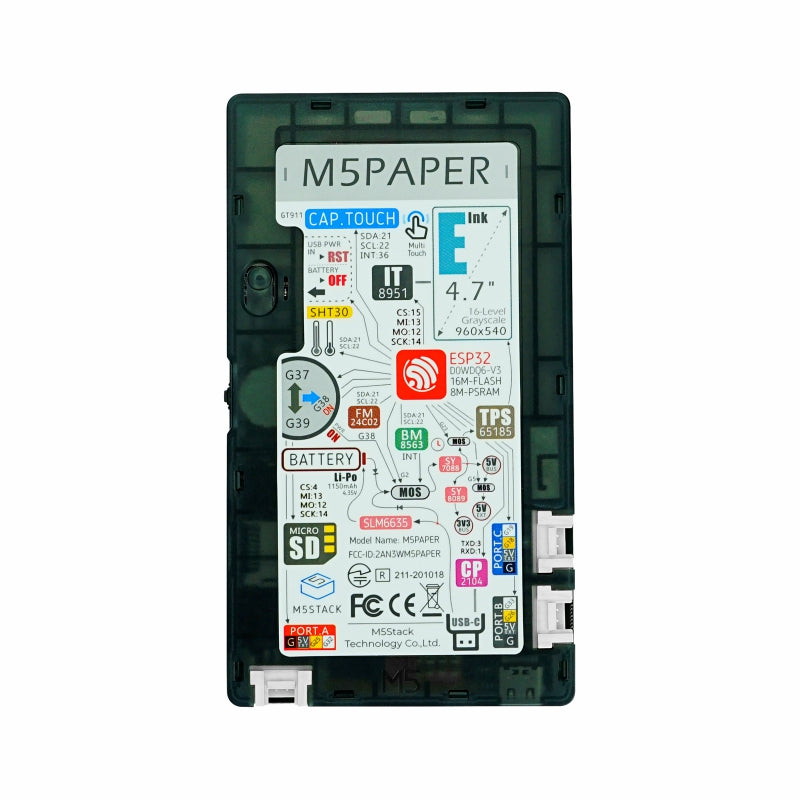

PIN pin out G25, G32, G26, G33, G18, G19
Battery 1150mAh@3.7V
Operating Temperature 0°C to 60°C
Net Weight 86g
Gross Weight 100g
Product size 118 * 66 * 10mm
Packing size 120 * 70 * 14mm
Shell Material Plastic ( PC )

LEARN AND DOCUMENTS

  • DOCUMENTS
  • This tutorial will show you how to program and control M5Paper devices through Arduino IDE
    This tutorial will show you how to program and control M5Paper devices through ToDo List
    Flip-Pics is a Simple Digital Picture Frame firmware for M5Paper. Display your best pictures with the vintage effect of an e-ink display!
    There are far too few projects with the m5paper, a device that I am loving to play with. That is why I am posting this first day project.
    The Simple Hello World starter program for the M5Stack Coreink and M5Paper devices, programmed in UIFLow.
    Control IKEA Bekant Desk sit/stand height with M5Stack M5Paper using two Relay units and a ToF (time-of-flight sensor VL53L0x) unit.
    A voice interface, Alexa skill, sent data to a Node-Red Rest API, it stores my food list in a MariaDB table. Show it in a ESP32 eink device.
