Description

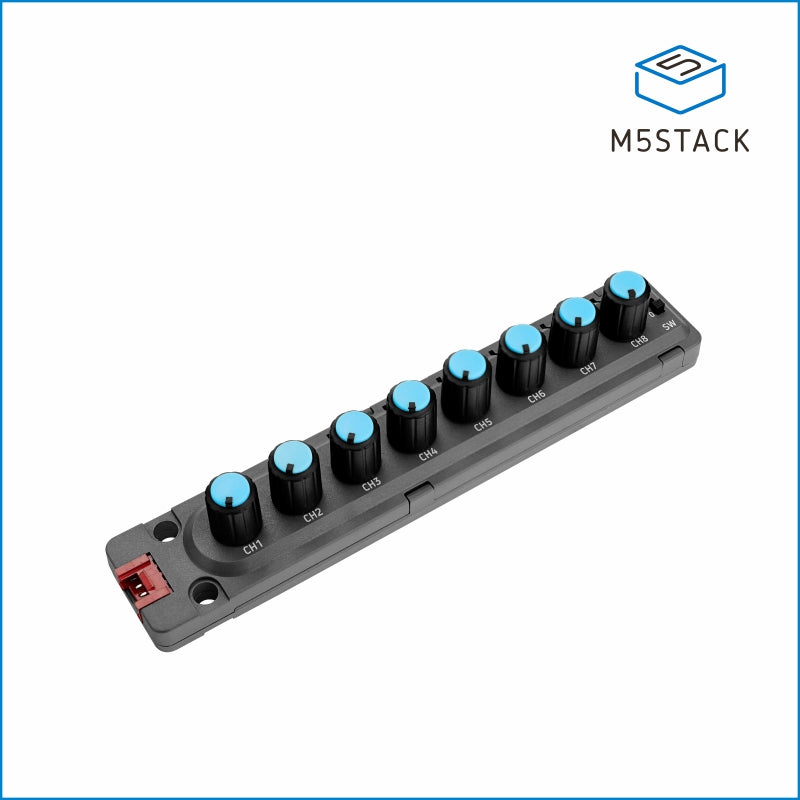

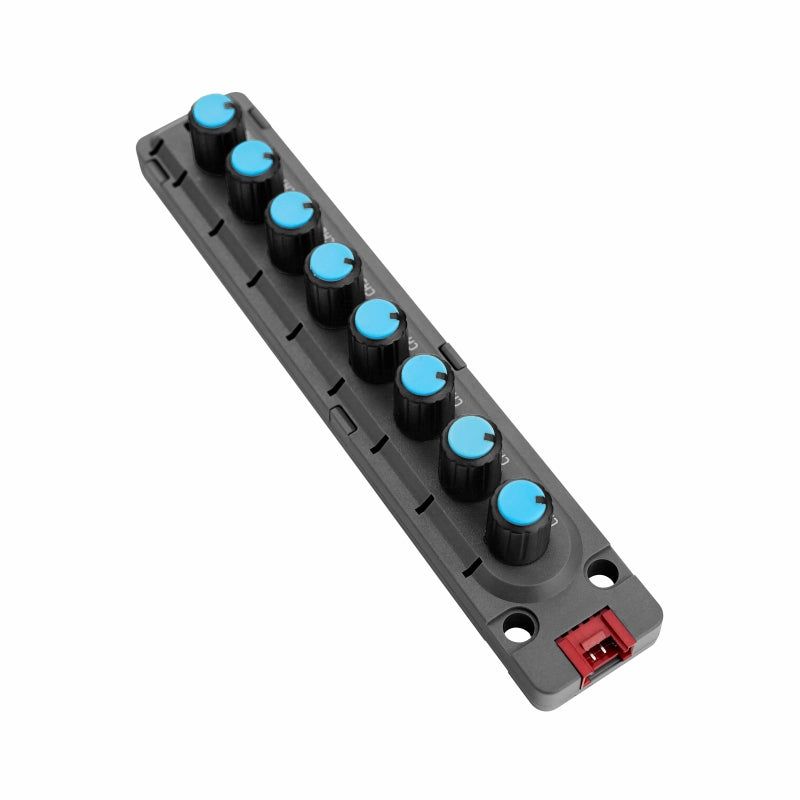

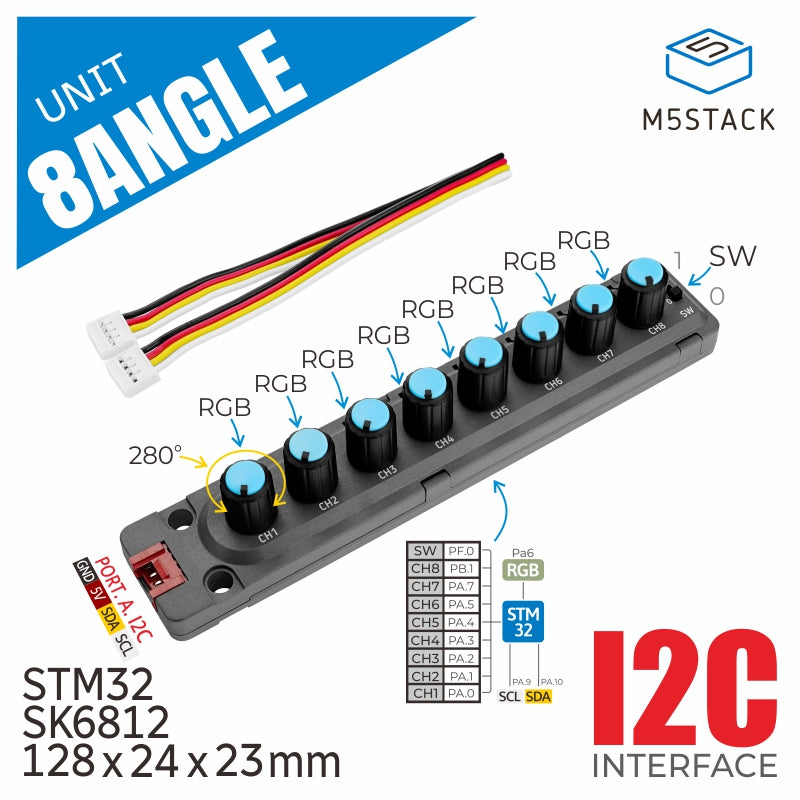

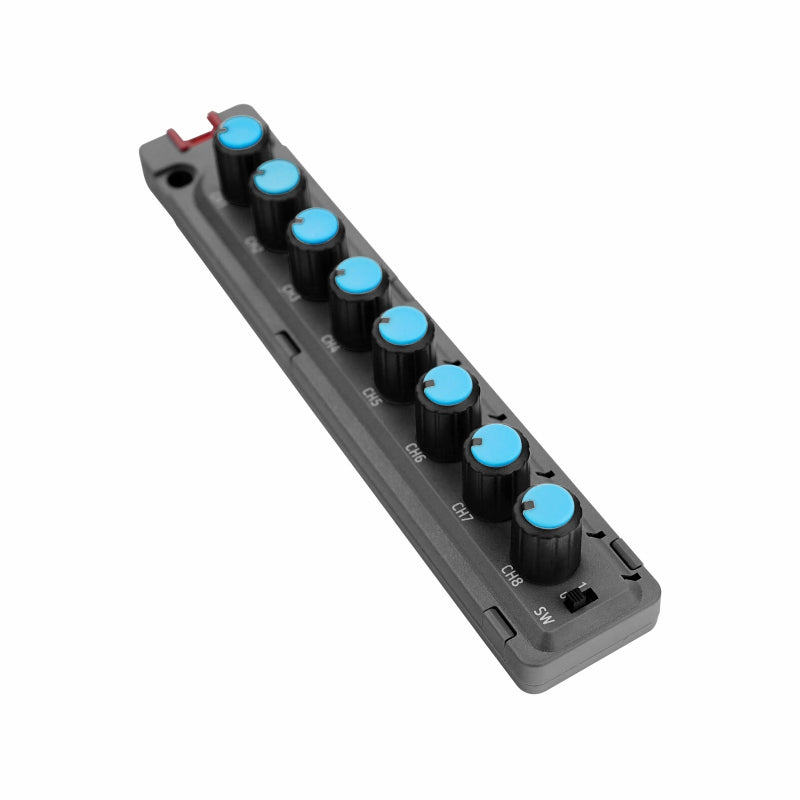

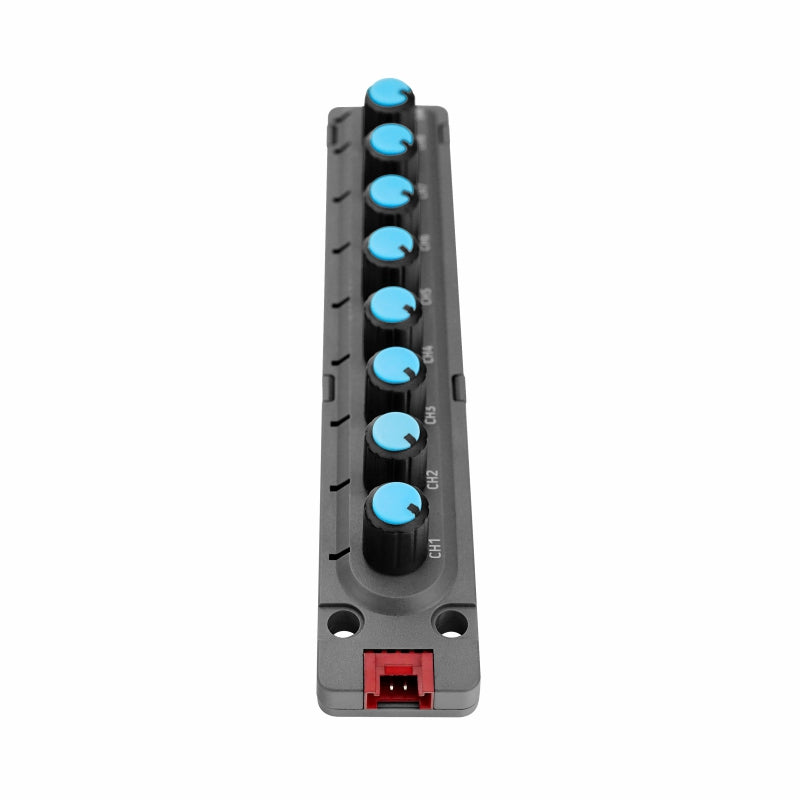

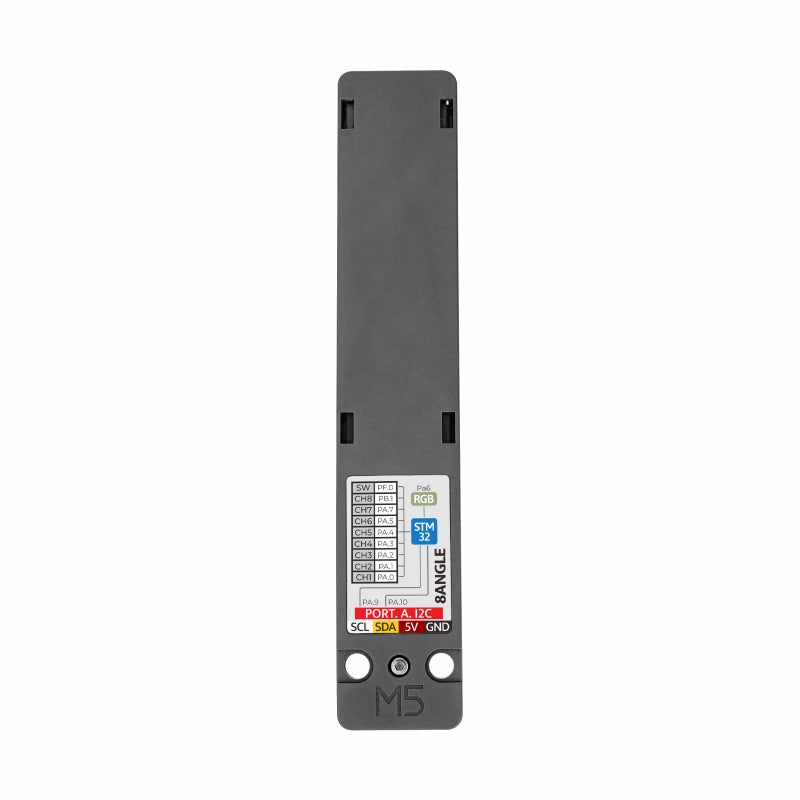

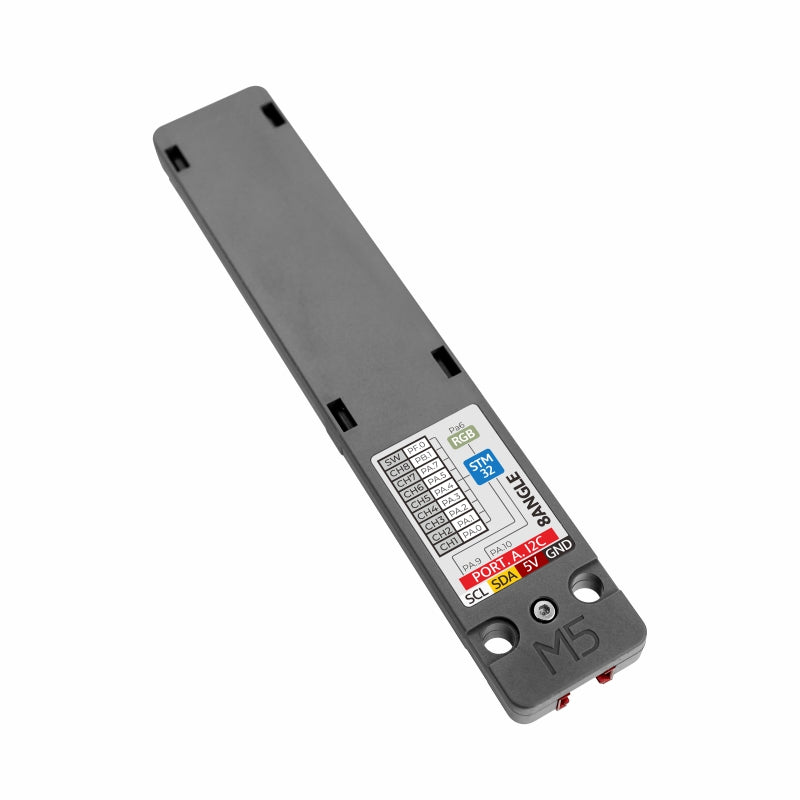

Unit 8Angle is an input unit that integrates 8 adjustable potentiometers, using an STM32F030 microcontroller for data collection and communication processing, and communicates with the host via an I2C interface. Each adjustable potentiometer corresponds to an RGB LED light, and there is also a physical toggle switch with a corresponding RGB LED light. It includes a 5V->3V3 DC-DC circuit. This unit can be used for multi-channel absolute control value input, with the corresponding RGB lights displaying different states. The toggle switch can be used for multi-channel switch input, suitable for applications in multi-degree-of-freedom robots or music equalization.
Features
- 8-channel adjustable potentiometer
- 8 corresponding adjustable RGB lights
- I2C communication
- Toggle switch
Includes
- 1 x Unit 8Angle
- 1 x HY2.0-4P Grove connection cable (20cm)
Applications
- Multi-degree-of-freedom robot joint control
- Music equalization control
Specifications
| Specification | Parameter |
|---|---|
| MCU | STM32F030F4P6 |
| LDO | ME6210A33M3G |
| RGB | SK6812-3535 |
| Input Voltage | 5V |
| Interface | I2C @0x43 |
| Product Size | 128.0 x 24.0 x 23.0mm |
| Product Weight | 34.5g |
| Package Size | 131.0 x 27.0 x 27.0mm |
| Gross Weight | 43.9g |
