SIM7080G CAT-M/NB-IoT Unit

SKU:U128

$36.90

10+ In Stock

Shipping calculated at checkout.
PRODUCT DETAILS

Description

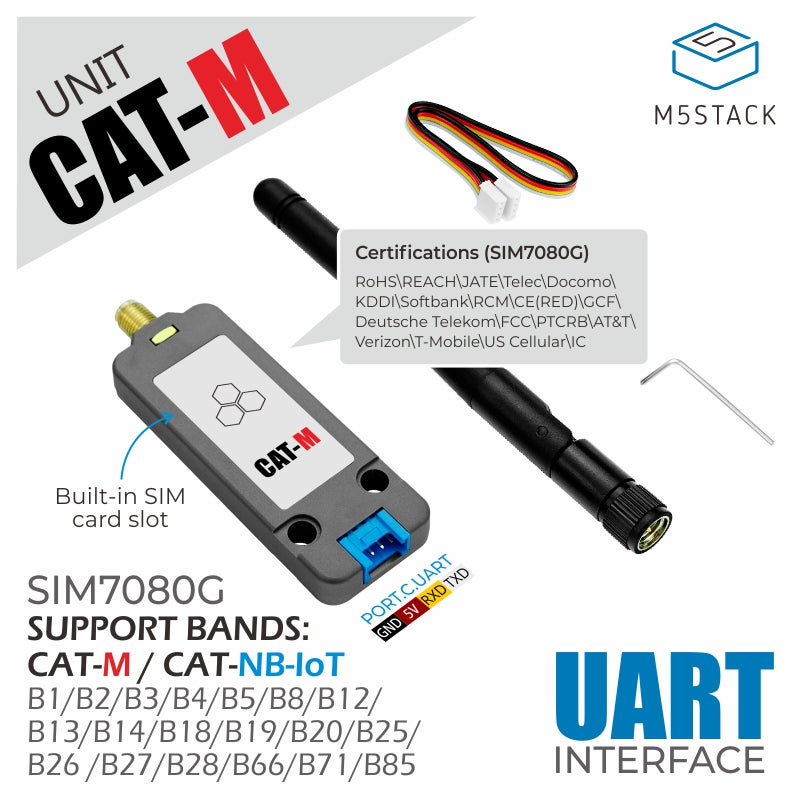

UNIT SIM7080G Dual Mode Wireless Module CatM is the international version of the dual-mode wireless communication module. The 'SIM7080G' supports both 'CAT-M' and 'NB-IoT', this serial communication module CatM with adaptive response rates, supports ‘Types of Protocols’. CatM Integrated SMA external antenna interface to upgrade the communication quality and signal stability. Well suited for remote control, remote monitoring, remote medical, and other IoT applications.

Product Features

  • SIM7080G / UART interface, AT Command control
  • Dual Mode supports CatM and NBIoT
  • Support frequency band:
  • Up and down speed:
    • Cat-M: Uplink: 1119Kbps Downlink: 589Kbps
    • NB-IoT: Uplink: 150Kbps Downlink: 136Kbps
  • Protocol Support:
    • TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT and other communication protocols

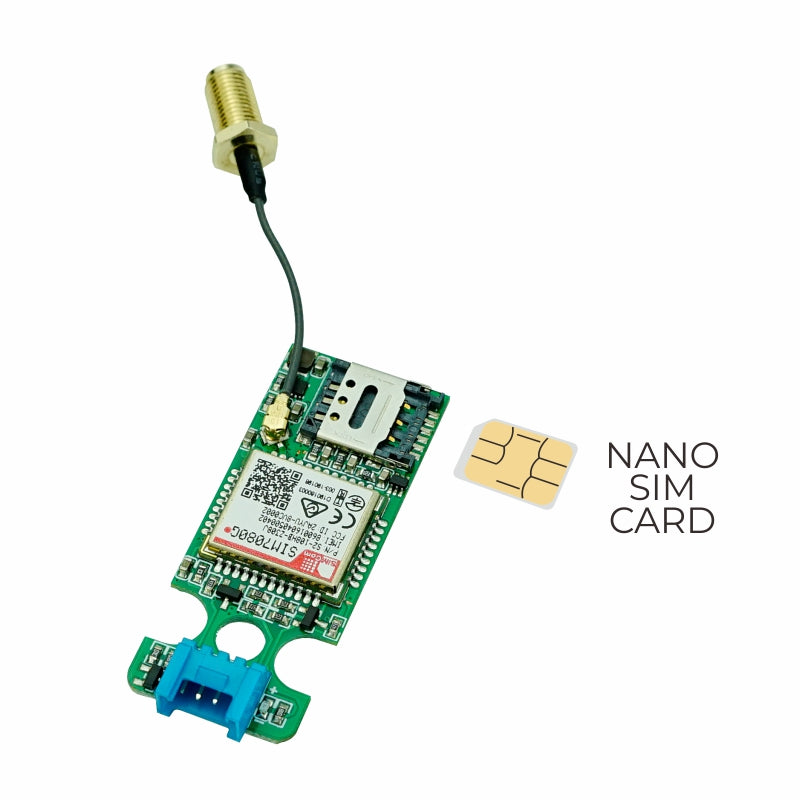

  • Card slot specification: Nano
  • Development Platform:
    • Arduino, UIFlow
  • Module certification:
    • Softbank/Telec/RoHS/REACH/JATE/Docomo/KDDI/RCM/CE(RED)/GCF
    • Deutsche Telekom/FCC/PTCRB/AT&T/Verizon/T-Mobile/US Cellular/IC

Include

  • 1x CardKB Unit
  • 1x HY2.0-4P cable
  • 1x hexagon wrench

Application

  • Remote Data Collection/Cloud

Specification

Specifications Parameters
Module Model SIM7080G
Support CAT-M band B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26 /B27/B28/B66/B85
Support CAT-NB frequency band B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28 /B66/B71/B85
Cat-M uplink and downlink speed Uplink: 1119Kbps Downlink: 589Kbps
NB-IoT uplink and downlink speed Uplink: 150Kbps Downlink: 136Kbps
RF Power Class Class 5 (Typ. 21dbm)
Standby working current 49.4mA
Communication interface UART: baud 115200 8N1
Net weight 19.4g
Gross weight 44g
Product size 72 * 24 * 8 mm
Packing size 95 * 65 * 25mm

LEARN AND DOCUMENTS

  • DOCUMENTS

    • Customer Reviews

    Based on 4 reviews
    75%
    (3)
    25%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    m
    minolu
    I like it

    It is now possible to communicate even in places without wifi.
    It works with soracom(docomo) and povo(kddi) sim

    Y
    Yuki Hashiurs

    SIM7080G CAT-M/NB-IoT Unit

    F
    Felix
    SIM7080G CAT-M/NB-IoT Unit

    Works well in CAT-M mode, but frequently locks up in NB-IoT mode. Could be the environment I am in, however in comparison the SIM7020G (NB-IoT only) Module doesn't exhibit these lockups (with the same SIM card / provider).

    K
    Kenji Inoue

    SIM7080G CAT-M/NB-IoT Unit

    batktop
