Description

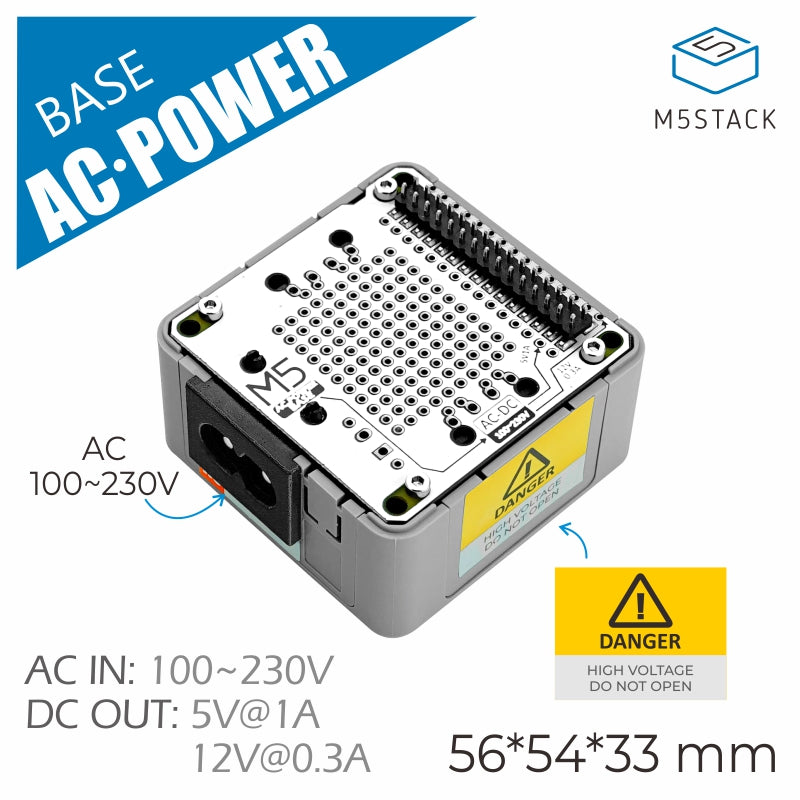

Base AC Power is a high-performance AC/DC conversion module. It supports AC 100 ~ 230V input. Through the built-in step-down module inside the base, it can steadily output DC 5V and DC 12V dual-channel DC power supply. The module has an integrated EMC and surge suppressor, providing excellent anti-interference capability and stability. Using this module enhances the flexibility of power supply options for M5 main control devices, making it more convenient to embed into various application scenarios.
Note

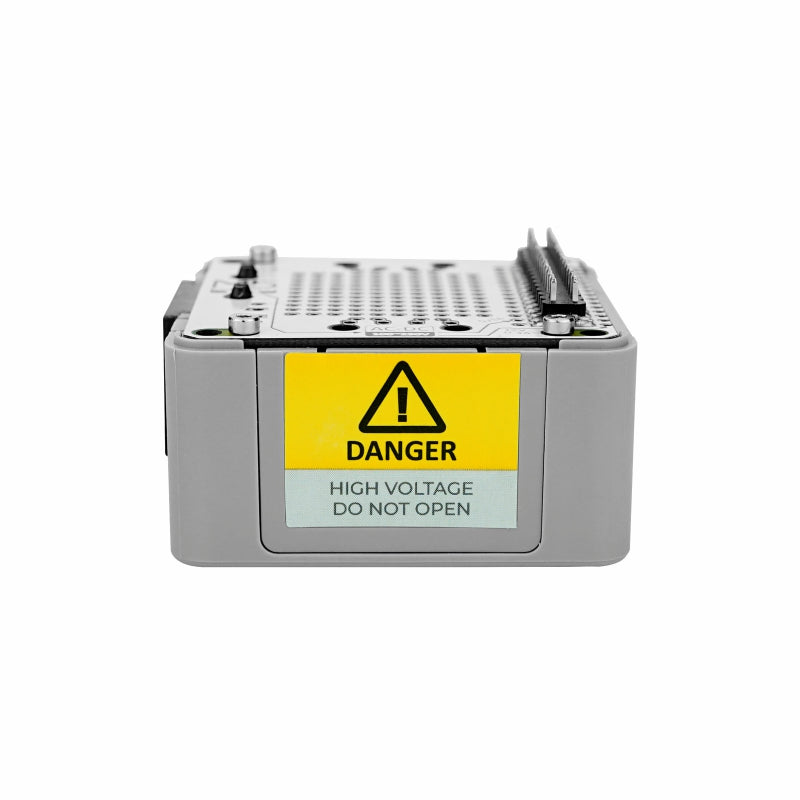

This product requires AC 100 ~ 230V input during use. For electrical safety, do not disassemble this product.
Features
- Input Voltage:
- AC 100 ~ 230V INPUT
- Output Voltage:
- DC 5V@1A OUTPUT
- DC 12V@0.3A OUTPUT
- Built-in Fuse Protection 250V/1A
Includes

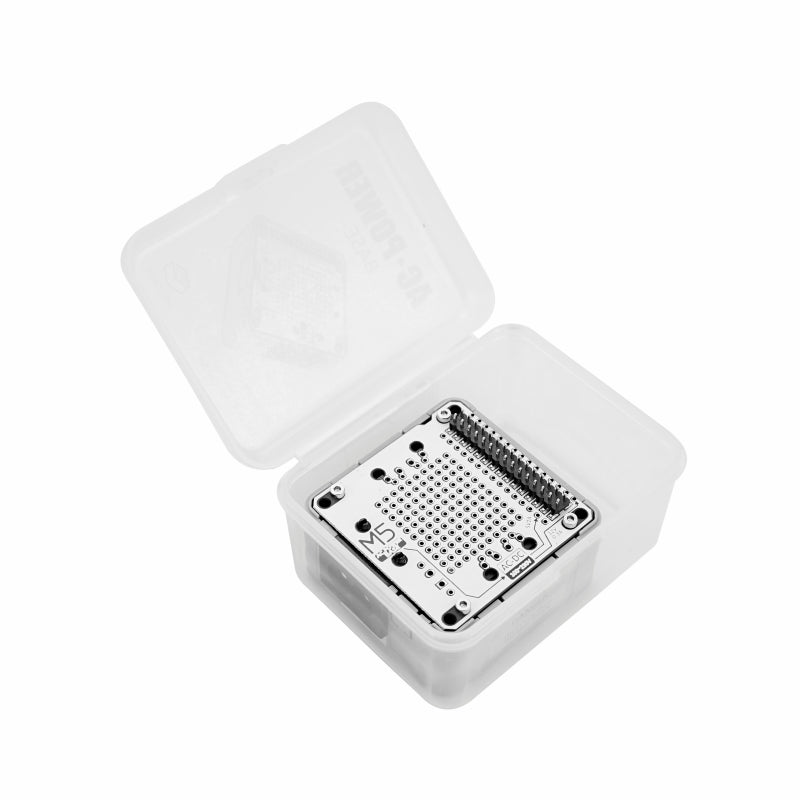

- 1 x Base AC Power
Specifications
| Specification | Parameter |
|---|---|
| Input Voltage | AC 100 ~ 230V |
| Output Voltage | 5V@1A, 12V@0.3A |
| Voltage Accuracy | ±1% |
| Efficiency (Typ) | 82% |

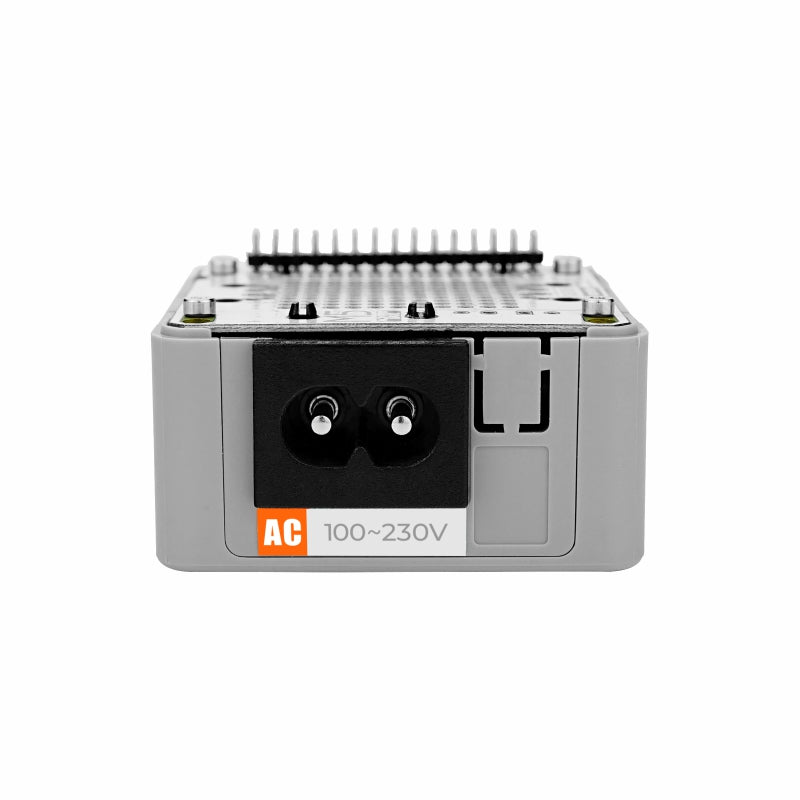

| AC Connector | AC-018E |
| Built-in Fuse | 250V@1A |
| Power Indicator | Red |
| Product Weight | 81.0g |
| Gross Weight | 107.0g |
| Product Size | 56.0 x 54.0 x 33.0mm |
| Package Size | 85.0 x 67.0 x 47.0mm |
