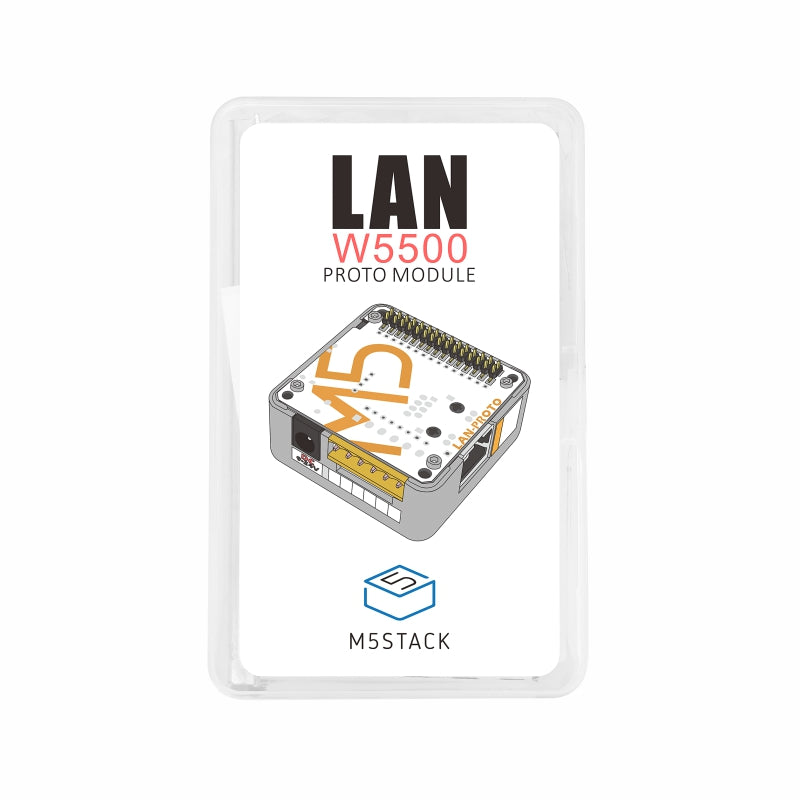

LAN Module with W5500 V12

SKU:K012-B-V12

Regular price $31.90

10+ In Stock

Shipping calculated at checkout.
PRODUCT DETAILS

Description

LAN Base is an Ethernet controller base, built-in W5500 full hardware TCP/IP embedded Ethernet controller (SPI communication interface), supports multiple communication protocols (TCP, UDP, IPv4, ICMP, ARP, IGMP and PPPoE, etc.) and integrated storage buffer area to facilitate Ethernet data packet processing. The internal reserved expansion pad can be used to expand the RS485/RS232 communication switch module or add custom designs, standard fixed rails, etc. Accessories, LAN Base with both performance and expansion flexibility can provide you with a more concise embedded Ethernet connection.

Product Features

  • It can meet the wired network access requirements in the actual production environment.
  • Designed for industrial application scenarios:

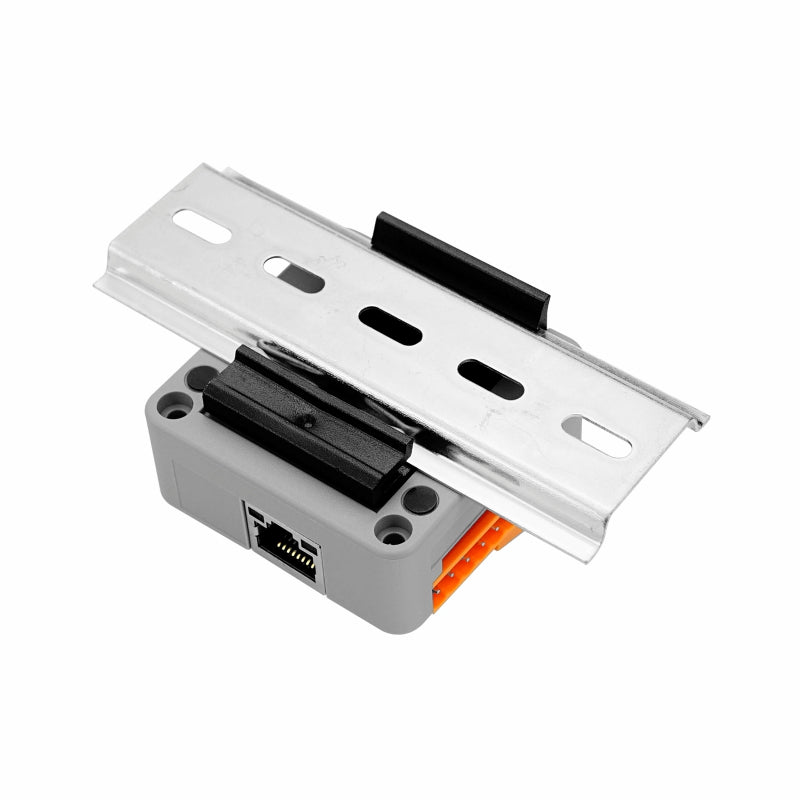

    • Provide metal slide rails for easy installation and fixation
    • Equipped with HT3.96 terminals for electrical connection
    • Support input power voltage: 9-24V

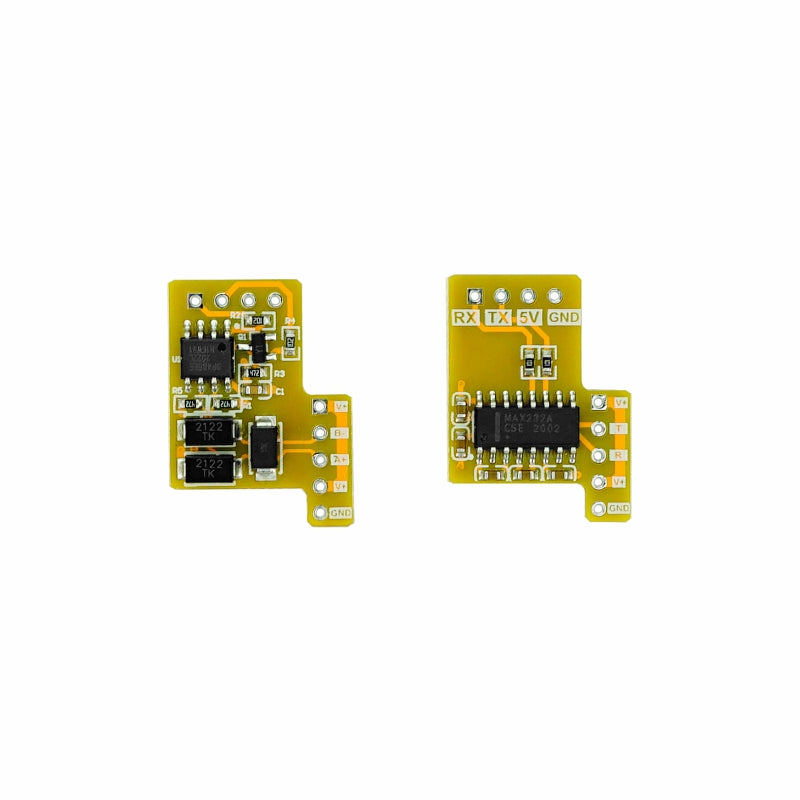

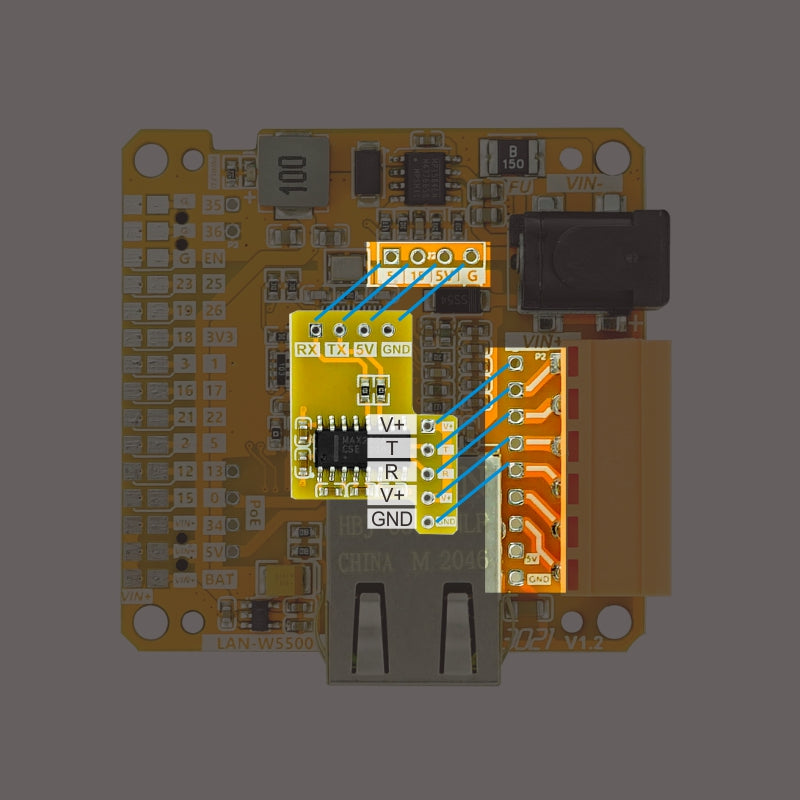

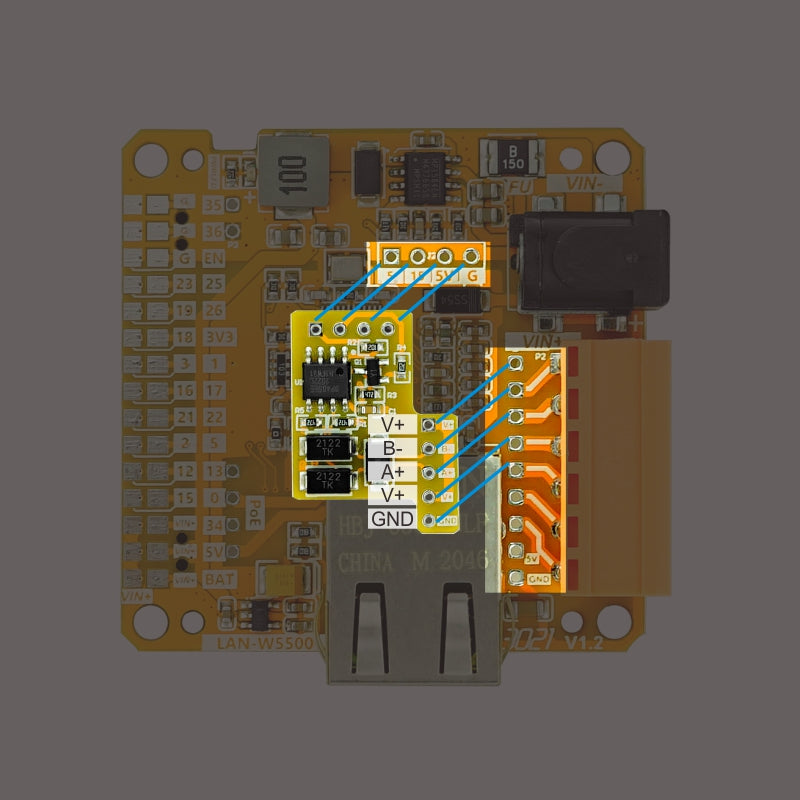

  • Standard configuration TTL-RS485 + TTL-RS232 two adapter boards, adapt to different communication interfaces.

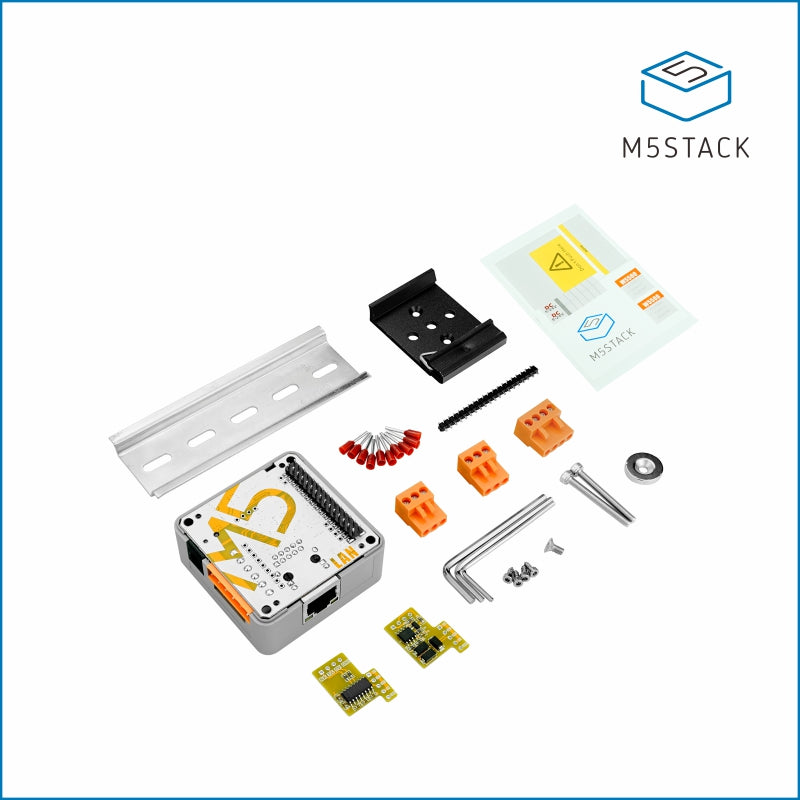

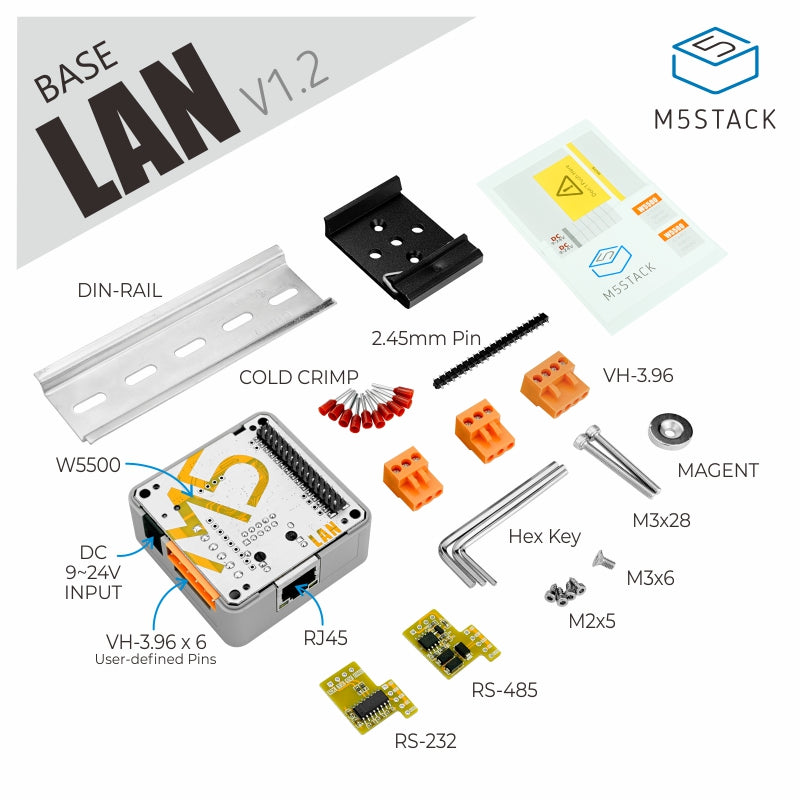

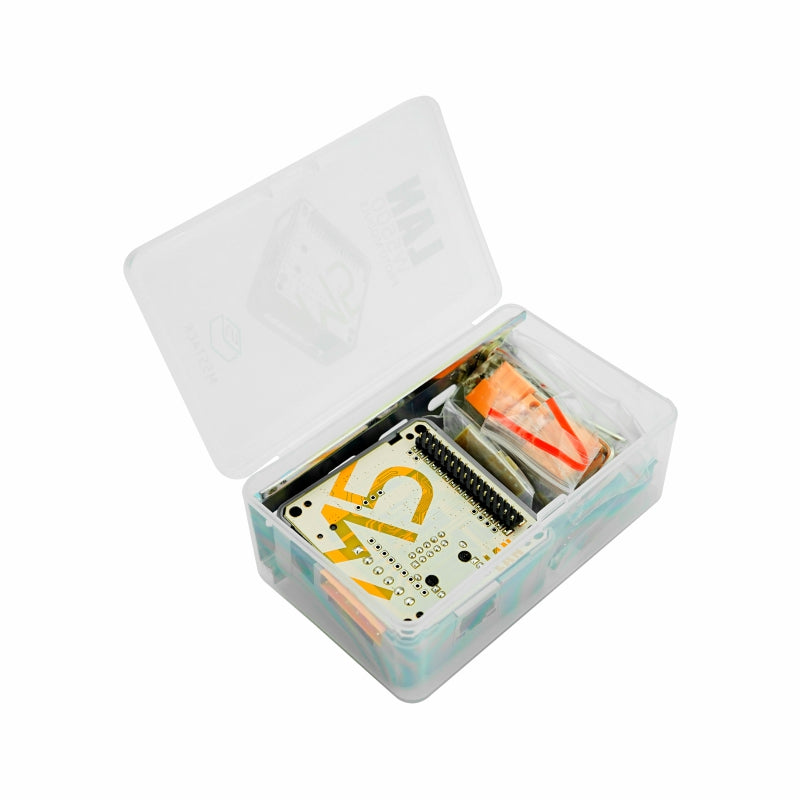

Include

  • 1x LAN Base
  • 1x TTL-RS485 adapter board
  • 1x TTL-RS232 adapter board
  • 1x header 20pin
  • 1x metal rail and disk
  • 3x HT3.96 terminal
    • 2x 3pin
    • 1x 4pin
  • 10x cold crimp terminals
  • 3x Allen key
  • 1x 1.5mm
  • 1x 2mm
  • 1x 2.5mm
  • 2x socket head screw M3x28
  • 4x hex socket tapping screws KA2x4
  • 1x countersunk screw M3x8

Specification

Specifications Parameters
Ethernet Controller W5500
Network port RJ45 adaptive 10/100M network port
Net weight 32g
Gross weight 132g
Product size 54 * 54 * 28mm
Packing size 105 * 65 * 40mm
