Din Base with 500mAh Battery

Description

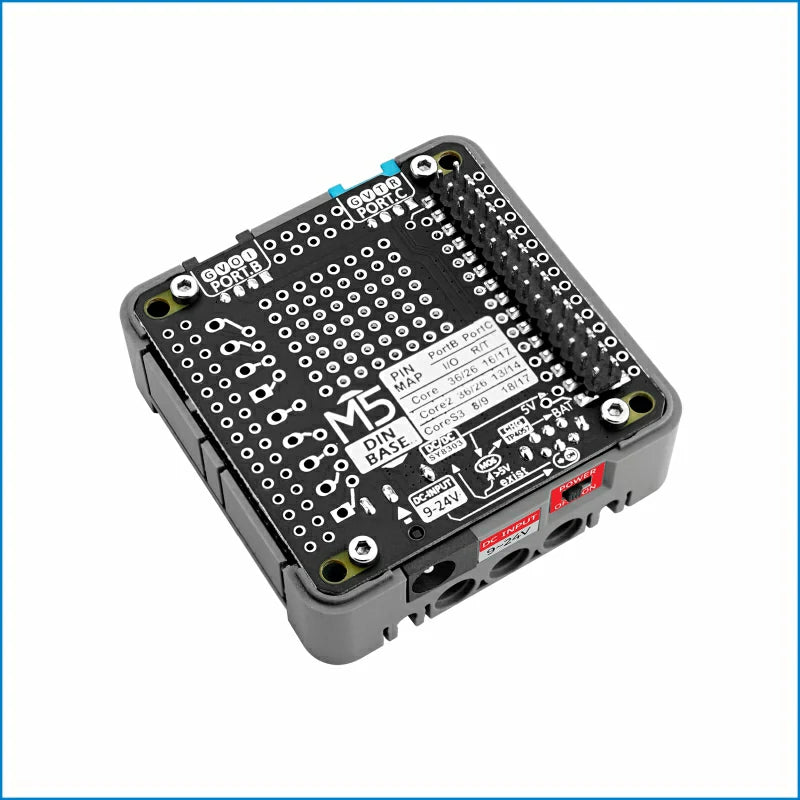

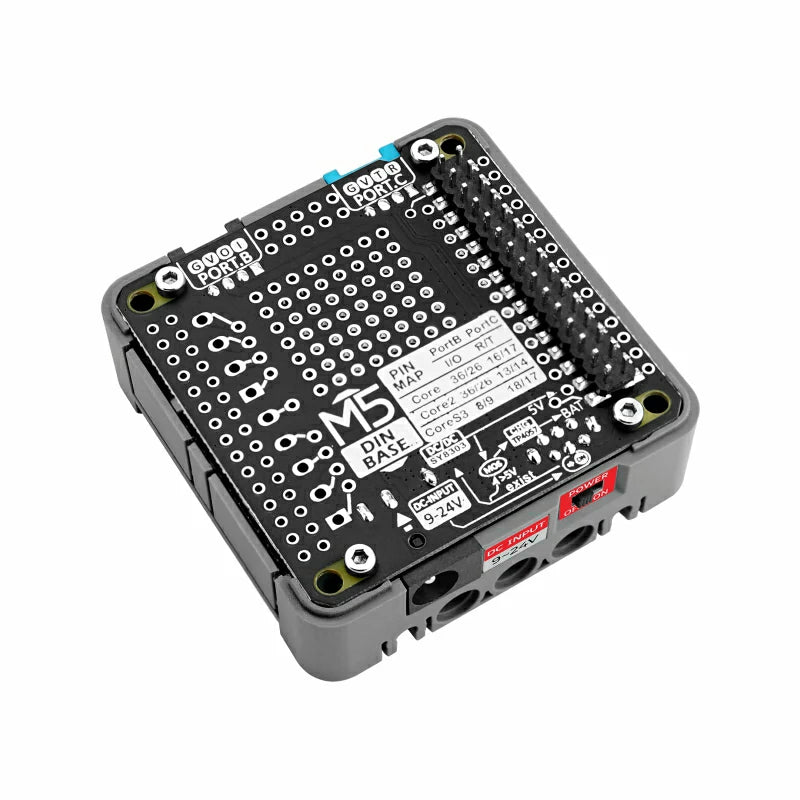

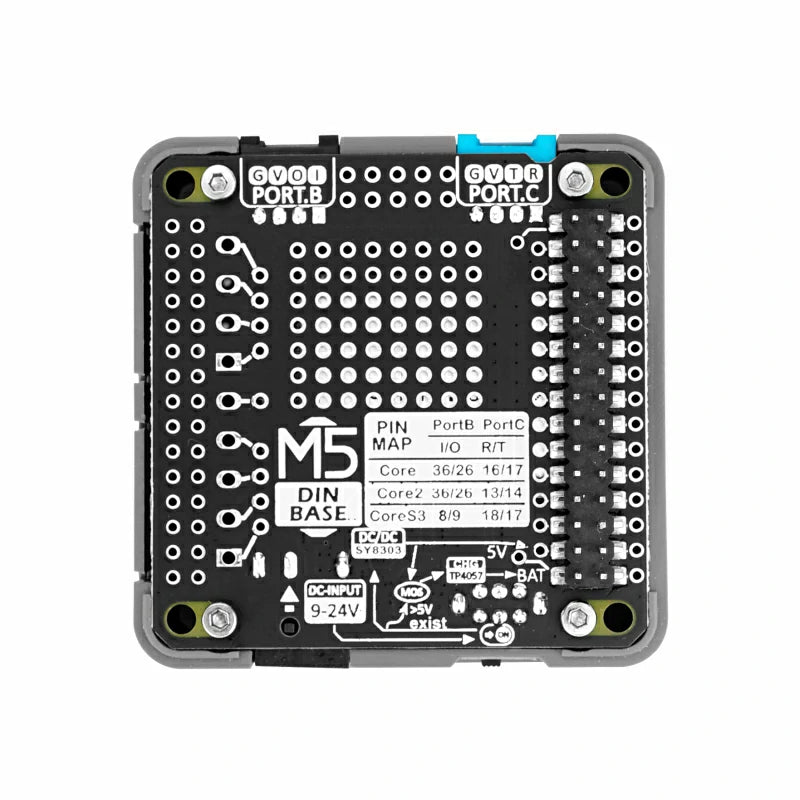

Base DIN is a “5x5cm” series base specially designed for “DinRail” mounting. It is compatible with M5Core hosts, features a built-in 500mAh lithium battery, supports external DC power input (9 ~ 24V), and is equipped with a physical power switch that can completely cut off external power and battery. It reserves PORT.B and PORT.C interfaces. The lower side is equipped with LEGO mounting holes for easy fixing, the bottom supports standard 35mm DinRail, and it also comes with 4 detachable hanging ears, supporting multiple mounting methods. The Base DIN has multiple proto pads reserved on the internal PCB for easy DIY customization.

Features

• 1x12P 2.54mm interface

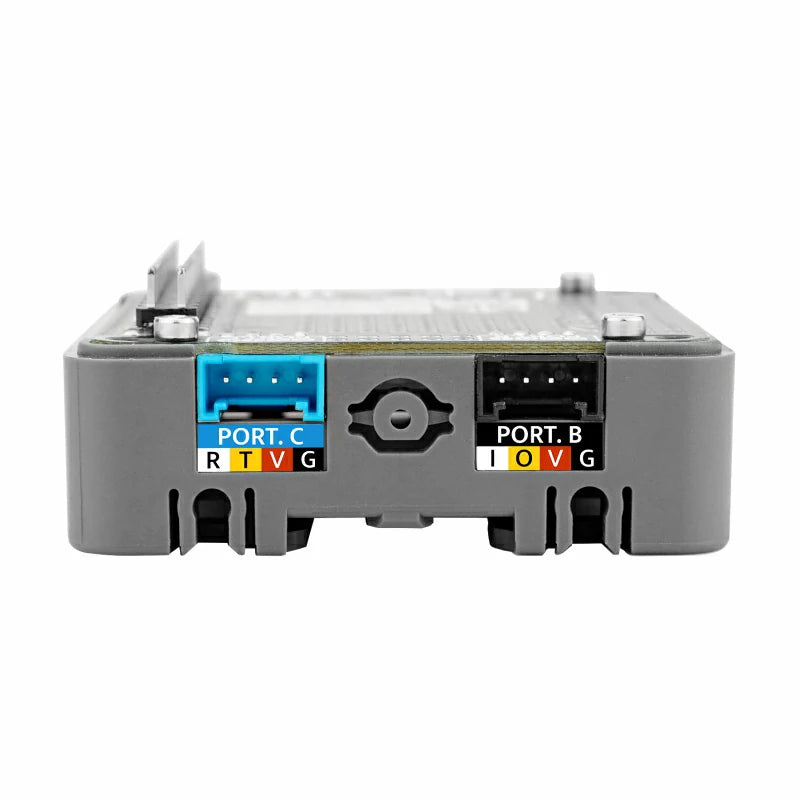

• Port.B and Port.C interfaces
• Power supply options:
  • DC power (9 ~ 24V)
  • 500mAh lithium battery
• Power switch
• Multiple mounting methods:

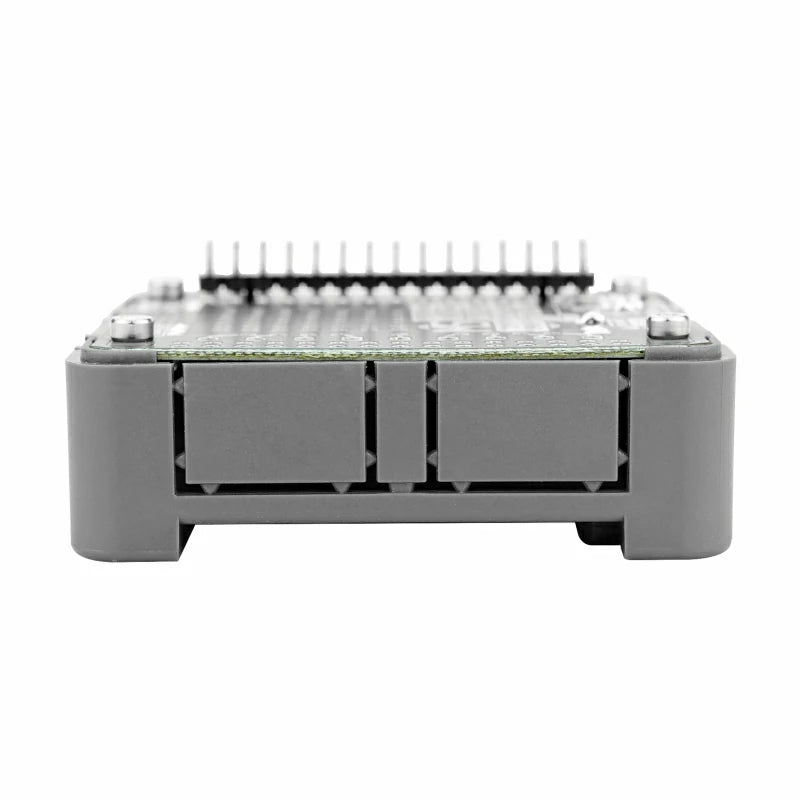

  • DinRail
  • Hanging ears

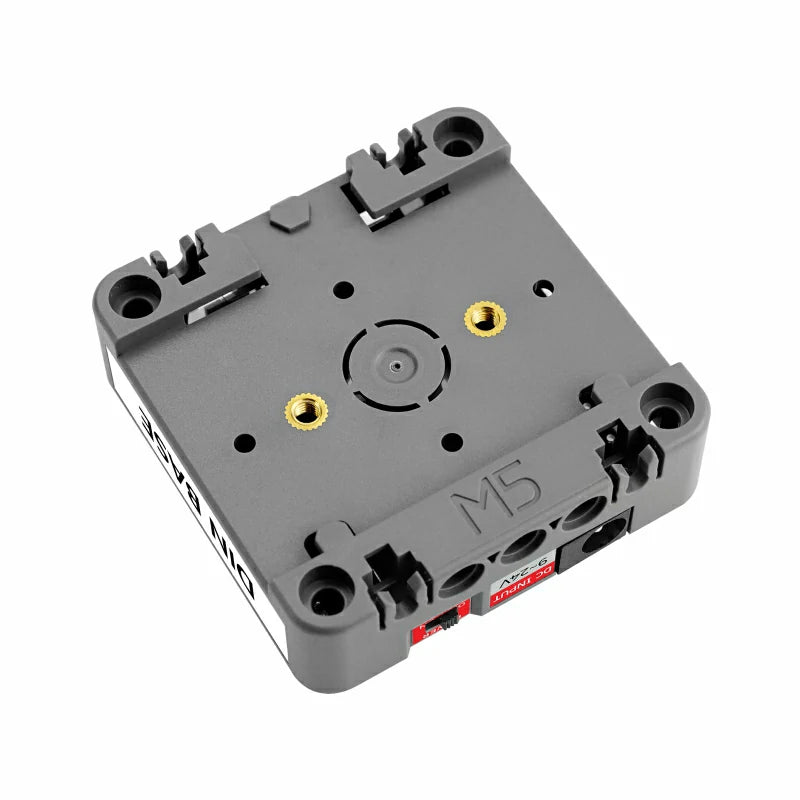

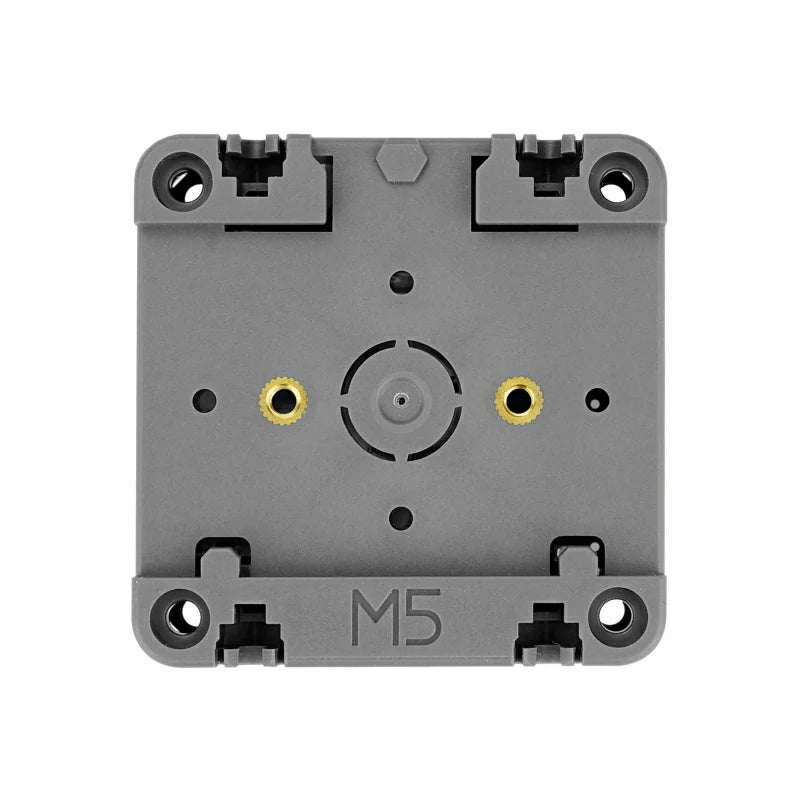

  • Two embedded copper nuts at the bottom
  • Three reserved LEGO fixing holes on the side

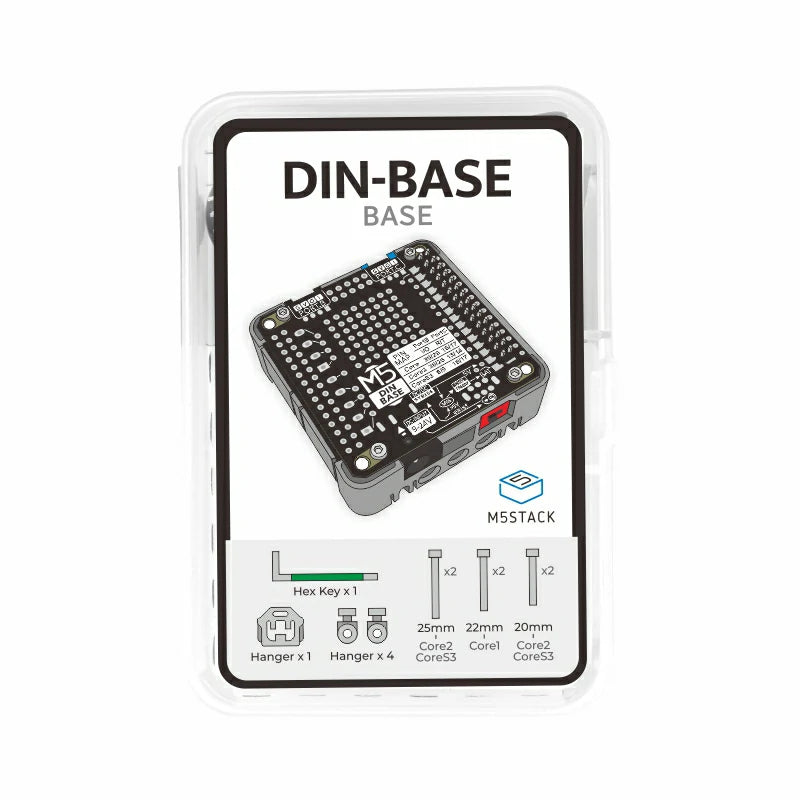

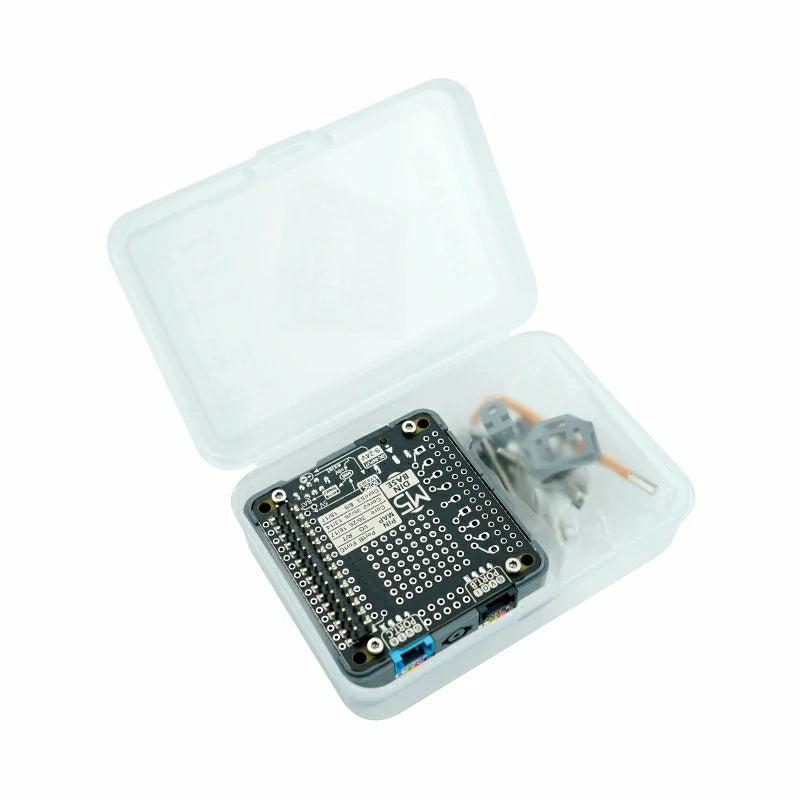

Includes

• 1 x Base DIN
• 4 x Hanging Ear
• 1 x Buckle
• 1 x Hex Wrench
• 2 x Screws (2 × 25mm for Core2/CoreS3)
• 2 x Screws (2 × 22mm for Core1)
• 2 x Screws (2 × 20mm for Core2/CoreS3)

Applications

• DIY projects
• Standalone power supply scenarios for Core hosts

Specifications
