This product is EOL. Please order the new version FIRE V2.7
Description
Fire is a high-performance development kit in the M5Stack series. As an upgraded version of the Gray kit, it features a nine-axis motion sensor (six-axis accelerometer + three-axis magnetometer) and enhanced hardware resources: 16MB Flash, 8MB PSRAM, an enhanced Base (M5GO base and M5GO charging base), and a larger capacity battery. For developers with demanding hardware performance requirements, Fire is an excellent choice.
The motion sensor can be used in various applications to detect acceleration, angle, trajectory extension, and other data. Based on these, related products such as motion data collectors and 3D remote gesture controllers can be developed.

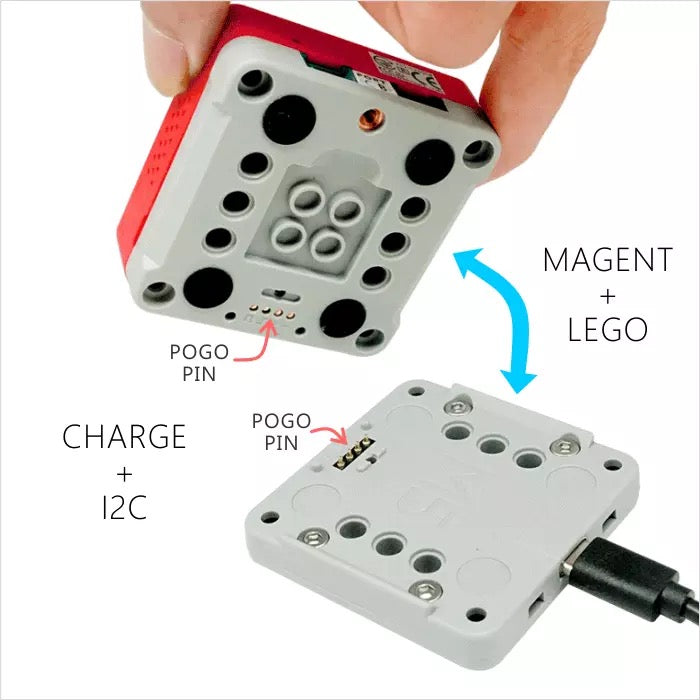

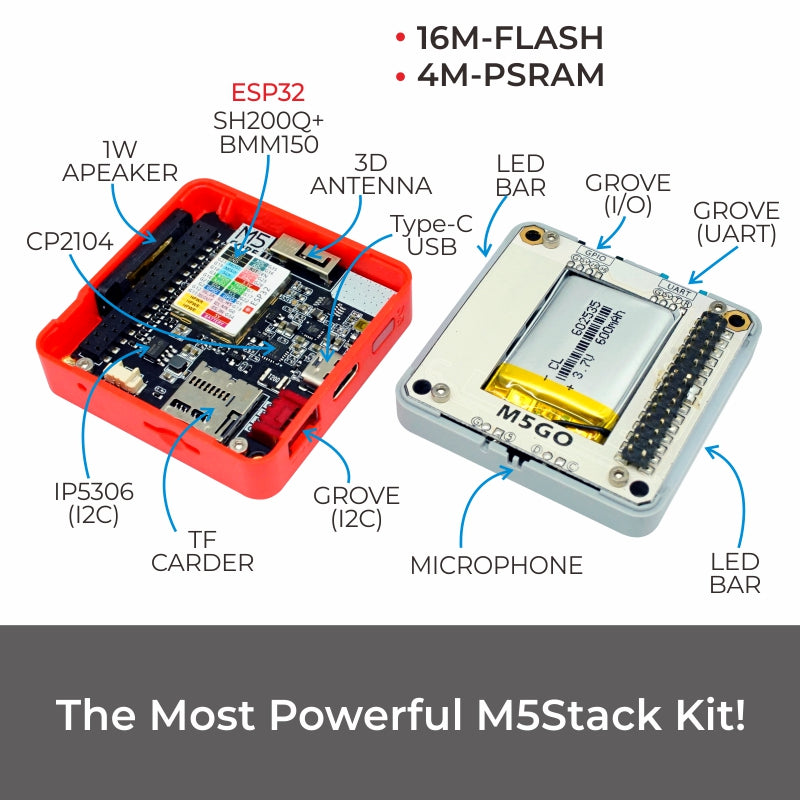

Fire consists of three detachable parts. The top part, like other M5 hosts, contains the circuit board, chips, LCD screen, 2.4G antenna, various electronic components, and interface components. The middle part is called the M5GO base, which provides a lithium battery, M5-Bus socket, LED strip, and three GROVE expansion ports. The bottom part is the charging base, which can be connected to the M5GO base via POGO pins for charging.
Features
- Based on ESP32 development
- External PSRAM
- Integrated 3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer
- Built-in speaker, buttons, LCD screen, power/reset buttons
- TF card slot (supports up to 16GB)
- Built-in lithium battery
- Magnetic back design
- Expandable pins and interfaces
- M5-Bus socket
- Development Platform
- UiFlow1
- UiFlow2
- Arduino IDE
- ESP-IDF
- PlatformIO

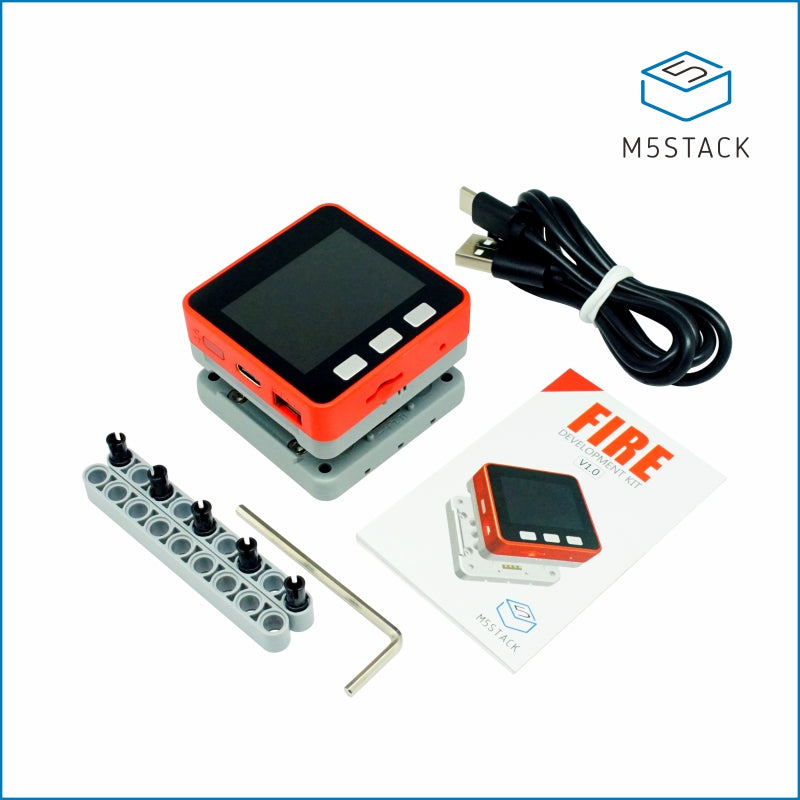

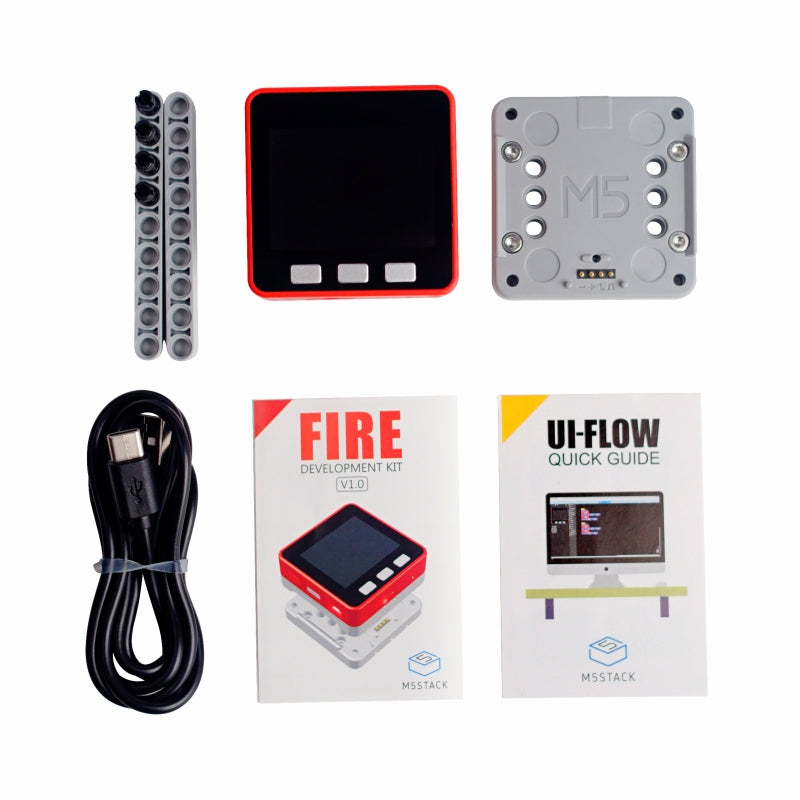

Includes
- 1 x FIRE
- 1 x M5GO Charging Base
- 2 x LEGO Bricks
- 5 x LEGO Connectors
- 1 x M3 Hex Wrench
- 1 x USB Type-C Cable (100cm)
- 1 x User Manual
Applications
- IoT Controller
- STEM Education
- DIY Projects
- Smart Home Devices
Specifications
| Main Control Resources | Parameter |
|---|---|
| SoC | ESP32-D0WDQ6@Dual-core processor, Main frequency 240MHz |
| DMIPS | 600 |
| SRAM | 520KB |
| Flash | 16MB |
| PSRAM | 8MB |
| Wi-Fi | 2.4 GHz Wi-Fi |
| Input Voltage | 5V@500mA |
| Host Interface | USB Type-C x 1, GROVE (I2C+I/O+UART) x 1 |
| IPS Screen | 2 inch, 320x240 Colorful TFT LCD, ILI9342C, Max brightness 853nit |
| Speaker | 1W-0928 |
| Microphone | MEMS Analog BSE3729 Microphone |
| LED | SK6812 3535 RGB LED x 10 |
| MEMS | BMM150 + SH200Q/MPU6886 |
| Antenna | 2.4G 3D antenna |
| Base Interface | PortA (I2C), PortB (GPIO), PortC (UART) |
| Battery | 500mAh@3.7V, inside vb |
| Operating Temperature | 0 ~ 60°C |
| Case Material | Plastic (PC) |
| Product Size | 54.0 x 54.0 x 28.6mm |
| Product Weight | 62.6g |
| Package Size | 106.7 x 69.1 x 40.4mm |
| Gross Weight | 123.8g |
