PRODUCT DETAILS
Description

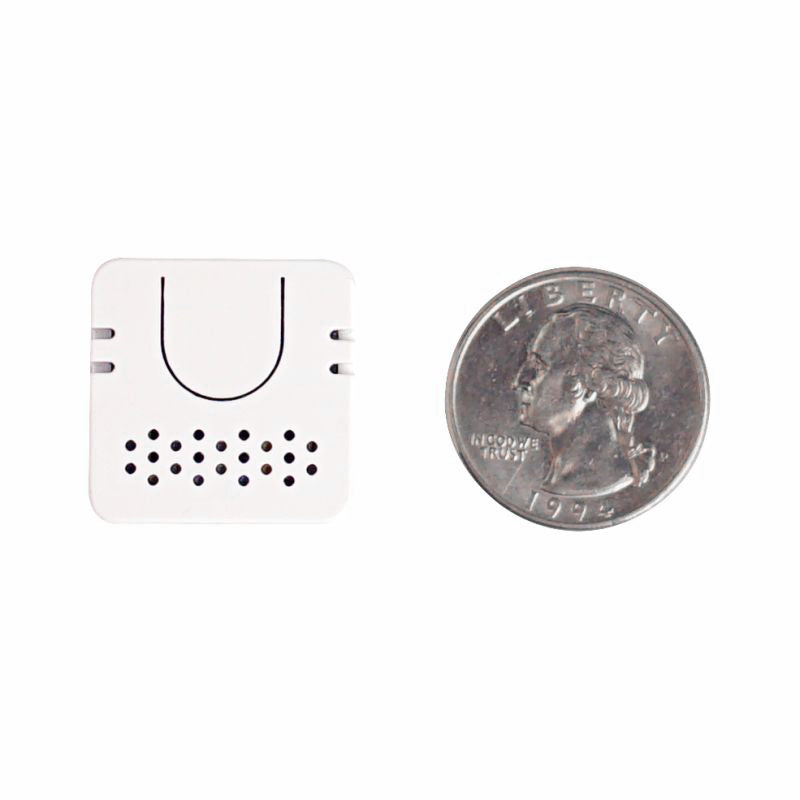

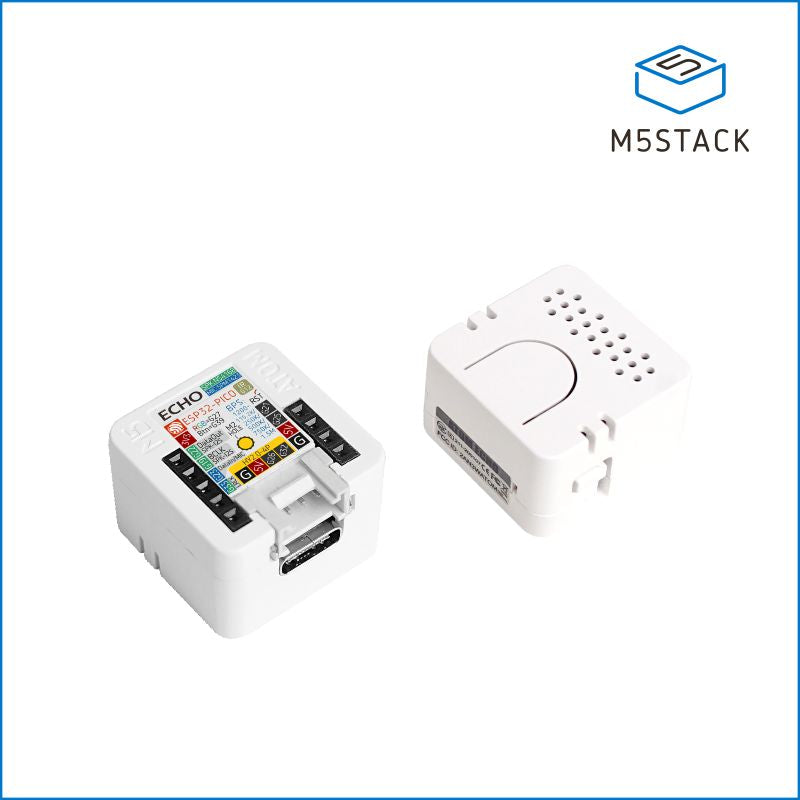

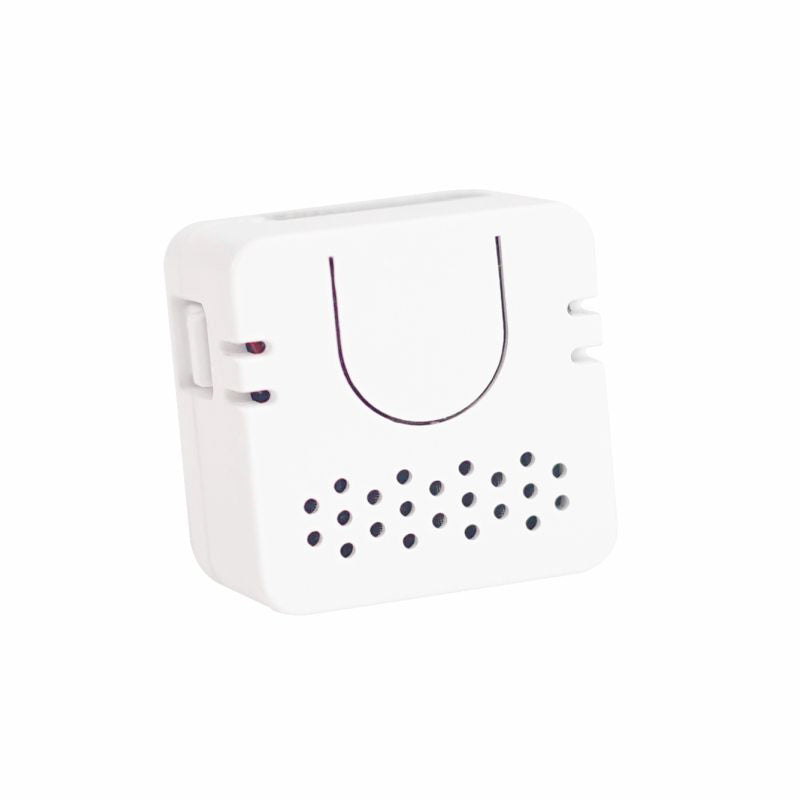

ATOM ECHO is a Programmable Smart Speaker based on the M5ATOM design. Its form factor is very small, its dimensions are only 24 * 24 * 17 mm. Music can be played using the BT capabilities of the ESP32 from a mobile phone or tablet. The device could be programmed to access AWS, Baidu and other cloud platforms, using the built-in microphone and speaker for voice interaction, so that ATOM ECHO has certain AI capabilities, realizing voice control, story telling, Internet of things and other functions. The speaker is embedded with an RGB LED (SK6812), which can visually display the connection status. In addition to being used as a BT speaker, it still has the control ability of Atom series. Screw hole on the back is convenient for users to installation.
Product Features
- Light and compact
- Support STT services
- Based on ESP32, Support A2DP
- 2.4G Wi-Fi IEEE 802.11b/g/n
- Built-in microphone and speaker
- RGB LED status display indication
- Grove extension interface
- Record and playback
- Programmable key
- Programming platform:Arduino, ESP-IDF/ADF
Include
- 1x ATOM ECHO
Applications
- BT Speaker
- Voice Control
- Home Automation

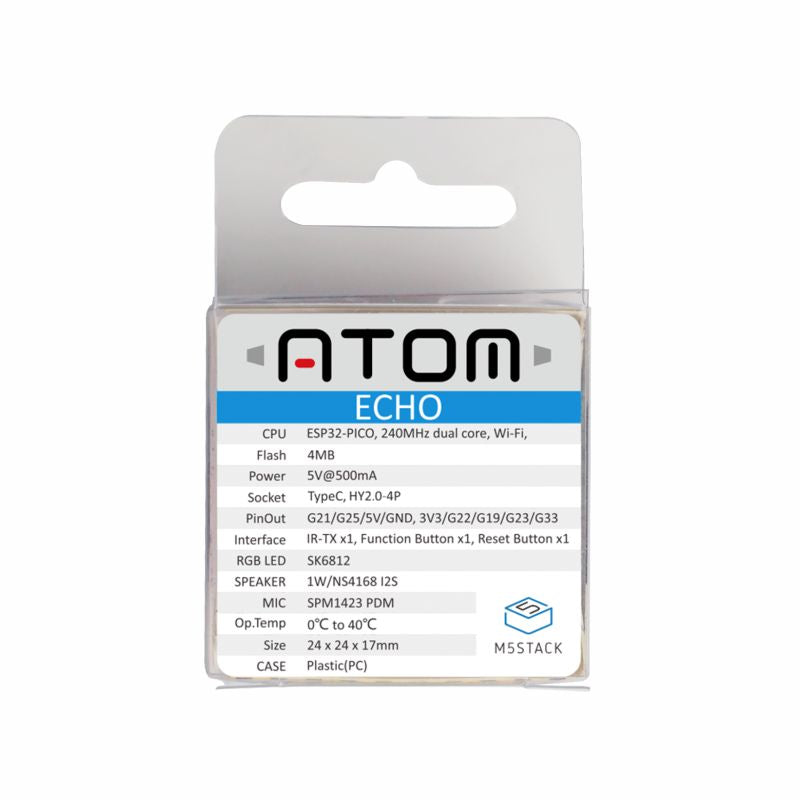

Specification
| Resources | Parameter |
|---|---|
| SoC | ESP-PICO-D4, 240MHz, Dual Core, Wi-Fi |
| Flash | 4MB |
| Interface | 1x IR-TX,1x Function Button,1x Reset Button |

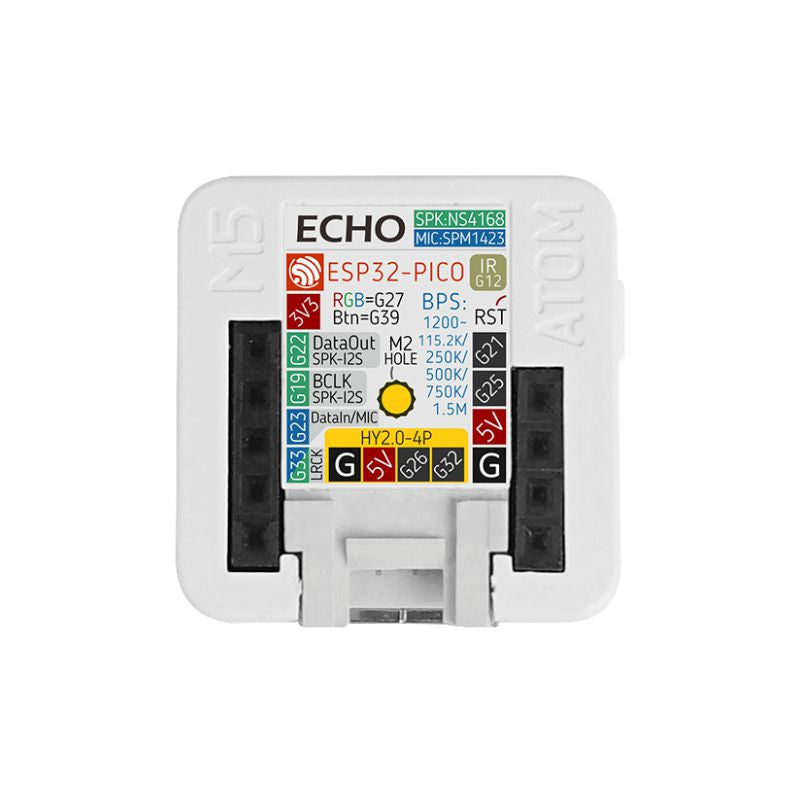

| PinOut | G21/G25/5V/GND, 3V3/G22/G19/G23/G33 |
| RGB LED | SK6812 |
| Speaker | 0.5W/NS4168 I2S |
| Microphone | SPM1423 PDM |
| Net weight | 5g |
| Gross weight | 10g |
| Product Size | 24*24*17mm |

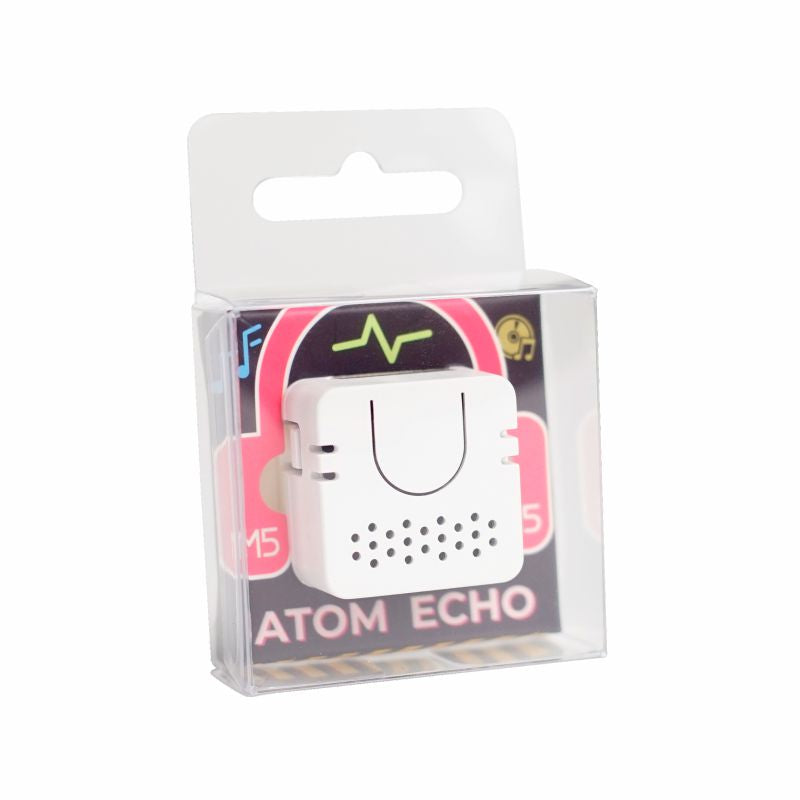

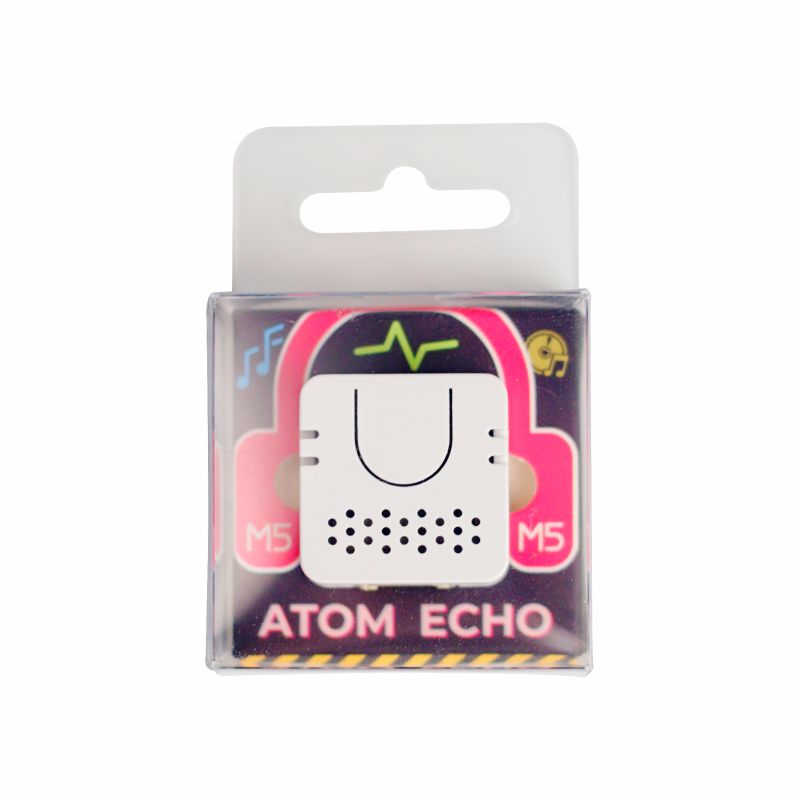

| Package Size | 63*63*12mm |
| Case Material | Plastic ( PC ) |
